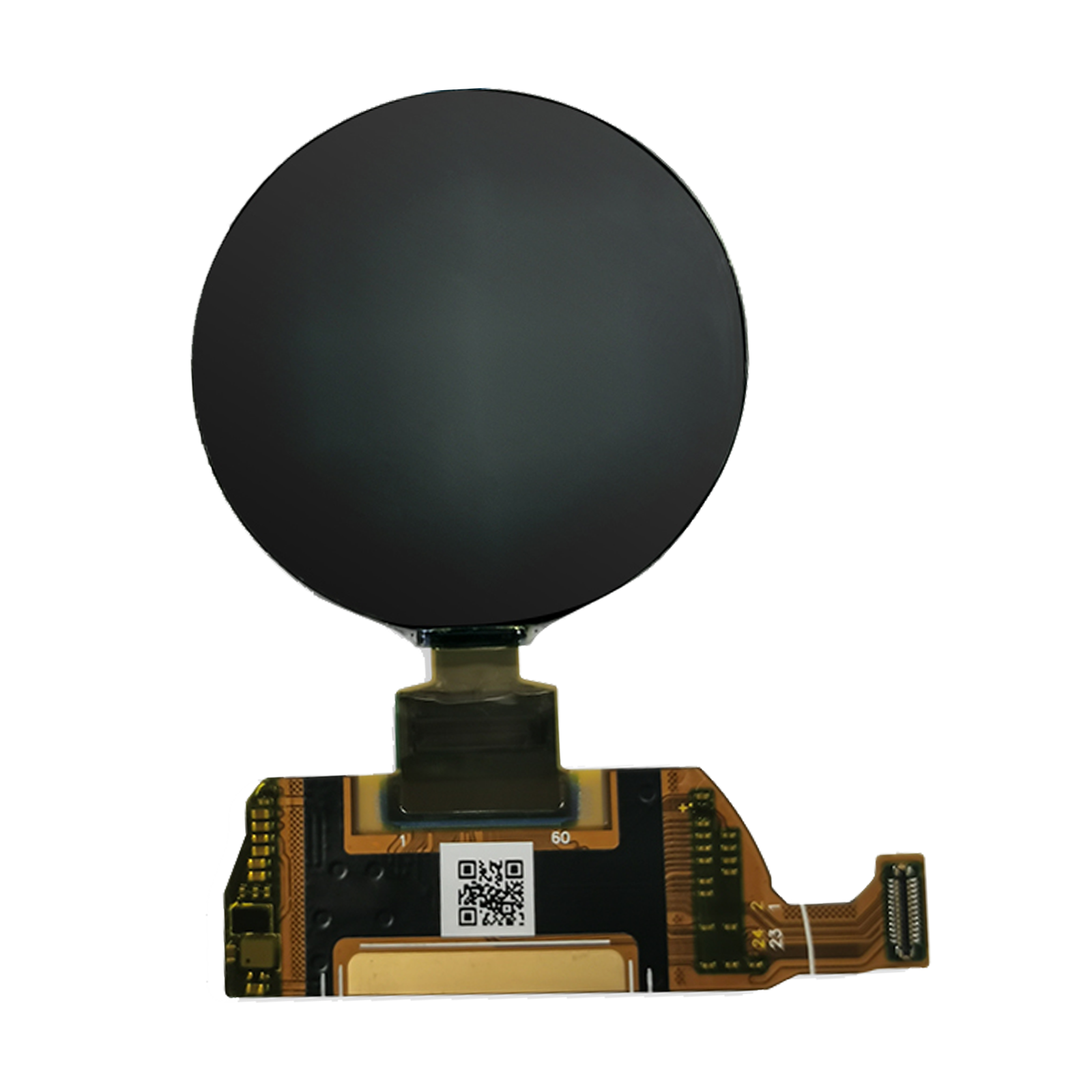

1.4-inch Round AMOLED Display Panel, 454x454 resolution, 16.7M colors, MIPI and SPI interfaces

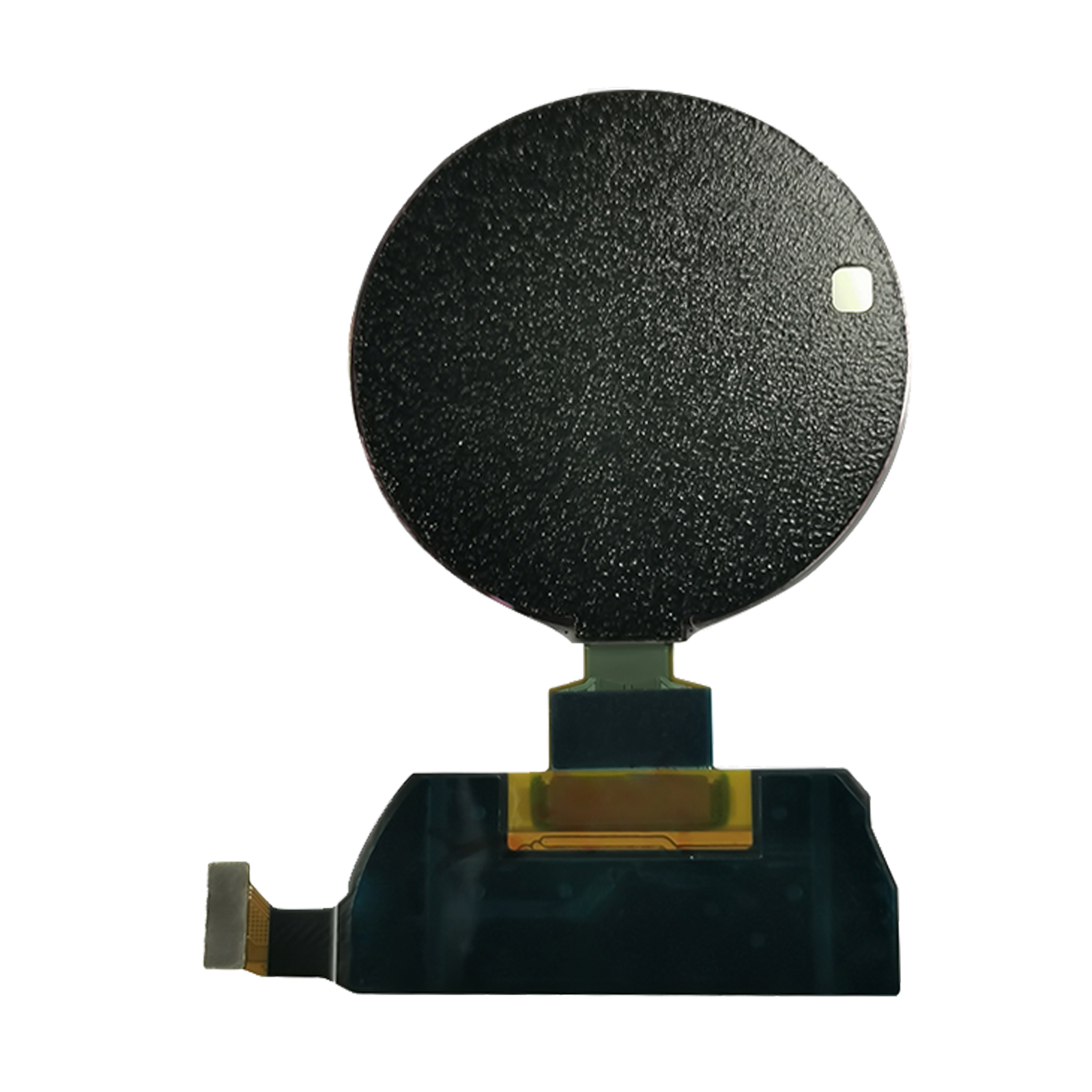

Back of 1.4-inch Round AMOLED Display

1.4" Round OLED Display 454x454 16.7M Colors - MIPI, SPI

Regular price $39.90
Sale price $39.90 Regular price
Datesheet:
  • Type:
  • Availability:
    In Stock
  • SKU:
    DM-OLEDR14-677
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Display Specifications

  • Diagonal Dimension : 1.4 inch
  • Resolution : 454RGB x 454 pixel
  • View Direction :  Top: 85, Bottom: 85; Left/Right: 85
  • Touch Mode : None
  • Module Dimension : 38.83H) x 38.21(W) x 0.68(D) mm
  • Viewing Area :35.412 x 35.412 mm
  • Supply Voltage : 4.6 V
  • Interface : MIPI, SPI
  • Luminance : 350 cd/m2
  • Drive IC : RM69330
  • Operation Temperature: -20°C~ +60°C
  • Storage Temperature : -30°C~ +70°C

Dimensions
