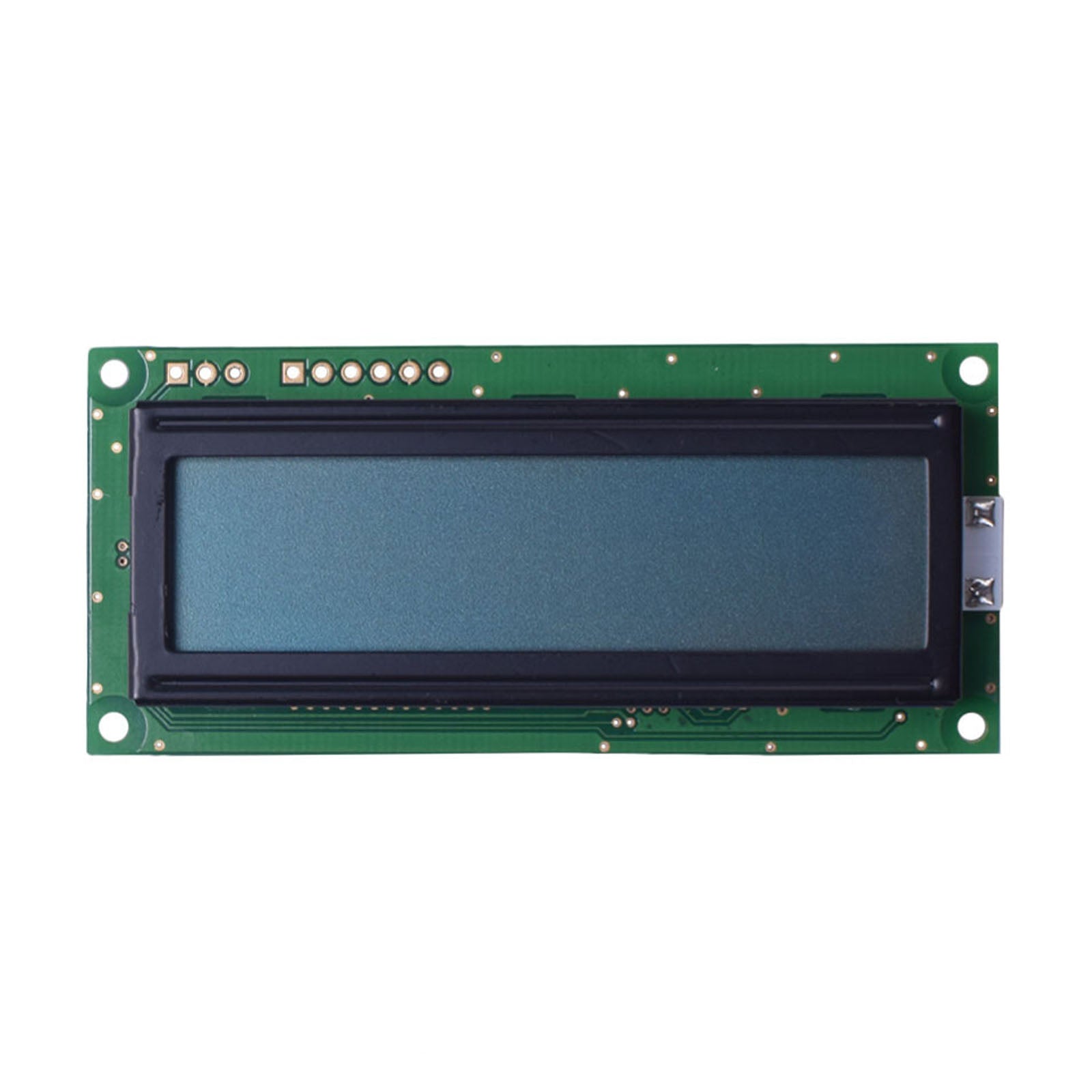

16x2 character gray LCD module with STN transflective technology and MCU interface

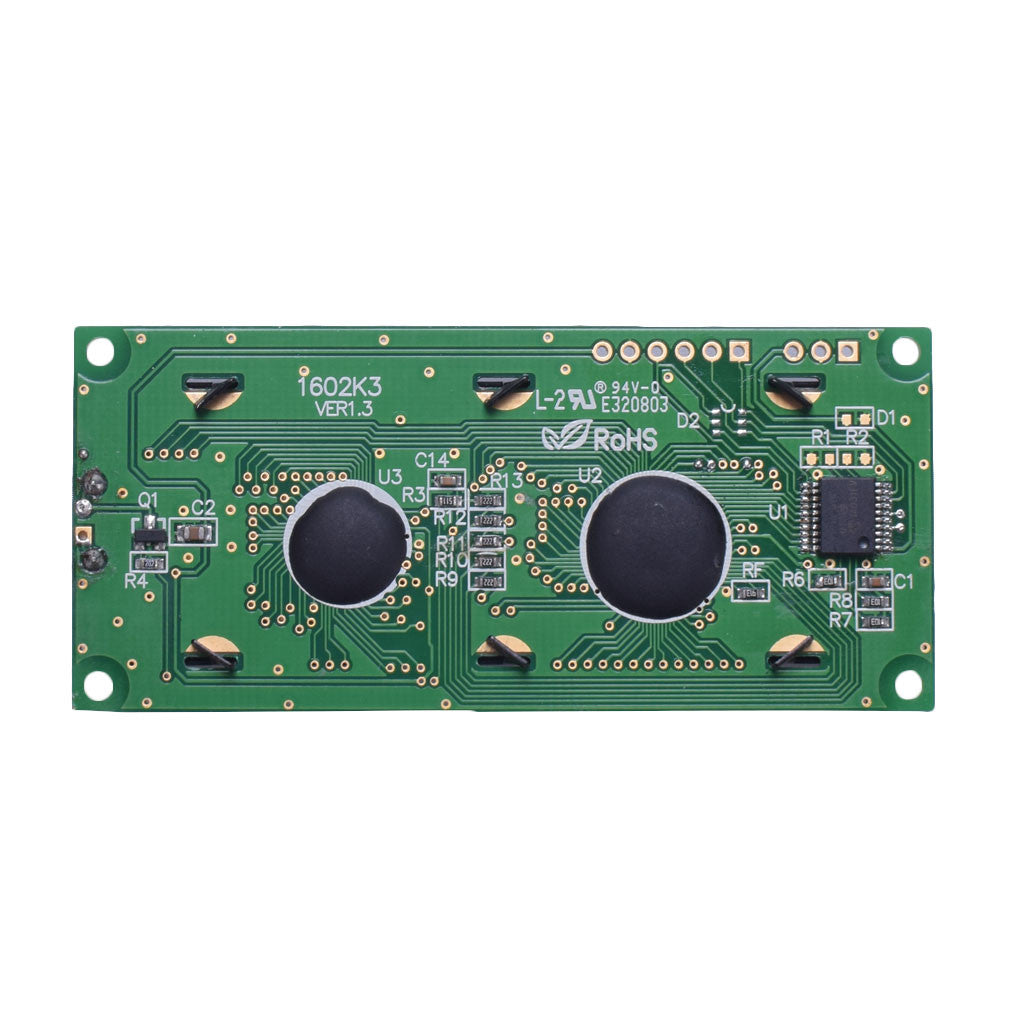

back of 16x2 character LCD module

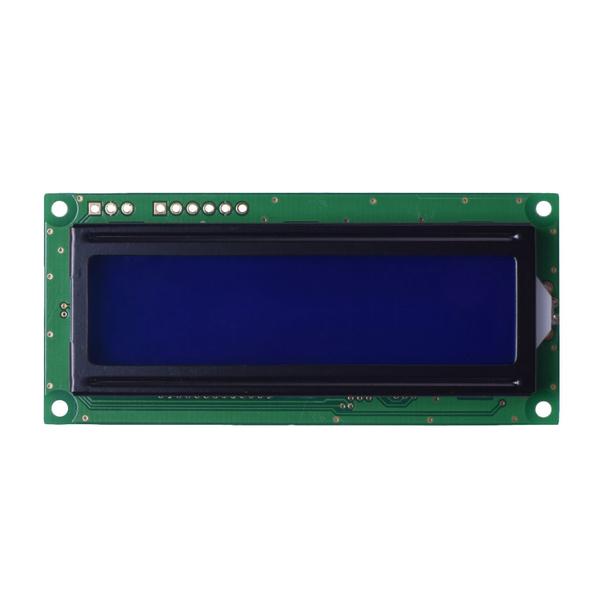

16x2 character blue LCD module

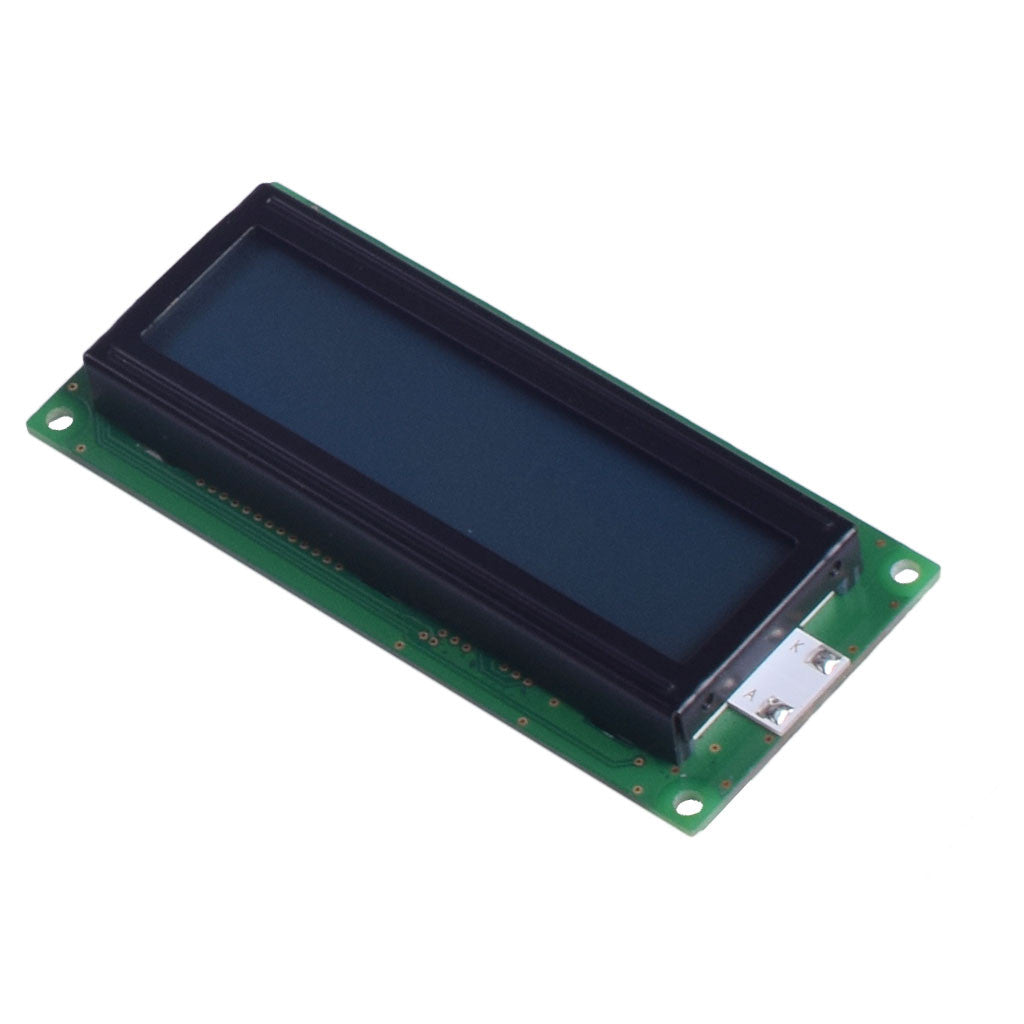

top view of 16x2 character LCD module

16x2 Character LCD STN Transflective - RS232, I2C, SPI

Regular price $19.90
Sale price $19.90 Regular price $11.99
Datesheet:
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Display Specifications

  • Display Format : 16 characters x 2 lines
  • Display Mode : STN, Transflective
  • View Direction : 6:00
  • Module Dimension : 80.0 x 36.0 x 13.5(MAX) mm
  • Power Supply : 5.0 V
  • Backlight : Yellow/Green LED
  • Interface : Serial Interface:I2C, SPI or RS-232(TTL)
  • Controller IC : SPLC780D or equivalent
  • Operation Temperature : -20℃~70℃
  • Storage Temperature : -30℃~80℃
  • Weight : 34.7g

Dimensions

Resources

Product reviews
