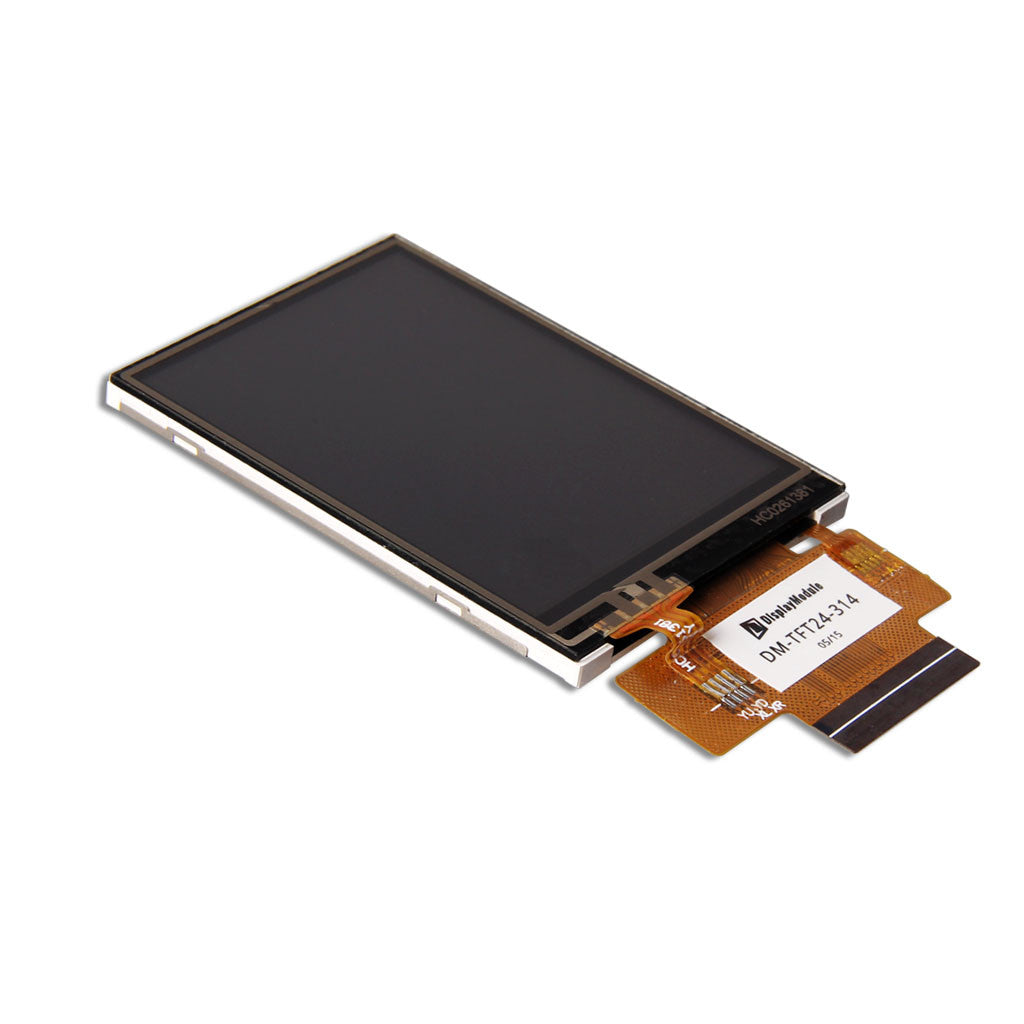

2.4 inch TFT Display Panel with ILI9341 driver and 240x320 resolution, featuring resistive touch capability, utilizing MCU interface

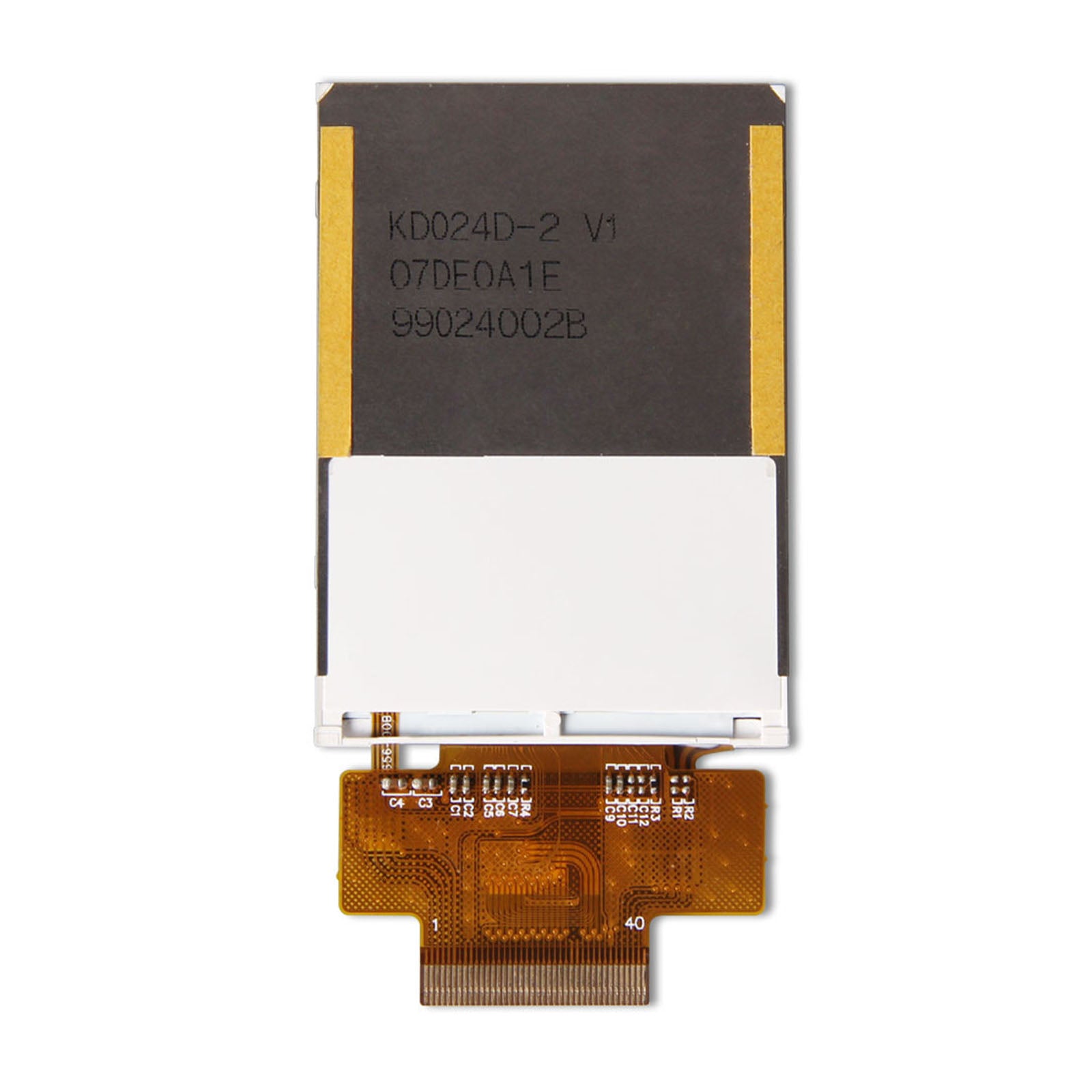

Back of 2.4 inch TFT Display Panel with ILI9341 driver and 240x320 resolution, featuring resistive touch capability, utilizing MCU interface

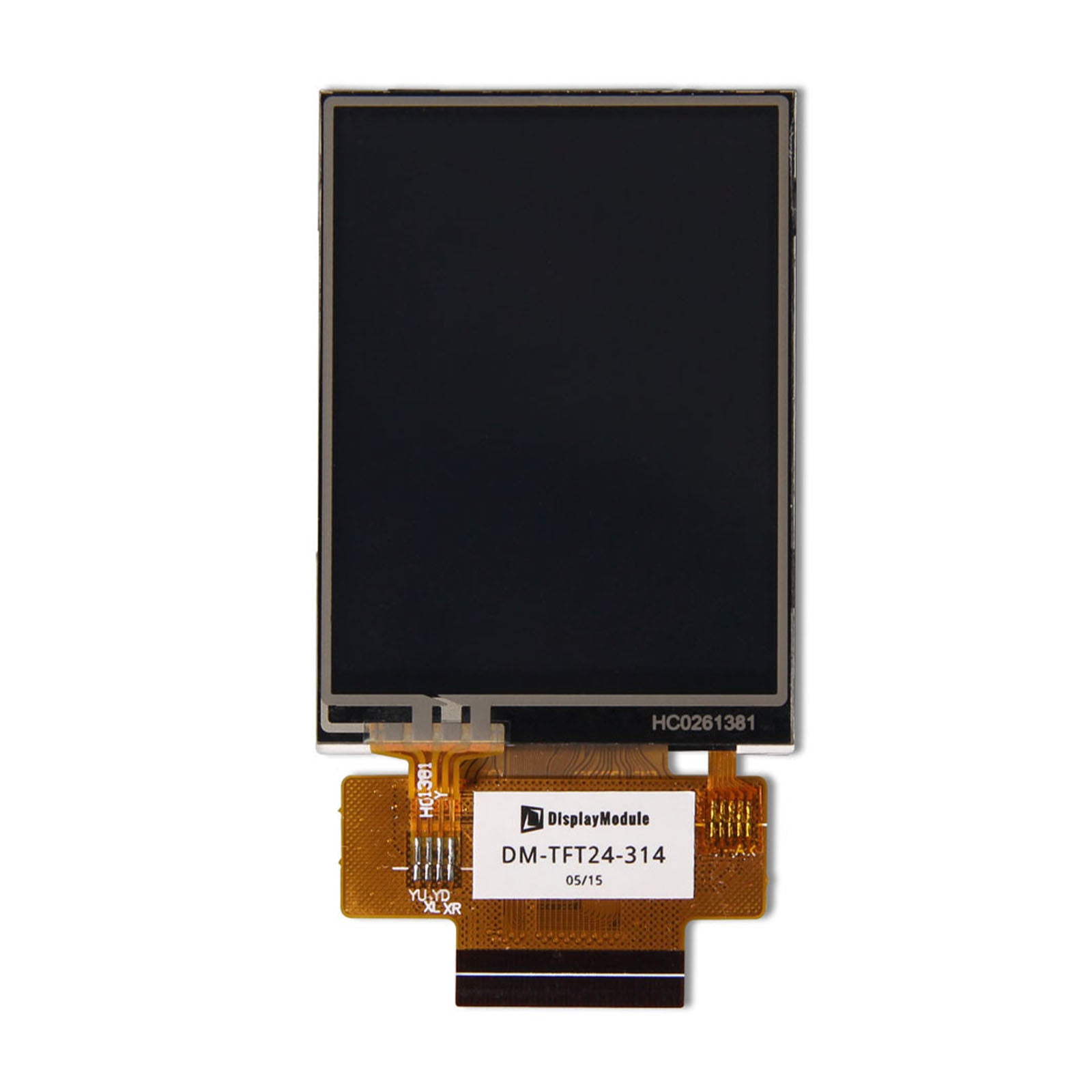

Top view of 2.4 inch TFT Display Panel with ILI9341 driver and 240x320 resolution, featuring resistive touch capability, utilizing MCU interface

2.4" TFT(ILI9341) Display 240x320 Resistive - MCU

Regular price $19.90
Sale price $19.90 Regular price $18.88
Datesheet:
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Display Specifications

  • Diagonal Dimension : 2.4 inch
  • Resolution : 240x320 pixel
  • View Direction : 12 o’clock
  • Touch Mode : Resistive
  • Module Dimension : 47.72(H)x60.26(V)x5.8(D) mm
  • Viewing Area : 36.72(H)x48.96(V) mm
  • Supply Voltage : 3.3 V
  • Interface : 8/16bit MCU
  • Luminance : ≥250 cd/m2
  • Drive IC : ILI9341V
  • Operation Temperature : -20℃~70℃
  • Storage Temperature : -30℃~80℃

Dimensions

Resources

Source code and examples can be found in our DmTftLibrary and its User Guide
