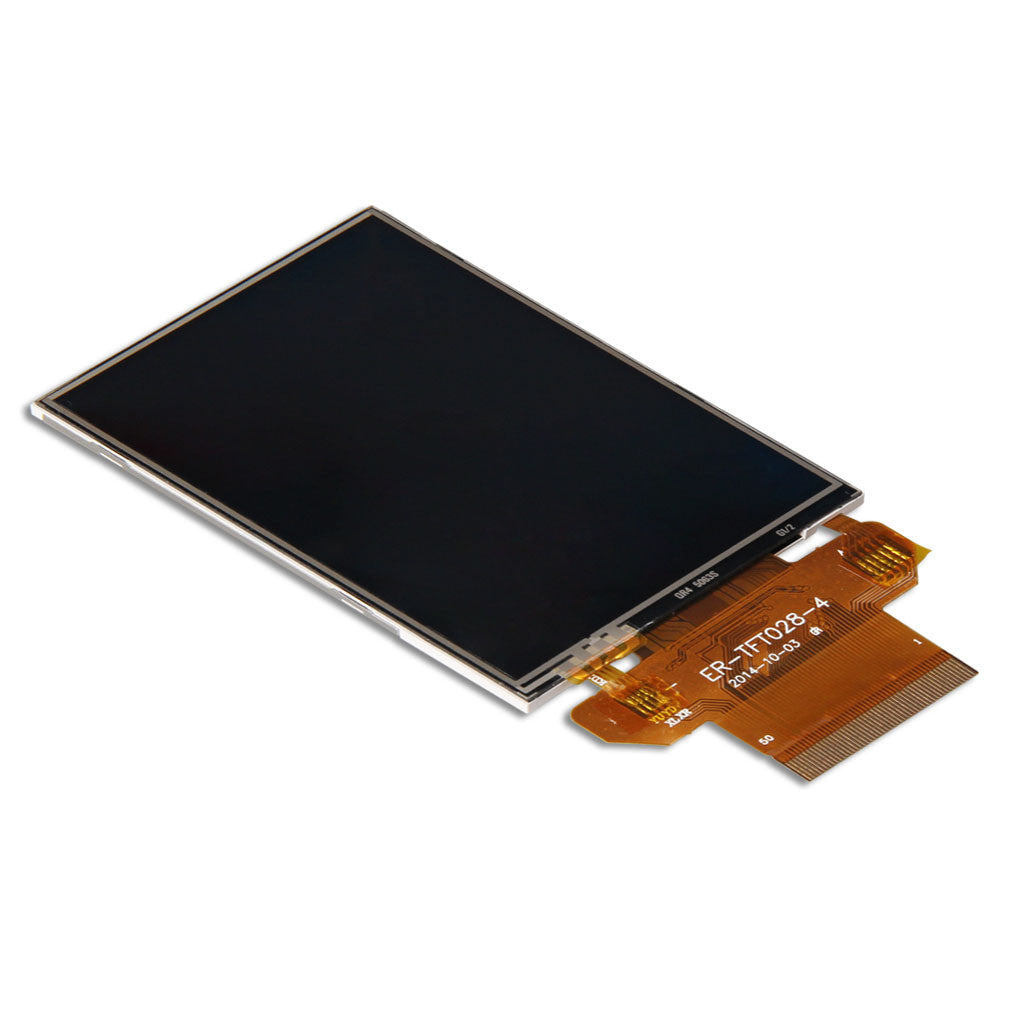

• 2.8 inch TFT Display Panel with ILI9341 driver and 240x320 resolution, utilizing SPI, MCU, and RGB interfaces

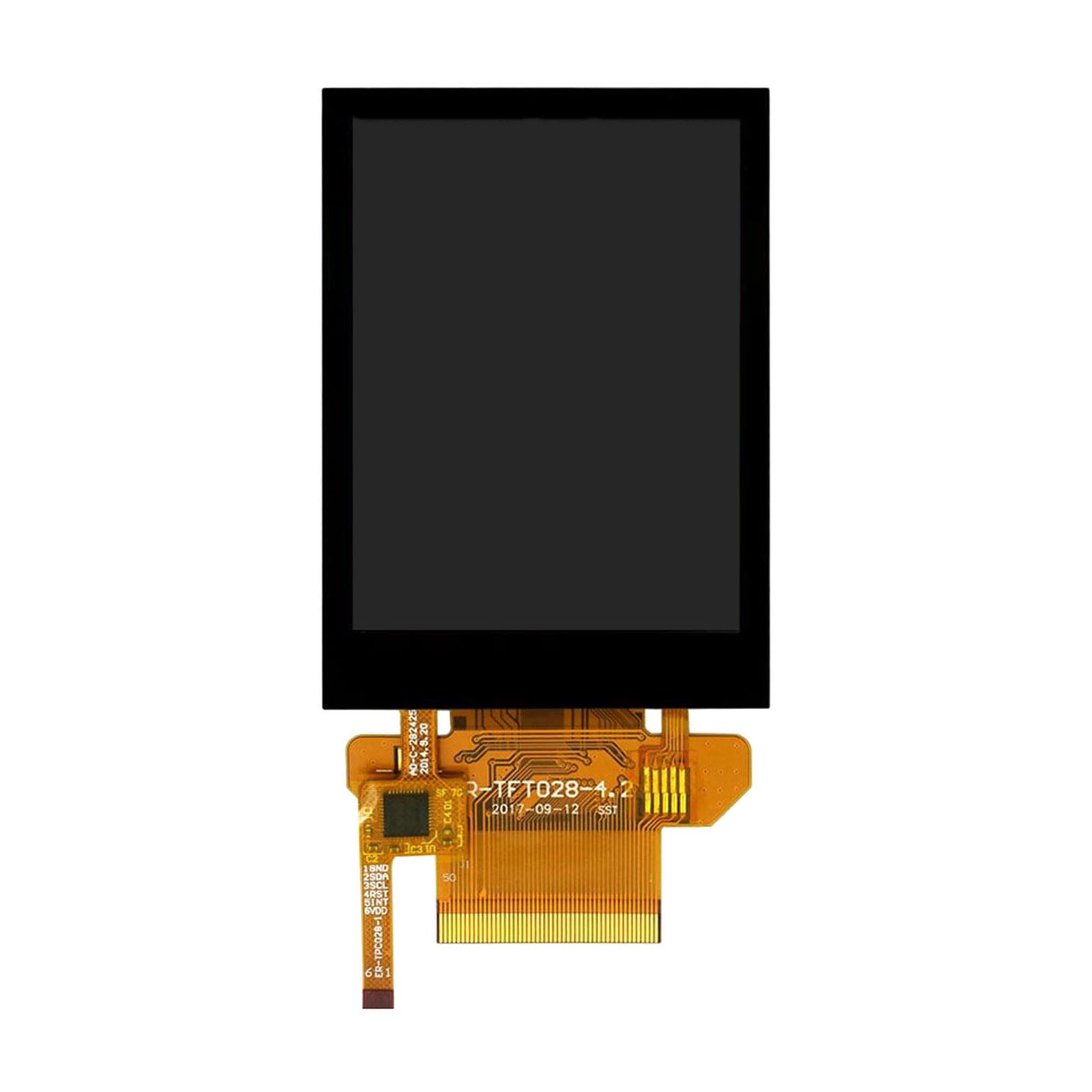

  • 2.8 inch TFT Display Panel with ILI9341 driver and 240x320 resolution, featuring resistive touch capability, utilizing SPI, MCU, and RGB interfaces

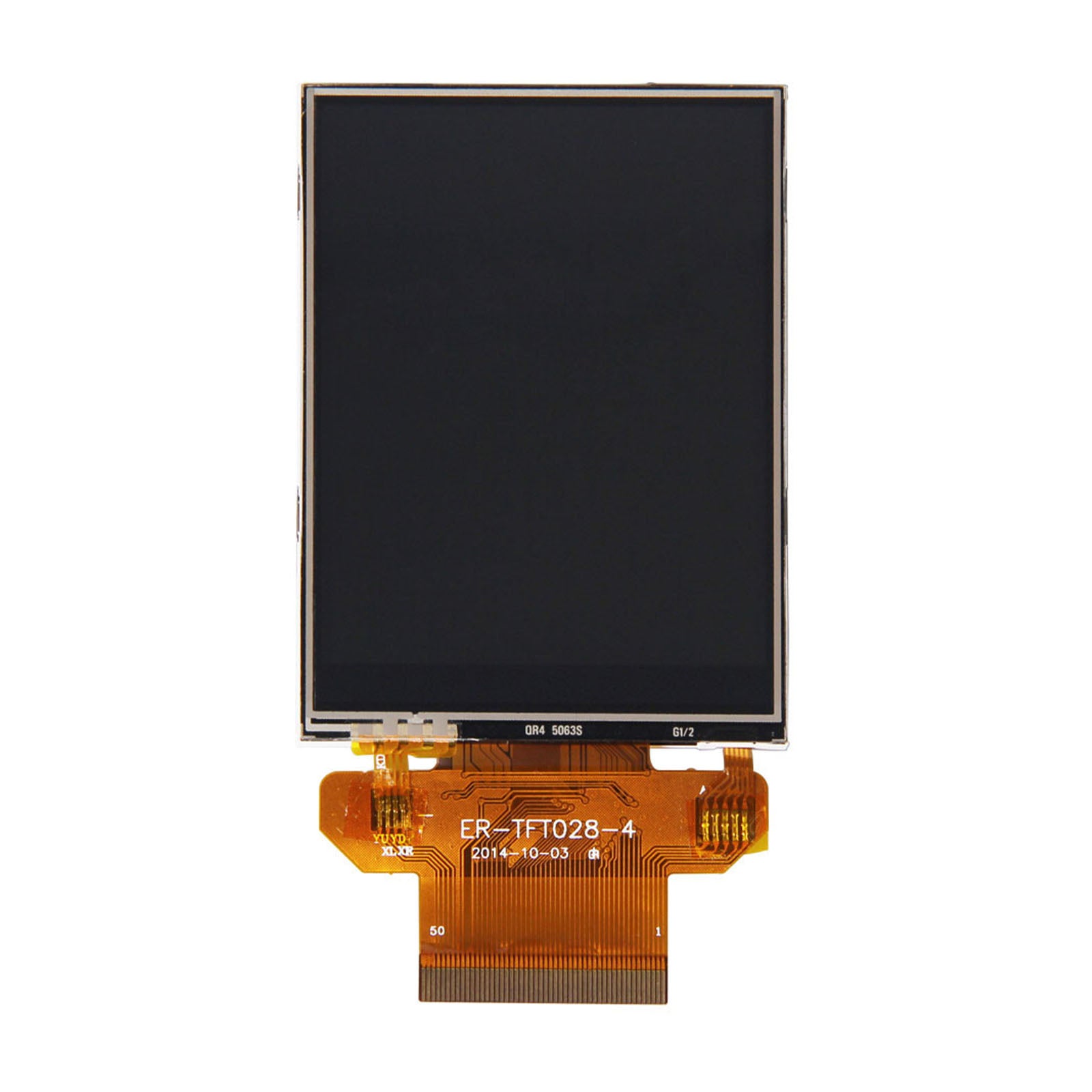

  • Top view of 2.8 inch TFT Display Panel with ILI9341 driver and 240x320 resolution, featuring resistive touch capability
1 / 1

2.8" 240x320 TFT Display Panel (ILI9341) with Resistive Touch - SPI, MCU, RGB

$29.90
Shipping calculated at checkout.
SKU: DM-TFT28-304
2.8 inch TFT Display Panel with ILI9341 driver and 240x320 resolution, utilizing SPI, MCU, and RGB interfaces
$29.90

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
View details

Display Specifications

  • Diagonal Dimension : 2.8 inch
  • Resolution : 240x320 pixel
  • View Direction : 12 o’clock
  • Touch Mode : None
  • Module Dimension : 70.10x55.14 mm
  • Viewing Area : 57.6x43.2 mm
  • Supply Voltage : 2.8 V
  • Interface : 8/9/16/18-Bit MCU, 16/18-Bit RGB, 3/4-Wire SPI
  • Luminance : - cd/m2
  • Drive IC : ILI9341,XPT2046
  • Operation Temperature : -20℃~70℃
  • Storage Temperature : -30℃~80℃

Resources

DM-TFT28-304

Please refer to 2.8" TFT Touch Shield with 4MB Flash for Arduino and mbed (DM-TFT28-105)
