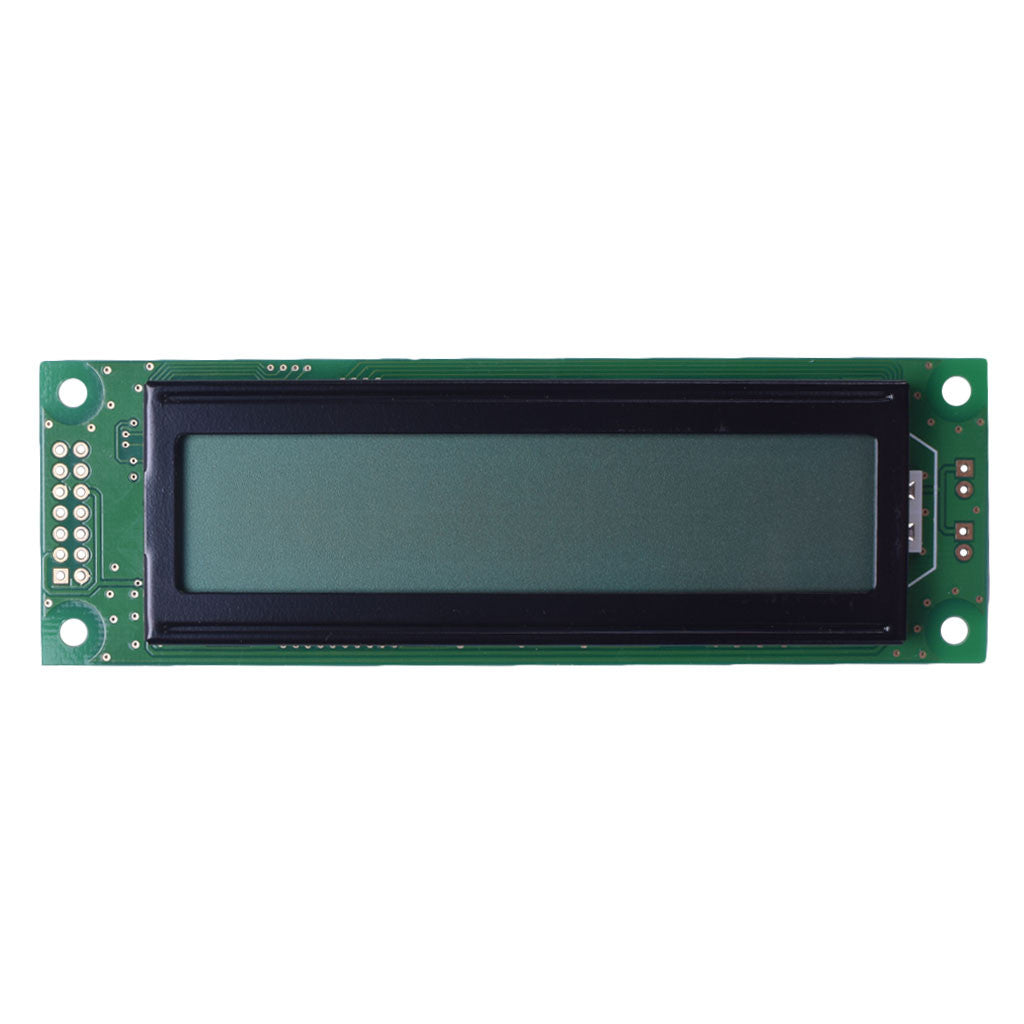

LCD module displaying 20x2 characters, utilizing RS232, I2C, and SPI interfaces

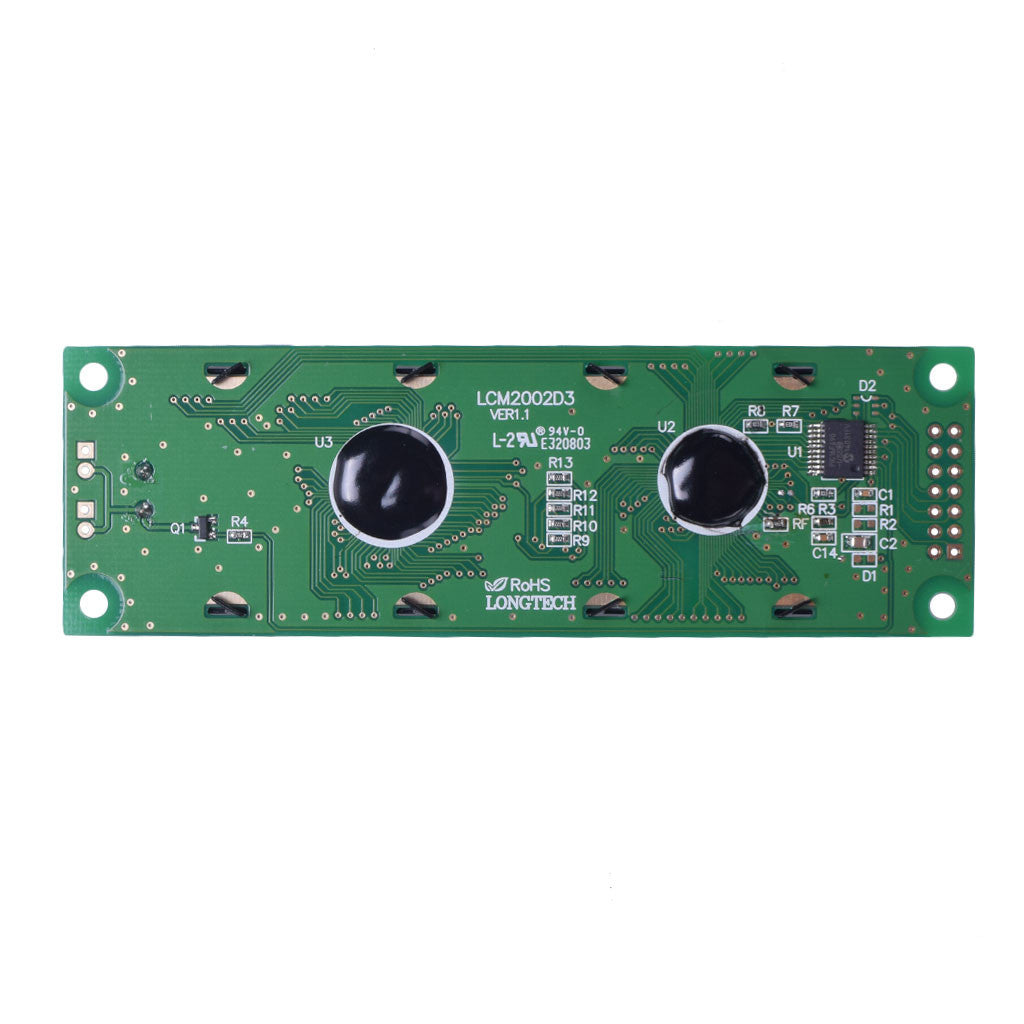

Back of LCD module displaying 20x2 characters

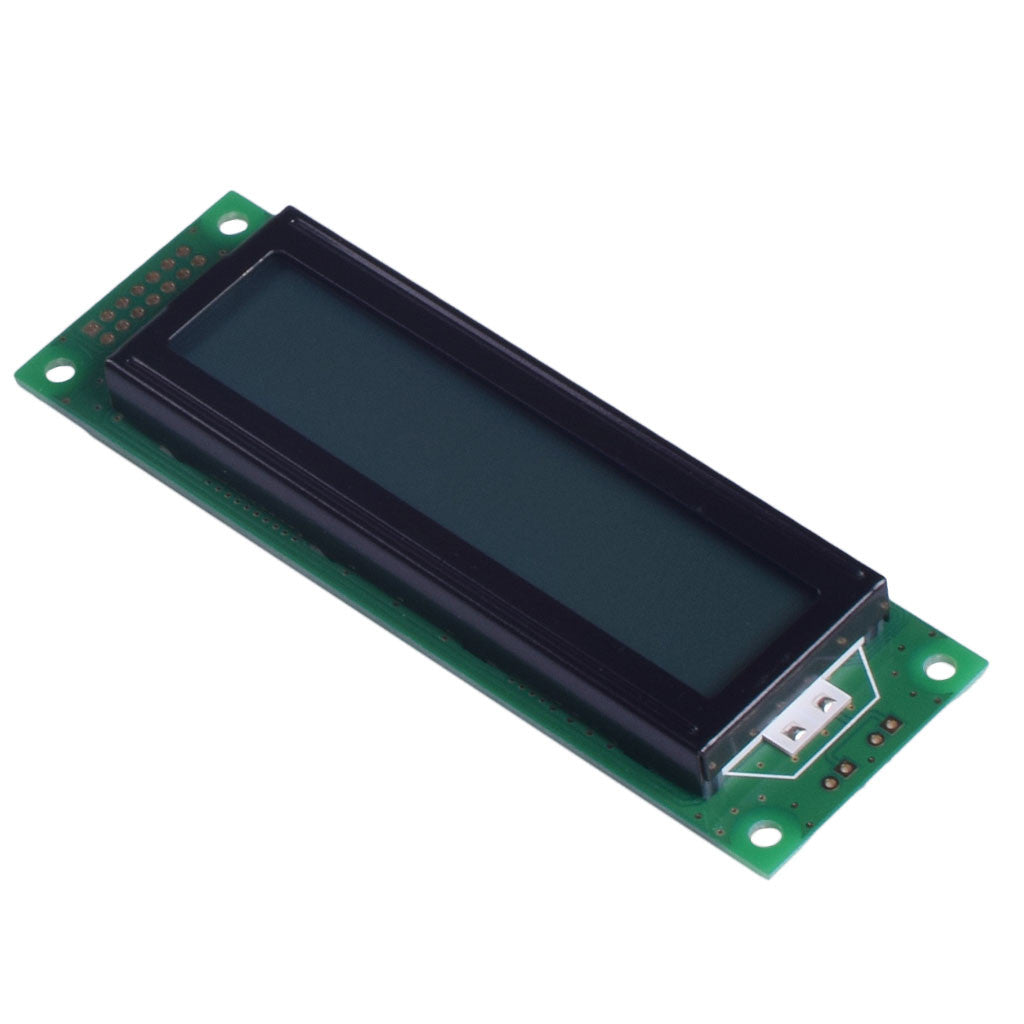

Top view of LCD module displaying 20x2 characters

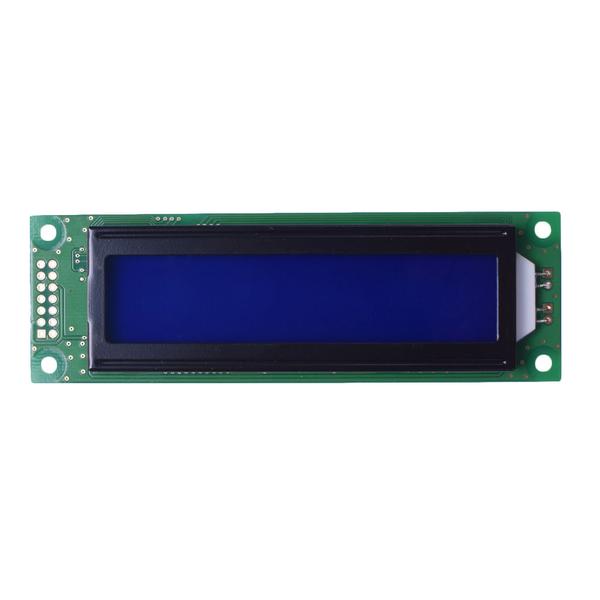

Blue LCD module displaying 20x2 characters, utilizing RS232, I2C, and SPI interfaces

20x2 Character LCD - RS232, I2C, SPI

Regular price $29.90
Sale price $29.90 Regular price $17.99
Datesheet:
Gray
Blue
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Display Specifications

  • Display Format : 20 characters x 2 lines
  • Display Mode : STN Gray, Transflective
  • View Direction : 6:00
  • Module Dimension : 116.0 x 37.0 x 13.5 (MAX) mm
  • Power Supply : 5.0 V
  • Backlight : Yellow/Green LED
  • Interface : Serial Interface:I2C, SPI or RS-232(TTL)
  • Controller IC : ST7066U and PIC16F690
  • Operation Temperature : -20℃~70℃
  • Storage Temperature : -30℃~80℃
  • Weight : 53.2 g

Dimensions
