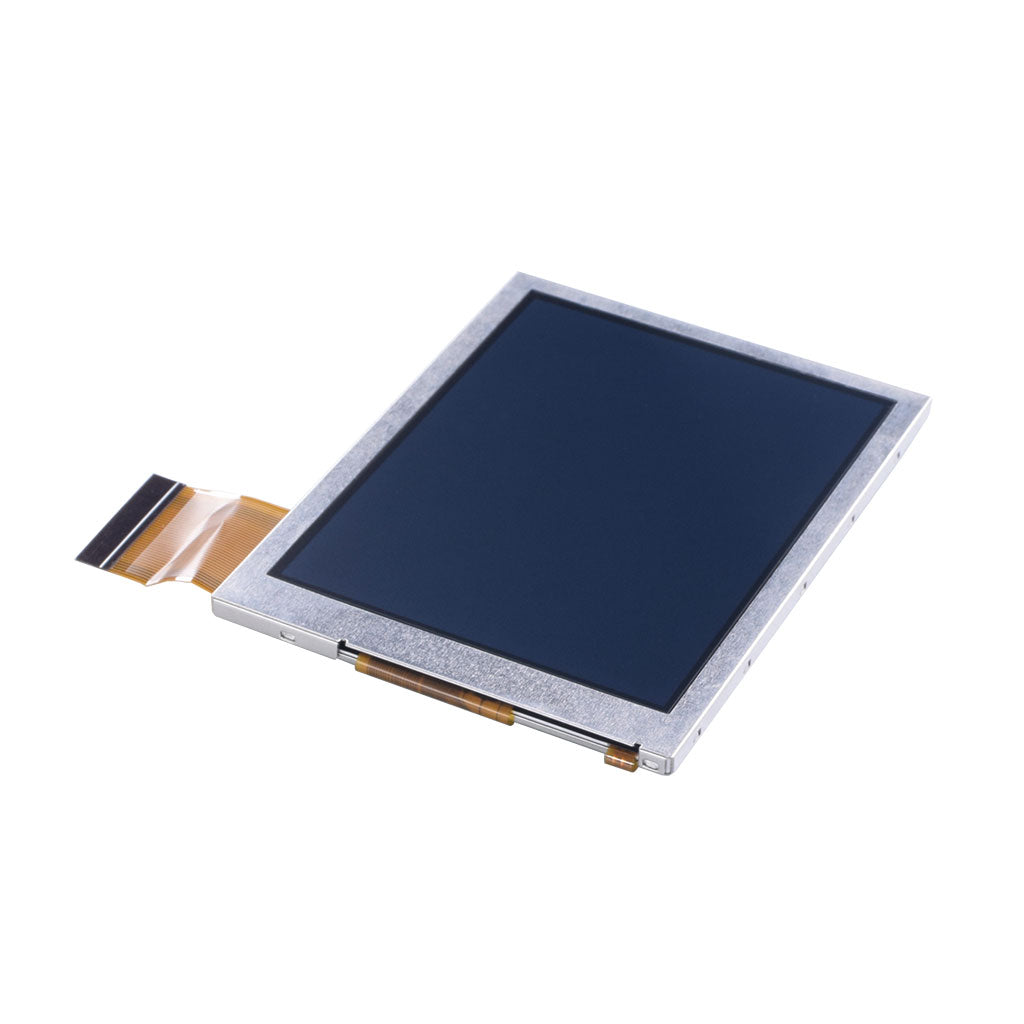

3.5-inch transflective TFT display panel with 480x640 resolution and RGB interface

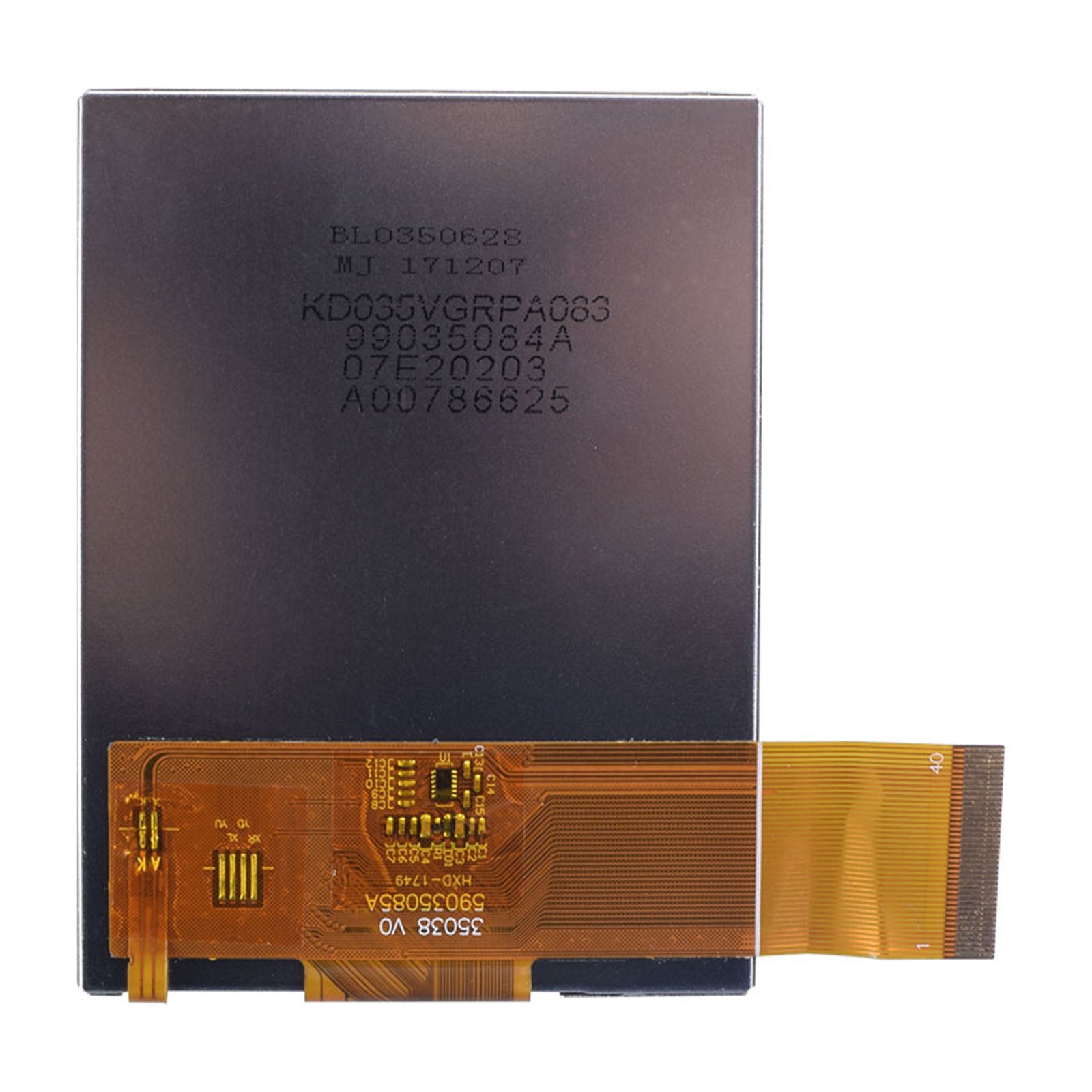

back of 3.5-inch transflective TFT display panel

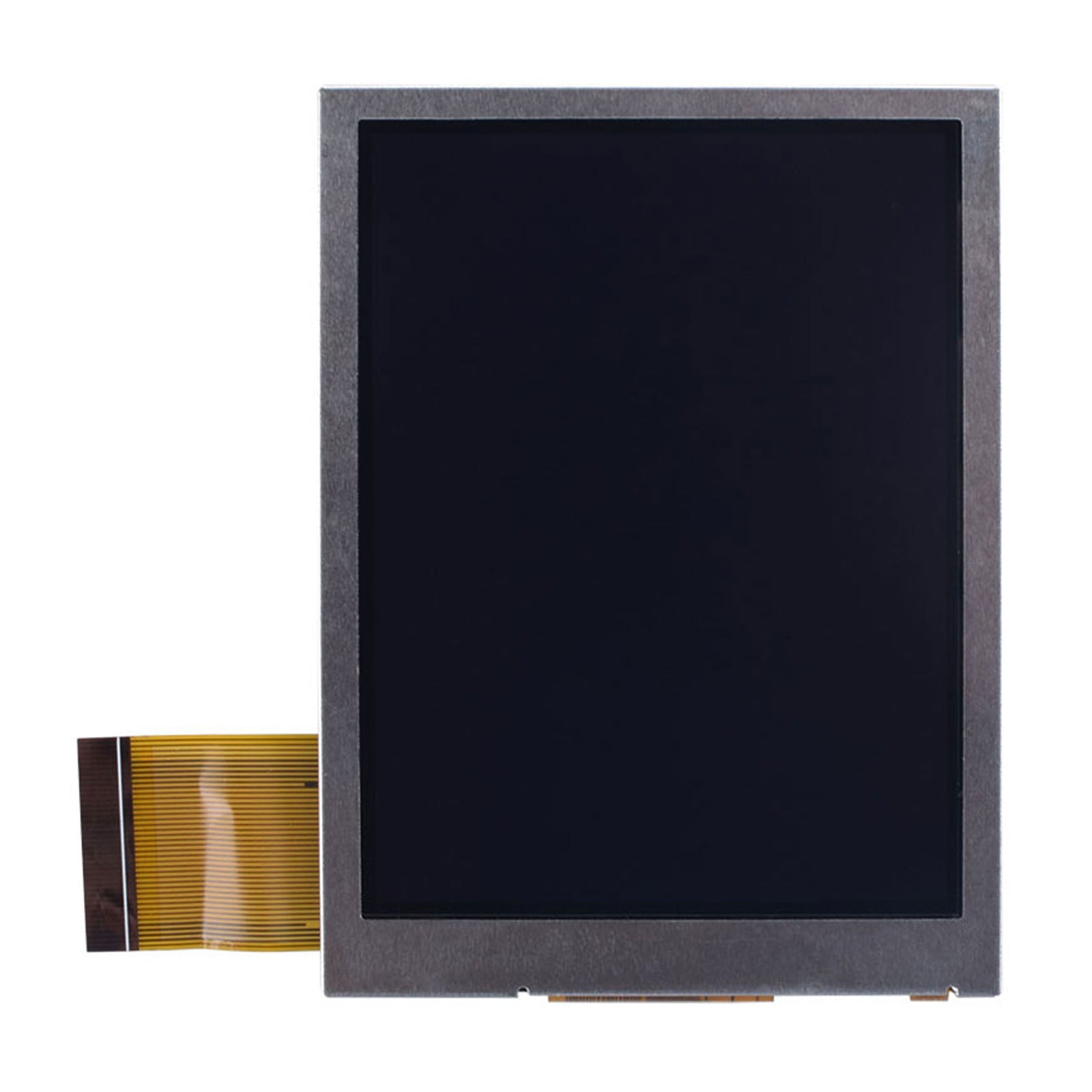

top view of 3.5-inch transflective TFT display panel

3.5" 480x640 TFT Transflective Display Panel - RGB

Regular price $59.00
Sale price $59.00 Regular price
Datesheet:
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Display Specifications

  • Diagonal Dimension : 3.5 inch
  • Resolution : 480x640 pixel
  • View Direction : Wide angle
  • Touch Mode : None
  • Module Dimension : 64.0x85.0x3.1 mm
  • Viewing Area : 53.57x71.42 mm
  • Supply Voltage : 3.3 V
  • Interface : 3SPI+16/18bit RGB
  • Luminance : 115 cd/m2
  • Drive IC : HX8363
  • Operation Temperature : -20℃~70℃
  • Storage Temperature : -30℃~80℃

Dimensions

Resources

  • No init code needed for this display panel.
