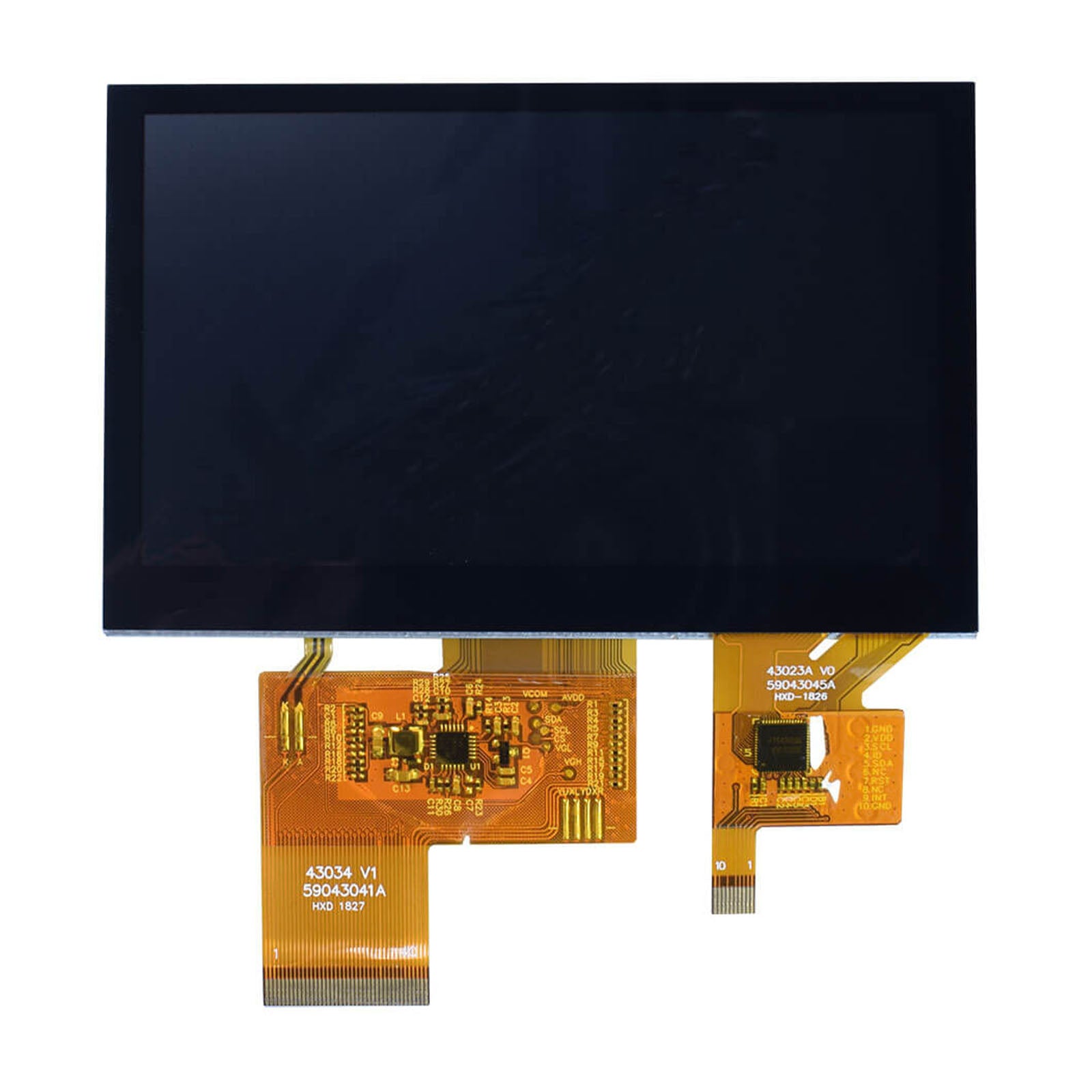

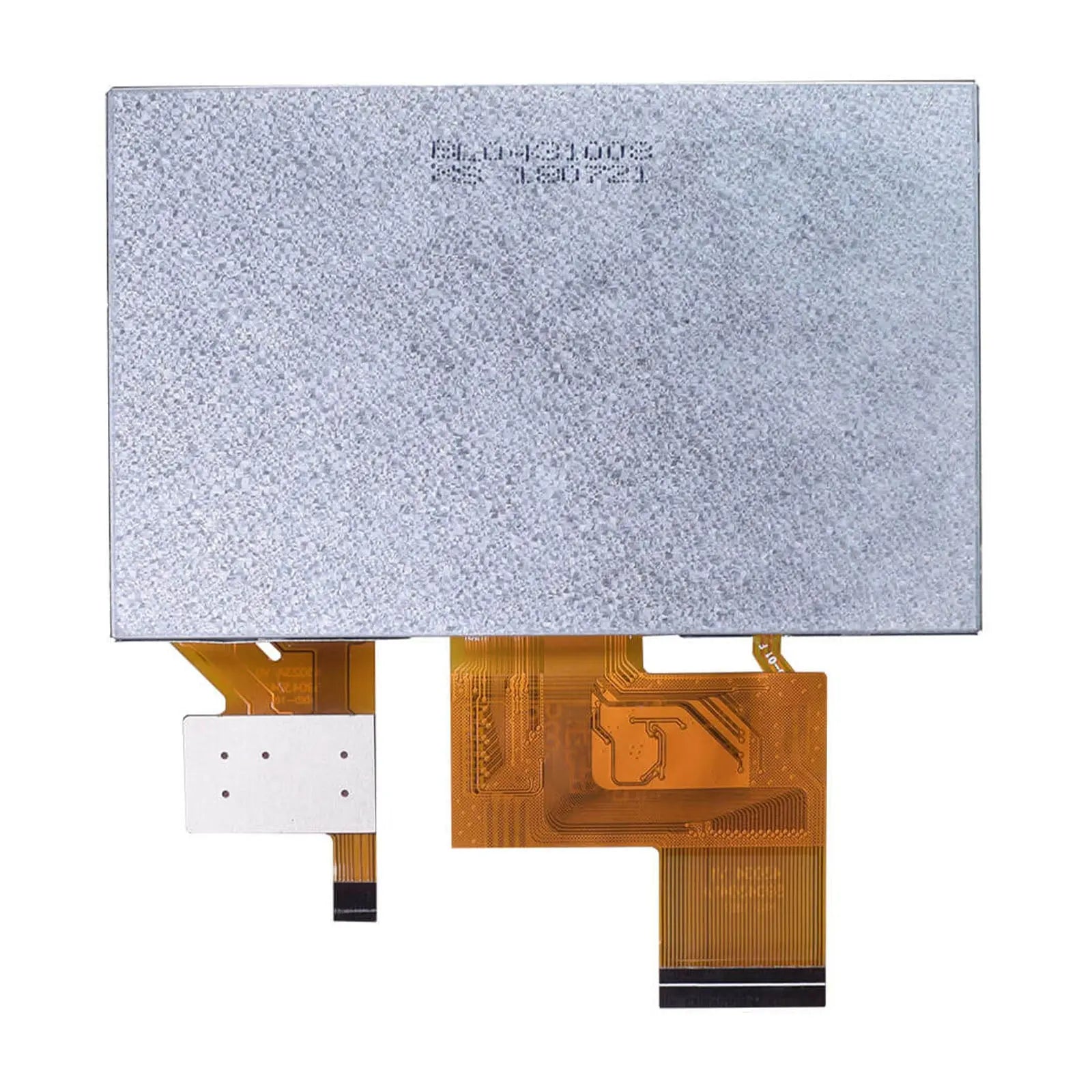

4.3" IPS Display 800x480 Capacitive - RGB
4.3" IPS Display 800x480 Capacitive - RGB
SKU:DM-TFT43-372
Regular price
$59.00 USD
Regular price
Sale price
$59.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| 1 pcs | original price |
| 5 pcs | 8% off |
| 10 pcs | 10% off |
Shipping
Shipping
Standard and expedited shipping available, free expedited shipping over $600. Lenrn more
Easy Returns
Easy Returns
No need to worry about buying products that don't fit your design, we offer a 30-day no-questions-asked return service.
More Order, More Save
More Order, More Save
The higher the quantity ordered, the greater the discount, so contact us for the discount price! Contact us
Share
Display Specifications
- Diagonal Dimension : 4.3 inch
- Resolution : 800x480 pixel
- View Direction : All
- Touch Mode : Five points and Gestures
- Module Dimension : 105.40(H)x67.15(V)x4.36(D) mm
- Viewing Area : 95.04(H)x53.86(V) mm
- Supply Voltage : 3.3 V
- Interface : 16/18/24bit RGB
- Luminance : 459 cd/m2
- Drive IC : HX8264 +HX8664 FT5436DQQ
- Operation Temperature : -30℃~85℃
- Storage Temperature : -30℃~85℃
Dimensions
Resources
- DM-TFT43-372
- Display Controller: HX8264 / HX8664
- Touch Driver IC: FT5436-V1.0, Please contact info@displaymodule.com to ask for the datasheet.
- No init code needed for this display panel
