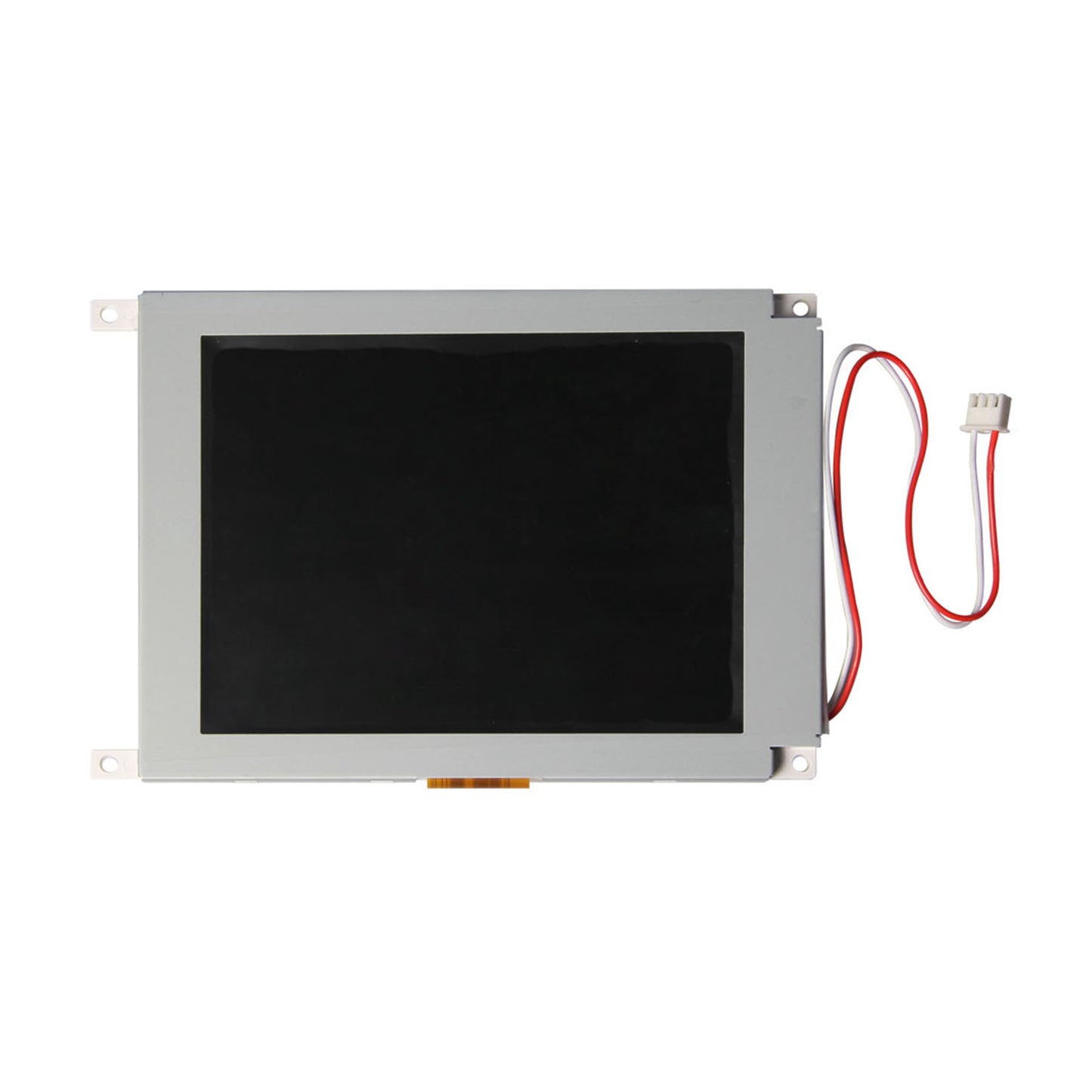

5.7-inch TFT display module with a 320x240 resolution, connected via MCU

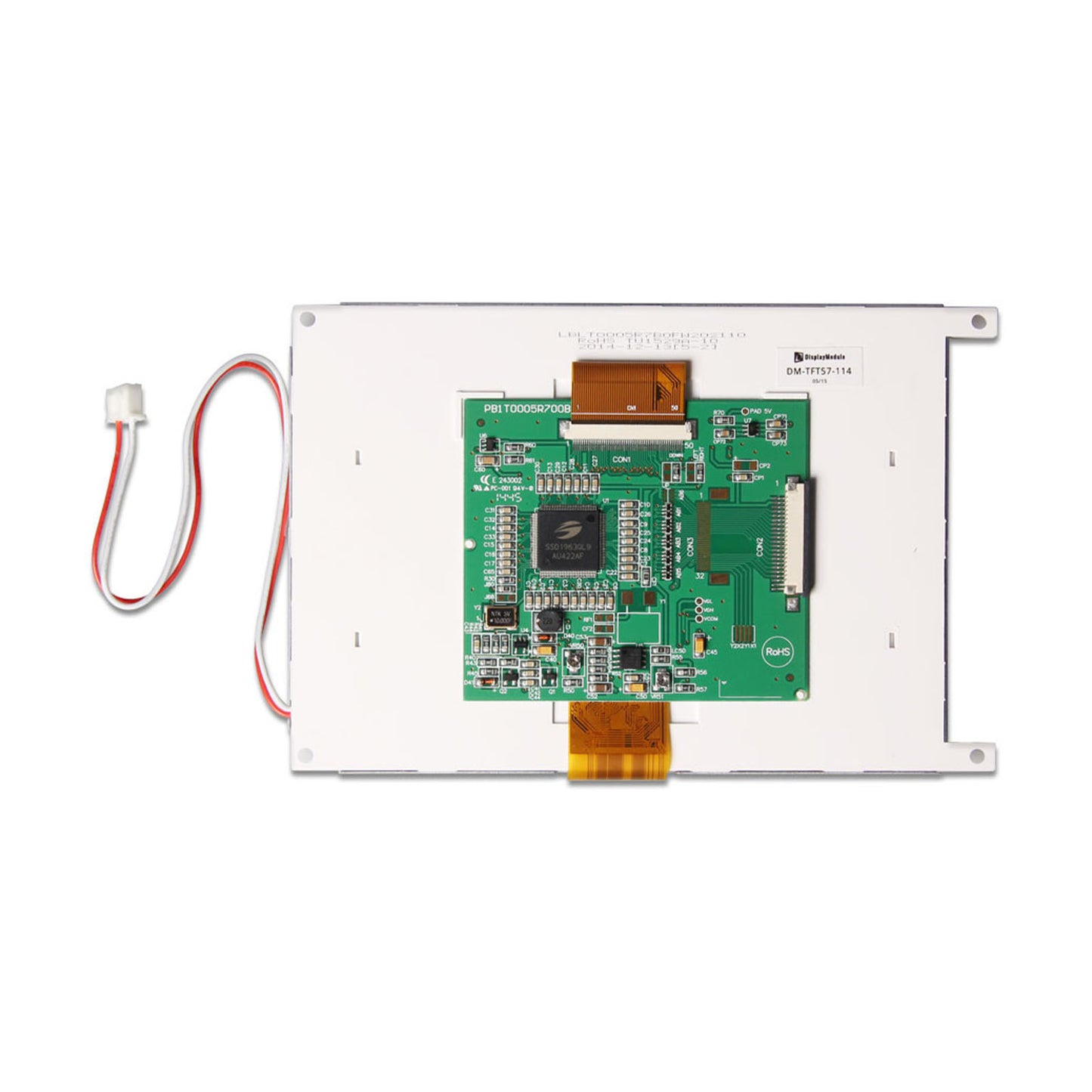

back of 5.7-inch TFT display module with a 320x240 resolution, connected via MCU
top view of 5.7-inch TFT display module with a 320x240 resolution, connected via MCU

5.7" TFT Display Module 320x240 - MCU

Regular price $99.00
Sale price $99.00 Regular price $92.00
Datesheet:
  • Availability:
    In Stock
  • SKU:
    DM-TFT57-114
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Display Specifications

  • Diagonal Dimension : 5.7 inch
  • Resolution : 320x240 pixel
  • View Direction : 6 o’clock
  • Touch Mode : None
  • Module Dimension : 160.00(H)x109.00(V)x11.5(D) mm
  • Viewing Area : 115.20(H)x86.40(V) mm
  • Supply Voltage : 3.3 V
  • Interface : 8 bit MCU
  • Luminance : 500 cd/m2
  • Drive IC : SSD1963
  • Operation Temperature : -20℃~70℃
  • Storage Temperature : -30℃~80℃

Dimensions

Resources

Product reviews
