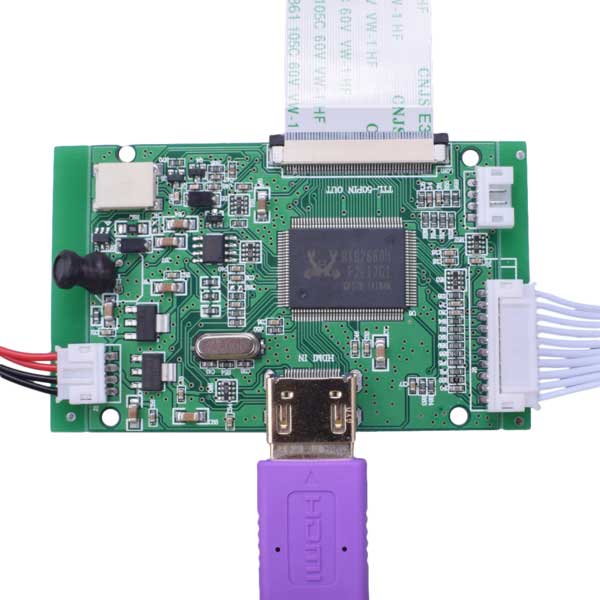

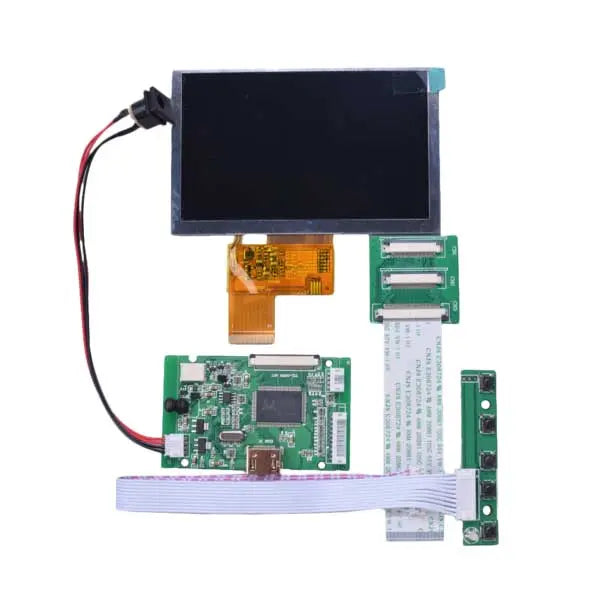

5" TFT Display 800x480 with HDMI for Raspberry Pi Mini Driver
5" TFT Display 800x480 with HDMI for Raspberry Pi Mini Driver
SKU:DM-TFT50-117
Couldn't load pickup availability
1 pcs | original price |
5 pcs | 8% off |
10 pcs | 10% off |
Shipping
Shipping
Standard and expedited shipping available, free expedited shipping over $400. Lenrn more
Easy Returns
Easy Returns
No need to worry about buying products that don't fit your design, we offer a 30-day no-questions-asked return service.
More Order, More Save
More Order, More Save
The higher the quantity ordered, the greater the discount, so contact us for the discount price! Contact us
Share




Display Specifications
- Diagonal Dimension : 5.0 inch
- Resolution : 800x480 pixel
- View Direction :-
- Touch Mode : None
- Module Dimension : 121 x 76 x 3.1 mm
- Viewing Area : 108 x 65 mm
- Supply Voltage : - V
- Interface : -
- Luminance : 200 cd/m2
- Drive IC : -
- Operation Temperature : -20℃~70℃
- Storage Temperature : -30℃~80℃
Datasheets

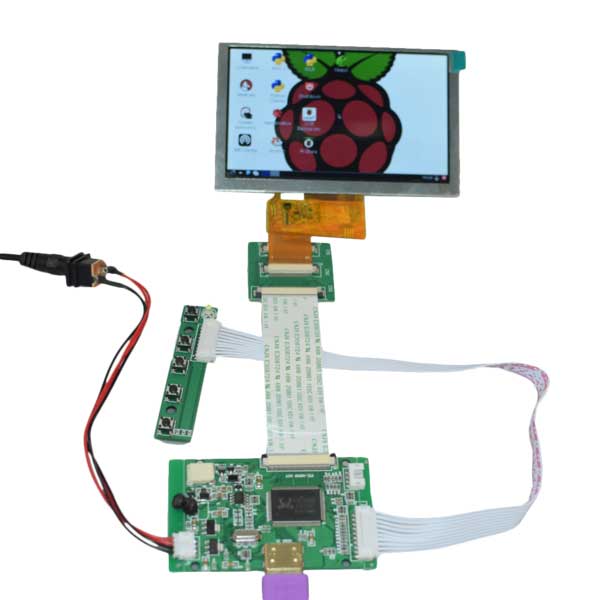

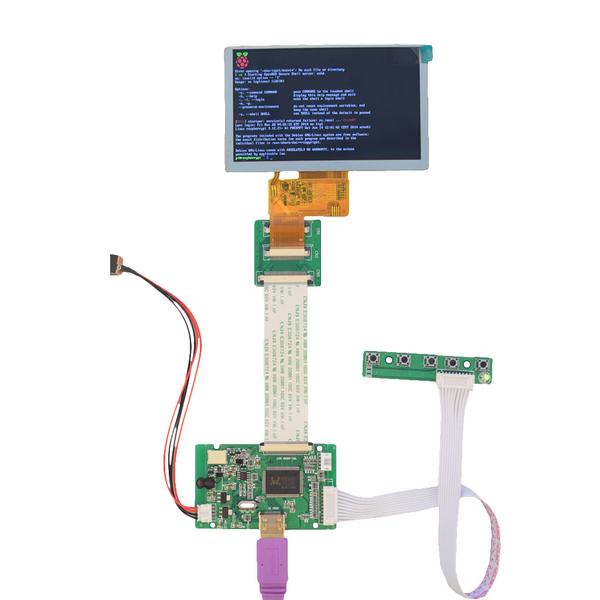

DM-TFT50-117Settings for Raspberry Pi
To get your display working with a Pi, here is our suggested config.txt:
# uncomment if you get no picture on HDMI for a default "safe" mode
#hdmi_safe=1
# uncomment this if your display has a black border of unused pixels visible
# and your display can output without overscan
#disable_overscan=1
# uncomment the following to adjust overscan. Use positive numbers if console
# goes off screen, and negative if there is too much border
#overscan_left=16
#overscan_right=16
#overscan_top=16
#overscan_bottom=16
# uncomment to force a console size. By default it will be display's size minus
# overscan.
#framebuffer_width=1280
#framebuffer_height=720
# uncomment if hdmi display is not detected and composite is being output
hdmi_force_hotplug=1
# uncomment to force a specific HDMI mode (this will force VGA)
hdmi_group=2
hdmi_mode=87
hdmi_cvt=800 480 60 6 0 0 0
# uncomment to force a HDMI mode rather than DVI. This can make audio work in
# DMT (computer monitor) modes
hdmi_drive=1
# uncomment to increase signal to HDMI, if you have interference, blanking, or
# no display
#config_hdmi_boost=4
# uncomment for composite PAL
#sdtv_mode=2
#uncomment to overclock the arm. 700 MHz is the default.
#arm_freq=800
# for more options see http://elinux.org/RPi_config.txt
