1.77-inch TFT Display with a resolution of 128 by 160 pixels, compatible with MCU interface and hot-bar soldering
Back of 1.77-inch TFT Display Panel

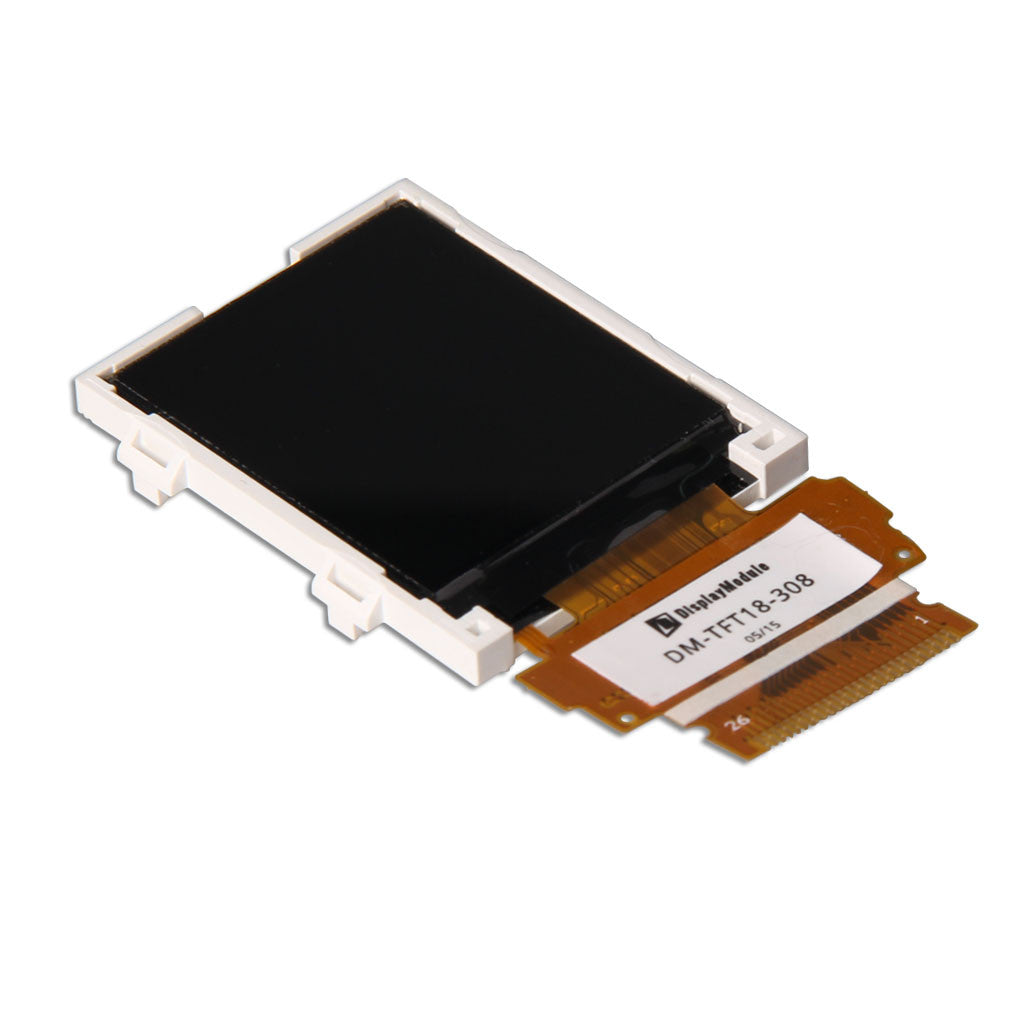

Top View of 1.77-inch TFT Display Panel

1.77" TFT Display 128x160 - MCU

Regular price $9.90
Sale price $9.90 Regular price $9.99
Datesheet:
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Display Specifications

  • Diagonal Dimension : 1.77 inch
  • Resolution : 128x160 pixel
  • View Direction : 12 o’clock
  • Touch Mode : None
  • Module Dimension : 35.6(H)x47.0(V)x3.6(D) mm
  • Viewing Area : 28.02(H)x35.04(V) mm
  • Supply Voltage : 3.3 V
  • Interface : 8bit MCU
  • Luminance : 240 cd/m2
  • Drive IC : ILI9163
  • Operation Temperature : -20℃~70℃
  • Storage Temperature : -30℃~80℃

Dimensions

DM-TFT18-308
