0.39" Micro OLED Display 1024×768 - RGB,SPI

SKU: DM-OLED039-680

$169.00

💹 Enjoy a 20% discount for orders over 500
📉 A 15% discount is available for orders ranging from 200 to 499
🎁 A 10% discount is available for orders ranging from 50 to 199
🎁 A 5% discount is available when ordering 10-49

Interested in customizing this product? Get in touch with us.

Order samples, immediate delivery.

Factory bulk lead time: 3 weeks.

0.39" Micro OLED Display 1024×768 - RGB,SPI

$169.00

0.39" Micro OLED Display Module 1024x768

Active Matrix Color OLED integrating single-crystal silicon transistors. Engineered for high-density optical systems, AR/VR wearables, and industrial imaging requiring maximum power efficiency and high contrast in an ultra-compact footprint.

2.38 Million

Total Dots

10,000:1

Contrast Ratio

345 cd/m²

Max Luminance

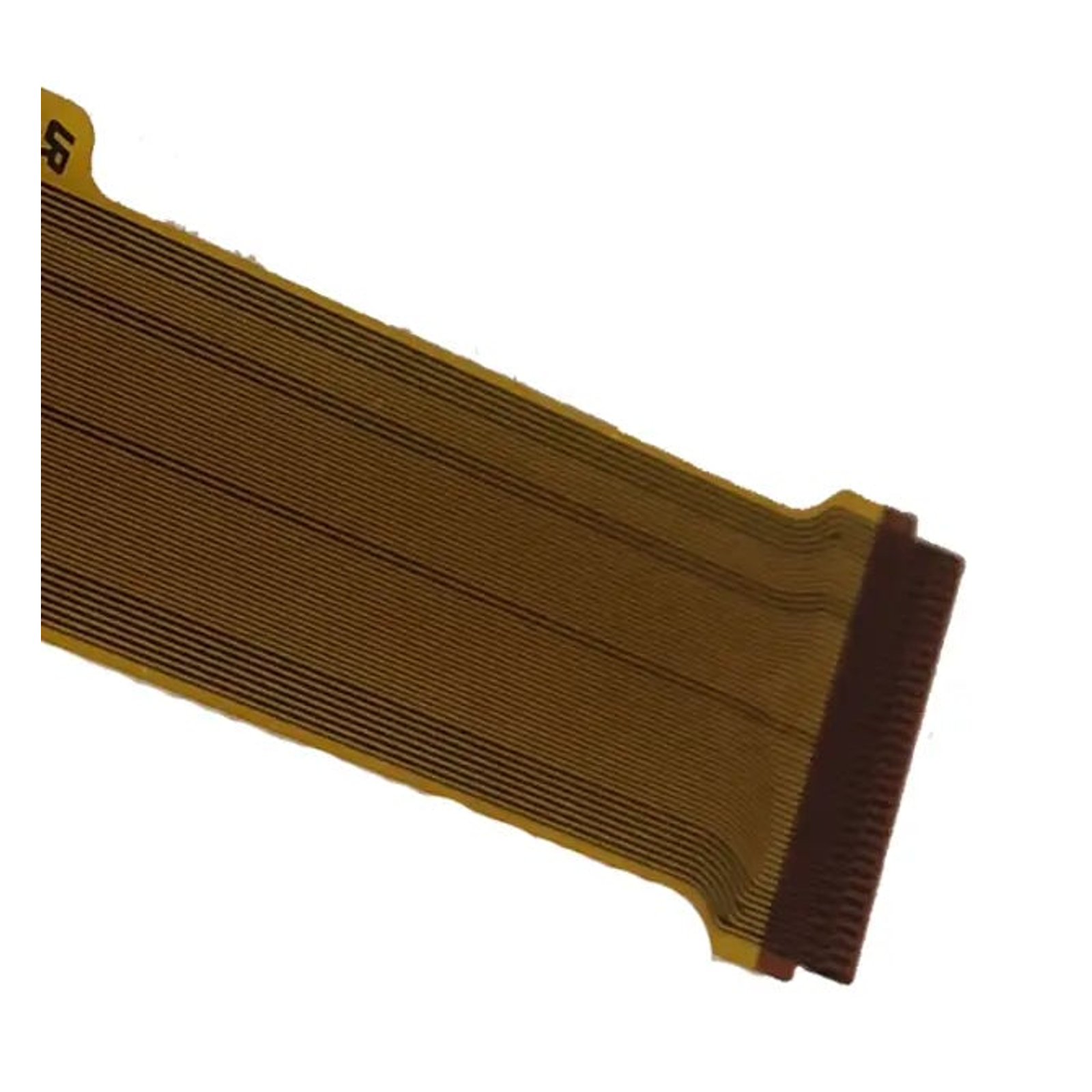

0.39 inch Micro OLED Display FPC Connector Detail

Hardware & Data Interface Architecture

Flexible interface configurations support diverse processing architectures. The FPC design ensures stable connectivity for high-frequency signal transmission.

Supported Communication Protocols

Parallel RGB 24-bit: Standard high-bandwidth video feed.
YCbCr 16-bit: Optimized bandwidth utilization for video decoding.
SPI: Serial Peripheral Interface for initialization and register configuration.
Scan Direction: Hardware-level up/down and right/left inversion supported.

Power Management

Dynamic power consumption scaling from 0 mW to 246 mW. Advanced power-saving features maximize battery life in portable, low-voltage systems.

Frame Rate Performance

Supports native 60Hz and 120Hz refresh rates. Fast response time eliminates motion blur in dynamic visual tracking applications.

Technical Specifications

Parameter	Specification
Display Technology	Active Matrix Color OLED
Diagonal Size	0.39 inch
Resolution	1024(RGB) × 768
Luminance (Maximum)	345 cd/m²
Contrast Ratio	10,000:1
Operating Temperature	-10℃ to +70℃
Storage Temperature	-30℃ to +80℃
Power Consumption	0 - 246 mW

Target Industry Applications

Virtual Reality (VR) / AR

2.38 million dots within a 0.39-inch area eliminates the screen-door effect. Perfect for immersive headsets and tactical helmets.

Medical Imaging

High contrast ratio ensures pure blacks, while the wide color gamut enables accurate tissue differentiation in surgical endoscopes.

Industrial Equipment

Functions reliably across -10℃ to 70℃. Ideal for thermal imagers, portable oscilloscopes, and harsh-environment measurement tools.

Enterprise Quality & Supply Chain

Every 0.39" OLED module undergoes rigorous automated optical inspection (AOI) and thermal cycling tests prior to shipment.

Long-term supply stability for product life-cycle management.
OEM bulk packaging and custom FPC length configurations available.
Dedicated factory-level engineering support for driver integration.

100% Quality Inspected

Engineering Documentation

Access the complete technical datasheet including absolute maximum ratings, DC electrical characteristics, AC timing logic, pin definitions, and mechanical drawing dimensions.

Download Official PDF Datasheet

Product FAQs

Key technical and purchasing guidance for product evaluation, integration planning, samples, and volume orders.

Need more help? Contact our technical team.

Do the 1.8 V RCB interface signals of DM-OLED039-680 require level shifting from a 3.3 V controller?

Yes. A level shifter is required when a 3.3 V controller drives the 1.8 V RCB interface signals on DM-OLED039-680. Verify the direction, voltage domain, and timing of every affected signal before connecting the controller.

Should the XCLR signal on DM-OLED039-680 be controlled by GPIO according to the power sequence, or can it be held low continuously?

XCLR should be controlled by a GPIO and toggled according to the specified power-on and power-off sequence. It should not be held low continuously unless the datasheet explicitly defines that state for the required operating mode.

Is DM-OLED039-680 Sony Microdisplay ECX334AF?

Yes. DM-OLED039-680 uses the Sony ECX334AF Micro OLED display. Confirm the complete module and adapter-board configuration when comparing documentation or replacement parts.

Is DM-OLED039-680 still in production, or has it reached end of life?

DM-OLED039-680 is still in production and has not reached end of life according to the latest available lifecycle check. For a long-life design, contact DisplayModule to reconfirm lifecycle status and supply planning before committing to production.
