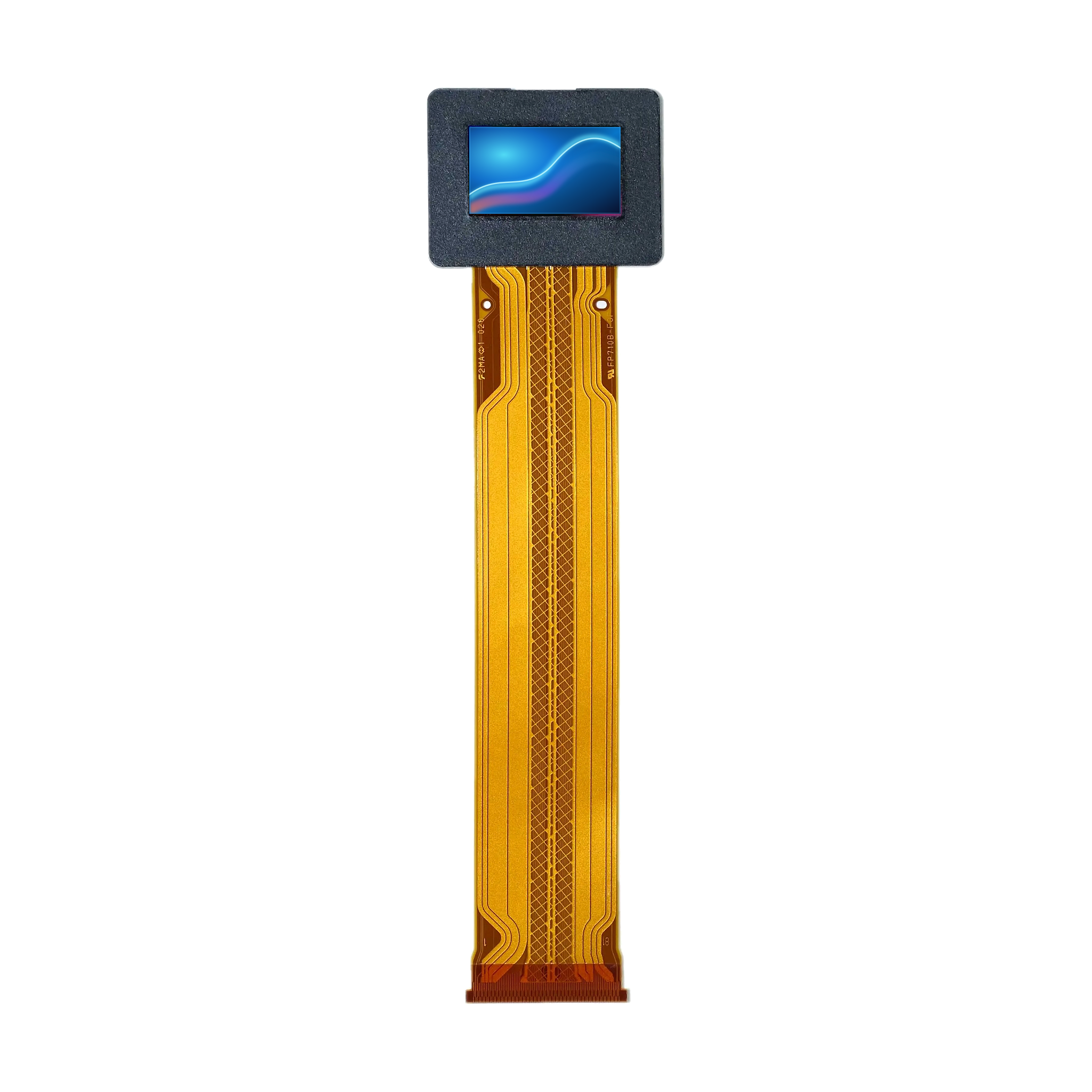

0.7-inch micro display panel with a long ribbon cable

0.7" Micro OLED Display 1920×1080 - LVDS

SKU: DM-OLED071-681
Prix de vente$209.00
  • 💹 Enjoy a 20% discount for orders over 500
  • 📉 A 15% discount is available for orders ranging from 200 to 499
  • 🎁 A 10% discount is available for orders ranging from 50 to 199
  • 🎁 A 5% discount is available when ordering 10-49

Interested in customizing this product? Get in touch with us.

Order samples, immediate delivery.

Factory bulk lead time: 3 weeks.
Partager
Side of 0.7-inch micro display panel
0.7" Micro OLED Display 1920×1080 - LVDS Prix de vente$209.00

Resources & Downloads

0.7" Micro OLED Display 1920×1080 LVDS Module

Active Matrix Color OLED display integrating single crystal silicon transistors. Engineered for high-density optical systems, AR/VR headsets, and precision medical imaging requiring high resolution in a compact form factor.

6.22M Dots

Pixel Density

10,000:1

Contrast Ratio

0.7 inch Micro OLED Display 1920x1080 with LVDS interface for AR VR Medical

Electro-Optical Architecture

Visual Fidelity

Yields 6.22 million dots across a 0.7-inch diagonal area, ensuring zero screen-door effect in near-eye optics.

Resolution: 1920(RGB) × 1080

Power Efficiency

Advanced power saving logic circuit allows dynamic consumption scaling. Standby mode draws minimal current.

Consumption: 0.4mW to 550mW

Scan Configuration

Hardware-level support for up/down and right/left inverse display functions. Integrated orbit function for image positioning.

Frame Rate: 60Hz


Hardware Specifications

Parameter Specification Data
Display Type Active Matrix Color OLED
Diagonal Size 0.7 inch (1.8 cm)
Resolution 1920(RGB) × 1080
Luminance (Max) 200 cd/m²
Interface LVDS, 81-pin FPC connector
Power Supply 1.8V, 10V, VCCP
Gradation 8-bit
Operating Temperature 0°C to 70°C
Storage Temperature -30°C to 80°C

Enterprise Quality & Supply Chain

100% Optical Testing

Every module undergoes strict luminance, chromaticity, and dead-pixel calibration prior to shipment.

Volume Pricing & OEM

Tiered wholesale pricing. Tailored firmware and FPC mechanical configurations available for enterprise clients.

Supply Chain Assurance

RoHS compliant manufacturing with reliable inventory management to support long-term production planning.

Target Industry Applications

Electronic Viewfinders (EVF)

Ideal for professional camera viewfinders and optical systems requiring high resolution and true-to-life contrast in a closed, compact form factor.

Virtual Reality (VR)

Microsecond-level pixel response time significantly reduces motion blur, critical for comfortable viewing in VR headsets.

Medical Imaging

Essential for surgical scopes and endoscopes. High 10,000:1 contrast delivers precise tissue distinction.

Industrial Equipment

Integrated into measurement devices and portable inspection tools constrained by physical space limits.

Technical Documentation & Engineering Support

Access reference designs, schematic examples, and integration guides. Designed to interface seamlessly with standard LVDS display controllers.

Dedicated engineering support available for firmware modification and optical alignment challenges.

Download Full PDF Datasheet
