0.72 inch 2000 nits Micro OLED Screen for Developers

0.72" Micro OLEDoS Display 1920x1200 - MIPI

Active Matrix Color OLED display built on single-crystal silicon transistor technology. Engineered for ultra-high pixel density, minimal power consumption, and zero screen-door effect in advanced optical systems.

2000 Nits

Luminance

1920x1200

Resolution

100,000:1

Contrast Ratio

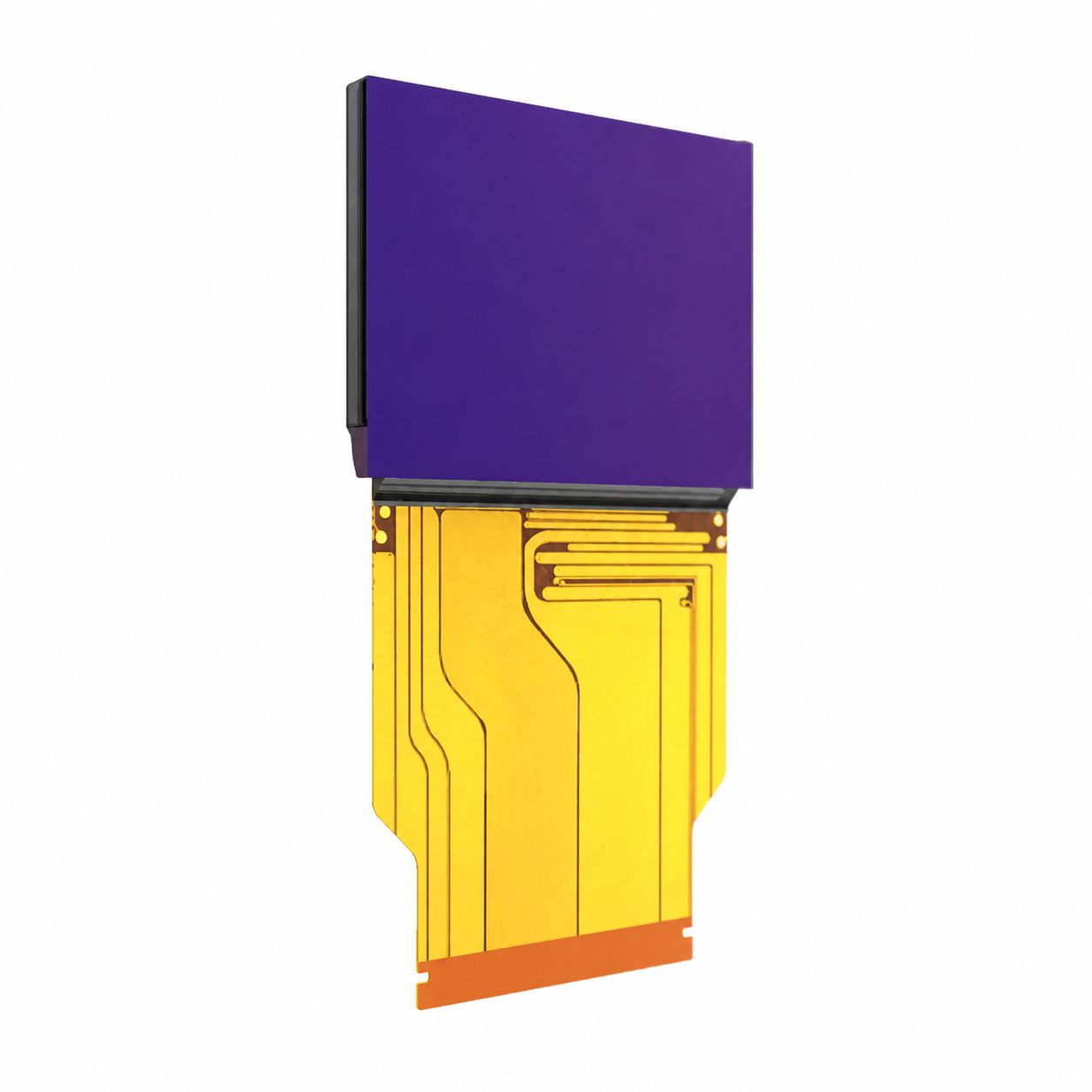

0.72 inch Micro OLEDoS Display 1920x1200 2000nits 70Hz Module

Electro-Optical Architecture

Pixel Density & Arrangement

RGB π-type pixel arrangement utilizing 6.912 million sub-pixels (1920×1200×3). Yields exceptionally high pixel density required for immersive optics.

Pixel Size: 8.1μm × 8.1μm

Power Efficiency

Integrated panel driver and logic circuitry optimize power draw. Typical power consumption is maintained at 900mW, extending operational life in untethered devices.

Power Consumption: 900mW (Typical)

Color Gamut & Depth

Achieves 90% DCI-P3 color gamut coverage with 256 gray levels. Delivers 16.7M colors (24-bit) for broadcast-grade chromatic accuracy.

Frame Rate: 50Hz - 70Hz

Comprehensive Technical Specifications

Parameter	Specification
Display Type	Micro OLED (OLEDoS)
Diagonal Size	0.72 inch
Active Area	15.552mm × 9.72mm
Supported Resolutions	1920×1200 (16:10), 1920×1080 (16:9), 1600×1200 (4:3), 1280×1024 (5:4), 1280×720 (16:9), 1024×768 (4:3)
Interface Protocols	MIPI DSI (Single-port D-PHY, 4 lanes at 1.2Gbps/lane), I2C support
Brightness (Typical)	2000 cd/m²
Operating Temperature	-20℃ to +70℃ (Tested via thermal cycling)
Storage Temperature	-40℃ to +80℃

Target Industry Applications

Virtual Reality (VR)

1920x1200 resolution guarantees zero screen-door effect and ultra-low latency rendering for immersive headsets.

Augmented Reality (AR)

2000 nits output maintains visibility in bright ambient environments for see-through optical designs.

Medical Imaging

Uncompromising color reproduction and sharp contrast required for endoscopic and surgical viewfinders.

Electronic Viewfinders

Configurable lane swapping and wide operating temperature range support extreme broadcast conditions.

Enterprise Quality Assurance

Every 0.72-inch Micro OLED module undergoes strict ISO-compliant quality control to ensure batch-to-batch consistency and long-term reliability.

12-Month Manufacturer Warranty

Direct Engineering Technical Support

Volume Pricing & ODM/OEM Services Available

Official Datasheets

Access full initialization codes, CAD drawings, power sequencing, and register mapping required for logic integration.

DM-OLED072-687 Spec DM-ADTTR-047 Datasheet

Product FAQs

Key technical and purchasing guidance for product evaluation, integration planning, samples, and volume orders.

Need more help? Contact our technical team.

For SKU DM-OLED072-687, does DisplayModule have a recommended adapter?

DM-ADTTR-047, also referenced as the SY072WCM06 USB-C single-eye adapter board, is the recommended adapter for DM-OLED072-687. Confirm the host’s USB-C DisplayPort Alt Mode support and the current board revision before ordering.

How can DM-OLED072-687 and the related Micro OLED models be connected to a computer, and when is a custom adapter required?

A USB-C input driver board is available for these Micro OLED models, and an HDMI-input version can be evaluated as a customization. The correct board depends on the exact display model, host output, monocular or binocular setup, and required resolution.

Can DisplayModule customize an HDMI-to-MIPI converter for DM-OLED072-687 and related Micro OLED models?

DisplayModule can evaluate a custom HDMI-to-MIPI converter for DM-OLED072-687 and related displays. Pricing depends on the selected panels, number of outputs, target resolution, host interface, quantity, and engineering scope, so submit those details for a quotation.
