2.42" OLED Graphic Display 128x64 All View - SPI, I2C

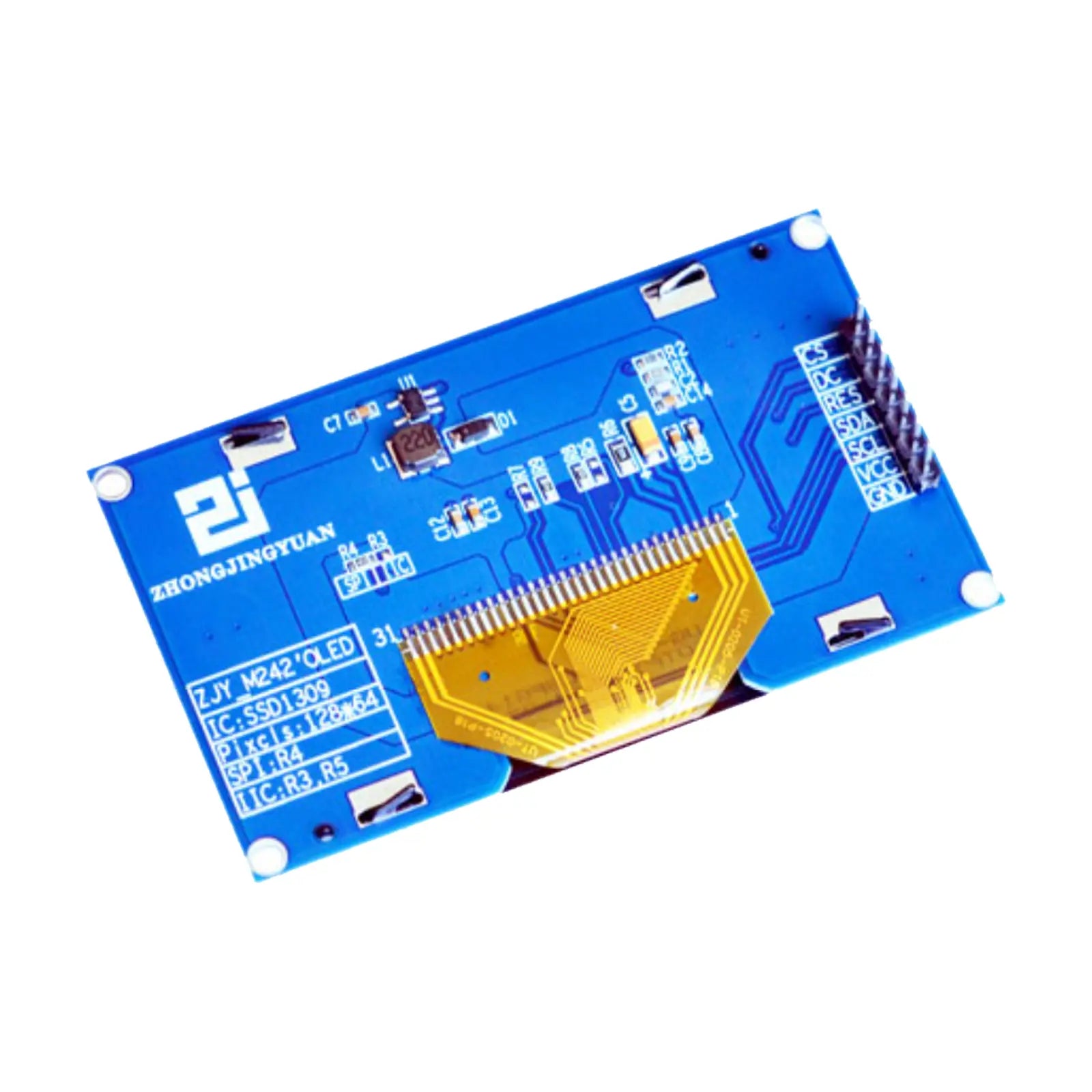

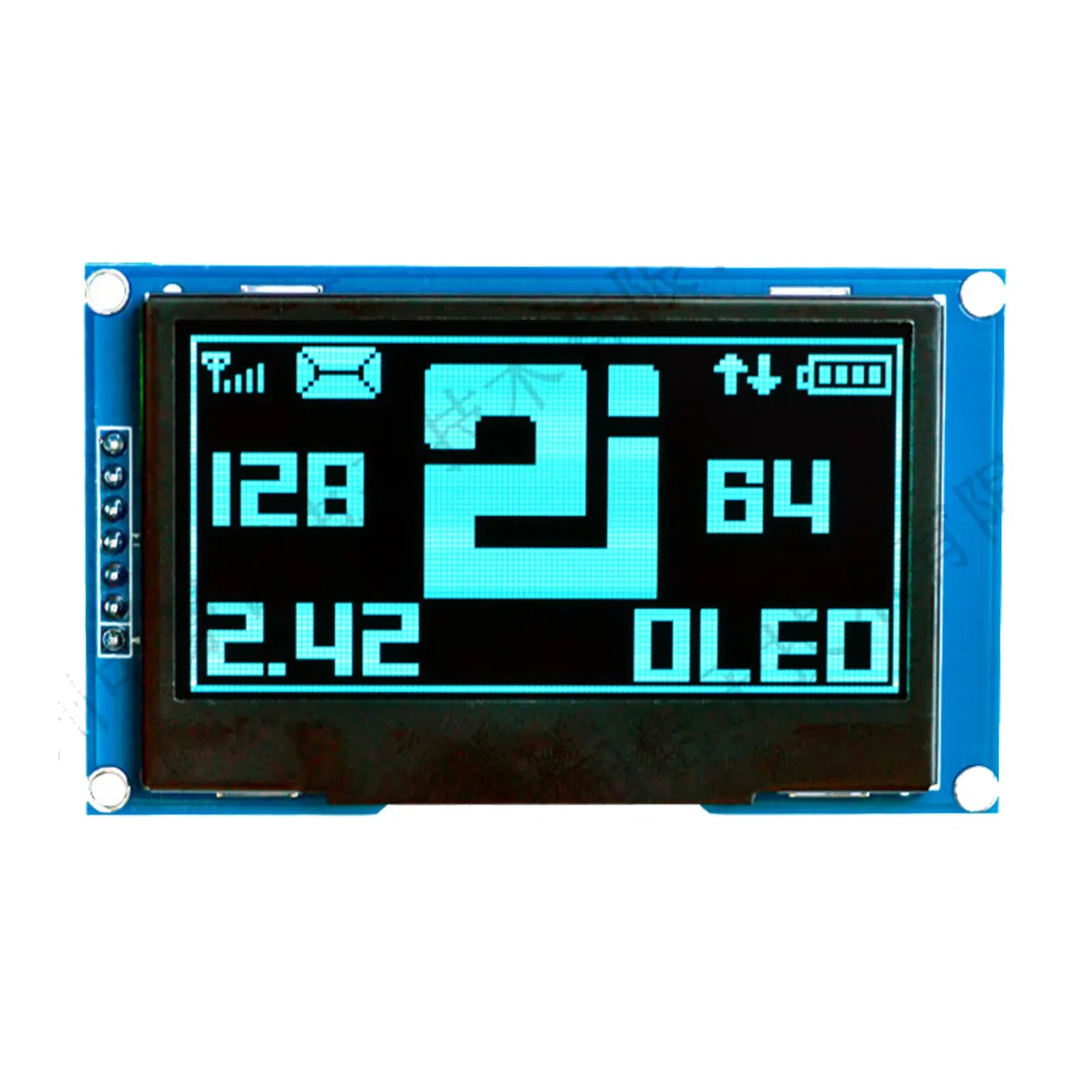

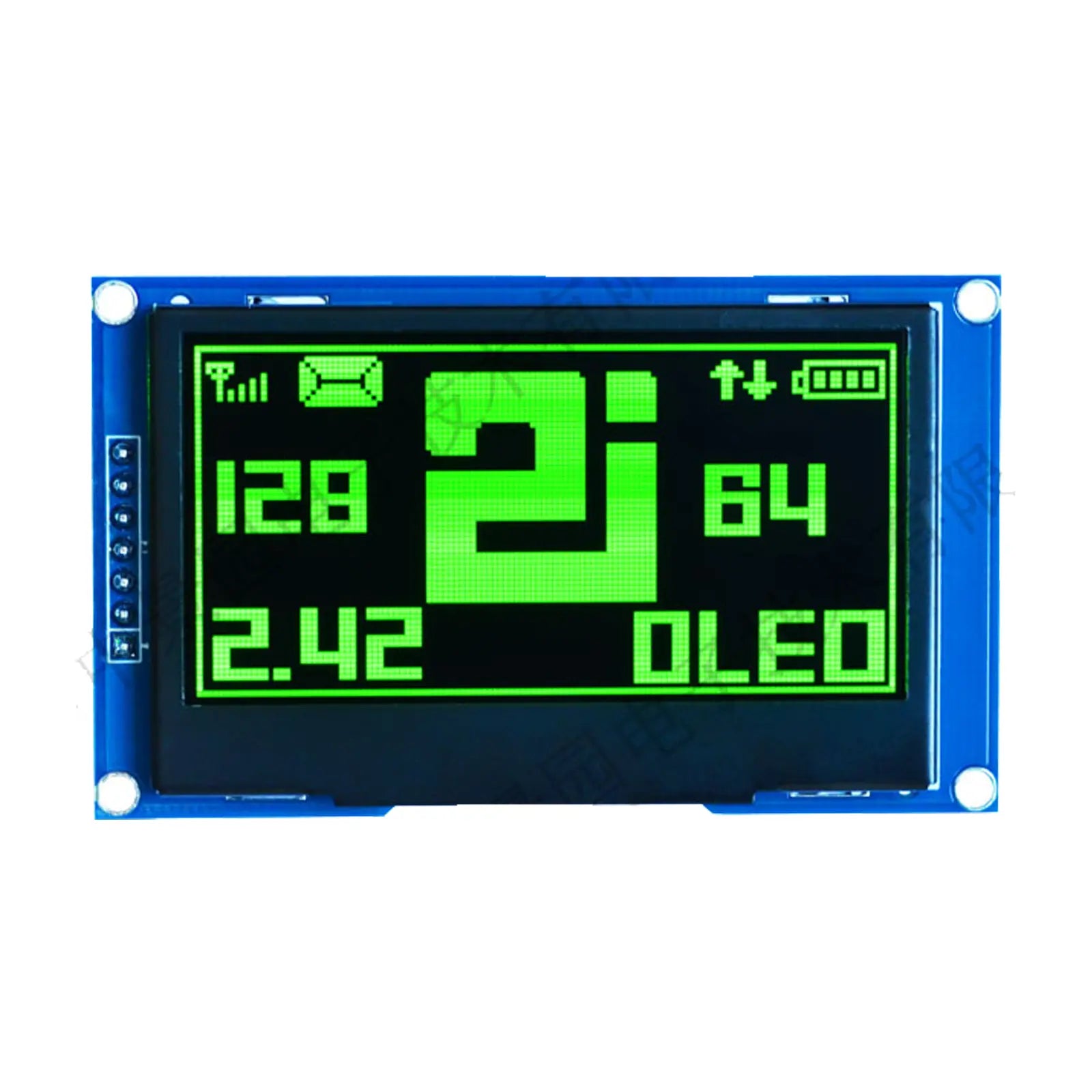

Engineered for clarity and efficiency, our 2.42" OLED display delivers crisp monochrome graphics with exceptional viewing angles. Featuring Solomon Systech's SSD1309 controller, this display offers versatile interface options and ultra-low power consumption - perfect for portable and battery-powered devices.
With pixel dimensions of 0.40 × 0.40 mm and spacing of 0.43 × 0.43 mm, this display achieves remarkable clarity for its size. The SSD1309 controller enables advanced features like hardware scrolling and 256-level contrast control while consuming minimal power - just 42.3 mA at full brightness and under 10 μA in sleep mode.
- All-View Technology: 180° viewing angle with consistent image quality from any position.
- High Contrast: >10,000:1 contrast ratio ensures sharp visibility even in bright environments.
- Multi-Interface Support: Configurable for SPI (3-wire/4-wire), I²C, or 8-bit parallel interfaces.
- Extended Lifespan: Rated for 30,000 hours at 80 cd/m² brightness (equivalent to 3.4 years of continuous use).
| Parameter | Specification |
|---|---|
| Display Size | 2.42" diagonal |
| Module Dimensions | 60.50 × 37.00 × 2.00 mm |
| Active Area | 55.01 × 27.49 mm |
| Pixel Configuration | 128 × 64 monochrome |
| Controller IC | Solomon Systech SSD1309 |
| Logic Voltage (VDD) | 1.65–3.3 V |
| Panel Voltage (VCC) | 12.5–13.5 V (13.0 V typical) |
| Operating Current | 42.3 mA (full brightness) |
| Sleep Mode Current | VDD ≤5 μA, VCC ≤10 μA |
| Brightness | 60–80 cd/m² (80 cd/m² typical) |
| Contrast Ratio | >10,000:1 |
| Viewing Angle | Full 180° viewing |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Lifespan | 30,000 hours @ 80 cd/m² 50,000 hours @ 60 cd/m² |
We provide customized display solutions for OEMs and volume purchasers. Our engineering team can adapt this display module to your specific requirements.
- Custom Configurations: Modify interface options, connector types, or mechanical dimensions to fit your product design.
- Volume Discounts: Special pricing for orders of 100+ units with additional savings at higher quantities.
- Branding Options: Add your logo or customize the display's protective cover.
- Extended Temperature Versions: Specialized variants for industrial applications requiring wider operating ranges.
Packaging Information: Standard packaging includes 15 modules per tray, with 16 trays per box (including one empty tray for protection). Each box contains 270 display modules.
Ultra-low power consumption (≤5 μA in sleep) extends battery life in glucose monitors, pulse oximeters, and portable diagnostic equipment. High contrast ensures readability in various lighting conditions.
Withstands extreme temperatures (-40°C to +70°C) for HMI panels, control systems, and test equipment. Wide viewing angles allow visibility from multiple positions on factory floors.
Ideal for smart home interfaces, wearable tech, and portable instruments. Compact dimensions (60.5×37×2mm) and lightweight design (8.81g) enable sleek product designs.
Power Sequencing: For optimal performance, follow the power sequence: 1) Enable VDD, 2) Send display off command (AEh), 3) Initialize registers, 4) Clear GDDRAM, 5) Enable VCC, 6) Wait 100ms, 7) Send display on command (AFh).
ESD Protection: Unused pins should be grounded (VSS) and interface traces kept short to minimize noise interference.
Burn-in Prevention: Avoid static images for extended periods. Utilize the SSD1309's hardware scrolling feature or implement periodic screen refreshes.
Technical Documentation: Display Module Datasheet | SSD1309 Controller IC Datasheet
