3.5" TFT Display 320x240 with Capacitive - RGB
Prix de vente$49.90
3.5" TFT Display 320x240 with Capacitive - RGB
- 💹 Enjoy a 20% discount for orders over 500
- 📉 A 15% discount is available for orders ranging from 200 to 499
- 🎁 A 10% discount is available for orders ranging from 50 to 199
- 🎁 A 5% discount is available when ordering 10-49

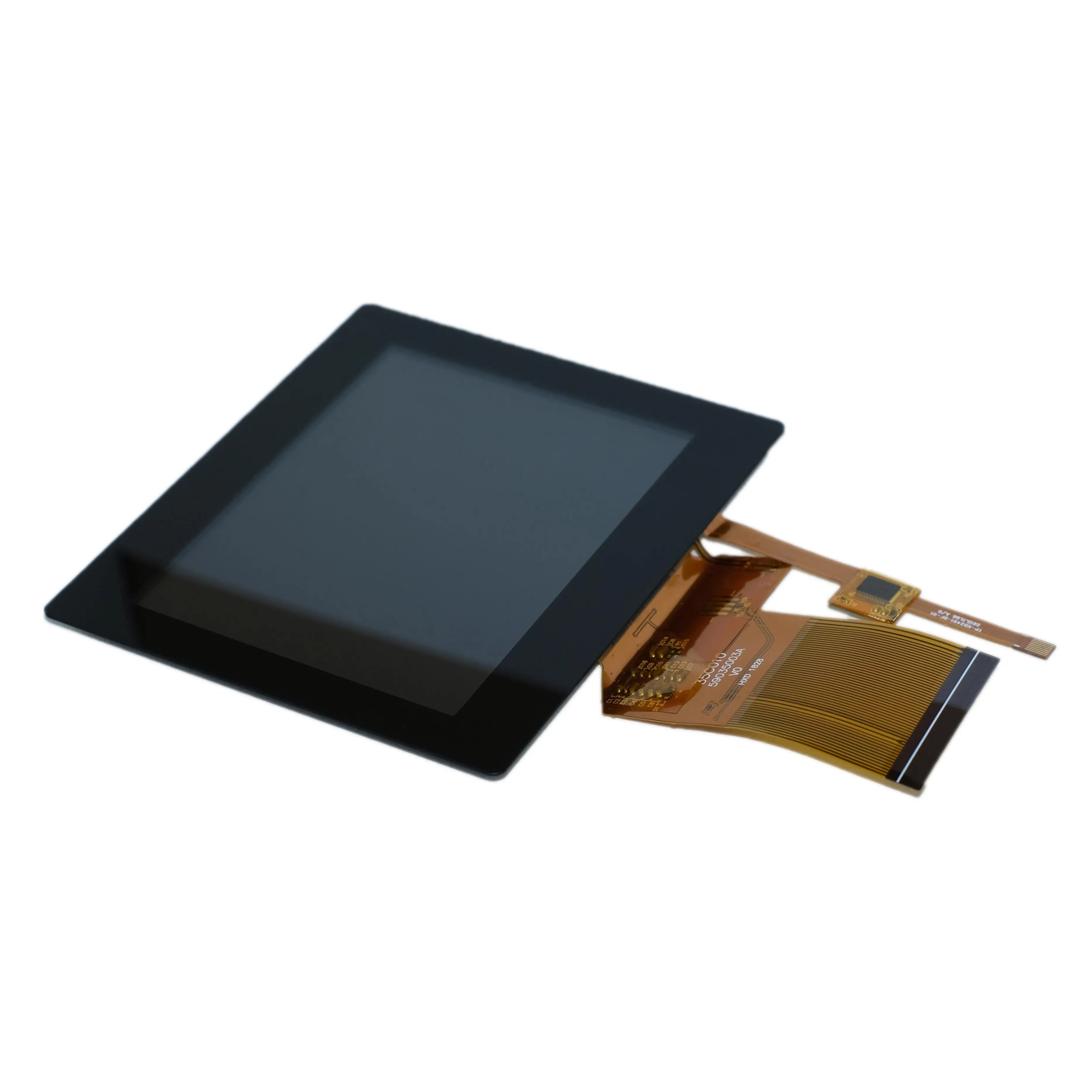

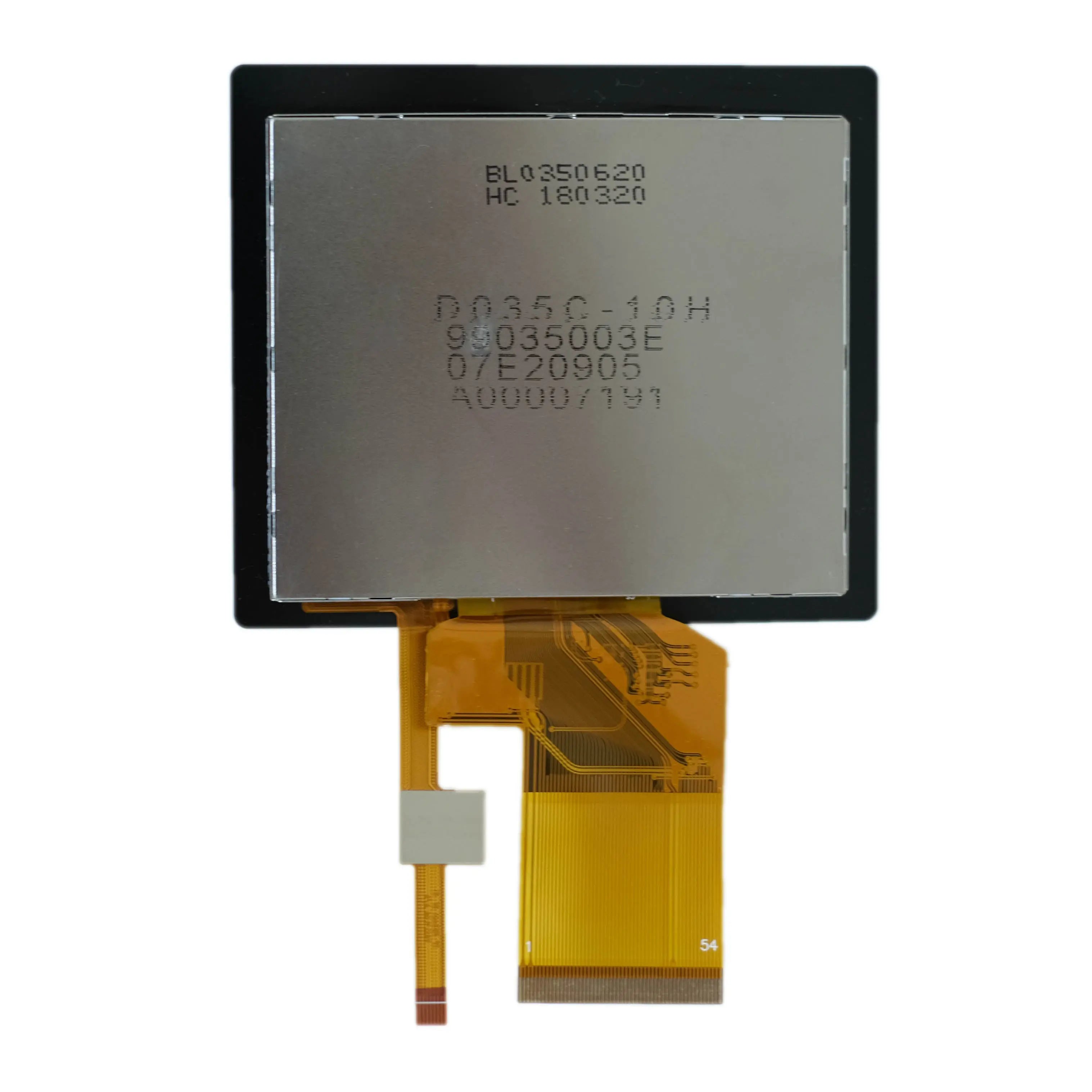

3.5" 320×240 TFT Display with Capacitive Touch
This 3.5-inch TFT LCD module features a 320 × 240 resolution display with capacitive touch and gesture recognition. With HX8238D display controller and FT6336 touch controller, it offers 350 cd/m² brightness and RGB SYNC interface for embedded applications requiring intuitive interaction and clear visuals.
| Parameter | Value | Unit |
|---|---|---|
| Diagonal Dimension | 3.5 | inch |
| Resolution | 320 × 240 | pixels |
| Viewing Direction | 12:00 | - |
| Touch Mode | Capacitive (Single-point & Gestures) | - |
| Module Dimensions | 86.84 × 74.84 × 5.05 | mm |
| Viewing Area | 70.08 × 52.56 | mm |
| Supply Voltage | 3.3 | V |
| Interface | 16/18/24-bit RGB SYNC Mode | - |
| Luminance | 350 | cd/m² |
| Driver IC | HX8238D (Display), FT6336 (Touch) | - |
| Operating Temperature | -20 ~ 70 | °C |
| Storage Temperature | -30 ~ 80 | °C |
Mechanical Dimensions
