3.59" High PPI FFS TFT Display - MIPI
- 💹 Enjoy a 20% discount for orders over 500
- 📉 A 15% discount is available for orders ranging from 200 to 499
- 🎁 A 10% discount is available for orders ranging from 50 to 199
- 🎁 A 5% discount is available when ordering 10-49
Interested in customizing this product? Get in touch with us.
Order samples, immediate delivery.
Factory bulk lead time: 3 weeks.
Partager
3.59" High PPI FFS TFT Display - MIPI
Prix de vente$499.00
3.59" High PPI FFS TFT Display - MIPI
- 💹 Enjoy a 20% discount for orders over 500
- 📉 A 15% discount is available for orders ranging from 200 to 499
- 🎁 A 10% discount is available for orders ranging from 50 to 199
- 🎁 A 5% discount is available when ordering 10-49

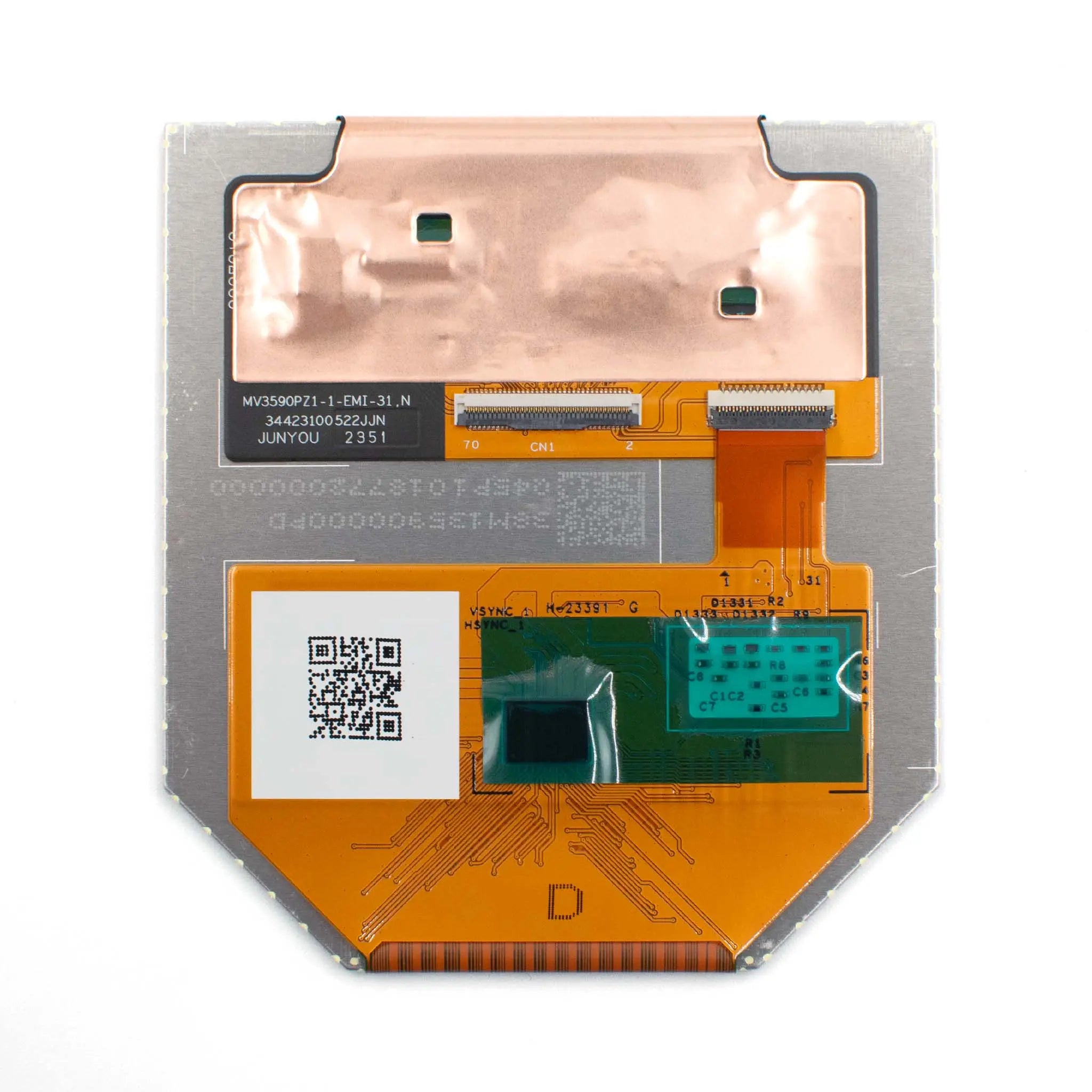

3.95" 3840×3744 Ultra-High PPI TFT LCD Display Specifications
The DMHXT0359Z1NA is a 3.95-inch TFT LCD display with an impressive 3840 × 3744 resolution and 1512 PPI, designed using LTPS and FFS technology. Featuring NT57900 driver IC and C-PHY interface with DSC compression, it's ideal for AR/VR microdisplays, high-density visual systems, and precision optical modules.
| Parameter | Value | Unit |
|---|---|---|
| Screen Size | 3.95 | inch |
| Display Mode | FFS | - |
| Resolution | 3840 × 3744 | pixels |
| Pixel Density | 1512 | PPI |
| Technology | LTPS | - |
| Active Area | 62.8992 × 64.512 | mm |
| Module Size | 67.8 × 74.312 × 2.2 | mm |
| Display Colors | 16.7M | bits |
| Interface | 2-Port C-PHY (MIPI 6 Trios + DSC) | - |
| Driver IC | NT57900 | - |
Mechanical Dimensions
