4.39" AMOLED Display 568×1210 – MIPI Interface
Prix de vente$59.00
4.39" AMOLED Display 568×1210 – MIPI Interface
- 💹 Enjoy a 20% discount for orders over 500
- 📉 A 15% discount is available for orders ranging from 200 to 499
- 🎁 A 10% discount is available for orders ranging from 50 to 199
- 🎁 A 5% discount is available when ordering 10-49
4.39" 568×1210 AMOLED Display Specifications

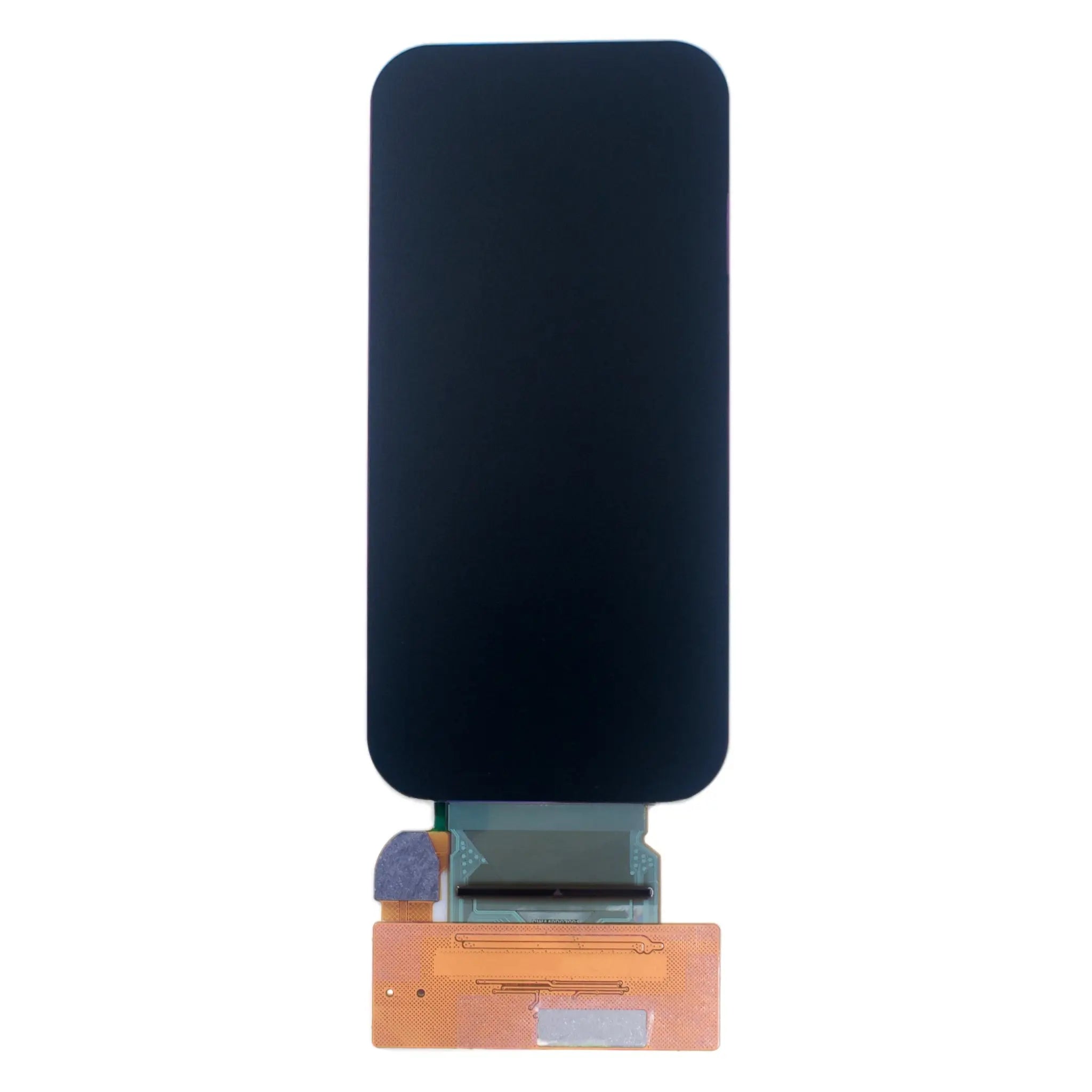

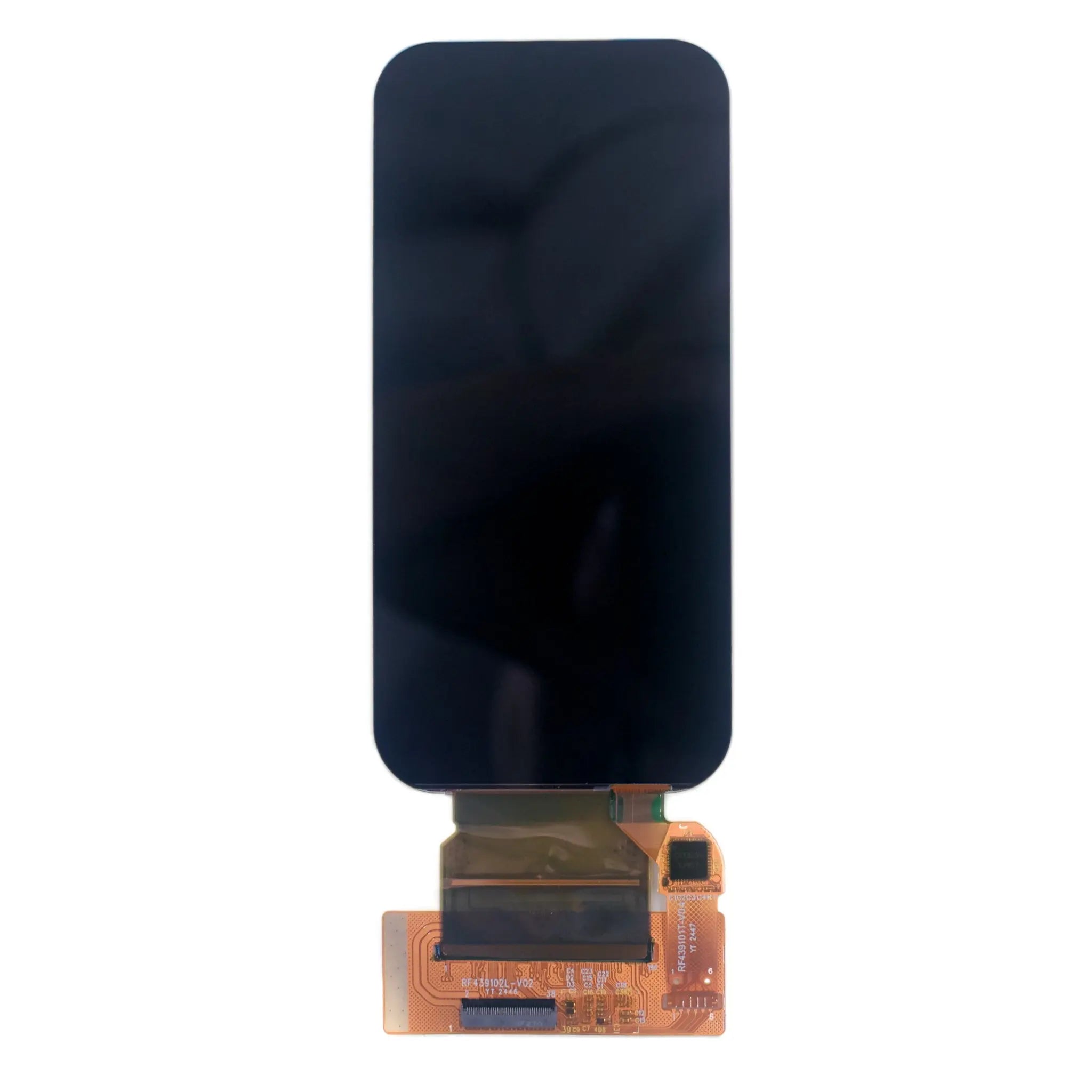

The DMKDO04301ACA is a high-resolution 4.39-inch AMOLED display featuring 568×1210 pixels and RGB vertical stripe arrangement. It supports 16.7M colors and integrates the SD5207 driver IC. With a MIPI 2-lane interface and ultra-slim 0.75 mm profile, this module is ideal for handheld and embedded devices requiring vibrant image quality and compact design.
| Parameter | Specification | Unit |
|---|---|---|
| Screen Size | 4.39 | inch |
| Resolution | 568 × 1210 | pixels |
| Display Mode | AMOLED | - |
| Color Depth | 16.7M | colors |
| Color Arrangement | RGB Vertical Stripe | - |
| Interface | MIPI 2 LANE | - |
| Active Area | 47.3712 × 100.914 | mm |
| Module Dimensions | 49.13 × 103.55 × 0.75 | mm |
| Driver IC | SD5207 | - |
Mechanical Dimensions
Technical Resources
- 📄 Datasheet: DMKDO04301ACA
