8.0-inch BAR type IPS display with 1600x480 resolution, capacitive touch, and LVDS connection
back of 8.0-inch BAR type IPS display with 1600x480 resolution

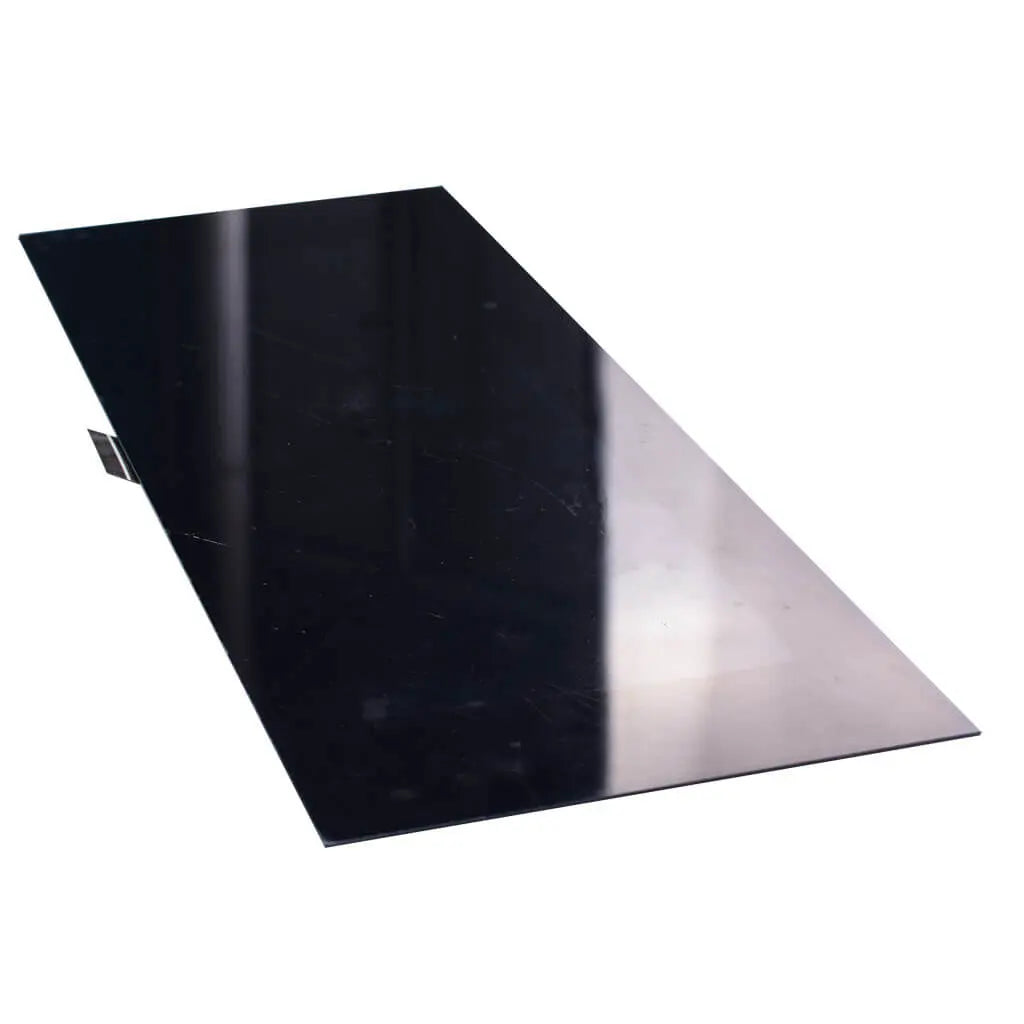

top view of 8.0-inch BAR type IPS display with 1600x480 resolution

8.0" IPS Display 1600x480 BAR Type Capacitive - LVDS

SKU: DM-TFT80-379
Prix de vente$119.00
  • 💹 Enjoy a 20% discount for orders over 500
  • 📉 A 15% discount is available for orders ranging from 200 to 499
  • 🎁 A 10% discount is available for orders ranging from 50 to 199
  • 🎁 A 5% discount is available when ordering 10-49

Interested in customizing this product? Get in touch with us.

Order samples, immediate delivery.

Factory bulk lead time: 3 weeks.
Partager
8.0-inch BAR type IPS display with 1600x480 resolution, capacitive touch, and LVDS connection
8.0" IPS Display 1600x480 BAR Type Capacitive - LVDS Prix de vente$119.00

Display Specifications

  • Diagonal Dimension : 8.0 inch
  • Resolution : 1600x480 pixel
  • View Direction : All
  • Touch Mode : 10 points
  • Module Dimension : 249.20(H)x87.0(V)x6.86(D) mm
  • Viewing Area : 194.40(H)x58.3(V) mm
  • Supply Voltage : 3.3 V
  • Interface : 6/8bit LVDS
  • Luminance : 425 cd/m2
  • Drive IC : HX8249 +HX8678 FT5926QSM
  • Operation Temperature : -20℃~70℃
  • Storage Temperature : -30℃~80℃

Dimensions

Resources

  • No init code needed for this display panel
