There is no list price for an IPS display, because the price is assembled from the specification rather than attached to the panel type. Area, resolution, backlight output, driver and interface, touch layer, defect grade, temperature range and order quantity each move the number, and some of them move it sharply. Two modules of the same diagonal can differ several times over.
Why there is no list price
An IPS module is a configured assembly: a glass cell, a backlight, a driver bonded to the glass, a flex with a connector, sometimes a touch sensor and a cover window. Change one element and the bill of materials, the process route and the yield all change with it. Quotations are therefore built per project, and a figure quoted without a specification attached cannot be compared with anything.
Panel area and how the glass is cut
Panels are produced on large mother glass and cut into units, so cost per unit depends on how many units fit a sheet. A size that divides the sheet neatly is cheaper than a size that leaves a wide offcut, which is why an unusual aspect ratio or a slightly oversized diagonal can cost more than a nominally larger standard size.
Each cut also has to clear the border needed for the seal, the gate and source fan-out and the bonding area. Narrowing the border means more units per sheet but tighter alignment and lower yield, so the saving is partly given back.
Resolution and the driver electronics
Raising resolution adds rows and columns, which means more gate and source lines, a driver with more channels, and finer patterning across the whole array. The array is built in a sequence of photolithographic steps, and every added step costs yield, which is the economics that has shaped flat-panel manufacturing from the start.[2] Higher pixel density also narrows the process window for the colour filter and the cell gap.
The driver is a visible line item on small modules. A chip-on-glass design saves a connector and a cable but consumes glass area and needs a fine-pitch bonder; chip-on-flex costs more in material and less in panel area. Which is cheaper depends on the volume and the bonder the factory already runs.
Grade and defect criteria
Panels are sorted after inspection, and the grade decides both the price and what you will see in the field. A tight grade rejects more of the output, so the supplier has to spread that loss across the units that pass. The classification of defective pixels and the measurement conditions behind the numbers come from ISO 9241-307, which is usually the document a grade is written against.[1]
Ask for the defect class in writing, together with the inspection distance, illumination and the acceptance count for bright and dark sub-pixels. A quotation that says only "grade A" is not a specification.

Backlight output and films
Luminance is one of the most expensive requirements to raise. More output means more LEDs, a brighter light guide, additional brightness-enhancement film, and more heat to remove, which in turn affects the driver and the enclosure. A requirement written as "as bright as possible" is the fastest way to an expensive quotation; a figure with a stated measurement condition and a stated dimming range is not.
Uniformity and lifetime belong in the same conversation. A tightly specified uniformity across the active area costs film and LED binning, and a long backlight life at high output costs drive current margin.
Interface and the flex
RGB parallel, SPI, MIPI DSI and LVDS carry different costs. A parallel bus needs many lines and a wider flex; a serial link needs fewer pins but a receiver with more capability and tighter signal integrity. Bandwidth, colour depth and frame rate have to be quoted together, because a link that carries a small display at a low frame rate is short of headroom at twice the resolution. Where the host board has the wrong signalling, a bridge board is often cheaper than a custom panel; the display adapters collection covers that route.
Touch, cover glass and bonding
Adding touch usually means a sensor, a controller, a bonded window and one more test step. On-cell and in-cell sensors save a layer but constrain the cell design; a separate glass sensor is simpler to source but thicker. Optical bonding with a clear adhesive improves sunlight contrast and removes internal reflections, and it is one of the items most often left out of a first quotation, so confirm whether it is included.
Temperature range and ruggedness
A module specified for freezing conditions needs a liquid crystal mixture and a heater that behave at that temperature, plus connectors and adhesives rated for the same range. Vibration and shock requirements add retainers, staking and sometimes a different cover material. Each of these is a real cost line, and each is cheaper to declare at the start than to retrofit.
Volume, tooling and engineering
Small orders carry the setup: photomasks, a custom flex, a test fixture, firmware for the touch controller, and the engineering time to release them. That non-recurring cost is spread over the quantity, so the unit price falls steeply between a sample order and a production schedule, and the shape of that curve matters more than any single quote.
Custom sizes, custom flex outlines and custom firmware all add non-recurring cost. Where a standard module can be made to fit, the saving is usually larger than any negotiation on unit price.
Yield, test and ageing
Testing is not free. A supplier that inspects every unit at operating temperature, runs a burn-in period and re-tests after ageing will charge more than one that ships on a sampling basis, and the difference shows up later as field returns. For a product with a service life measured in years, the second option is rarely cheaper.
Compliance and documentation
Declarations for restricted substances, material data, a quality certificate and an inspection report are paperwork with a cost attached. Regulated markets also expect traceability by lot. If your customer needs those documents, ask for them in the first enquiry so the quotation includes them rather than arriving as a surcharge.
Freight, terms and timing
Glass is heavy and fragile, so packaging and freight are not trivial, and the Incoterm decides who pays for the part of the journey where damage happens. Currency, payment terms and lead time belong in the same comparison, because a cheaper unit price on a longer lead time can cost more in inventory than it saves.
Comparing two quotations
Put the offers side by side on identical lines, and treat any blank as a difference rather than a zero.
| Line | What raises the price | What to pin down in the brief |
|---|---|---|
| Cell | Unusual size, high pixel density, tight border | Diagonal, resolution, active area, border limit |
| Backlight | High output, tight uniformity, long life | Luminance with condition, dimming range, life target |
| Driver and flex | High channel count, fine-pitch bonding, custom outline | Interface, colour depth, frame rate, connector type |
| Touch and window | Sensor type, controller, bonding, surface treatment | Touch points, window thickness, bonding method |
| Grade | Tight defect class, full inspection | Defect class, acceptance counts, inspection conditions |
| Environment | Wide temperature, heater, shock and vibration | Operating and storage range, test standard |
| Commercial | Low volume, custom tooling, short lead time | Quantity per year, tooling owner, delivery terms |
What to send for a firm quote
Send the diagonal and resolution, the luminance you need with the condition you will measure it under, the interface and connector, the temperature range, whether touch and a window are included, the defect class you will accept, the annual quantity and the date you need the first production batch. With those in hand a supplier can quote a buildable part instead of a guess. Start from the IPS display modules range where the wide-angle requirement is fixed, or from TFT display modules where cost and brightness set the brief.
Summing up
IPS display price is a function of specification, not of the letters IPS. Fix the specification, state the measurement conditions, and ask each supplier to quote the same lines. The comparison then becomes arithmetic rather than negotiation, and the cheapest offer stops being the one with the shortest list.
References
- ISO 9241-307:2008 — Ergonomics of human-system interaction — Part 307: Analysis and compliance test methods for electronic visual displays. International Organization for Standardization. https://www.iso.org/standard/40102.html
- Hilsum, C. (2010). Flat-panel electronic displays: a triumph of physics, chemistry and engineering. Philosophical Transactions of the Royal Society A, 368(1914), 1027–1082. https://doi.org/10.1098/rsta.2009.0247
Read more

To calibrate an IPS display in 5 steps: first, set brightness to 120 cd/m² (standard for sRGB); second, adjust contrast to 70% to balance blacks/whites.

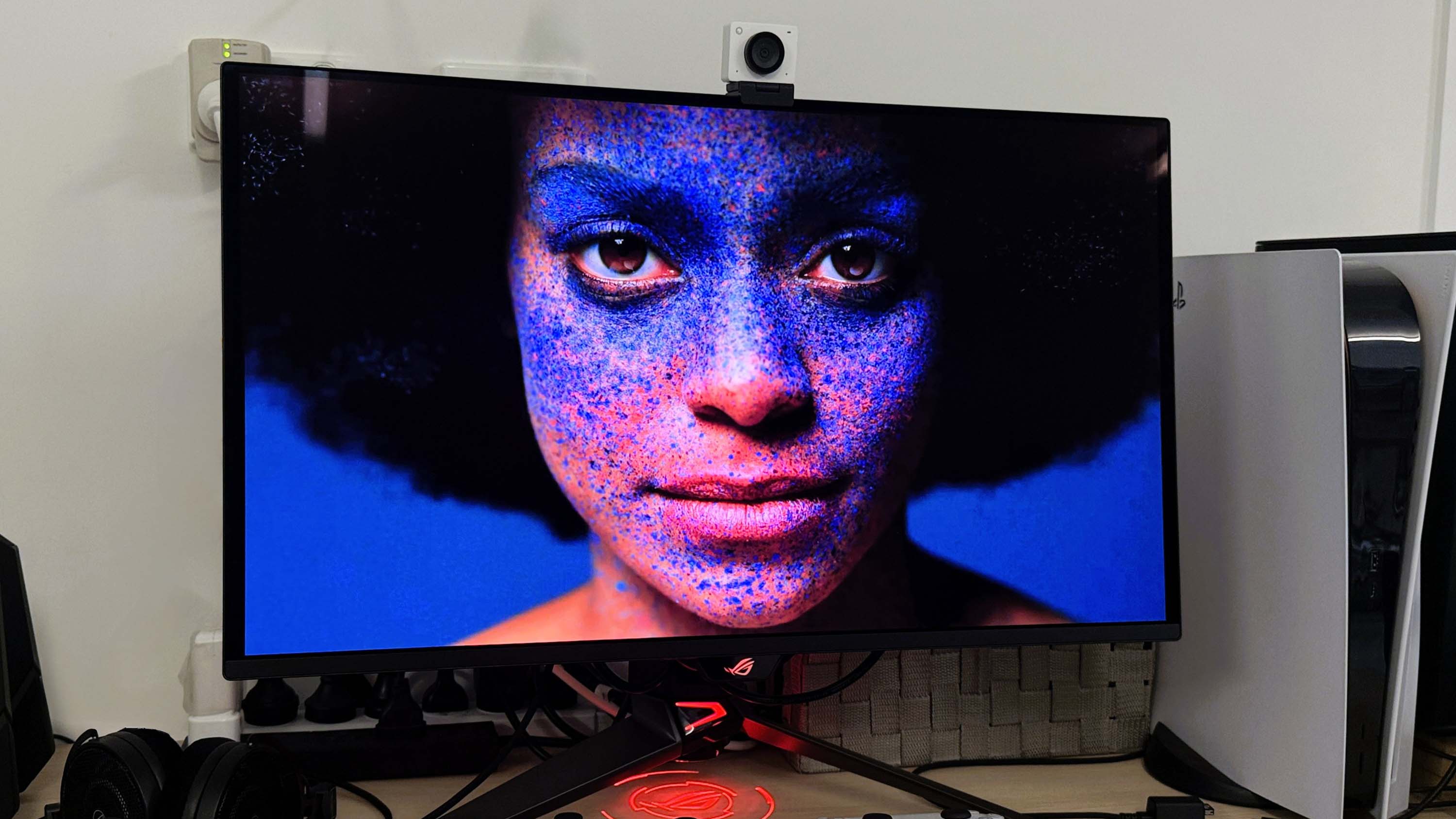

The two primary types of OLED are PMOLED (Passive Matrix OLED) and AMOLED (Active Matrix OLED) ; PMOLED uses simple row-column drivers for small screens.
