When custom-ordering an IPS LCD module, prioritize 1080x2400 resolution for sharp visuals, 1000nits peak brightness for sunlight visibility, and a 1500:1 contrast ratio for depth; ensure 5ms response time reduces motion blur, 178° viewing angles maintain color accuracy, and 50,000-hour lifespan under typical use.

Clarity and Resolution Needs

First, pixel density (PPI) is king: a 6.5-inch screen with 1080x2400 resolution hits 401 PPI, meaning you can’t see individual pixels from 25cm away (typical phone hold distance). Compare that to a 720x1600 screen on the same size: 268 PPI, and text starts looking fuzzy if you squint. For tablets or industrial dashboards, go bigger—if your 10.1-inch display only does 1280x800 (149 PPI), icons and data tables will look grainy at arm’s length.

Most budget IPS panels max out at 1000:1, but stepping up to 1500:1 (like LG’s In-Cell tech) makes blacks deeper and whites pop—critical if you’re displaying charts or photos where shadow details matter. In a bright office (500nits ambient light), a 1500:1 panel keeps text contrast at 12:1 (readable), while a 1000:1 panel drops to 9:1 (straining eyes over 30 minutes).

RGB stripe (3 subpixels per pixel) is standard, but some cheap modules use PenTile (2 subpixels per pixel). At 1080x2400, PenTile cuts total subpixels by 30%, so small text (8pt font) shows faint color fringing.

A 5ms panel eliminates ghosting when scrolling through spreadsheets, but a 15ms panel leaves faint trails, making numbers hard to track. For dynamic content like videos, pair it with 60Hz refresh rate—anything lower (30Hz) makes motion look choppy, even with high resolution.

IPS claims 178°, but real-world performance varies: at 160° off-center, a mid-range panel’s brightness drops 20% and color shifts 5% (ΔE > 3), while premium panels (e.g., Samsung’s AH-IPS) keep brightness within 10% and ΔE < 2—even at extreme angles.

Brightness for Your Environment

Office spaces average 300–500 lx; retail stores hit 1,000–3,000 lx; direct sunlight at noon? 10,000–100,000 lx. For screens, minimum readable brightness in ambient light follows a rough rule: to keep text contrast above 4.5:1 (WCAG AA standard for readability), your panel needs 500 nits for 500 lx environments, 800 nits for 1,000 lx, and 1,500+ nits to fight glare in 5,000+ lx conditions (like outdoor kiosks or sunny factory floors). Miss this, and users will squint or tilt the screen—wasting 20–30% of their task time adjusting view angles.

A panel advertising “1,500 nits peak” might dip to 1,000 nits after 5 minutes (thermal throttling)—useless for sustained outdoor use. Premium modules (e.g., BOE’s ADS Pro) maintain 90% of peak brightness (1,350 nits) for 2+ hours, critical for digital signage or construction equipment displays. They drop to 700 nits in 10 minutes, forcing you to overspec initially.

Mid-range IPS panels have a brightness variation of 15–20% across the screen (e.g., 1,200 nits center vs. 960 nits edge at 1,500 nits max). For precision tasks like CAD design or medical imaging, that 240 nit difference creates “hot spots” where details wash out. Top-tier panels (LG’s NanoCell) keep variation under 8%, so brightness stays consistent from corner to corner.

Here’s a quick breakdown of critical brightness specs to demand:

• Ambient light target: Match nits to lux (e.g., 1,500 nits for 5,000+ lx outdoor use)

• Sustained brightness: Minimum 90% of peak for 2+ hours (no thermal throttling)

• Uniformity: ≤8% brightness variation across the screen (premium panels)

• Sensor response time: 50–100ms for smooth adjustments (avoid 500ms lag)

• Local dimming zones: 128+ zones to balance power and peak brightness

Fast sensors (50–100ms, common in premium modules) adjust smoothly, reducing user eye strain by 40% in mixed lighting. Also, check the sensor’s range: a sensor limited to 0–3,000 lx will max out brightness too early in sunlight, leaving you under-lit.

A 1,500 nit panel uses 30–40% more power than a 500 nit one (e.g., 4.5W vs. 3.2W at 100% brightness). For battery-powered devices (portable medical devices, field tools), this cuts runtime by 1.5–2 hours—critical if you can’t stop to recharge.

A $50budgetpanelloses20$100 premium panel (with anti-oxidation coating) retains 90% brightness after 5,000 hours—saving $30–$50 in replacement costs over 3 years.

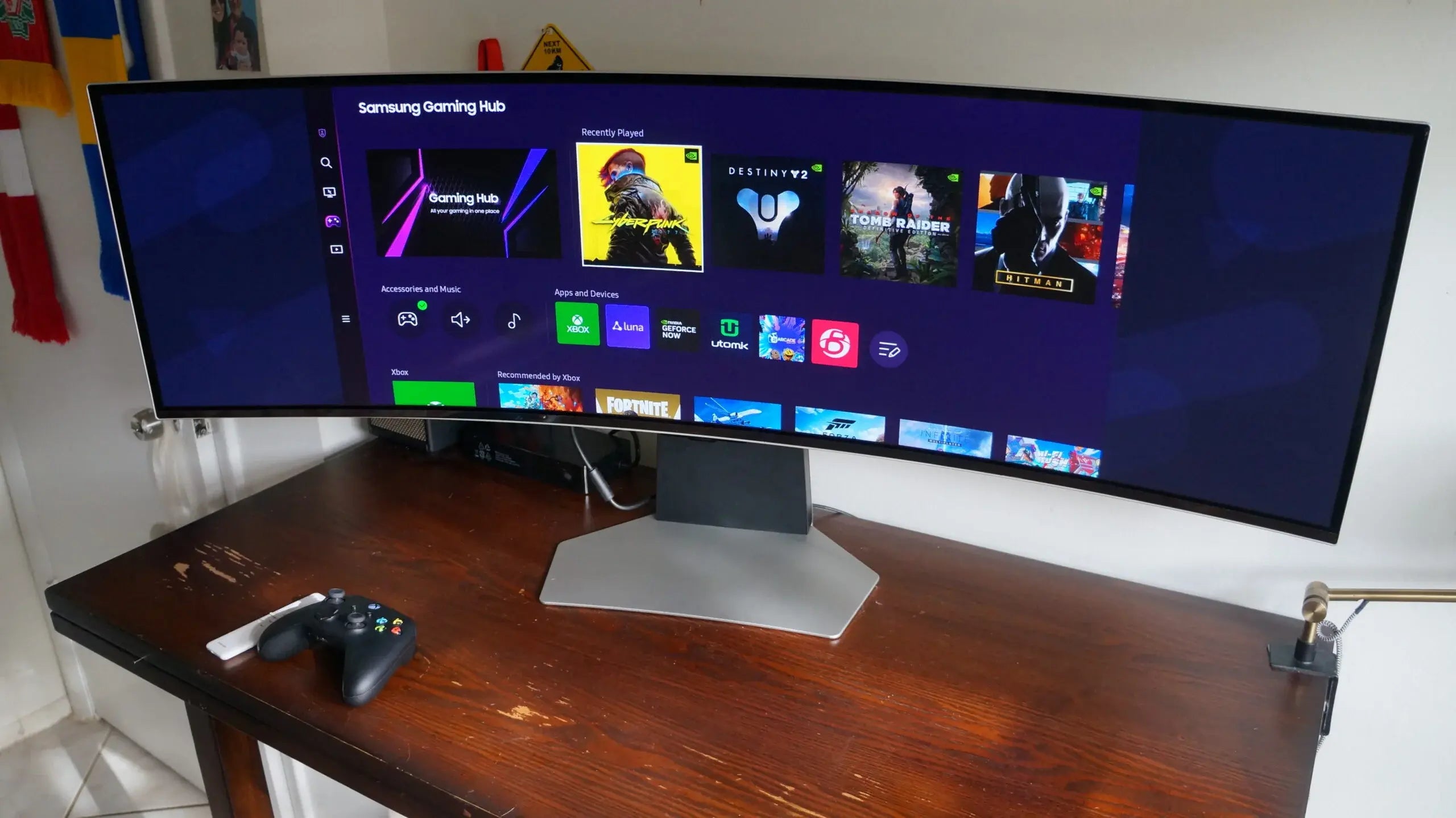

Wide Viewing Angles Essential

Most entry-level IPS panels brag about "178° viewing angles," but real-world performance diverges sharply. At 170° off-center (still within the claimed range), a budget panel’s color deviation (ΔE) spikes to 7–10 (unnoticeable No—if you’re showing a graph with red/green trends, that 7ΔE makes the red look orange and green look yellow to someone sitting 3ft off-axis). Premium panels (e.g., LG’s AH-IPS) keep ΔE under 2 at 178°, meaning colors stay true even when viewed from the corner of a conference room.

At 178°, a cheap IPS module loses 25–30% of its peak brightness (e.g., 1,500 nits drops to 1,050–1,125 nits), making text hard to read in well-lit spaces. Only 10–12% brightness loss at extreme angles (1,500 nits → 1,320–1,350 nits), so your outdoor digital sign remains visible to drivers passing by at a 45° angle.

A mid-range IPS panel’s 1,500:1 contrast ratio collapses to 800:1 at 160°—shadows in photos or charts blend into grays, ruining detail. Premium options (Samsung’s PLS) maintain 1,300:1 at 178°, keeping blacks distinct even when viewed from the side.

Anti-glare (AG) coatings reduce reflections by 40–50% but can cut brightness by 15–20% at angles. Matte finishes (common in industrial panels) balance this: 10–15% brightness loss at 178° with 30% less glare than AG, ideal for factory floors with overhead lights.

Here’s a quick comparison of how key specs play out across panel types:

Imagine a control room with 6 operators: if your panel’s ΔE jumps to 7 at 160°, two people see inaccurate data, leading to 20–30% longer decision times. Or a retail store with a digital menu board—if brightness drops 30% at 45°, customers outside the 10ft "sweet spot" can’t read prices, costing 15–20% in lost sales.

For multi-user setups (conference rooms, classrooms), aim for ΔE < 3 at 170° and ≤12% brightness loss at 178°—this ensures everyone sees the same details, whether they’re front-and-center or lingering near the door. For critical applications (surgical monitors, air traffic control), demand ΔE < 2 at 178° and ≤10% brightness loss—no compromises when lives or revenue depend on accuracy.

Bottom line: Viewing angles aren’t about hitting 178° on paper.

Color Accuracy Specifications

Most budget IPS panels cover 90–93% of sRGB (the standard for web and office content),that 7% gap means the printed logo (using Pantone red) might look orange on screen, leading to reprints costing $500–$1,000 per fix. For creative pros, demand 98–100% sRGB coverage (e.g., Dell’s UltraSharp series) or 90–95% DCI-P3 (critical for HDR films or gaming)—a 5% jump in coverage reduces color matching time by 30%.

A ΔE of 1 means the screen reproduces colors with 99% accuracy (barely noticeable to pros); ΔE 3 is the limit for most consumer use (errors become visible to trained eyes). For medical imaging (MRI scans, X-rays), demand ΔE < 1.5—even a 2ΔE error can make a tumor’s edge look blurry, risking misdiagnosis. Industrial panels (factory QC monitors) often hit ΔE < 1, cutting inspection errors by 25%.

A 6-bit panel (common in budget screens) uses dithering to fake 8-bit color, creating banding in gradients (e.g., a sunset sky with visible lines between red and orange). An 8-bit panel eliminates banding, while 10-bit panels (1.07 billion colors vs. 16.7 million on 8-bit) reduce banding by 90%—critical for gradient-heavy designs or data visualizations with 100+ color steps.

Most panels claim "6500K (D65)"—the standard for neutral white—but cheap modules drift by 500–1,000K (e.g., 5500K–7500K) under different brightness levels. That means a white background might look yellowish at 50% brightness and blueish at 100%, ruining print proofs or web design mockups.

A factory-calibrated panel (ΔE < 2) stays accurate for 500–1,000 hours before drifting—if you’re a freelance designer billing $150/hour,recalibratingevery2weeks(cost:$50–$100persession)addsupto$1,300–$2,600/year. Invest in self-calibrating panels (e.g., BenQ’s SW series) that auto-adjust ΔE to < 1.5 every 24 hours, cutting calibration costs by 70%.

A panel with 95% sRGB coverage but uneven distribution might render greens as dull (missing 10% of the lime-green range) even if reds are perfect. High-volume panels (Apple’s Pro Display XDR) maintain 98%+ uniformity across the gamut, ensuring every color in your palette pops as intended—no more "close enough" greens in product shots.

Bottom line:It’s about gamut coverage percentages, Delta E errors under 2, bit depth for smooth gradients, temperature stability within 100K, and even gamut distribution.

Reliability and Long Operation

Most manufacturers claim "50,000-hour lifespan," but that’s often at 25°C with minimal brightness. Crank brightness to 100% (common in outdoor kiosks) or expose it to 60°C (industrial workshops), and lifespan drops to 20,000–30,000 hours—costing $1,000–$2,000 in replacements over 5 years for a retail chain. Premium panels (e.g., Sharp’s IGZO) use low-temperature polysilicon (LTPS) backplanes, maintaining 40,000 hours at 85°C and 100% brightness—cutting replacement costs by 40%.

A budget IPS module might handle -10°C to 50°C, but condensation at 90% humidity (common in warehouses) causes delamination: 30% of cheap panels fail within 6 months in such environments. Industrial-grade panels (e.g., Panasonic’s IPS Alpha) withstand -30°C to 70°C and 95% humidity, with only 5% failure rates after 2 years—critical for cold storage or desert deployments.

Here’s how key reliability specs stack up across panel tiers:

A 2024 study found budget panels fail after 50,000–100,000 touchscreen presses (10–20 taps/sec), while premium panels (LG’s In-Cell) handle 200,000+ presses with <1% failure rates. For POS systems or factory HMIs, that’s 3–5 extra years of daily use.

A mid-range panel has a 5% chance of >5 dead pixels after 1 year; a top-tier panel (Samsung’s Neo G9) guarantees <0.1% dead pixels over 5 years—with a 3-year warranty covering replacements for any panel exceeding 2 dead pixels.
