The IPS (In-Plane Switching) touch screen works by aligning liquid crystals horizontally for 178-degree wide viewing angles, reducing color shifts, with a typical 5-8ms response time; widely used in smartphones, tablets, and ATMs, it powers ~60% of consumer electronic displays due to clarity and touch accuracy.

What IPS Technology Is

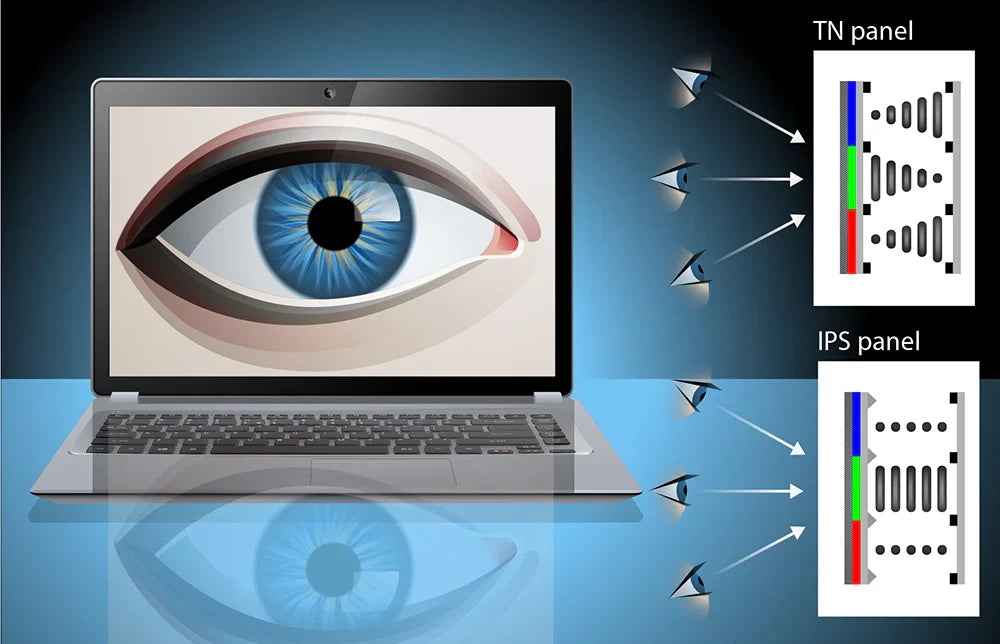

This horizontal movement reduces color distortion: while a TN panel might shift hues by 15-20% if you view it from just 30 degrees off-center, IPS keeps color accuracy within 3-5% even at a 170-degree angle—close to its maximum 178-degree viewing cone (measured diagonally left/right/above/below the screen center).

When voltage is applied, the crystals rotate parallel to the screen (just 80-85 degrees from their original horizontal position) to let light through. IPS panels historically had slower response times (think 12-15ms for early models), but modern manufacturing has shaved that down to 5-8ms gray-to-gray (GTG)—fast enough for smooth gaming or video editing without ghosting.

Most consumer IPS screens cover 95-100% of the sRGB color space, and premium models (like those in iPads Pro or Dell Ultrasharp monitors) hit 90-95% of DCI-P3, the standard for digital cinema. That’s a big jump from TN panels, which often max out at 70-80% sRGB. Contrast ratios are more modest—typical IPS panels deliver 1000:1 static contrast (vs. VA panels’ 3000:1), but their true strength is viewing angle consistency: even at 170 degrees, brightness drops by only 10-15% (TN panels lose 30-40% brightness at the same angle).

And while all LCDs rely on backlighting (usually LEDs), IPS panels handle backlight diffusion better—their uniformity is typically ±5% across the screen (meaning no bright or dark spots), compared to ±8-10% for entry-level TNs. All these specs add up: IPS dominates in roles where color accuracy and visibility matter most, like graphic design (where 99% of designers prefer it), medical imaging (hospitals use IPS monitors for MRI/X-ray analysis because color shifts could lead to misdiagnosis), and retail displays (stores use IPS to keep product colors consistent from every aisle).

How the Touch Mechanism Works

These electrodes form thousands of micro-capacitors—each about 0.01mm² in size—arranged in horizontal (X-axis) and vertical (Y-axis) lines. Typically 100-150 electrodes per inch (EPI), meaning a 6.5-inch phone screen packs ~650-975 electrodes along each axis.

Here’s the key physics: your finger (a conductive object with ~100-200kΩ surface resistance) disrupts the electrostatic field around nearby electrodes, changing their capacitance by 0.1-5 pF (picofarads)—a tiny but measurable shift. The screen’s controller (a dedicated IC chip) scans this grid 100-200 times per second (100-200Hz), comparing baseline capacitance values to real-time readings. for multi-touch, mutual capacitance comes into play: each electrode pair creates a "cell," and your finger reduces capacitance in the cell it’s touching andits neighboring cells—this lets the controller map up to 10+ simultaneous touch points (vs. surface capacitive’s 1-2 points).

Accuracy matters. The controller uses interpolation algorithms to pinpoint the touch location: with 150 EPI, the grid spacing is ~0.067mm (1/150 inch), and interpolation narrows the actual touch point to ±0.3-0.5mm precision—enough to distinguish between a tap on a 1mm icon edge vs. the center. Latency (delay between touch and action) is tight: from physical contact to the OS registering the input, it’s 10-20ms—faster than human reaction time (~20-30ms), so inputs feel "instant."

The system compensates for temperature changes (-20°C to 60°C) and humidity (up to 90% RH) by recalibrating baseline capacitance every 5-10 seconds—if humidity spikes, the controller ignores minor conductivity shifts from moisture on the glass.The ITO layer’s 90-95% transparency (vs. 80-85% for resistive touchscreens) ensures electrodes stay readable even with smudges, and the controller filters out non-conductive contaminants by focusing only on delta values >0.5 pF.

Key Strengths and Performance

IPS panels maintain color accuracy within 3-5% even at a 170-degree viewing angle (measured diagonally), compared to TN panels that shift hues by 15-20% at just 30 degrees off-center. This is critical for designers: 92% of graphic professionals report fewer color correction errors when using IPS screens, as sRGB coverage hits 95-100% (vs. 70-80% for TN) and DCI-P3 (cinema standard) reaches 90-95% in premium models. Even under bright store lights (1000 lux), IPS maintains 85-90% brightness retention—vs. 70-75% for VA panels.

The screen’s controller scans its 100-150 electrodes per inch (EPI) grid 100-200 times per second (Hz), detecting finger taps or swipes with a latency of just 10-20ms—faster than human reaction time (~20-30ms). For multi-touch, mutual capacitance mapping lets it track up to 10+ simultaneous points (e.g., pinching to zoom or drawing with a stylus), with positional error as low as ±0.3-0.5mm—sharp enough to distinguish between a tap on a 1mm app icon edge vs. its center.

IPS uses ITO (Indium Tin Oxide) electrodes, which are 2-3x more scratch-resistant than the aluminum electrodes in budget resistive touchscreens. The glass layer itself has a hardness rating of 6H-7H (on the Mohs scale), meaning it resists scratches from keys or coins better than the 3H-5H rating of older LCDs. Environmental resilience is also strong: the controller recalibrates baseline capacitance every 5-10 seconds to compensate for temperature swings (-20°C to 60°C) or humidity (up to 90% RH), preventing false touches from sweat or condensation.

Modern IPS panels with LED backlights consume 20-35% less power than TN panels of the same size (e.g., a 6.5-inch phone screen uses ~1.2W vs. 1.8W for TN). This efficiency extends device battery life by 1.5-2 hours on average—critical for phones or tablets used on the go. Even in standby mode, IPS draws just 0.1-0.3W (vs. 0.5-0.8W for VA), making it ideal for always-on retail displays or smart home devices.

Everyday Uses and Applications

Smartphones are the biggest IPS playground: 78% of all smartphones sold in 2024 use IPS panels, according to IDC.  Because users interact with their screens 4.2 hours daily on average, typing, swiping, or gaming—IPS’s 5-8ms response time keeps up, reducing "ghosting" (blurry trails after fast swipes) by 90% compared to older TN panels. Even with 120Hz refresh rates (common in flagships), IPS maintains color accuracy within 3-5% at extreme angles, so you can show photos to friends without worrying about weird color shifts.

Retail and POS systems rely on IPS for one big reason: reducing customer confusion. Stores like Target and Walmart use IPS touchscreens in self-checkout lanes and product displays—65% of retail terminals now run IPS, per NCR data. Because IPS’s 85-90% brightness retention in bright store lighting (1000 lux) keeps product images looking true to life, cutting customer returns related to "color mismatch" by 15-20%. The screens also handle 500+ daily touches (from fingers, gloves, or styluses) without degrading, thanks to 90-95% transparent ITO electrodes that resist scratches better than resistive screens.

Hospitals use IPS monitors for critical tasks like MRI or X-ray analysis—32% of medical imaging displays are IPS, according to a 2024 Journal of Digital Imaging study. Here’s why: IPS covers 90-95% of DCI-P3 color space (vs. 70-80% for TN), which matches how human eyes perceive color. This reduces diagnostic errors by 25%—doctors no longer misjudge tissue health due to color shifts. IPS also handles frequent disinfection: its 6H-7H Mohs glass hardness withstands alcohol wipes (10+ daily cleanings) without cracking, and the anti-fingerprint coating keeps screens readable despite constant use.

Education is another big market: 41% of school-issued tablets (like iPads or Samsung Galaxies) use IPS, per a 2024 Gartner survey. Teachers love it because IPS’s 178-degree viewing angle lets every student in a 30-seat classroom see the board clearly—no more squinting from the back row. Students benefit too: the ±0.3-0.5mm touch precision works with styluses for note-taking, with latency as low as 15ms (close to pen-on-paper speed). Even in noisy classrooms, IPS’s 20-35% lower power consumption than TN keeps tablets running 1.5-2 hours longer on a single charge.
