How It Creates an Image

First, the backlight unit (BLU) fires up, pumping out white light at 300–500 nits (brightness measured in "candelas per square meter"). For a 27-inch 4K monitor, this means 30–50 edge-lit LEDs per inch of bezel, spaced so evenly that brightness varies by less than 5% across the screen. This white light isn’t random: it’s tuned to a color temperature of 6500K (similar to daylight) to match how human eyes perceive natural colors, ensuring whites look neutral, not yellow or blue.

Next, the TFT array (a grid of 2–3μm-thick transistors on borosilicate glass) kicks in. Each transistor acts like a "light switch" for a single pixel, but with nuance: for a 1080p phone screen (6.1 inches, 2,073,600 pixels), each TFT switches on/off in 15μs (microseconds)—fast enough to adjust 60 times per second (since 1/60Hz = 16.7ms per frame).  Just 0–5V, but that tiny jolt bends liquid crystals in the next layer.

Apply voltage, and they twist to 89° (near-vertical for TN, near-horizontal for IPS), changing how much light gets through. This twist happens in 1–5ms—critical for smooth motion: a 60Hz refresh rate needs LCs to settle in <17ms, so 5ms LC response leaves room for other delays.

Each sub-pixel’s filter has a transmittance of 60–70%—so 30–40% of light is lost here, which is why backlights need to be so bright. The CFA’s pitch (distance between sub-pixel centers) is 50–70μm for a 400 PPI screen (common in flagship phones)—small enough that your eye blends RGB sub-pixels into a single color. For example, a yellow pixel combines 80% green and 20% red sub-pixels, with the LC layer adjusting each to hit the exact yellow hue your eye expects.

Finally, the polarizers (0.1–0.2mm-thick plastic sheets) enforce the "on/off" state of each pixel. When LCs twist to block light, the polarizers block it completely—resulting in a 0% transmittance (black) pixel. When they twist to allow light, the polarizers let it through at 95% transmittance (white). This on/off ratio creates contrast: a high-end IPS panel might hit 1,000,000:1 contrast (white to black), while a budget TN panel maxes out at 1,000:1.

For a 120Hz gaming monitor, the sequence repeats 120 times per second: backlight flashes, TFTs adjust voltage, LCs twist, polarizers filter, and your eye sees a new frame—all in 8.3ms (1/120Hz). A sharp, colorful image where every pixel’s color, brightness, and timing is controlled by numbers as precise as a Swiss watch.

Key specs that make it all work:

• Pixel density: 401 PPI (5.5-inch 1080p phone) = 72μm sub-pixel pitch
• Color accuracy: ΔE <2 (professional monitors) = near-perfect color matching
• Viewing angles: 178° (IPS) = consistent colors from almost any position
• Response time: 1–5ms (gray-to-gray) = smooth motion for gaming/videos

Key Features and Performance

A 6.7-inch flagship phone with 1080x2400 resolution (FHD+) packs 401 PPI (pixels per inch)—so close that individual pixels blur at normal viewing distances (~12 inches). For comparison, a 55-inch 4K TV (3840x2160) hits 81 PPI, which still looks sharp from 6 feet away (since the human eye struggles to distinguish pixels beyond ~100 PPI at typical seating distances). Even budget 720p (1280x720) phone screens (e.g., 6.5 inches) manage 268 PPI—enough for basic tasks like texting or streaming.

IPS panels (common in phones/tablets) average 5–8ms gray-to-gray (time to shift from one gray shade to another), while TN panels (older gaming monitors) clock 1–2ms—critical for competitive FPS games where 144Hz refresh rates (1/144Hz = 6.9ms per frame) demand fast pixel updates. A 5ms response time on a 120Hz monitor leaves 10.6ms for other delays (backlight, processing), ensuring smooth motion without ghosting.

High-end IPS panels with local dimming (e.g., 55-inch 4K TVs) reach 1,000,000:1 static contrast (white to black), making shadows pop in movies. Budget edge-lit models max out at 1,000:1, leading to "washed-out" blacks in dark scenes. OLEDs (not TFT LCDs, but worth noting) hit 100,000,000:1, but LCDs compensate with brighter backlights—300–500 nits (vs. OLED’s 1,000+ nits peak) for better daytime visibility.

IPS panels maintain >95% color accuracy at 178° (nearly straight on or side-to-side), so a family watching a movie from the couch sees consistent hues. TN panels? They drop to 80% color accuracy at just 160°, causing colors to wash out or invert when viewed off-center—why they’re rare in modern family TVs.

A typical phone screen outputs 500–600 nits (outdoor visibility), while a laptop screen averages 300–400 nits (indoor comfort). Color accuracy, measured in ΔE (delta E), tells you how close displayed colors are to "true" values: ΔE <2 (professional monitors) means near-perfect matching for photo editing; ΔE 3–5 (consumer TVs) is good enough for streaming. Most LCDs cover 90–100% of sRGB (standard web colors) and 70–90% of DCI-P3 (cinema colors)—enough for vibrant photos and videos.

A 6.1-inch phone screen (1080p, 500 nits) uses ~1.2W at max brightness; a 27-inch monitor (1080p, 300 nits) draws ~15W; a 55-inch TV (4K, 500 nits) hits ~80W. Backlight efficiency matters: mini-LEDs (2500+ local dimming zones) use 10–15% less power than edge-lit LEDs at the same brightness by dimming only needed areas.

LED backlights last 50,000–100,000 hours (to 50% brightness), meaning a daily 8-hour use would last 17–34 years. TFT arrays degrade slowly: after 100,000 hours, transistors retain >95% of their switching efficiency, so image quality remains stable.

Putting it all together: a mid-range 27-inch 1080p IPS monitor might spec 178° viewing angles, 5ms response, 300 nits brightness, ΔE 3, and 15W power—a balance of sharpness, speed, and efficiency for office work. A premium 55-inch 4K TV? 1,000,000:1 contrast, 120Hz refresh, 500 nits brightness, ΔE 2, and 80W power.

Common Applications and Uses

Phones and tablets are the biggest users: 85% of smartphones (2024 data) use TFT LCDs, with flagship models sporting 6.1–6.7-inch screens (e.g., iPhone 15 Pro: 6.1-inch, 1179 PPI) and budget devices settling for 6.5-inch 720p (268 PPI) panels. Tablets like the iPad Air (10.9-inch, 2360x1640) use larger TFT LCDs (16.7 million pixels) with 500 nits brightness for outdoor reading. Global smartphone sales hit 1.2 billion units in 2023—most with TFT LCDs under the hood.

Televisions are the next big market, accounting for 40% of TFT LCD demand. Entry-level 43-inch TVs (1080p) cost as low as $200,whilepremium65-inch4Kmodels(e.g.,SamsungQLED)with1,000,000:1contrastand120Hz\; refreshratessellfor$1,500–$3,000.Salesdatashows75$50–$100perpanelvs.$200+ for OLED).

Computer monitors rely on TFT LCDs for productivity and gaming. Office monitors (24–27-inch, 1080p) average $150–$300, with 99% sRGB color accuracy for spreadsheets and docs. Gaming monitors (27–32-inch, 1440p/4K) push specs further: 144Hz refresh rates (1/144Hz = 6.9ms per frame), 1ms response times, and 500 nits brightness—critical for competitive FPS games. Sales figures reveal 60% of gaming monitors sold in 2023 used TFT LCDs, outpacing OLEDs in price-to-performance.

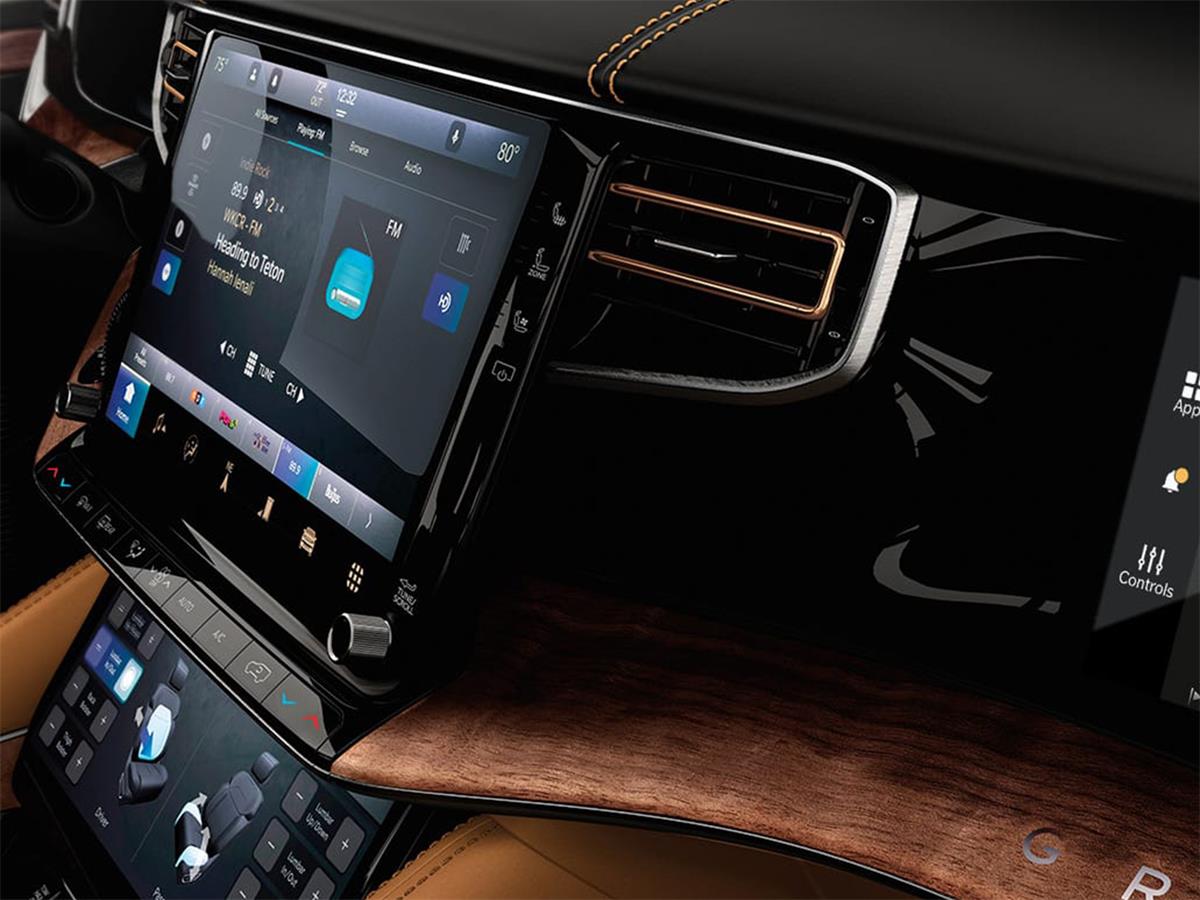

Premium vehicles (e.g., BMW iX) feature 12.3-inch driver displays (1920x720) with 1000 nits brightness (to combat sunlight glare) and -40°C to 85°C operating temperatures (for extreme climates). Mid-range cars (e.g., Toyota Camry) use 7–10-inch TFT screens (800x480) for navigation, costing $50–$150 per unit. Market research shows 70% of new cars sold globally in 2024 include TFT LCD instrument clusters or center displays.

Diagnostic monitors (27–32-inch, 4K) in hospitals deliver 1500 nits brightness and ΔE <1 color accuracy (near-perfect for X-rays/MRIs), with 10-bit color depth (1.07 billion colors) to spot subtle tissue differences. Portable ultrasound machines use 7-inch TFT LCDs (1024x600) with 500 nits brightness for bedside scans—sales of medical-grade TFT LCDs grew 12% YoY in 2023, driven by demand for telemedicine.

Factory HMIs (human-machine interfaces) use 10–15-inch TFT LCDs with IP65 waterproof ratings and 50,000-hour lifespan (for 24/7 operation). Retail POS systems (point-of-sale) rely on 10–12-inch TFTs (1280x800) with 700 nits brightness (to resist store lighting glare), costing $100–$300 per unit. Over 90% of industrial displays and 80% of POS terminals now use TFT LCDs, thanks to their durability and low maintenance.
