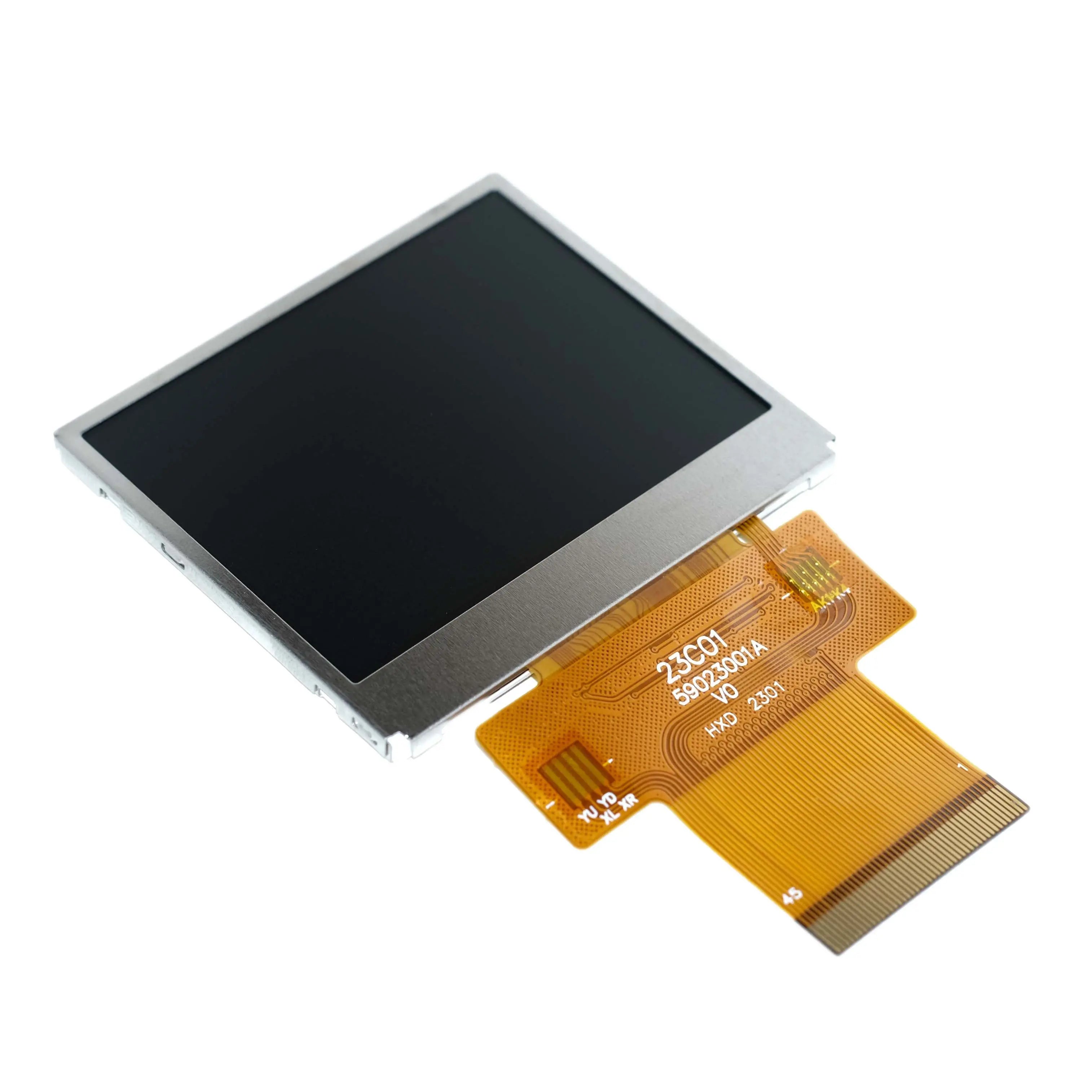

2.36" 320x240 Transmissive TFT LCD Display – RGB
- 💹 Enjoy a 20% discount for orders over 500
- 📉 A 15% discount is available for orders ranging from 200 to 499
- 🎁 A 10% discount is available for orders ranging from 50 to 199
- 🎁 A 5% discount is available when ordering 10-49
Interested in customizing this product? Get in touch with us.
Order samples, immediate delivery.
Factory bulk lead time: 3 weeks.
Teilen
2.36" 320x240 Transmissive TFT LCD Display – RGB
Angebot$19.99
2.36" 320x240 Transmissive TFT LCD Display – RGB
- 💹 Enjoy a 20% discount for orders over 500
- 📉 A 15% discount is available for orders ranging from 200 to 499
- 🎁 A 10% discount is available for orders ranging from 50 to 199
- 🎁 A 5% discount is available when ordering 10-49
2.36" 320×240 TFT LCD Display Specifications
This 2.36-inch TFT LCD features a 320×240 resolution, transmissive normally black mode, versatile MCU/SPI/RGB interfaces, and a compact design. It offers 300 cd/m² luminance and operates reliably across wide temperature ranges, ideal for portable and industrial applications.
| Parameter | Value | Unit |
|---|---|---|
| Diagonal Dimension | 2.36 | inch |
| Resolution | 320 × 240 | pixels |
| View Direction | 46.75 × 35.06 | mm |
| Display Mode | Transmissive, Normally White | - |
| Module Dimension | 52.35 × 46.35 × 2.60 | mm |
| Viewing Area | 46.75 × 35.06 | mm |
| Supply Voltage | 3.3 | V |
| Interface | 8/9/16/18-bit MCU, 3/4 SPI + 16/18-bit RGB | - |
| Luminance | 300 | cd/m² |
| Drive IC | ILI9342C | - |
| Operating Temperature | -20 ~ 70 | °C |
| Storage Temperature | -30 ~ 80 | °C |
Mechanical Dimensions
Refer to the drawing below for accurate module dimensions and mounting guidelines.
Technical Resources
Download the datasheet for detailed electrical, optical, and mechanical specifications for DM-TFT23-487.
