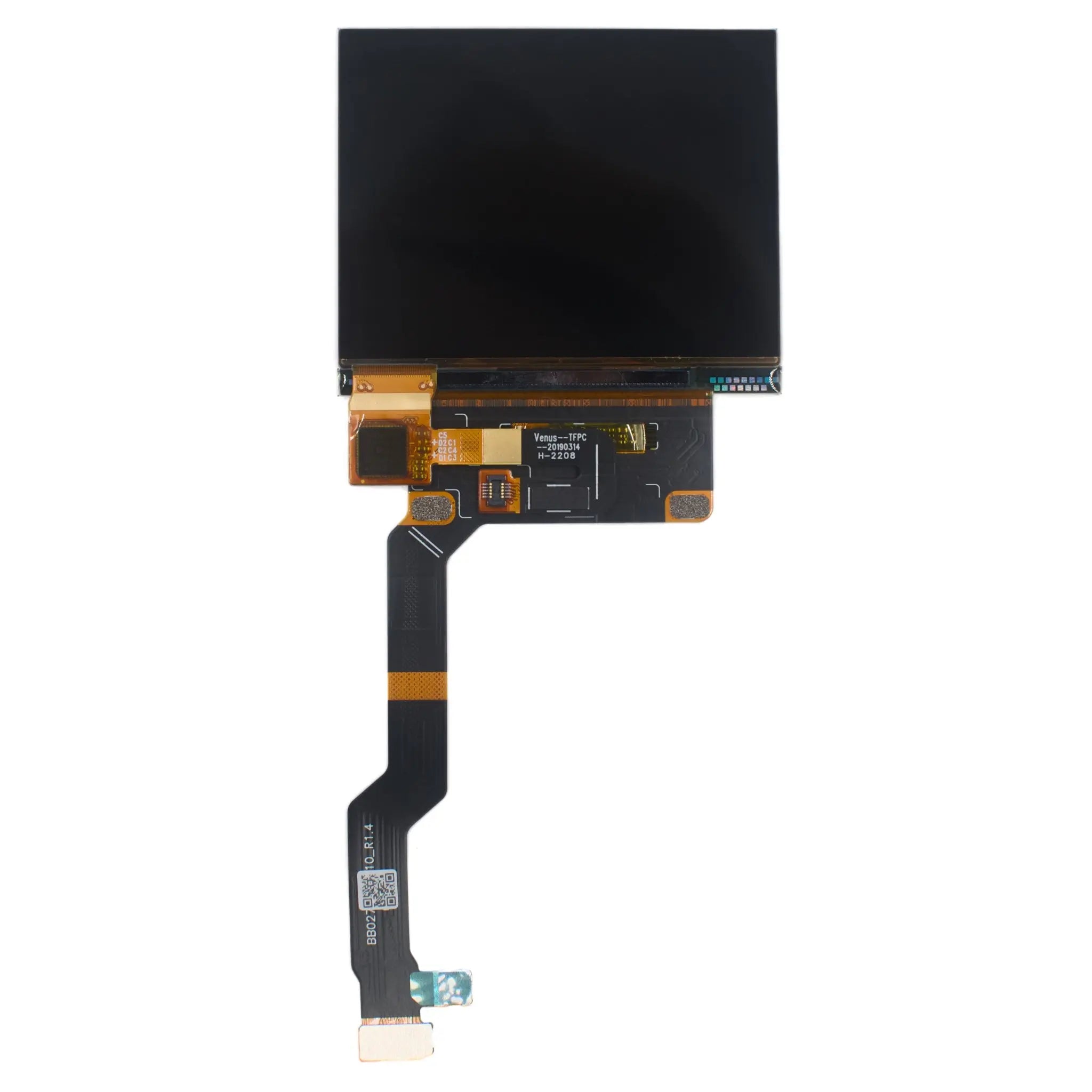

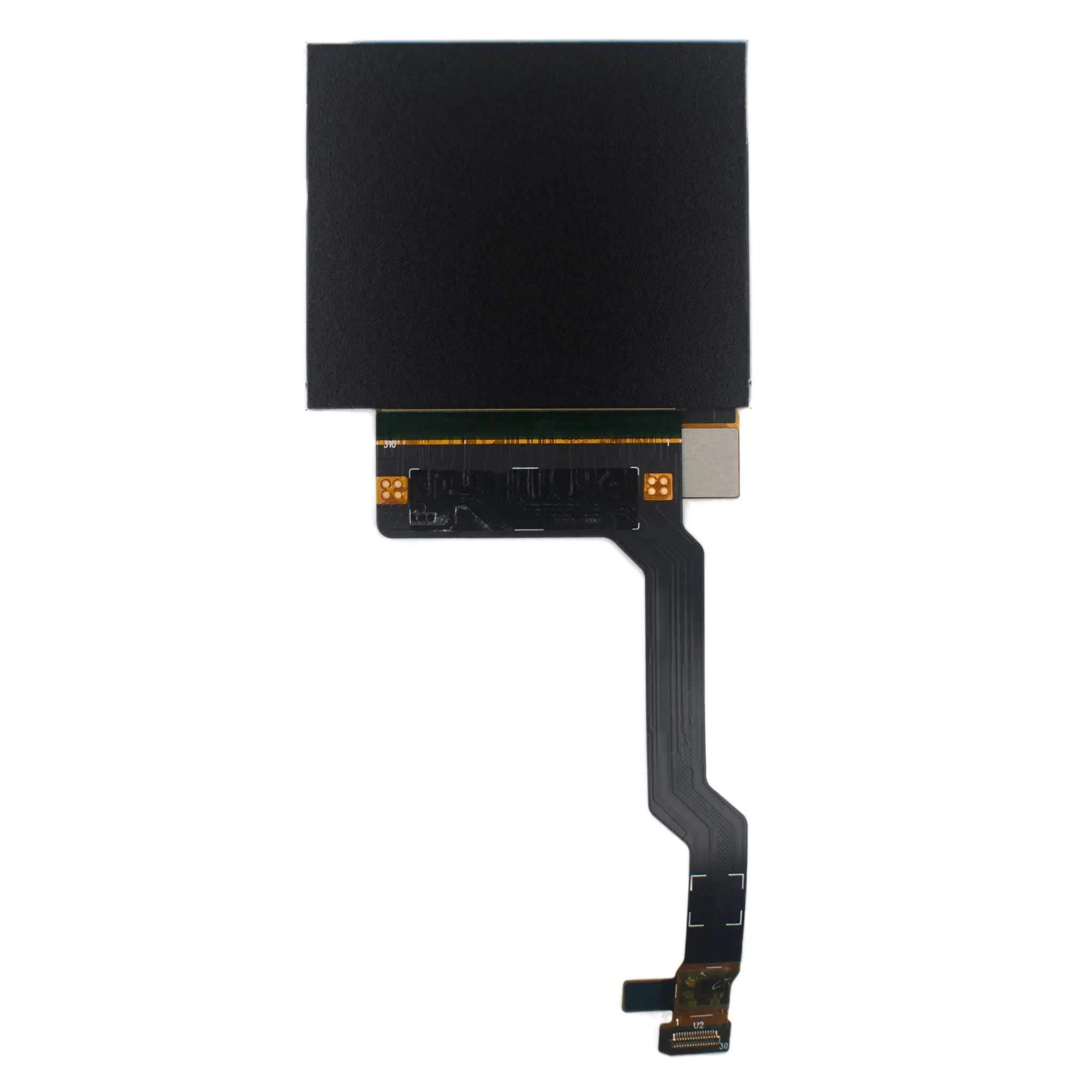

2.69" 800×600 AMOLED Display Module - MIPI Interface

SKU: DMKDO0270SVCA
Angebot$99.00
  • 💹 Enjoy a 20% discount for orders over 500
  • 📉 A 15% discount is available for orders ranging from 200 to 499
  • 🎁 A 10% discount is available for orders ranging from 50 to 199
  • 🎁 A 5% discount is available when ordering 10-49

Interested in customizing this product? Get in touch with us.

Order samples, immediate delivery.

Factory bulk lead time: 3 weeks.


Teilen
2.69" 800×600 AMOLED Display Module - MIPI Interface DisplayModule
2.69" 800×600 AMOLED Display Module - MIPI Interface Angebot$99.00

Mechanical Dimensions


2.69" 800×600 AMOLED Display Module - MIPI Interface

Product Details

This high-performance 2.69-inch AMOLED display module delivers exceptional visual quality with 800×600 resolution and 16.7 million color depth. Featuring an advanced RGB vertical stripe pixel arrangement and low-temperature poly-silicon thin film transistor technology, this module provides superior image quality with high contrast and wide viewing angles.

ACTIVE AREA
54.6 × 40.95 mm
DISPLAY TECHNOLOGY
AMOLED
RESOLUTION
800 × 600 pixels
COLOR DEPTH
16.7M colors

Engineered for reliability and performance, this display module integrates the advanced RM69700 driver IC and utilizes MIPI interface for high-speed data transmission. The ultra-thin 1.5mm profile and lightweight 4g design make it ideal for space-constrained applications.

  • Advanced Pixel Technology: Low Temperature Poly-silicon Thin Film Transistors for superior switching performance and image quality.
  • High Contrast Ratio: Exceptional contrast performance measured in dark room conditions at 25±2°C.
  • Wide Viewing Angles: Optimized viewing experience from multiple angles with consistent color reproduction.
  • MIPI Interface: High-speed Mobile Industry Processor Interface supporting efficient data transfer.
Product Specifications
Parameter Specification
Screen Size 2.69 inch
Resolution 800 × 600 pixels
Display Technology AMOLED
Color Arrangement RGB Vertical Stripe
Color Depth 16.7M colors
Active Area 54.6 × 40.95 mm
Module Dimensions 56.6 × 47.25 × 1.5 mm
Interface MIPI
Driver IC RM69700
Weight 4 g
Operating Temperature -40°C to 85°C
Storage Temperature 0°C to 40°C
Enterprise Solutions

We offer comprehensive display solutions for businesses seeking reliable and high-performance AMOLED technology for their products and applications.

  • Customization Services: Tailored display solutions with modified specifications, branding options, and specialized form factors to meet your specific requirements.
  • Volume Pricing: Competitive wholesale pricing for OEMs and large-scale deployments with minimum order quantities.
  • Technical Support: Dedicated engineering support for integration, troubleshooting, and optimization of display performance in your applications.
  • Supply Chain Reliability: Consistent supply with flexible manufacturing capacity to support production schedules and market demands.
Industry Applications
WEARABLE DEVICES

Ideal for smartwatches, fitness trackers, and AR/VR headsets where compact size, low power consumption, and high image quality are critical.

MEDICAL EQUIPMENT

Perfect for portable medical devices, diagnostic equipment, and patient monitoring systems requiring reliable display performance with accurate color reproduction.

INDUSTRIAL HMI

Excellent solution for human-machine interfaces in industrial controls, instrumentation, and portable measurement devices with wide temperature operation.

CONSUMER ELECTRONICS

Suited for premium portable electronics, gaming devices, and multimedia players demanding vibrant colors and high contrast ratios.

Technical Resources

Technical Documentation: Comprehensive datasheets, application notes, and integration guidelines available for engineering teams.

Design Resources: Download complete technical documentation

Compatibility Notes: Designed for seamless integration with主流 processors and platforms supporting MIPI display interface. Recommended operating sequence and power management guidelines provided in documentation.

Handling & Compliance

This display module requires careful handling to ensure optimal performance and longevity. Follow these guidelines for best results:

  • ESD Protection: Always use proper ESD precautions when handling the display module to prevent electrostatic damage.
  • Mechanical Protection: Avoid excessive pressure on the display surface and protect from mechanical shock or impact.
  • Cleaning Procedures: Use only ethyl alcohol for cleaning; avoid water, ketone, or aromatic solvents that may damage the polarizer.
  • Storage Conditions: Store in temperature-controlled environments (0°C-40°C) with relative humidity ≤80%, avoiding direct sunlight or fluorescent light exposure.
  • Certification Compliance: Manufactured following industry standards with complete certification documentation available upon request.
