3.5" TFT Display 320x240 Resistive Touch - SPI, MCU, RGB
Angebot$59.00
3.5" TFT Display 320x240 Resistive Touch - SPI, MCU, RGB
- 💹 Enjoy a 20% discount for orders over 500
- 📉 A 15% discount is available for orders ranging from 200 to 499
- 🎁 A 10% discount is available for orders ranging from 50 to 199
- 🎁 A 5% discount is available when ordering 10-49

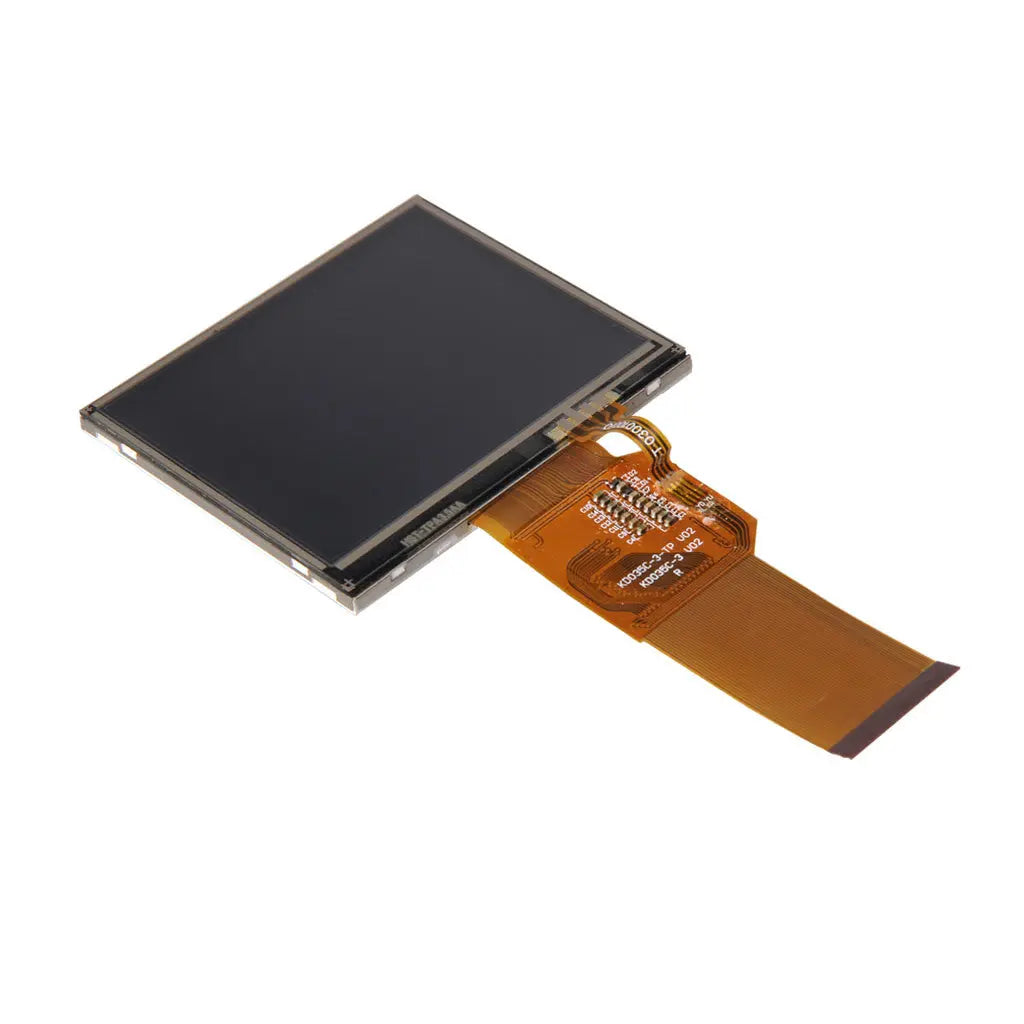

3.5" 320×240 TFT Display | SSD2119M
The DM-TFT35-424 is a 3.5-inch TFT LCD module with 320 × 240 resolution, 330 cd/m² brightness, and 3.3 V operation. It supports 8/9/16/18-bit MCU, 16/18-bit RGB, and SPI interfaces, making it suitable for versatile embedded and industrial display projects.
| Parameter | Value | Unit |
|---|---|---|
| Diagonal Dimension | 3.5 | inch |
| Resolution | 320 × 240 | pixels |
| Viewing Direction | 12 o’clock | - |
| Touch Mode | None | - |
| Module Dimensions | 78.01 × 64.90 × 4.45 | mm |
| Viewing Area | 70.08 × 52.56 | mm |
| Supply Voltage | 3.3 | V |
| Interface | 8/9/16/18-bit MCU, 16/18-bit RGB, 3/4-wire SPI | - |
| Luminance | 330 | cd/m² |
| Driver IC | SSD2119M | - |
| Operating Temperature | -20 ~ 70 | °C |
| Storage Temperature | -30 ~ 80 | °C |
