Binocular AR Glasses Birdbath 1920*1080 47° FOV Optical Module - LVDS
- 💹 Enjoy a 20% discount for orders over 500
- 📉 A 15% discount is available for orders ranging from 200 to 499
- 🎁 A 10% discount is available for orders ranging from 50 to 199
- 🎁 A 5% discount is available when ordering 10-49
Interested in customizing this product? Get in touch with us.
Order samples, immediate delivery.
Factory bulk lead time: 3 weeks.
Binocular AR Glasses Birdbath 1920*1080 47° FOV Optical Module - LVDS
- 💹 Enjoy a 20% discount for orders over 500
- 📉 A 15% discount is available for orders ranging from 200 to 499
- 🎁 A 10% discount is available for orders ranging from 50 to 199
- 🎁 A 5% discount is available when ordering 10-49
Dimension

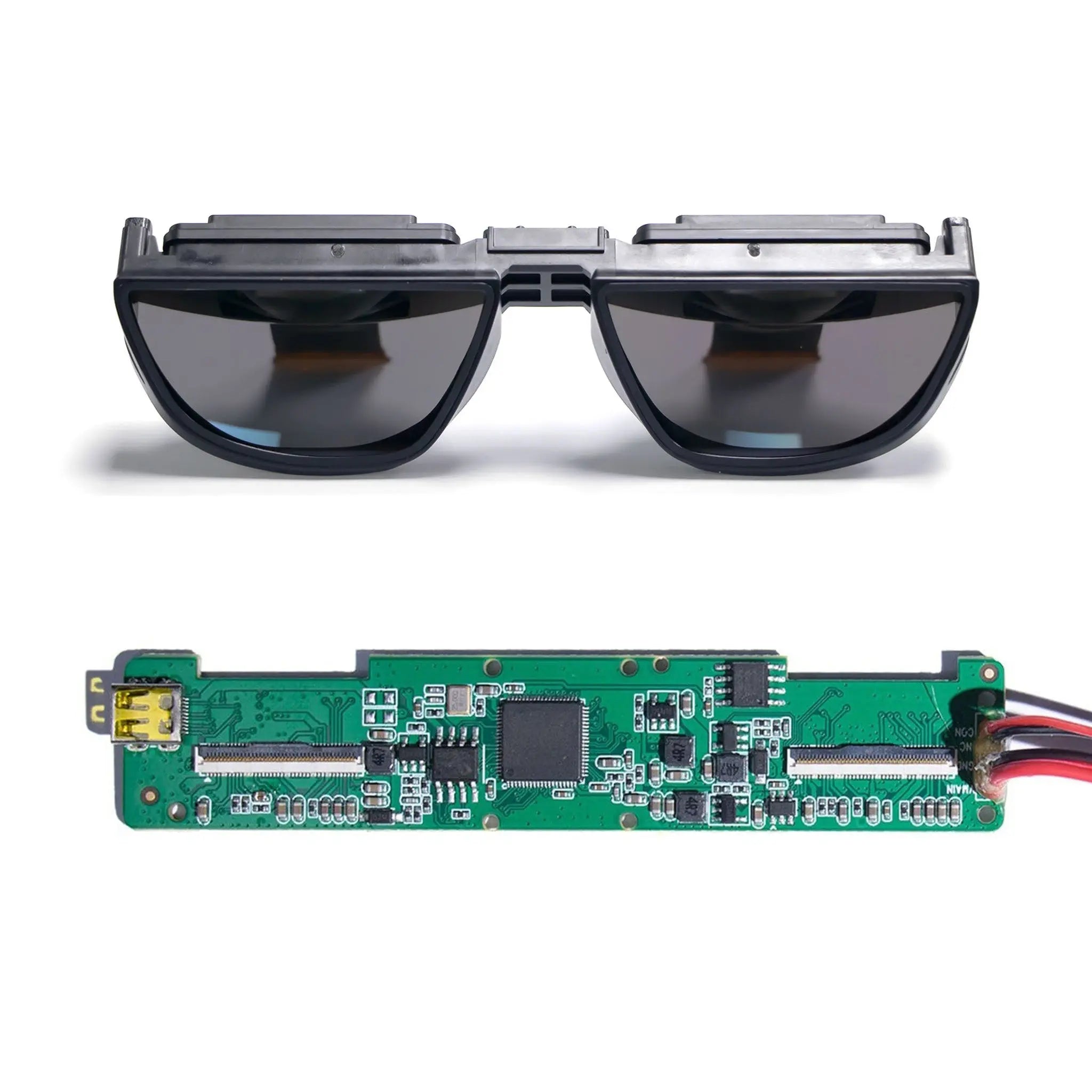

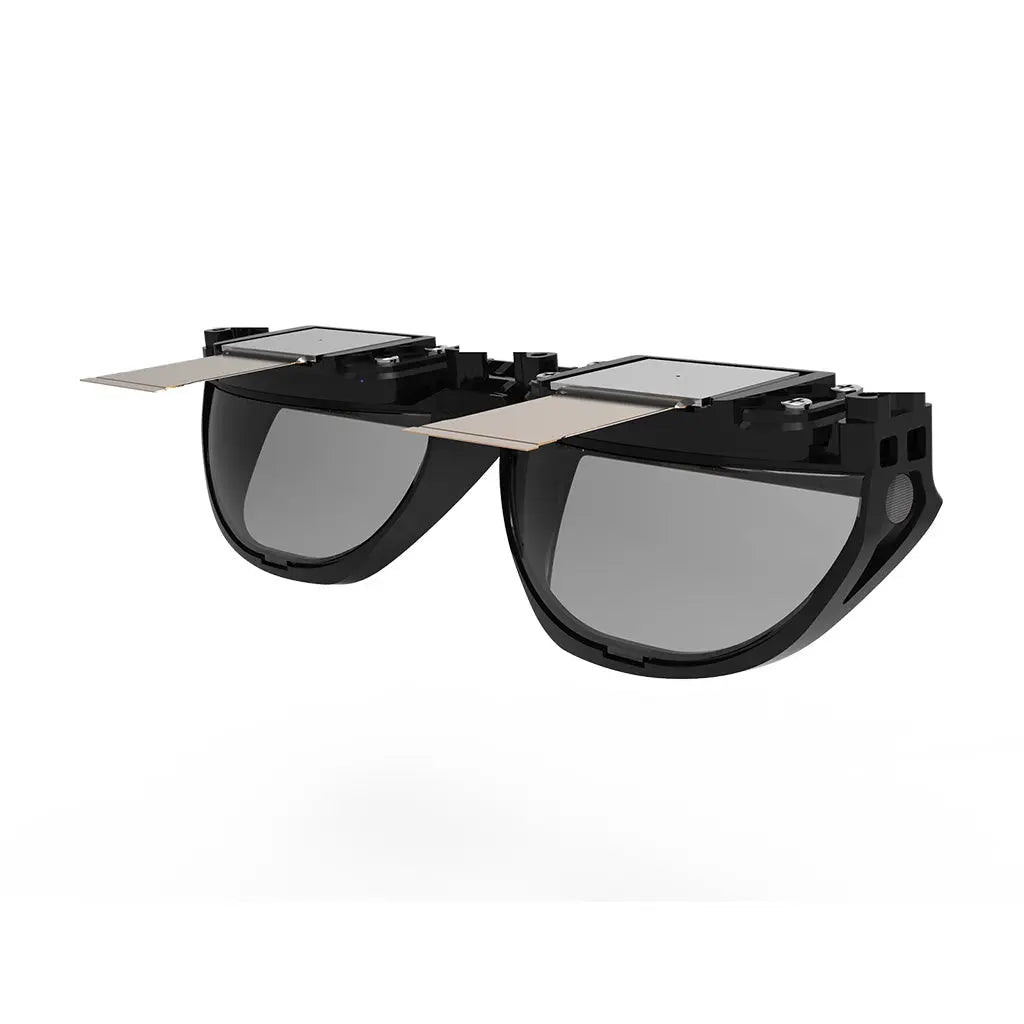

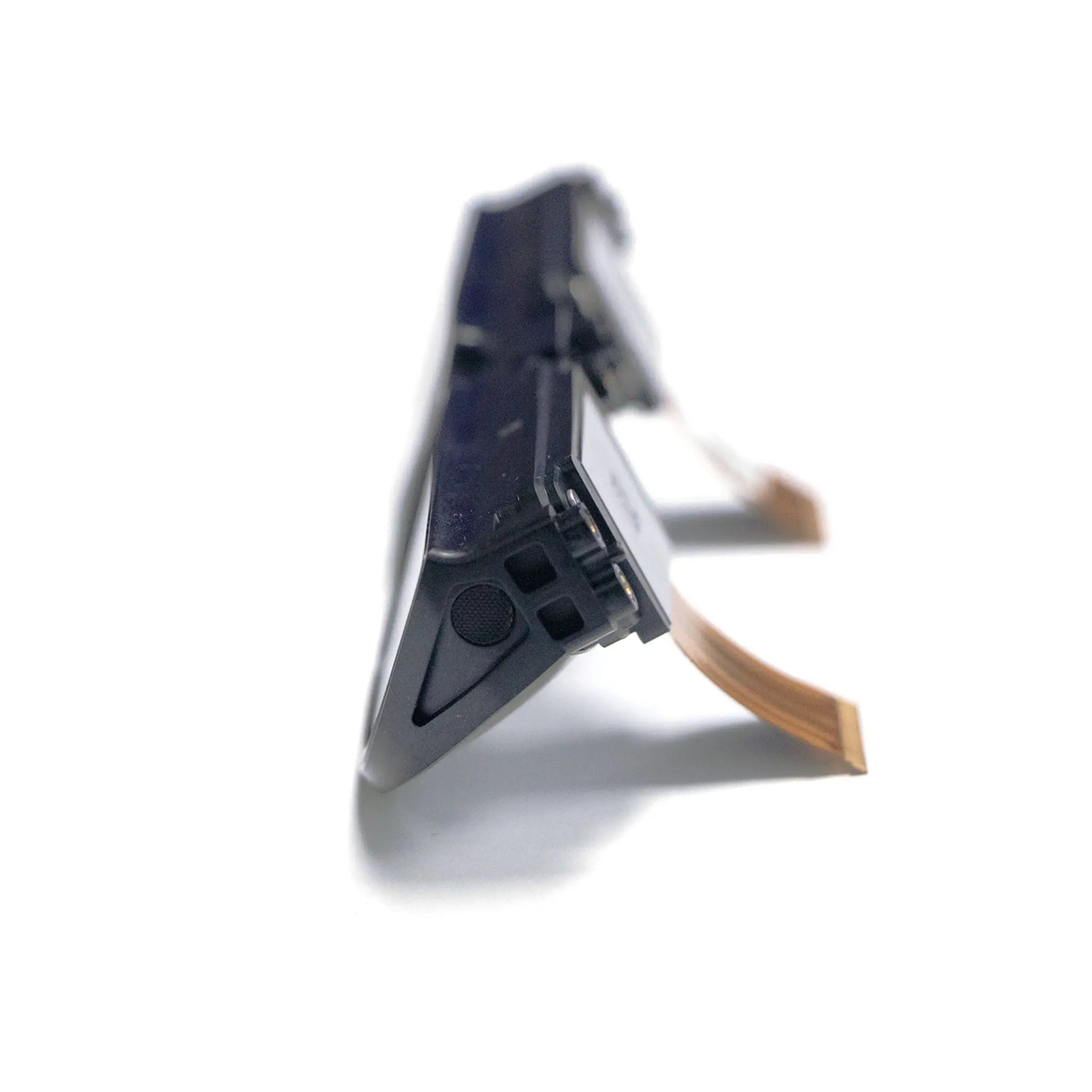

Binocular AR Glasses Birdbath 1920 * 1080 47° FOV Optical Module - LVDS
Revolutionizing AR visualization with a 0.7-inch OLED microdisplay, this binocular optical module delivers 1920x1080 resolution within a sleek 47° field of view. Engineered for AR glasses, this LVDS-equipped module features 3000 cd/m² peak brightness and 100,000:1 contrast ratio for immersive experiences.
Featuring Sony's 335SN Micro OLED panel, this module provides exceptional color accuracy and fast response times. The birdbath optical design ensures uniform light transmission with 20-40% customizable transmittance.
- LVDS Interface: Compatible with standard LVDS controllers for easy integration
- Form Factor: Compact 21.443x15.623x1.5mm panel weight 1.3g
- Operating Temp: -20℃ to +70℃ for demanding environments
- Customization: Transmittance, brightness and interface options available
| Technical Parameter | Specification |
|---|---|
| Display Technology | Active Matrix OLED |
| Panel Size | 0.7 inch |
| Resolution | 1920×1080 RGB |
| Pixel Density | 326 PPI |
| FOV | 47° |
| Brightness | Max 3000 cd/m² |
| Contrast Ratio | 100,000:1 |
| Interface | LVDS (1 ch, 6-bit) |
| Power Consumption | Typical 1.8W (100% white) |
| Operating Temp | -20℃ ~ +70℃ |
| Storage Temp | -30℃ ~ +80℃ |
DM offers comprehensive solutions for AR/VR system integration:
- Custom Development: Tailored firmware/hardware integration services
- Volume Discounts: Special pricing for orders exceeding 1,000 units
- White-Label Options: Private labeling with custom branding services
- Technical Support: Dedicated engineering team for OEM partners
Augmented workflows for technicians performing complex equipment repairs
High-fidelity surgical simulations for medical education
Interactive 3D modeling and visualization for architects
Seamlessly integrates with:
- Controllers: Any LVDS-compatible display controller
- Platforms: Windows/macOS/Android via USB-C video output
- Prototyping: Raspberry Pi, NVIDIA Jetson, Qualcomm Snapdragon boards
