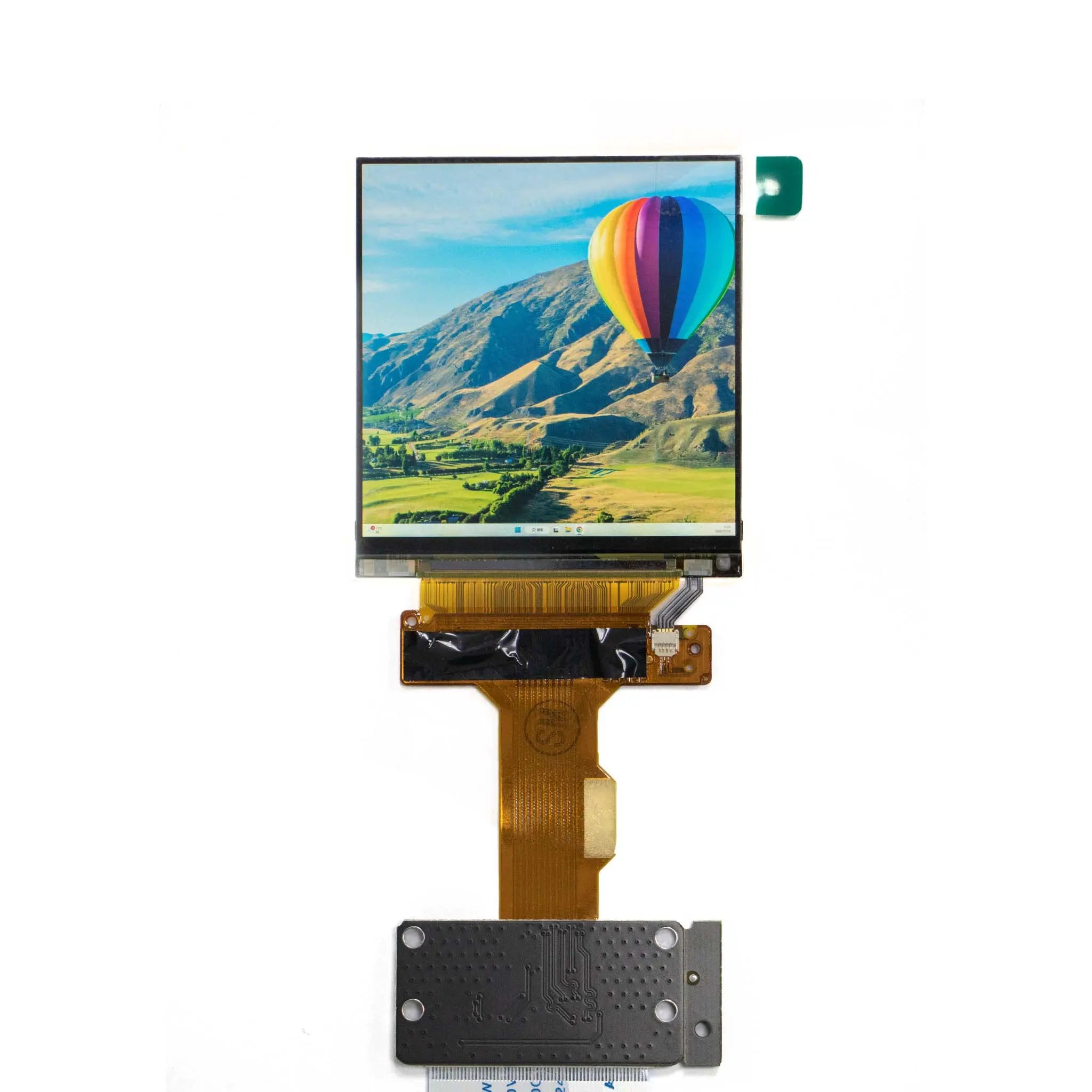

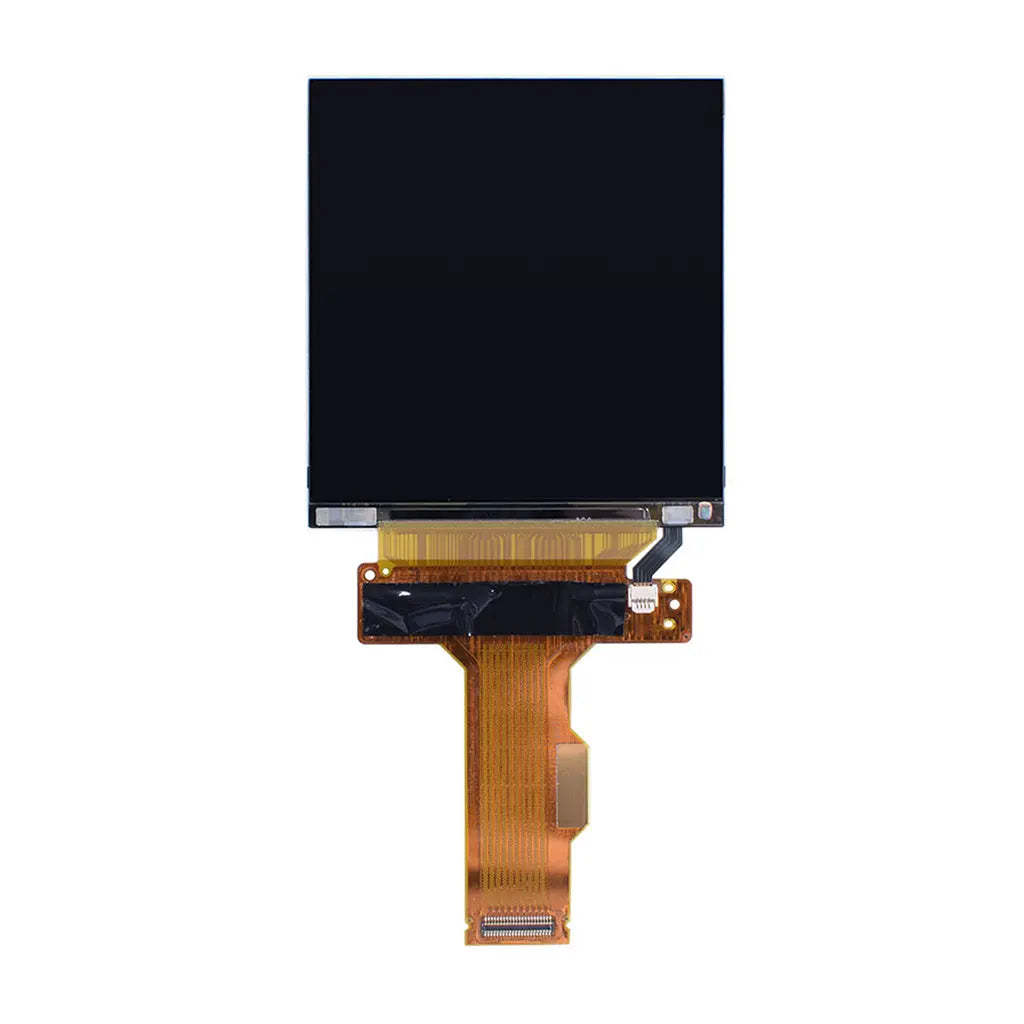

2.89" 1440×1440 High-Resolution TFT LCD Display
The DM-TFT29-392 is a high-resolution 2.89-inch square TFT LCD display with 1440×1440 RGB pixels and a compact 2.07 million-dot matrix. Featuring 4-lane MIPI interface, 300 cd/m² luminance, and a 1100:1 contrast ratio, this display is ideal for compact VR applications, head-mounted displays, and high-density embedded systems.
| Parameter | Value | Unit |
|---|---|---|
| Display Method | Active matrix TFT | - |
| Resolution | 1440 × 1440 RGB | pixels |
| Number of Dots | 2.07M | dots |
| Pixel Pitch | 12 × 36 | µm |
| Luminance | 300 (typical) | cd/m² |
| Contrast Ratio | 1100:1 | - |
| Display Colors | 16.7M (24-bit) | colors |
| Outline Dimension | 54.24 × 59.02 × 1.365 | mm |
| Display Area | 51.84 × 51.84 | mm |
| Diagonal Size | 2.89 | inch |
| Weight | 7 | g |
| Interface | 4-lane MIPI | - |
| Operating Temperature | -20 ~ 60 | °C |
| Storage Temperature | -30 ~ 70 | °C |
Mechanical Dimensions
