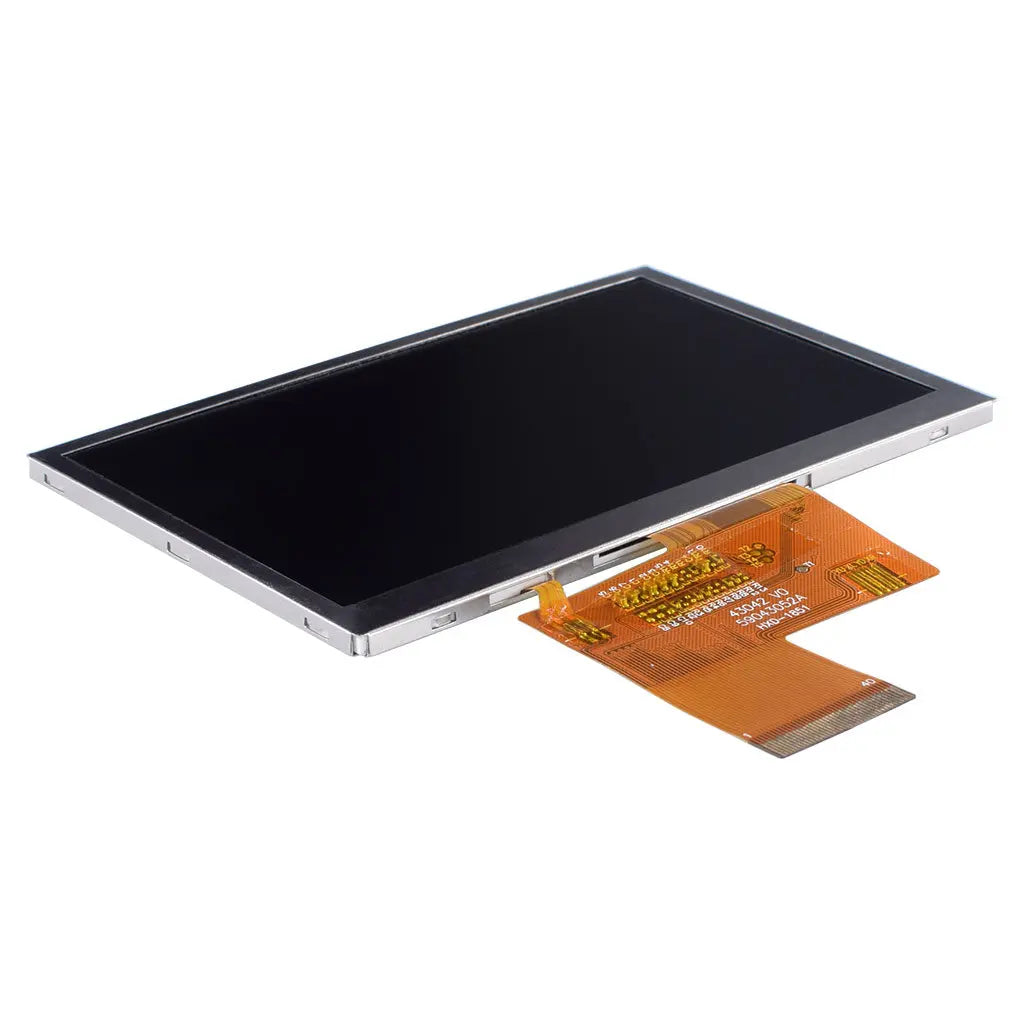

4.3" IPS High Brightness Display 480x272 - RGB
- 💹 Enjoy a 20% discount for orders over 500
- 📉 A 15% discount is available for orders ranging from 200 to 499
- 🎁 A 10% discount is available for orders ranging from 50 to 199
- 🎁 A 5% discount is available when ordering 10-49
Interested in customizing this product? Get in touch with us.
Order samples, immediate delivery.
Factory bulk lead time: 3 weeks.
공유
4.3" IPS High Brightness Display 480x272 - RGB
할인 가격$39.90
4.3" IPS High Brightness Display 480x272 - RGB
- 💹 Enjoy a 20% discount for orders over 500
- 📉 A 15% discount is available for orders ranging from 200 to 499
- 🎁 A 10% discount is available for orders ranging from 50 to 199
- 🎁 A 5% discount is available when ordering 10-49
Display Specifications
- Diagonal Dimension : 4.3 inch
- Resolution : 480x272 pixel
- View Direction : All
- Touch Mode : None
- Module Dimension : 105.40x67.15x2.85 mm
- Viewing Area : 95.04x53.86 mm
- Supply Voltage : 3.3 V
- Interface : 8/24bit RGB
- Luminance : 900 cd/m2
- Drive IC : SC7283
- Operation Temperature : -30℃~85℃
- Storage Temperature : -30℃~85℃
Dimensions
Resources
- DM-TFT43-391
- Display Controller: SC7283-V1.0
