5.0" LTPS LCD Display 1920×1080 | DMKDT0500FHCA

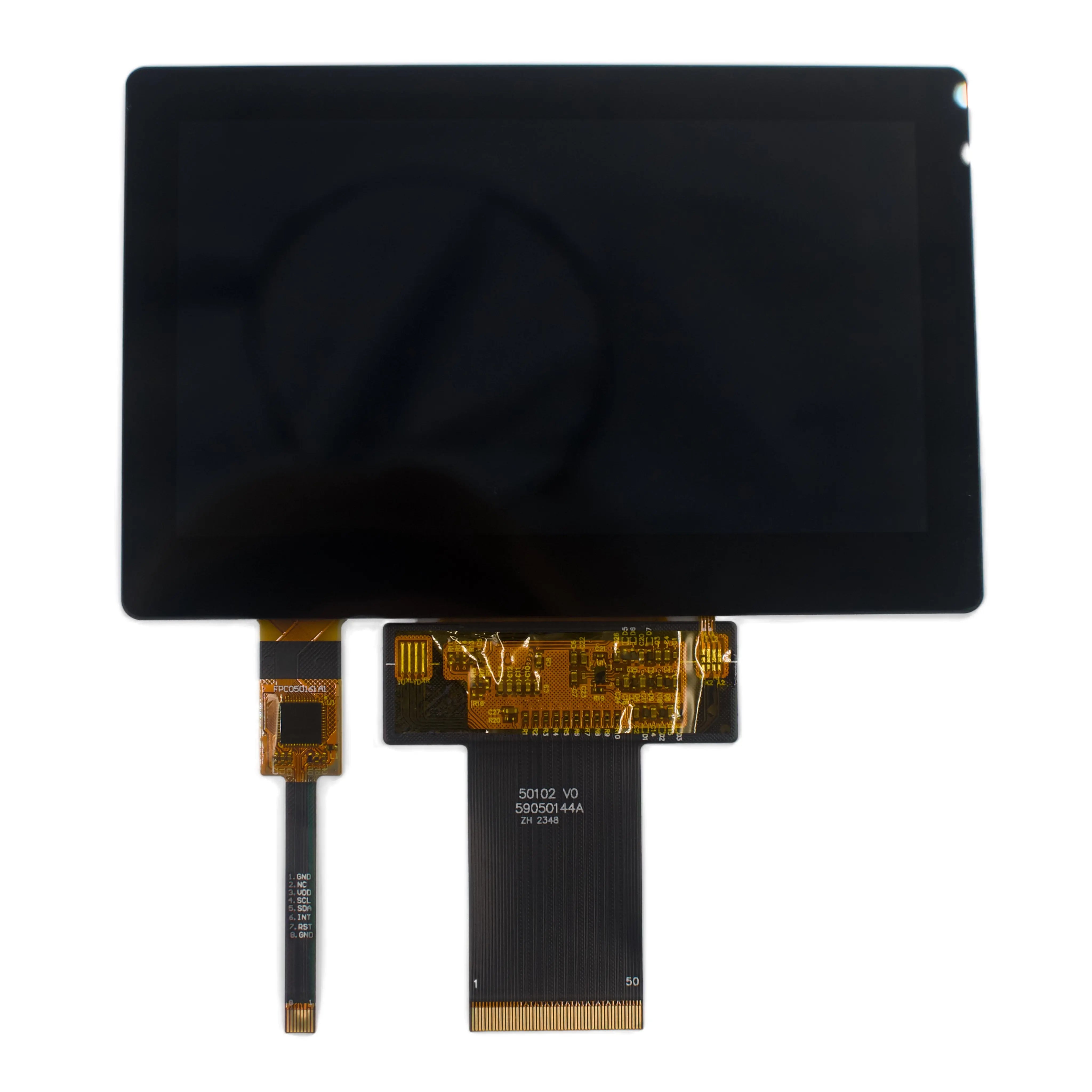

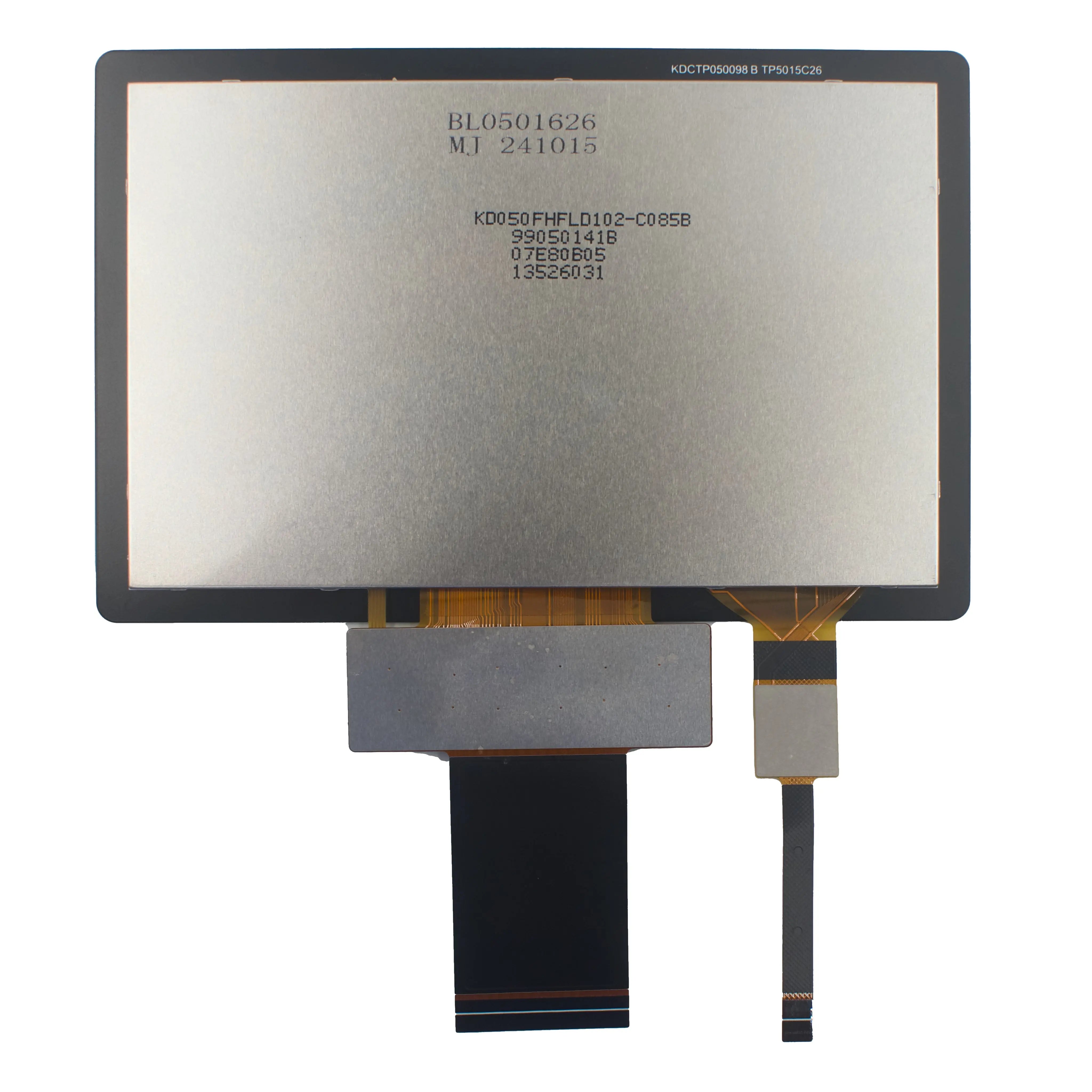

The DMKDT0500FHCA is a 5.0-inch Full HD (1920×1080) LTPS LCD module designed for high-end embedded applications. It features transflective/normally black display mode, wide viewing angles, and dual LVDS port support in VESA mode for high-speed data transmission. With its SC5010B driver IC and 16.7M color depth, it offers vivid and precise visuals for industrial and consumer electronics.
| Parameter | Specification | Unit |
|---|---|---|
| Screen Size | 5.0 | inch |
| Resolution | 1920 × 1080 | pixels |
| Display Mode | Transflective / Normally Black | - |
| Pixel Pitch | 0.0576 × 0.0576 | mm |
| Active Area | 110.592 × 62.208 | mm |
| Module Dimensions | 126.99 × 83.05 × 4.47 | mm |
| Interface | LVDS (1/2-Port VESA Mode), I2C | - |
| Driver IC | SC5010B | - |
| Color Arrangement | RGB Vertical Stripe | - |
| Display Colors | 16.7M | colors |
| Viewing Angle | All Directions | - |
Mechanical Dimensions
Technical Resources
- 📄 Datasheet: DMKDT0500FHCA
