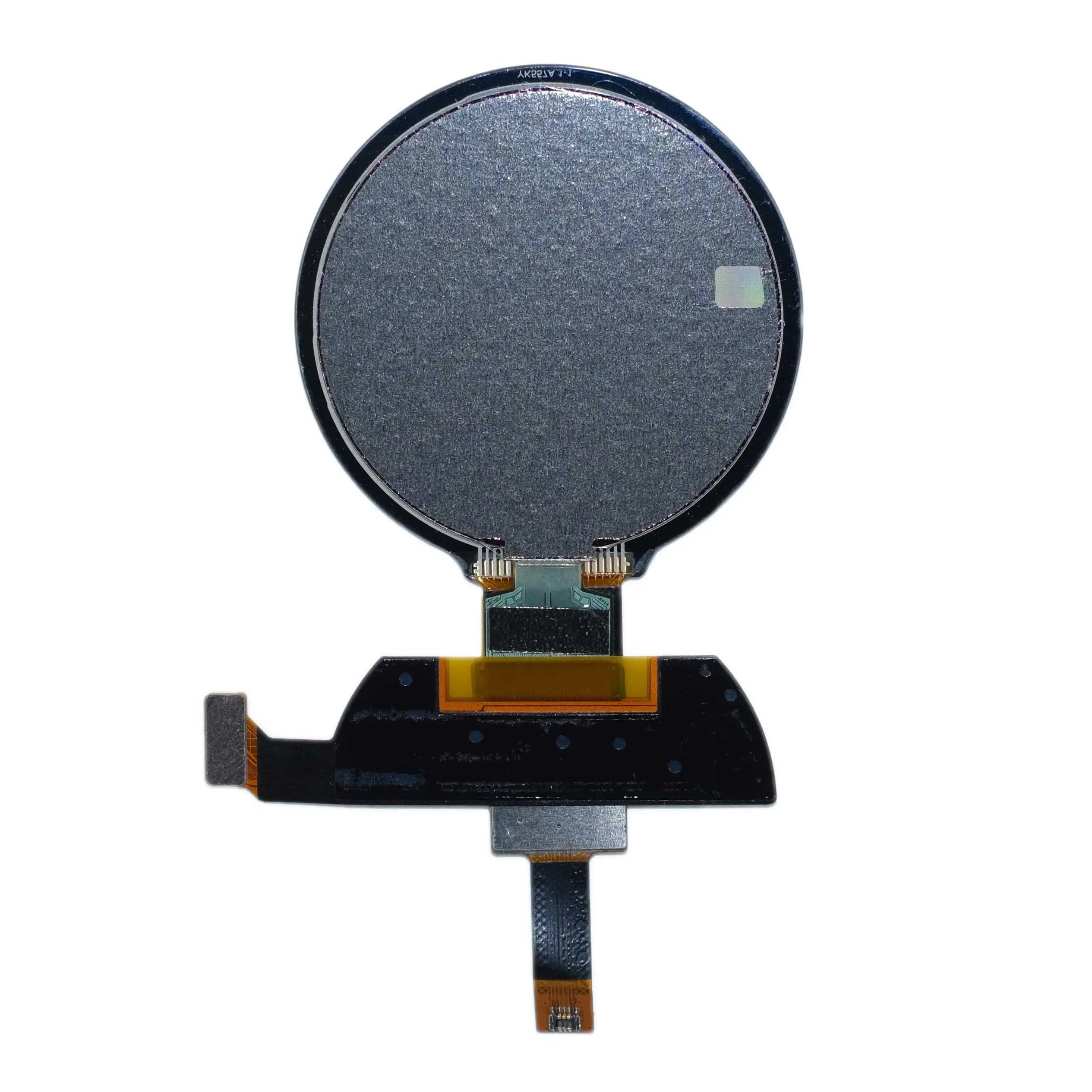

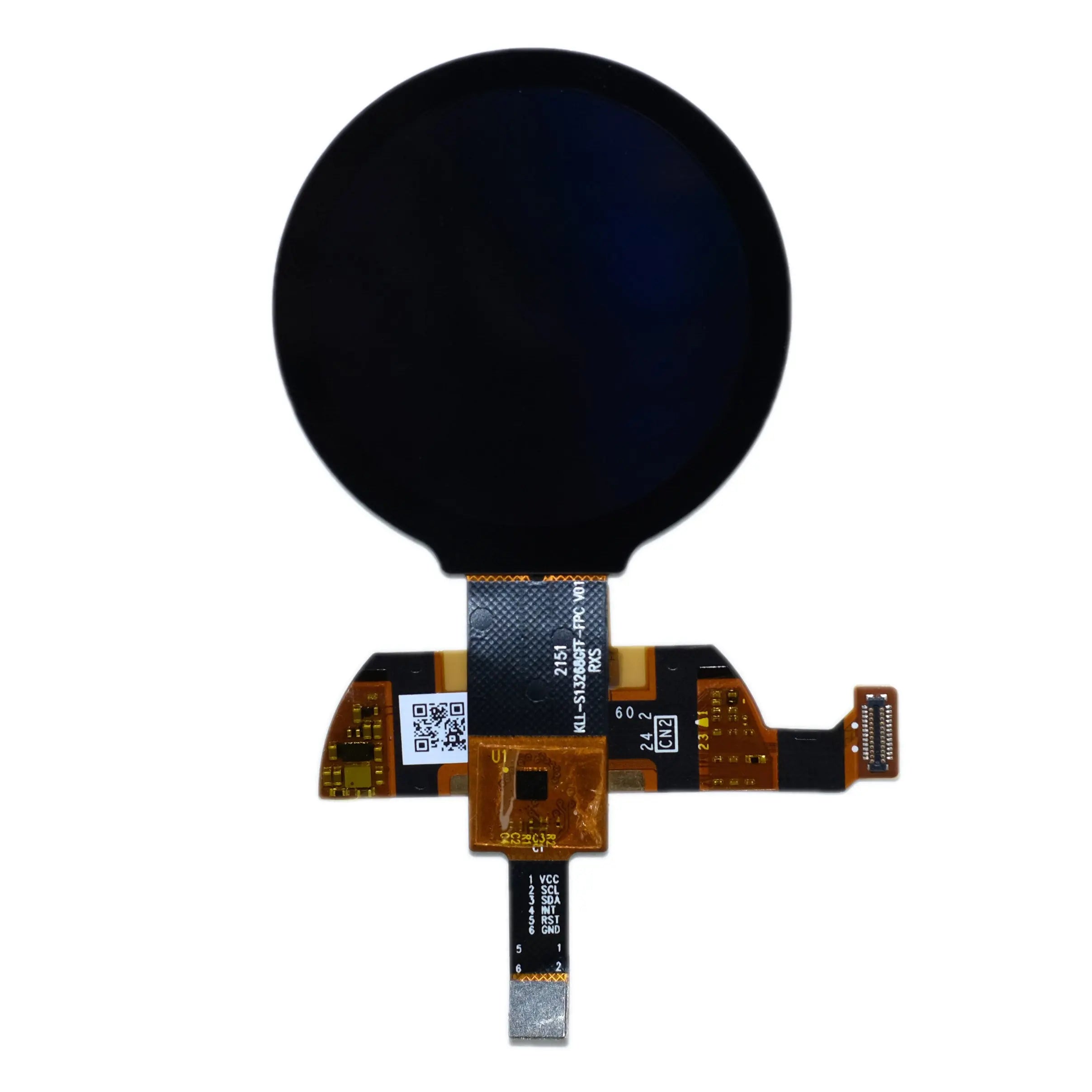

1.39" Round AMOLED Display 454x454 16.7M-Colors Capacitive - MIPI, SPI
Sale price$59.90
1.39" Round AMOLED Display 454x454 16.7M-Colors Capacitive - MIPI, SPI
- 💹 Enjoy a 20% discount for orders over 500
- 📉 A 15% discount is available for orders ranging from 200 to 499
- 🎁 A 10% discount is available for orders ranging from 50 to 199
- 🎁 A 5% discount is available when ordering 10-49
Display Specifications
- Diagonal Dimension : 1.39 inch
- Resolution : 454RGB x 454 pixel
- View Direction : All
- Touch Mode : Capacitive
- Module Dimension : 42H) x 42.6(W) x 2.227(D) mm
- Viewing Area :35.41 x 35.41 mm
- Supply Voltage : 3.3 V
- Interface : MIPI, SPI
- Luminance : 350 cd/m2
- Drive IC : SH8601A
- Operation Temperature: -20°C~ +60°C
- Storage Temperature : -30°C~ +70°C
Dimensions
Resources
- Datasheet : DM-OLED14R-678N、SH8601A、TMA525B
- Example code : SH8601A_initial_code
- 3D : DM-OLED14R-678N
