IPS Display Technology | How It Works, Advantages, Applications

IPS rotates its liquid crystal molecules in the plane of the glass rather than tilting them toward it. Because the molecules stay parallel to the substrate, the optical path through the cell changes far less as the viewer moves off axis, so colour and gamma hold up at an angle. That is the whole advantage; everything else — the brighter backlight it needs, the compensation film, the temperature behaviour — follows from it.

How the cell is built

In a twisted nematic cell the electrodes sit on the two facing substrates. Voltage tilts the molecules upright and the light passes through a rotating stack of orientations, which is efficient to build but leaves the image dependent on viewing direction.

An IPS cell puts both electrodes on the same substrate, interleaved as fine fingers. The field that forms between them runs roughly parallel to the glass, so the molecules rotate within the plane instead of standing up. The polarisers stay crossed and the cell modulates light by changing the in-plane retardation of the liquid crystal layer.

Two consequences are worth noting for anyone reading a datasheet. First, the driven and undriven states are both "horizontal" alignments and the black state depends on the cell being genuinely dark between crossed polarisers, which is why IPS black is sensitive to cell gap control. Second, because the electrodes are on one side, aperture ratio is lower than a comparable TN design and more of the backlight is absorbed.

Why the angle behaviour improves

Off axis, the effective path length through the liquid crystal changes, so the retardation changes with it. In a TN cell the molecules are already tilted and the change is large; in an IPS cell the rotation is in-plane, and the projection seen from the side is closer to the projection seen from the front.

That is a reduction in angle sensitivity, not the removal of it. Contrast still falls as the viewing angle grows, and the fall is not symmetric: the horizontal axis behaves differently from the vertical, and one diagonal is usually weaker than the other. Modern panels narrow that gap with optical compensation film laminated to the cell, which corrects the residual retardation across the cone. Wide viewing angle in a good IPS module is the cell geometry and the film working together, not the geometry alone.

For a product, the practical reading is that the angle at which contrast drops to a stated ratio matters more than the headline viewing angle figure, which is normally quoted at a contrast threshold of 10:1. A panel claiming a very wide angle at that threshold can still look washed out at a working angle where the requirement is 100:1.

What IPS costs you

Light. In-plane switching blocks more light than a TN cell of the same size, so an IPS module needs a brighter backlight for the same on-screen luminance. That shows up as power draw in a battery product and as heat in a sealed enclosure.

Contrast is native, not a backlight setting. The contrast ratio of a transmissive IPS module is set by the dark state of the liquid crystal cell and by the optical stack — polarisers, compensation film, diffuser. Raising the backlight raises white and black together and leaves the ratio unchanged. A sales sheet that presents a higher brightness as a contrast improvement is describing two different things.

Response. Early IPS designs were slower than TN because the in-plane field produces less torque per volt. Modern panels differ widely: the liquid crystal mixture, the cell gap, the drive scheme and overdrive all move the number, so a generic statement that IPS is slower than TN no longer describes what you will measure. Response should be quoted with the transition measured and the overdrive setting stated.

Temperature. Liquid crystal viscosity rises as it cools and response slows with it. For outdoor or cold-store equipment the low-temperature response figure matters more than the room-temperature one, and a heater or an extended-temperature cell may be needed.

Reading an IPS datasheet

Four figures decide whether a part suits the product, and each is meaningless without its condition.

  • Contrast at a stated angle, not only on axis. Ask for the ratio at the worst working angle the user will actually have.
  • Luminance at the operating drive point, with the backlight current or duty stated, and whether the value is typical or minimum.
  • Response with the transition and temperature, for example grey-to-grey at room temperature with overdrive enabled.
  • Uniformity as a percentage across a stated number of measurement points, plus any specification for the corner regions where backlight spill is hardest to control.

These measurement bases are defined in ISO 9241-307[1], which is the reference worth citing when a supplier's numbers and yours disagree. The underlying device physics across flat-panel families is surveyed by Hilsum[2].

Where IPS is the right answer

The technology earns its cost wherever more than one person looks at the same screen, or one person looks at it from a moving position.

Industrial HMI. An operator standing at a machine sees the panel from an angle for most of the shift, and the panel often sits behind a protective window that adds its own off-axis behaviour. Wide angle stability keeps the reading legible without repositioning the arm.

Medical and laboratory instruments. Consistent grey reproduction across the panel matters when a tonal difference carries meaning, and a display viewed by a clinician and a patient at different angles should not change appearance between them.

Outdoor and semi-outdoor terminals. Angle stability does not solve sunlight; a matte surface treatment and a high-brightness backlight do. IPS contributes here by keeping contrast usable when the viewer is not square to the panel, which is the normal case for a kiosk or a vehicle-mounted unit.

Multi-panel and bench equipment. Two IPS modules side by side match more closely than two TN modules, which matters when the panels are part of one instrument face.

Where IPS is the wrong answer: a single-user, on-axis, battery-powered handheld where the panel is read straight on and every milliamp counts. There a transflective or TN design can still be the better engineering choice.

Design-in notes

Most IPS problems in production are not panel problems. They come from the parts around it.

Backlight design sets the achievable luminance and the uniformity; edge-lit designs concentrate light at the entry edge and need a light guide good enough to hide it. A cover glass bonded with an air gap adds two reflective surfaces and can halve the effective contrast in bright rooms, while optical bonding removes them at a cost. And the interface choice constrains refresh: a serial bus can carry a small panel at a modest frame rate, but the pixel clock, colour depth and bus clock have to be checked together before anyone promises video.

Standard IPS modules in the small and medium formats are listed in the IPS display collection, with thin-film-transistor panels generally under TFT LCD modules and hardened variants under industrial displays.

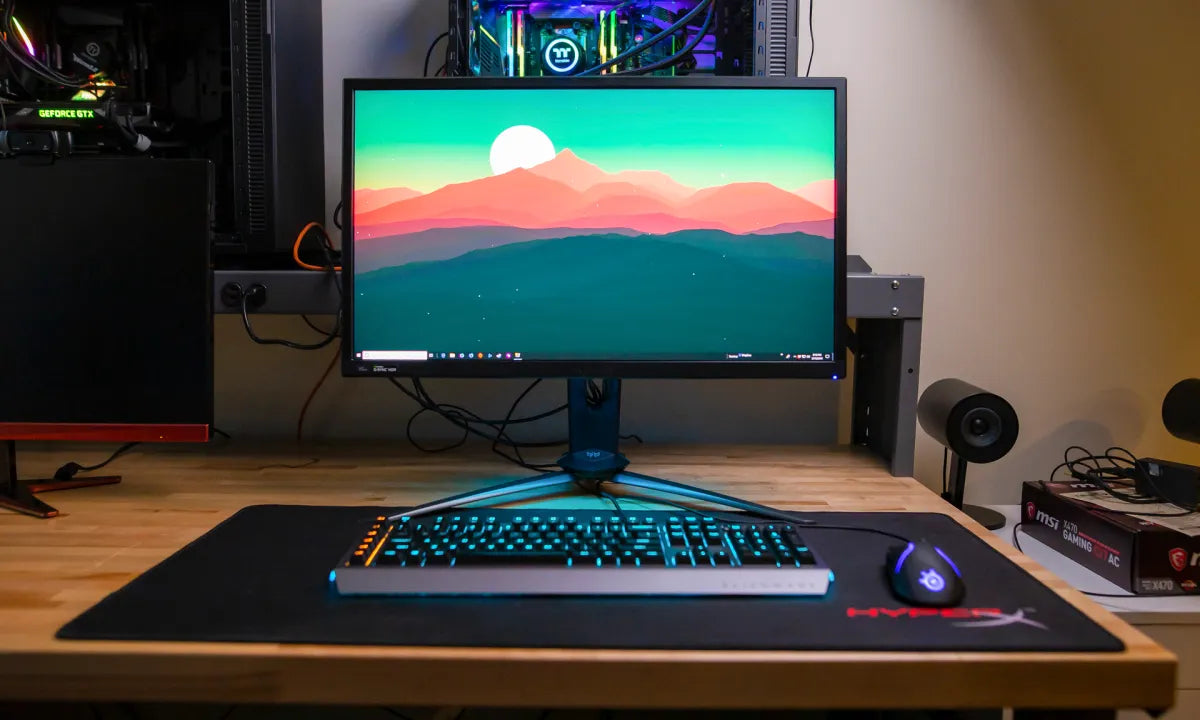

IPS display module viewed off axis showing stable colour
The in-plane rotation keeps the off-axis image close to the on-axis one, which is the property the rest of the design has to protect.

IPS is an angle-stability technology, and the price is paid in backlight power and in the discipline of reading specifications with their conditions. Specify contrast at the working angle, luminance at the operating point and response at the real temperature, and the panel choice stops being a matter of preference.

References

  1. ISO 9241-307:2008 — Ergonomics of human-system interaction — Part 307: Analysis and compliance test methods for electronic visual displays. International Organization for Standardization. https://www.iso.org/standard/40102.html
  2. Hilsum, C. (2010). Flat-panel electronic displays: a triumph of physics, chemistry and engineering. Philosophical Transactions of the Royal Society A, 368(1914), 1027–1082. https://doi.org/10.1098/rsta.2009.0247
