0.49-inch Micro OLEDoS Display with 1920x1080 resolution, 1800nits brightness, and 90Hz refresh rate, displaying a parrot

0.49" Micro OLEDoS Display 1920x1080 1800nits 90Hz - MIPI

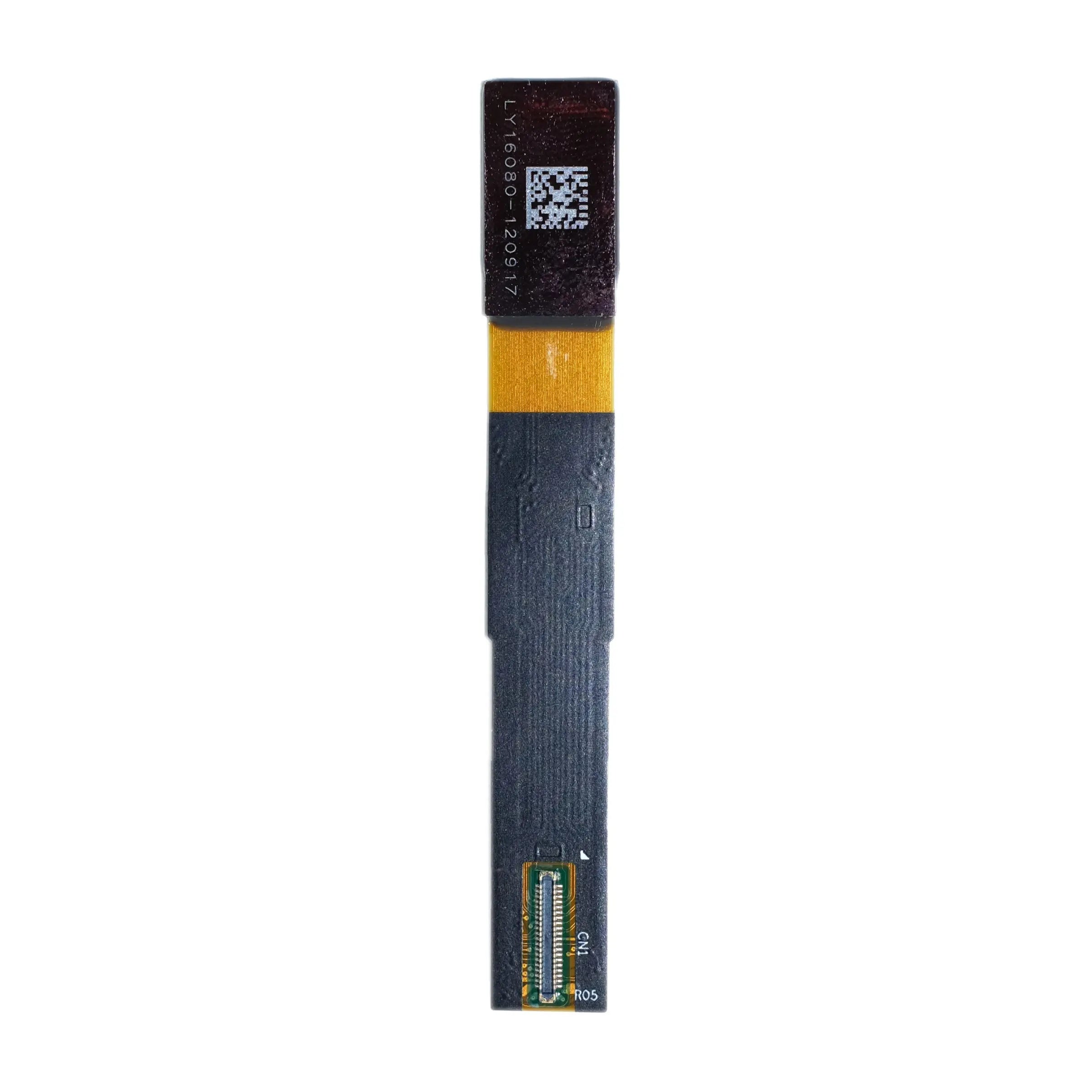

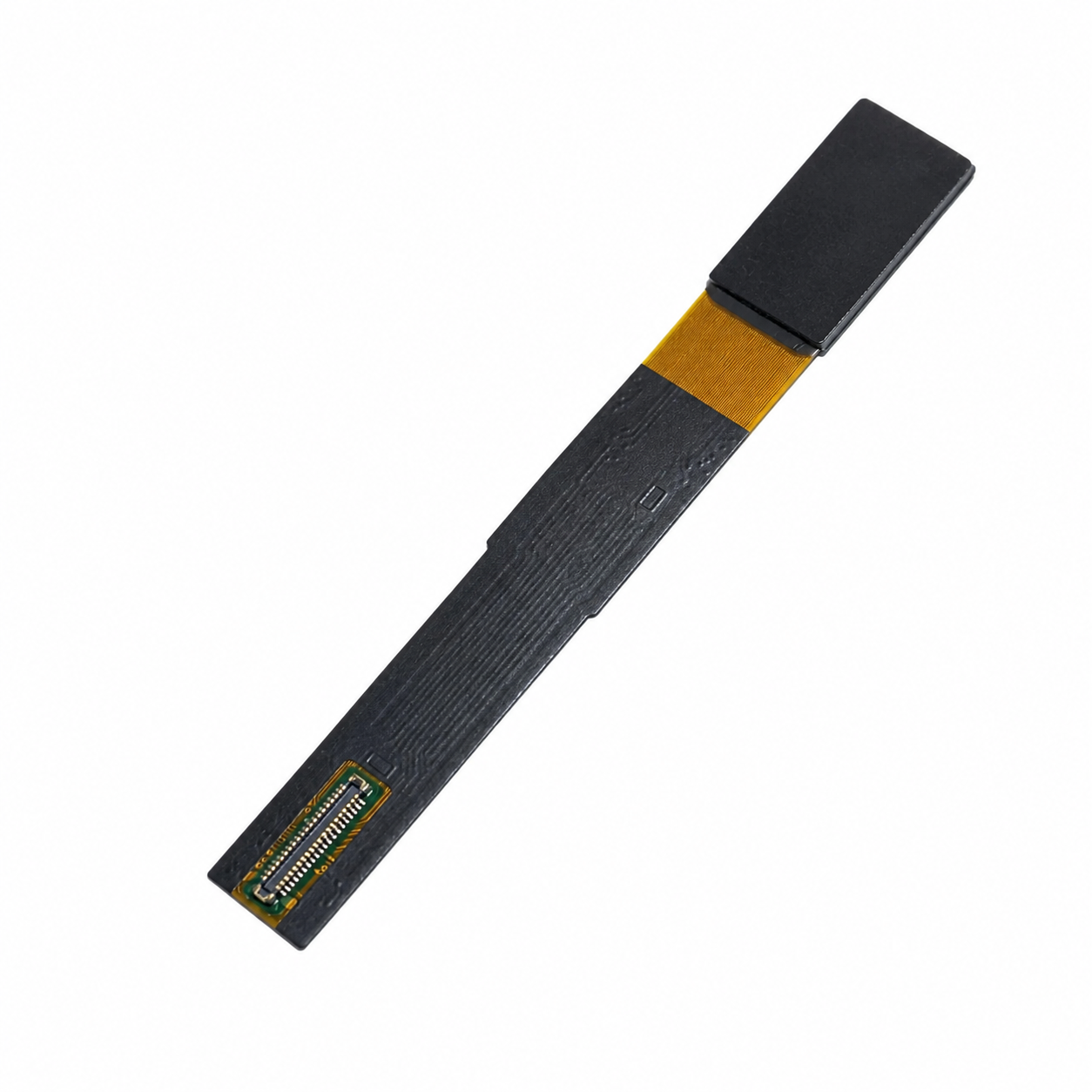

back of 0.49 inch micro OLED display panel

0.49" Micro OLEDoS Display 1920x1080 1800nits 90Hz - MIPI

SKU: DM-OLED049-686

$149.00

💹 Enjoy a 20% discount for orders over 500
📉 A 15% discount is available for orders ranging from 200 to 499
🎁 A 10% discount is available for orders ranging from 50 to 199
🎁 A 5% discount is available when ordering 10-49

Interested in customizing this product? Get in touch with us.

Order samples, immediate delivery.

Factory bulk lead time: 3 weeks.

Set: Panel

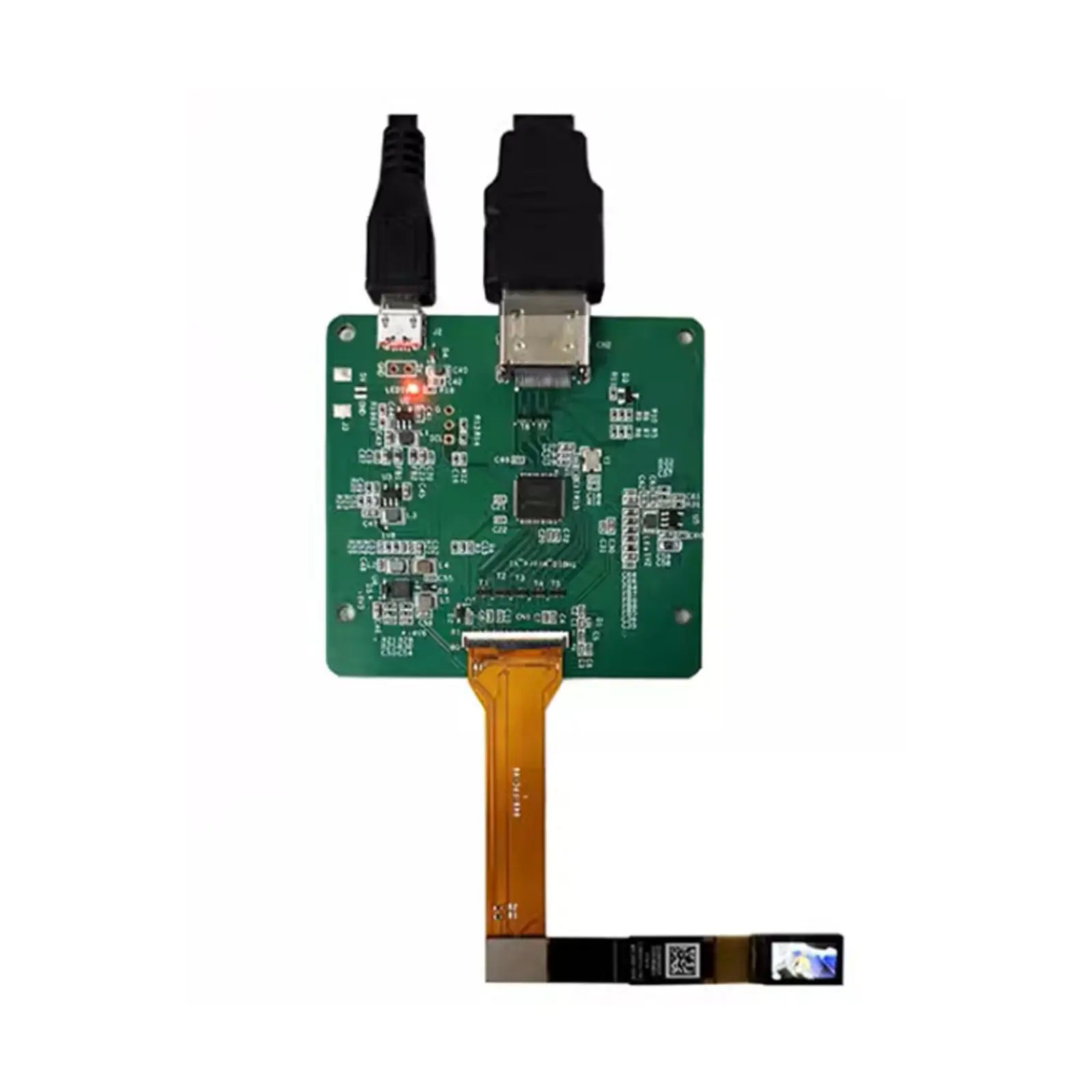

Panel HDMI-MIPI adapter

0.49" Micro OLEDoS Display 1920x1080 1800nits 90Hz - MIPIPanel

$149.00

0.49" Micro OLEDoS Display Module 1920x1080

Industrial-grade Active Matrix Color Micro OLED. Leveraging single-crystal silicon CMOS technology to integrate logic and panel driving, achieving extreme pixel density for premium AR/VR and medical imaging optics.

1800 Nits

Luminance

50,000:1

Contrast Ratio

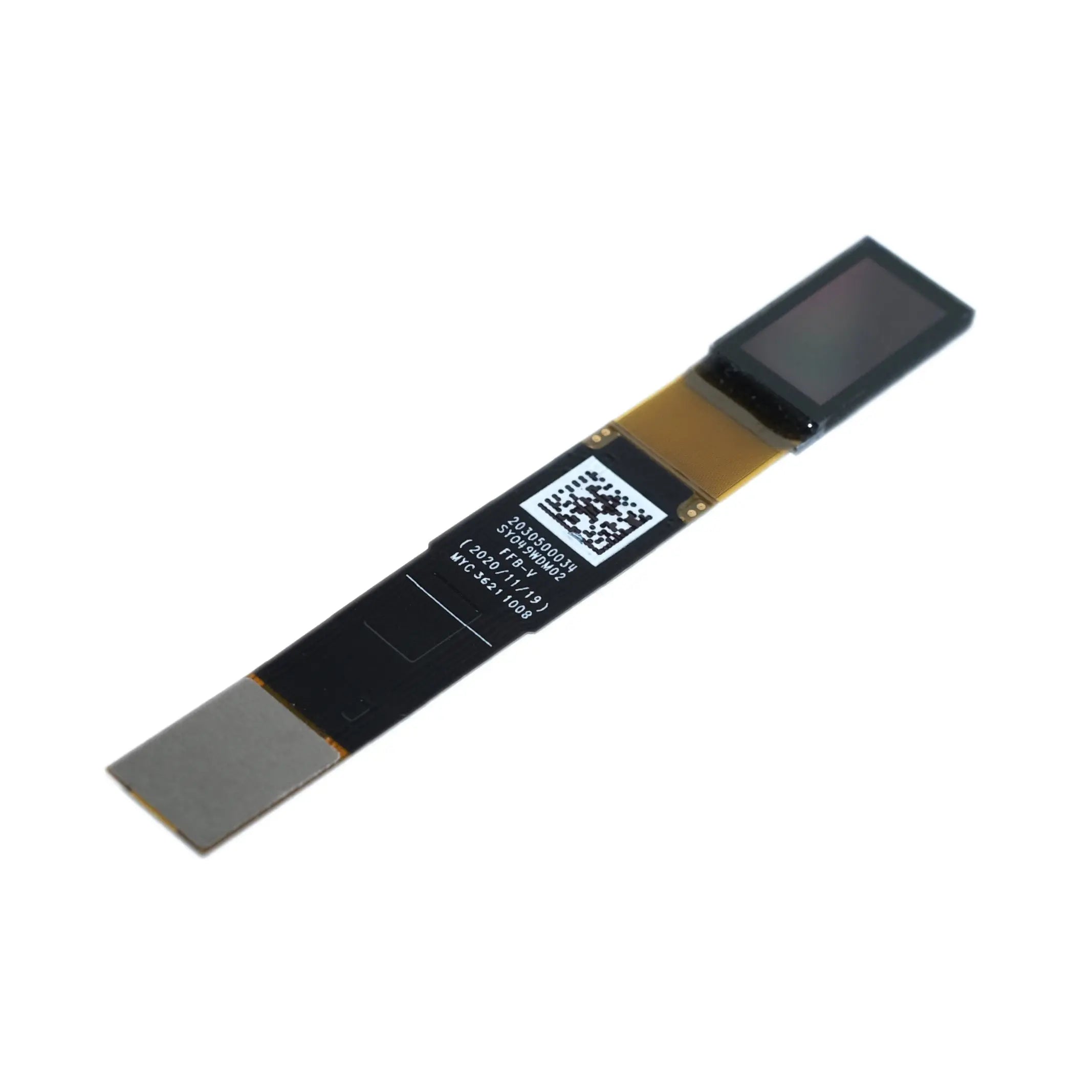

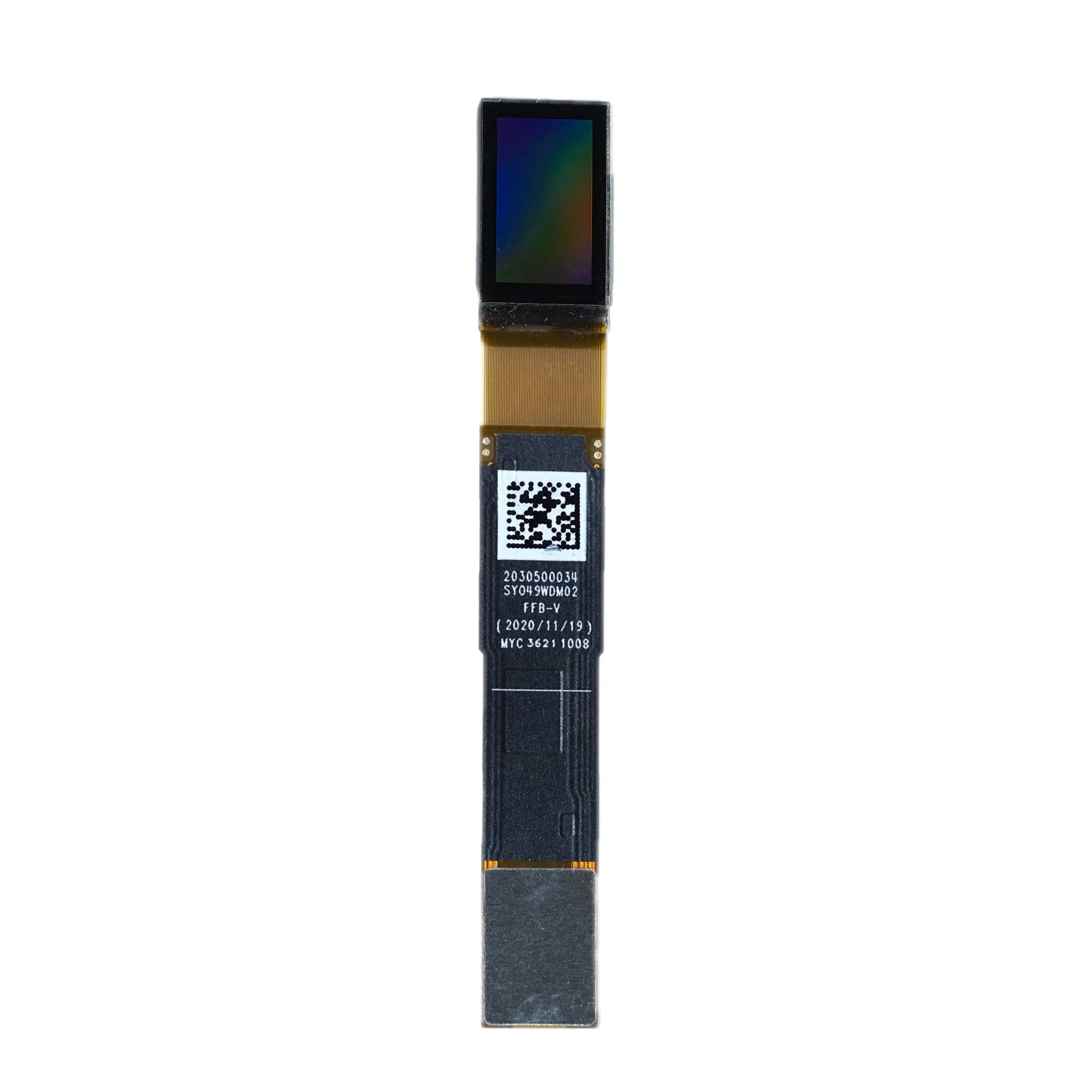

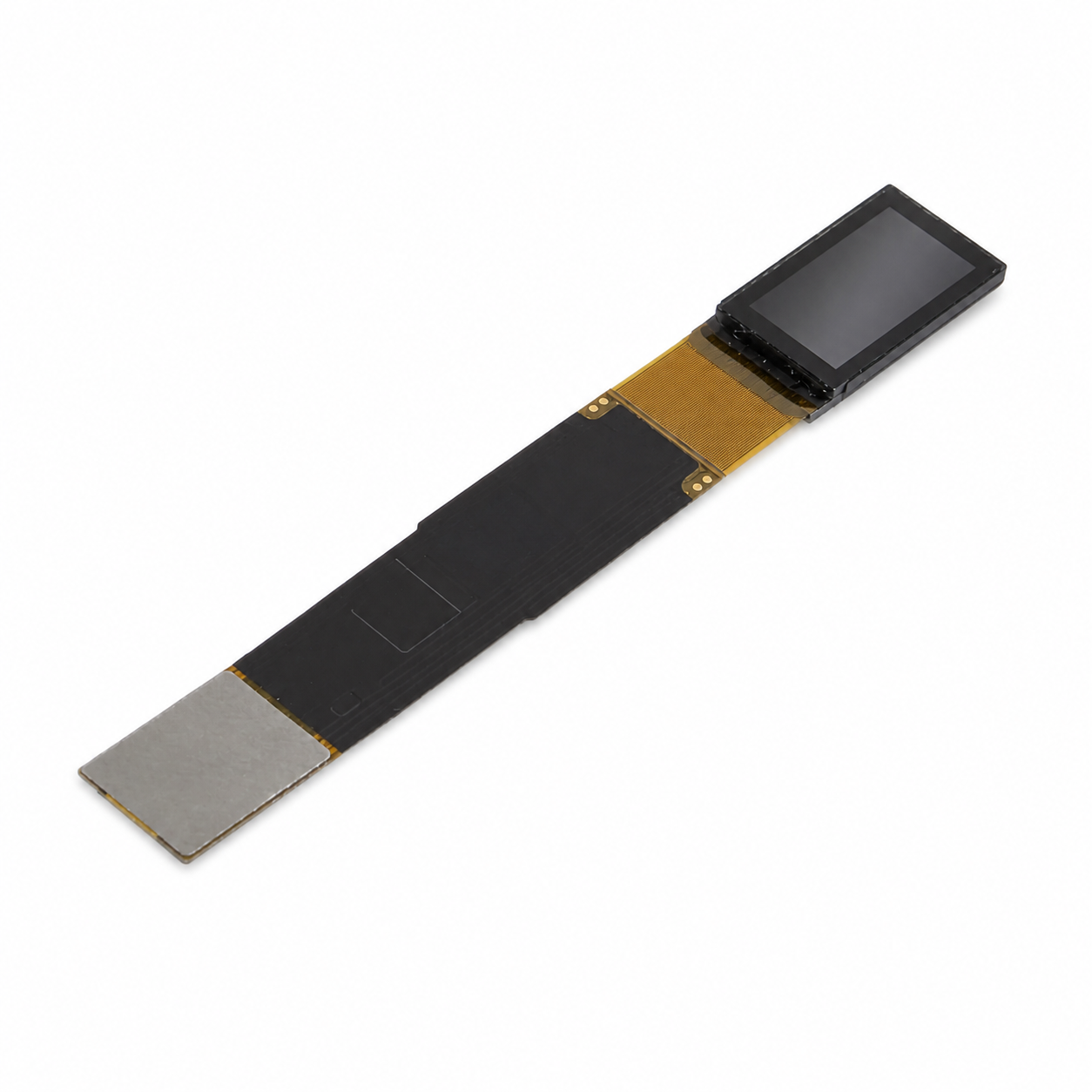

0.49 inch Micro OLEDoS Display 1920x1080 Full View

Electro-Optical Architecture

Ultra-High Pixel Density

Engineered with a 5.616μm pixel size, delivering native 1920×1080 resolution. Utilizes 2/3 SPR (Sub-Pixel Rendering) for sharp imagery.

Active Area: 10.783 × 6.065mm

Advanced Color Science

Achieves 90% DCI-P3 color gamut coverage. Supports both 8-bit and 10-bit color depth configurations for high dynamic range.

Luminance Range: 1350-2250 Nits

Dynamic Refresh Rate

Supports flexible frame rates from 60Hz to 90Hz. Hardware-integrated VESA DSC (Display Stream Compression) scaling.

Uniformity: >85%

Product Specifications

Parameter	Specification
Display Technology	Micro OLED on Silicon
Number of Dots	1920 × 1080 × 2 (2/3 SPR)
Pixel Size	5.616μm × 5.616μm
View Angle	35° (white luminance decay to 50%)
Gray Levels	256 or 1024
Interface	MIPI DSI + I2C
Operating Temperature	-20℃ to +70℃
Storage Temperature	-40℃ to +80℃

Hardware Integration Parameters

Designed for high-speed data transfer and low power operation. Integrates comprehensive temperature compensation algorithms.

MIPI DSI Interface Configuration

Protocol supports scalable lane configurations depending on bandwidth requirements and refresh rate settings.

Data Lanes

1 to 4 Lane Support

Control Interface

Standard I2C Protocol

Power Consumption Metrics

Highly optimized silicon design ensures minimal thermal output, critical for near-eye applications.

Typical Consumption: 468 mW

*Measured at 90Hz refresh rate, 1800 nits luminance, displaying a full white test pattern.

Industry Applications

Augmented Reality

1800 nits output combats ambient light in AR glasses and heads-up displays, maintaining legibility.

Virtual Reality

90Hz refresh rate and sub-millisecond response eliminates motion blur in immersive VR environments.

Medical Imaging

High contrast ratio and 90% DCI-P3 color gamut ensure exact tissue visualization for surgical viewfinders.

Industrial Equipment

Reliable operation from -20℃ to +70℃ suits portable industrial scopes and thermal measurement devices.

OEM Procurement & Technical Resources

Enterprise services include volume pricing, specific minimum order quantities, and custom AR/VR integration support. Rigorous validation ensures compliance with hardware requirements.

Engineering documentation provides MIPI DSI timing diagrams, pin definitions, initialization sequences, and reference evaluation kits.

Download Official PDF Datasheet (DM-OLED049-686)

Product FAQs

Key technical and purchasing guidance for product evaluation, integration planning, samples, and volume orders.

Need more help? Contact our technical team.

When DM-OLED049-686 is connected to a computer through its adapter, does it display the full desktop by default?

Yes. When DM-OLED049-686 is connected through its adapter, it normally appears as an external display and shows the full desktop by default. Use the operating system’s display settings to choose duplicate or extended-desktop behavior where supported.

How can DM-OLED049-686 be configured to display only a selected pixel region, such as 100 x 100 pixels?

A smaller active image region, such as 100 × 100 pixels, requires a firmware modification to the display or adapter configuration. It cannot be selected through a standard external control in the current configuration.

How can DM-OLED049-686 and the related Micro OLED models be connected to a computer, and when is a custom adapter required?

A USB-C input driver board is available for these Micro OLED models, and an HDMI-input version can be evaluated as a customization. The correct board depends on the exact display model, host output, monocular or binocular setup, and required resolution.

Can ESP32-CAM module with MIPI or MIPI-like interface be used with DM-OLED049-686?

No. The ESP32-CAM’s OV2640 camera interface uses SCCB control and is not a compatible video source for DM-OLED049-686. A suitable video processor and driver board are required to generate the display signal, timing, and initialization.
