Pixel arrangement refers to the way the red, green, and blue (RGB) sub-pixels are organized within each pixel. The arrangement of these sub-pixels can significantly affect the display’s resolution, color accuracy, and overall visual quality. Here are the common types of pixel arrangements and their characteristics:

Types of Pixel Arrangements

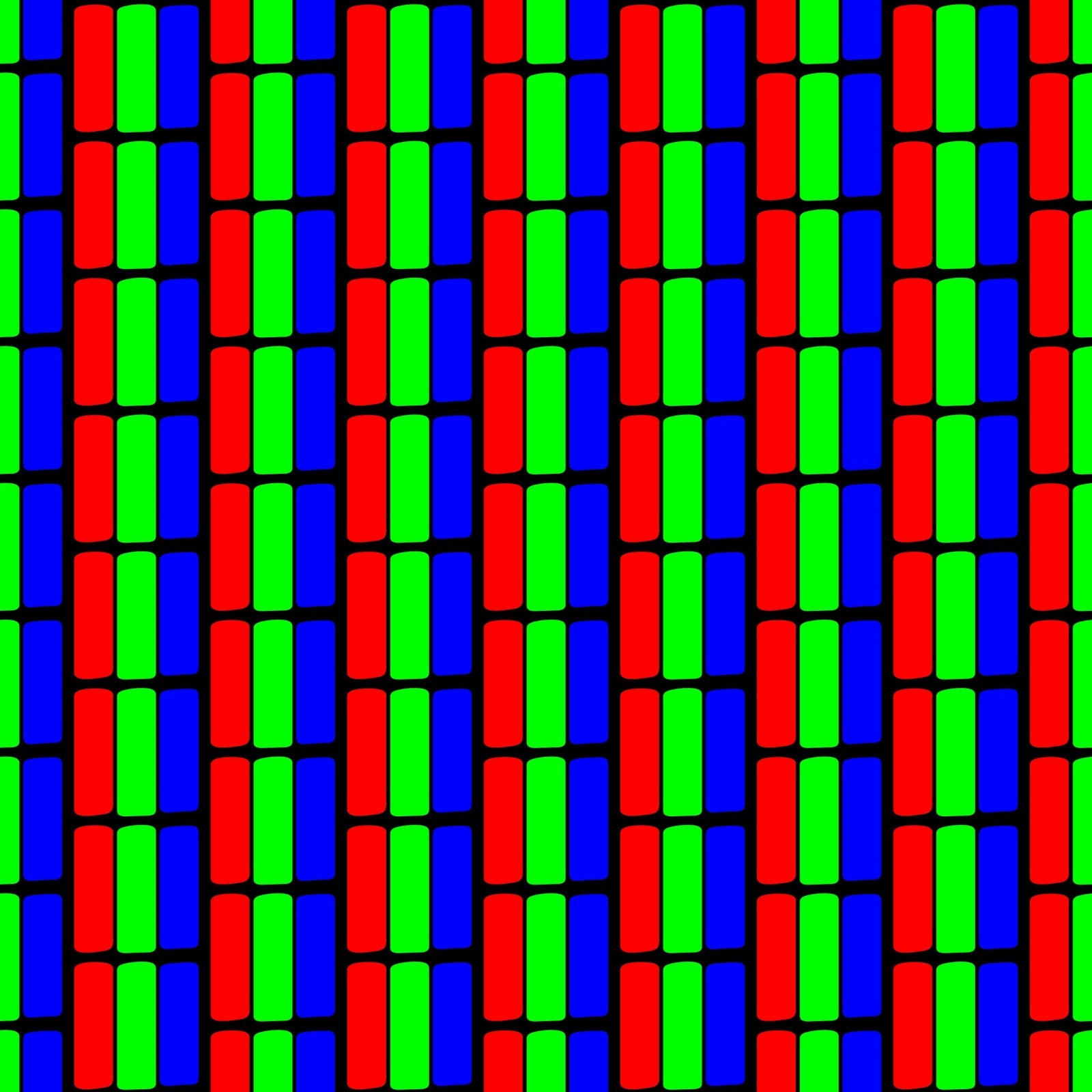

1. Stripe Type:

• Description: The sub-pixels are arranged in vertical stripes, with each column consisting of a single color (red, green, or blue).

• Characteristics: This is the most common arrangement in many displays, especially in computer monitors and TVs. It offers consistent color rendering and good clarity.

2. Island Type:

• Description: Sub-pixels are grouped in a block or island-like formation within each pixel.

• Characteristics: This arrangement can improve the efficiency of light transmission through the display, potentially increasing brightness and power efficiency.

3. Mosaic Type:

• Description: Sub-pixels are arranged in a checkerboard or mosaic pattern.

• Characteristics: This type can enhance the uniformity of color distribution and reduce artifacts, providing smoother gradients and better color mixing.

4. Delta Type:

• Description: Sub-pixels are arranged in a triangular or delta pattern, where each primary color is positioned at the vertices of the triangle.

• Characteristics: Commonly used in CRT displays, this arrangement can improve the perception of image sharpness and reduce the visibility of individual pixels.

Advanced Pixel Arrangements

To further enhance display performance in terms of resolution, color accuracy, and brightness, advanced pixel arrangements have been developed, incorporating additional sub-pixels beyond the standard RGB configuration:

1. RGBW (Red, Green, Blue, White):

• Description: Each pixel consists of four sub-pixels, adding a white sub-pixel to the standard RGB configuration.

• Advantages: The white sub-pixel increases brightness and power efficiency without compromising color accuracy. This arrangement is particularly beneficial for outdoor displays and high-brightness applications.

2. RGBY (Red, Green, Blue, Yellow):

• Description: Each pixel includes a yellow sub-pixel along with the standard RGB sub-pixels.

• Advantages: The yellow sub-pixel expands the color gamut, providing richer and more vibrant colors. This arrangement can enhance the display of yellow and green hues, making it suitable for applications requiring high color fidelity.

Impact on Display Performance

The choice of pixel arrangement has a significant impact on various aspects of display performance:

• Resolution: Different arrangements can influence the perceived sharpness of the display. For instance, stripe-type arrangements are straightforward and effective for high-resolution screens, while delta-type arrangements can enhance sharpness in lower-resolution displays.

• Color Accuracy: Advanced arrangements like RGBW and RGBY can provide more accurate and vivid colors, improving the overall viewing experience.

• Brightness and Power Efficiency: Adding a white sub-pixel (RGBW) can increase brightness and reduce power consumption, making it ideal for portable devices and outdoor displays.

In conclusion, understanding the various pixel arrangements and their benefits allows manufacturers to tailor displays to specific applications and user needs. By choosing the appropriate arrangement, they can optimize the display’s resolution, color accuracy, brightness, and power efficiency, delivering high-quality visual experiences across different devices.
