0.23" OLEDoS Sony Micro Display 640x400 2400nits 60Hz
- 💹 Enjoy a 20% discount for orders over 500
- 📉 A 15% discount is available for orders ranging from 200 to 499
- 🎁 A 10% discount is available for orders ranging from 50 to 199
- 🎁 A 5% discount is available when ordering 10-49
Dimension

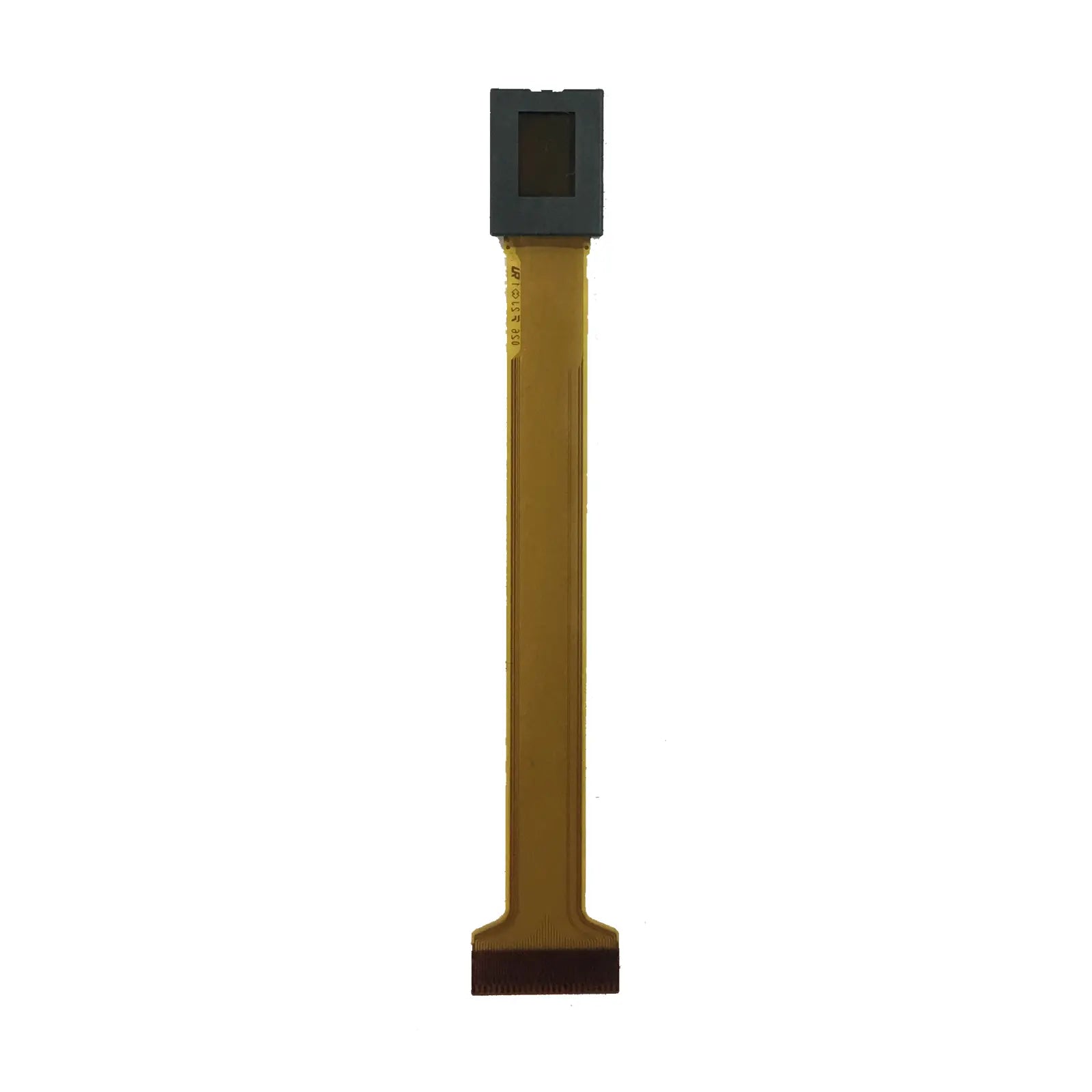

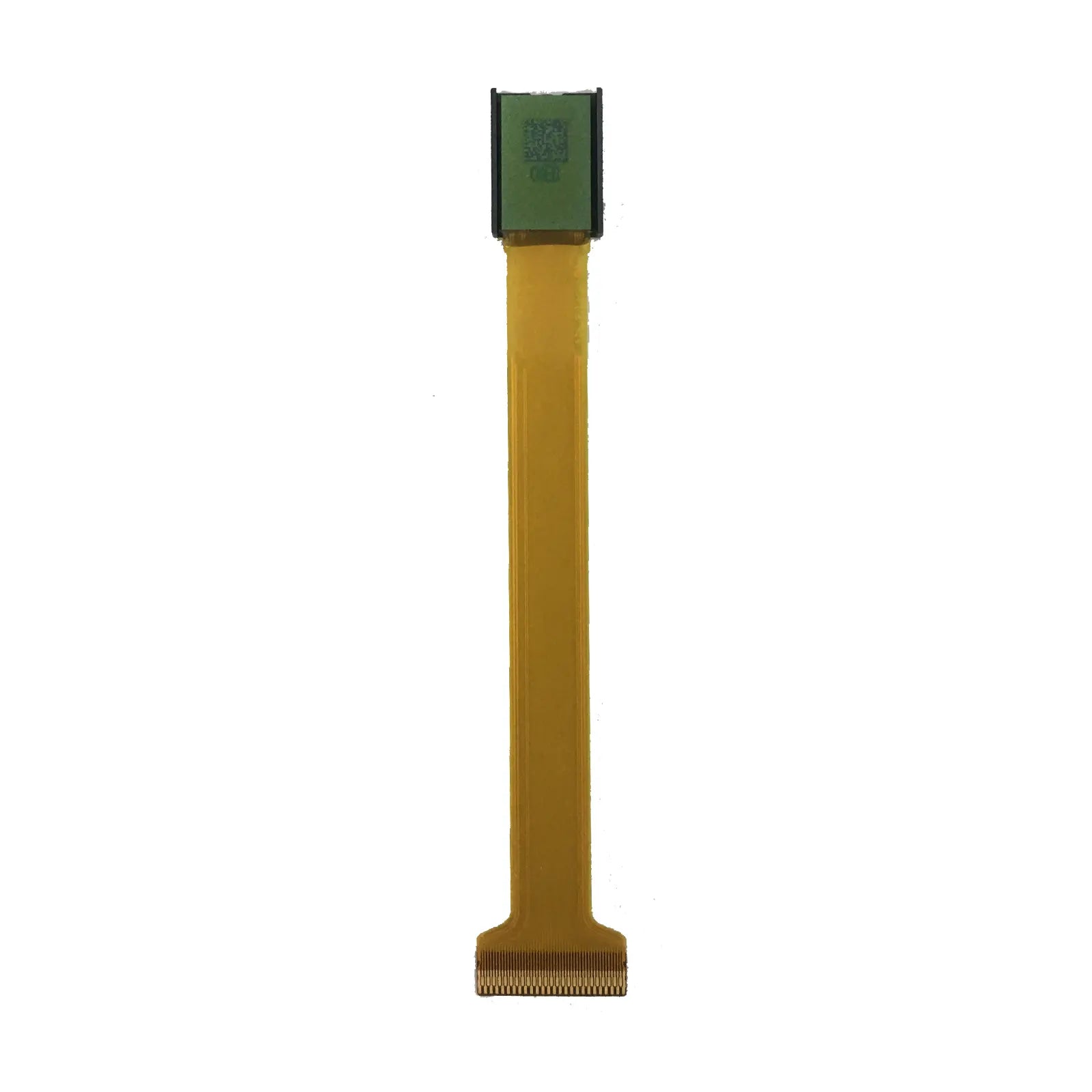

0.23" Sony Micro OLED Display 640x400 Resolution
Experience exceptional visual clarity with the 0.23-inch Sony Micro OLED display, featuring 640×400 resolution and ultra-high 2400 nits brightness. This premium display module combines cutting-edge OLED technology with single crystal silicon transistors for superior performance in compact applications.
Engineered for professional applications, this micro display integrates both panel driver and logic driver on a single module, achieving remarkable compactness without compromising on visual quality. The advanced silicon-based technology ensures fast response times and wide color gamut reproduction.
- Ultra High Contrast: Delivering exceptional 10,000:1 contrast ratio for vivid imagery
- Power Efficiency: Advanced power-saving mode with consumption as low as 0.12mW in standby
- Multiple Input Formats: Supports parallel RGB 24-bit, YCbCr 24-bit and YCbCr 16-bit input
- Flexible Orientation: Programmable scan direction selection (up/down, right/left)
- Temperature Compensation: Built-in luminance temperature compensation for consistent performance
| Parameter | Specification |
|---|---|
| Display Type | Active Matrix Color OLED |
| Resolution | 640(RGB) × 400 dots |
| Diagonal Size | 0.23 inch (0.6 cm) |
| Number of Dots | 0.77 million dots |
| Maximum Luminance | Up to 2400 cd/m² |
| Contrast Ratio | 10,000:1 |
| Power Consumption | 0.12mW (Standby) to 195mW (Full Operation) |
| Frame Rate | 60Hz |
| Operating Temperature | -20℃ to 70℃ |
| Storage Temperature | -30℃ to 80℃ |
| Input Interface | Parallel RGB 24-bit, YCbCr 24-bit, YCbCr 16-bit |
| Power Supply | 1.8V, 10V with specific power sequence requirements |
We offer customized display solutions for businesses seeking to integrate high-performance micro displays into their products. Our enterprise services include:
- Bulk Order Programs: Competitive pricing for volume purchases with flexible delivery schedules
- Custom Configuration: Tailored display solutions with modified firmware and specialized interfaces
- Technical Integration Support: Expert assistance for seamless implementation into your products
- White-Label Options: Custom branding and packaging solutions for OEM partners
Ideal for AR headsets and smart glasses, providing high brightness and resolution in a compact form factor for immersive experiences.
Perfect for VR viewfinders and head-mounted displays, offering fast response times and minimal motion blur.
Essential for surgical scopes, endoscopes, and medical viewers requiring high contrast and accurate color reproduction.
Suited for measurement devices, inspection systems, and portable instruments where space is limited but performance is critical.
Compatibility Notes: This display module requires specific power sequencing (1.8V before 10V supply) and supports multiple input formats through programmable register settings. Proper heat dissipation is recommended for optimal performance and longevity.
Technical Documentation: Download complete datasheet for detailed electrical characteristics, timing diagrams, and register configuration guidelines.
Design Resources: Reference schematics and layout recommendations available for qualified business partners.
