Dimension

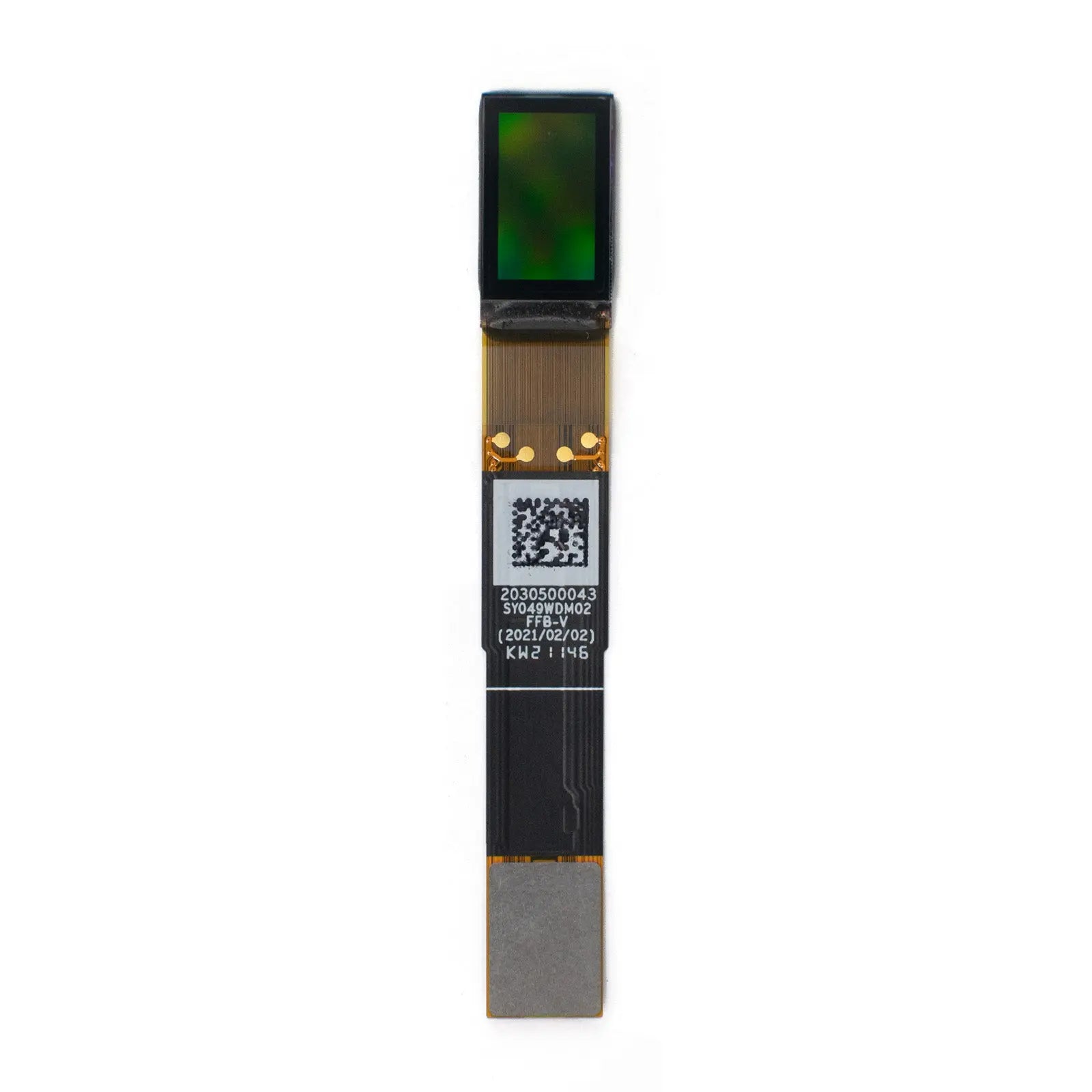

0.49" Micro OLEDoS Display 1920x1080 90Hz 20000nits Mono Green - MIPI
This high-performance 0.49-inch Micro OLED display delivers exceptional 1920×1080 resolution with an impressive 20000 nits brightness, making it ideal for high-contrast applications requiring superior visual clarity in various lighting conditions.
Based on single-crystal silicon transistor technology, this mono-green OLED panel integrates both panel driver and logic driver, achieving compact size, lightweight design, low power consumption, and exceptional high resolution performance.
- High Pixel Density: Delivers sharp, detailed images with 1920×1080 SPR resolution in a compact 0.49-inch form factor.
- Exceptional Brightness: 20000 nits peak brightness ensures excellent visibility even in bright ambient light conditions.
- Advanced Interface: MIPI DPHY v1.2 with one port (4 lanes) supporting 1.0Gbps/Lane data transfer.
- Compression Support: Integrated VESA-DSC v1.1 in-chip decoder with 3X and 3.75X compression ratio options.
| Parameter | Specification |
|---|---|
| Resolution | 1920(H) × 1080(V) |
| Pixel Size | 5.616μm × 5.616μm |
| Active Area | 10.783mm × 6.065mm / 0.49" diagonal |
| Bezel Size | 15.68mm × 9.09mm × 1.5mm |
| Luminance | 20000 cd/m² typical |
| Contrast Ratio | 50000:1 |
| Color | Monochrome Green |
| Chromaticity (CIE-x) | 0.23 |
| Chromaticity (CIE-y) | 0.73 |
| Frame Rate | Max. 90Hz |
| Interface | MIPI + I2C |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -40℃ to +80℃ |
| Weight | ~1g |
We offer customized display solutions for businesses seeking to integrate high-performance Micro OLED technology into their products with volume pricing advantages.
- Custom Configuration: Tailored solutions to meet specific application requirements and integration needs.
- Volume Pricing: Competitive wholesale pricing for OEM and enterprise customers with quantity discounts.
- Technical Support: Comprehensive engineering support for seamless integration and optimization.
Ideal for AR headsets and smart glasses requiring high brightness, high resolution displays with compact form factors.
Perfect for surgical displays, endoscopes, and medical visualization equipment where high contrast and clarity are critical.
Suitable for measurement devices, inspection systems, and industrial control panels requiring reliable high-performance displays.
Technical Notes: This display supports multiple scaling options including 1.33x, 1.5x, and 2x scaling ratios. It features wide range brightness adjustment, temperature compensation, and image anchoring capabilities.
Resources: Download complete technical documentation
