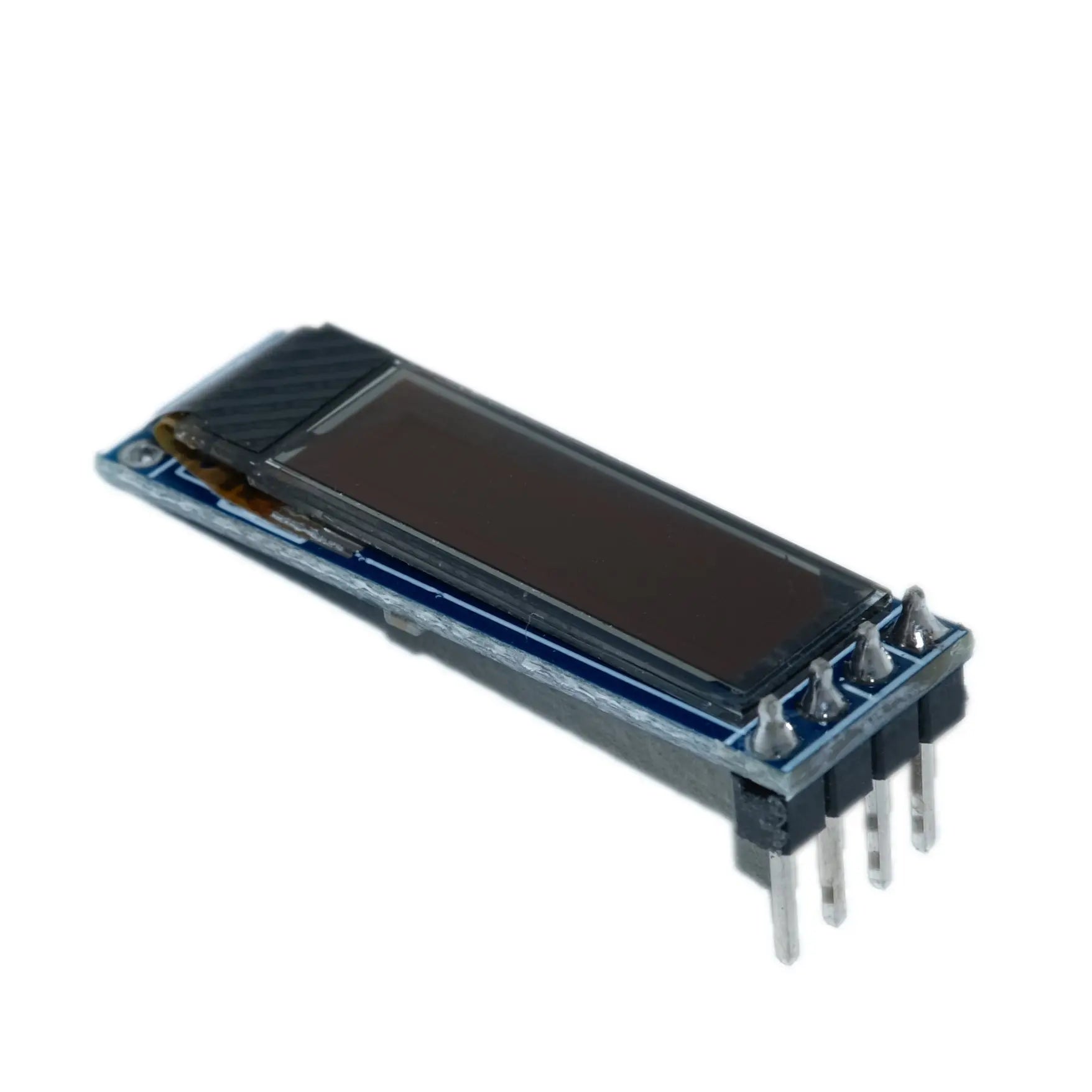

0.69-inch OLED Graphic Display Module with 96x16 resolution

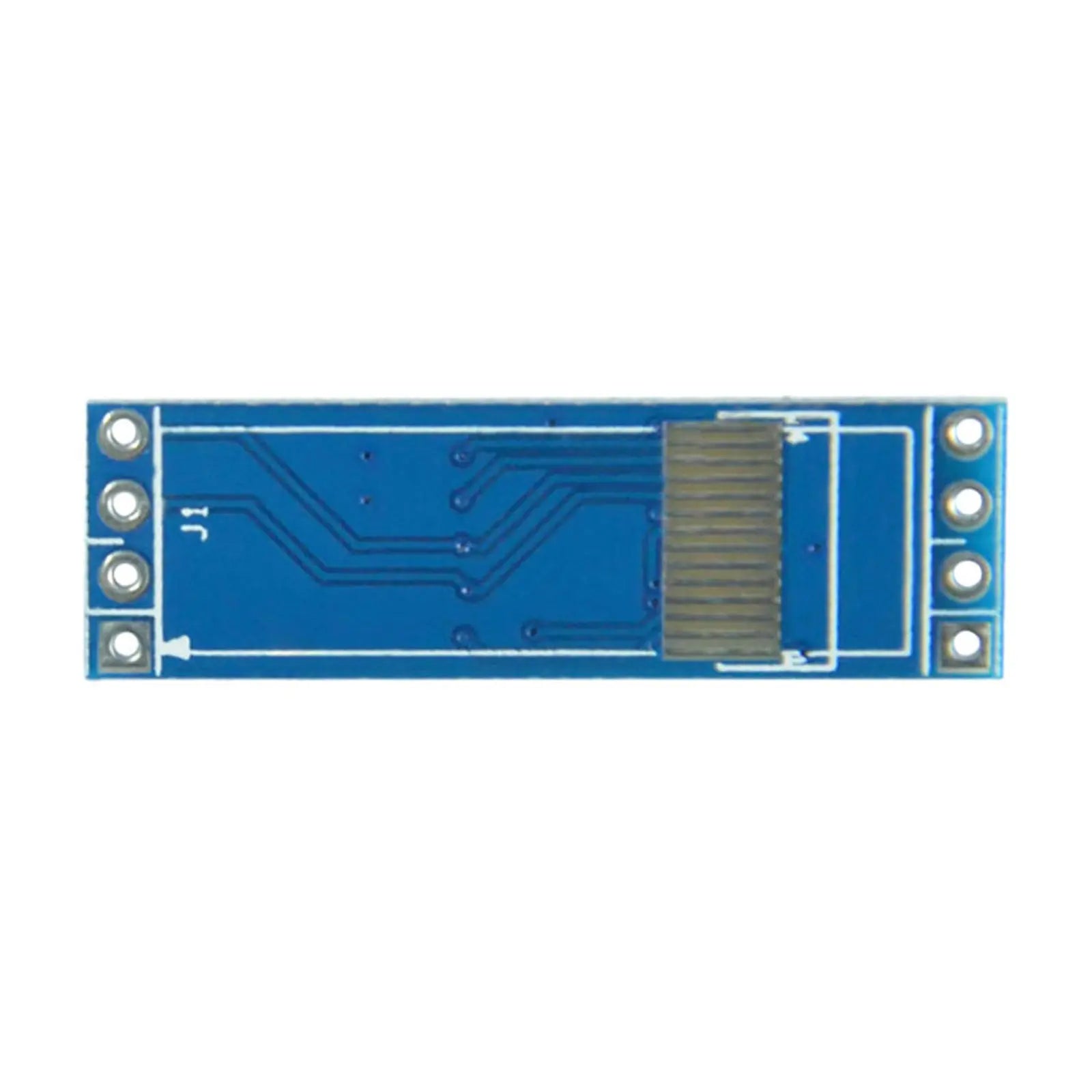

Back of 0.69-inch OLED Graphic Display Module

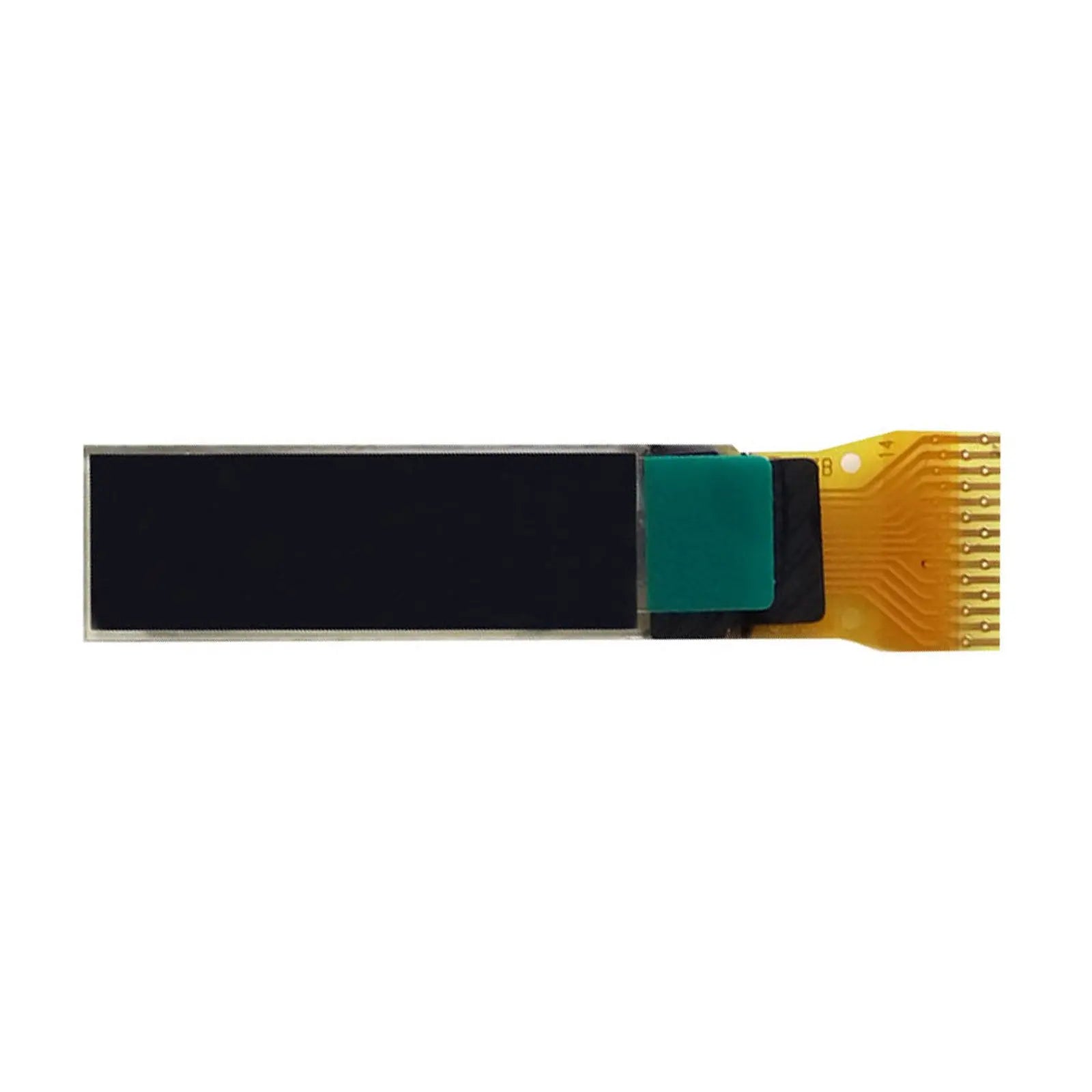

0.69-inch OLED Graphic Display Panel
Back of 0.69-inch OLED Graphic Display Module

0.69" OLED Graphic Display 96x16 - I2C

Regular price $2.90
Sale price $2.90 Regular price $9.99
Datesheet:
module
panel
PCB
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Display Specifications

  • Resolution : 96x16 pixel
  • Display Mode : Passive Matrix OLED
  • Display Color : White
  • Module Dimension : 32.5x10.0x2.7 mm
  • Viewing Area : 17.26x3.18 mm
  • Power Supply : 2.8 V
  • Interface : I2C
  • Controller IC : SSD1306
  • Operation Temperature : -40℃~85℃
  • Storage Temperature : -40℃~85℃

Dimension

Resources

Driver IC: SSD1306-Rev1.0

Arduino SSD1306 library: u8g2  .Uncomment device U8G2_SSD1306_96X16_ER_F_HW_I2C u8g2(U8G2_R0,/* reset=*/ U8X8_PIN_NONE);
