DisplayModule

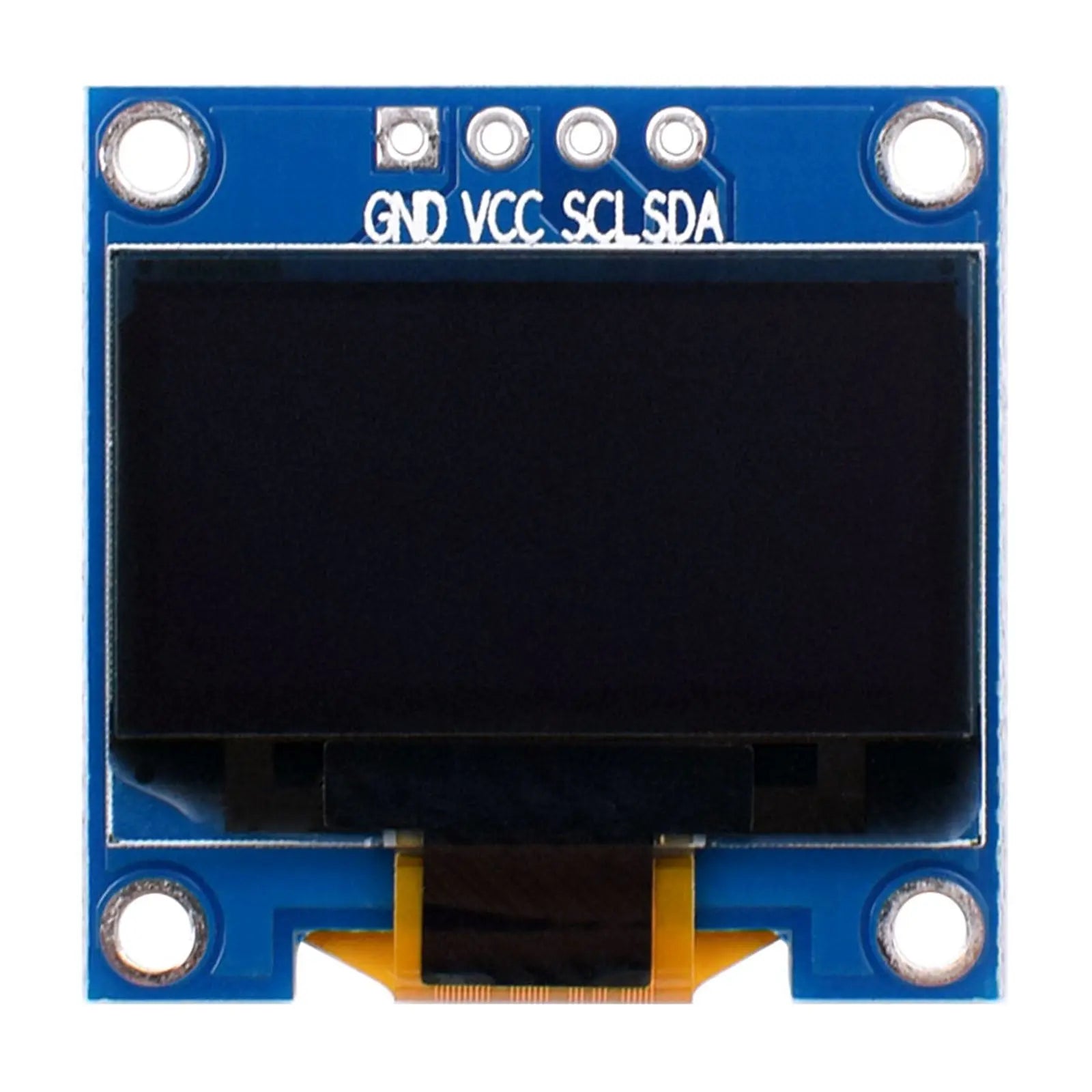

0.96" 128x64 Monochrome Graphic OLED Display Module - I2C

DM-OLED096-636

Regular price
$6.99
Regular price
$12.95
Sale price
$6.99
Shipping calculated at checkout.
Style
Free shippong

Free shipping over $400

Easy returns

Free return in 30 days

Bulk discount

Discount for orders of 10 tablets or more. Please contact us for a discount info@displaymodule.com

    Main features

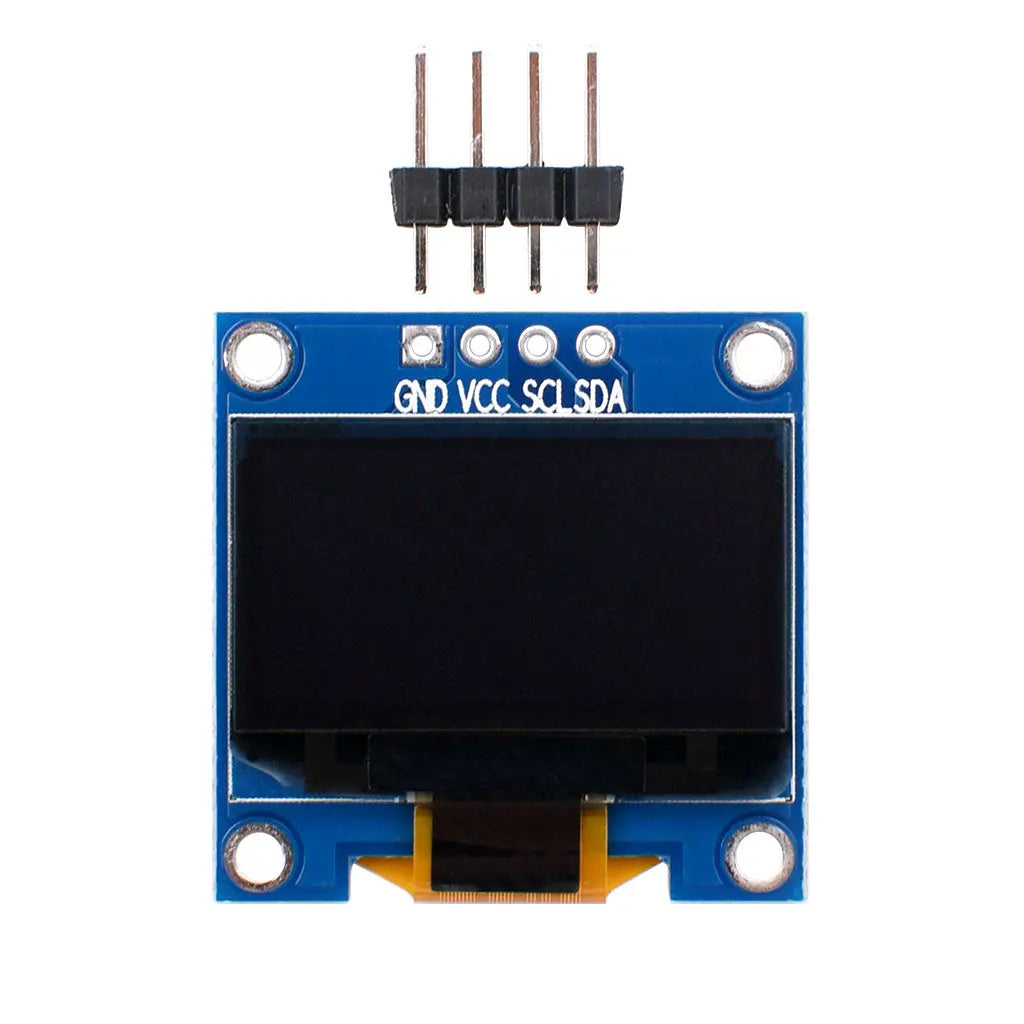

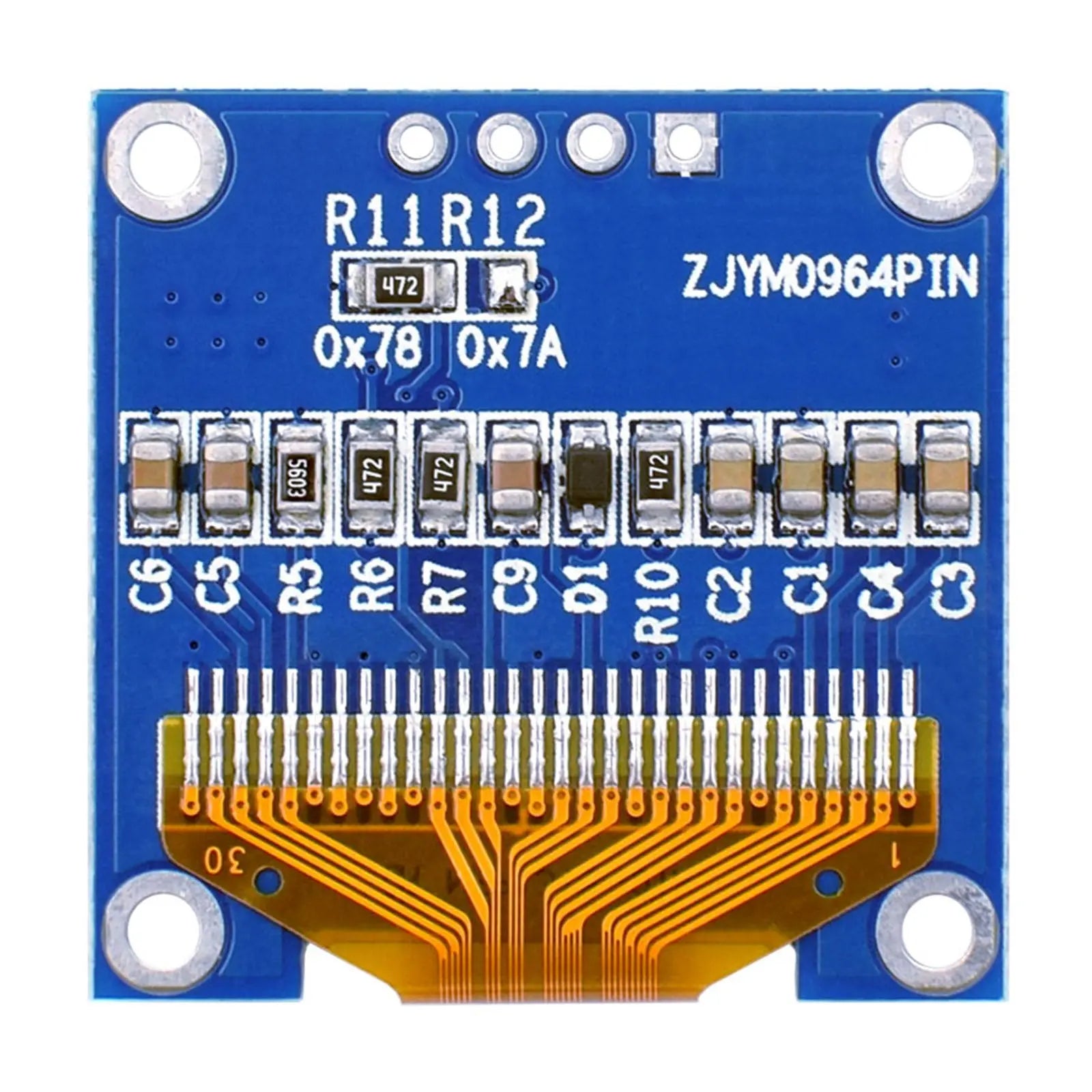

    This module interface is 4 pins I2C, The default slave address is 0x78.

    • 0.96" 128 x 64 pixel
    • Interface: IIC
    • 3.3-5V  power
    • Drive IC: SSD1315
    • PCB size: 26.0 mm x 26.0mm



    Related Accessories

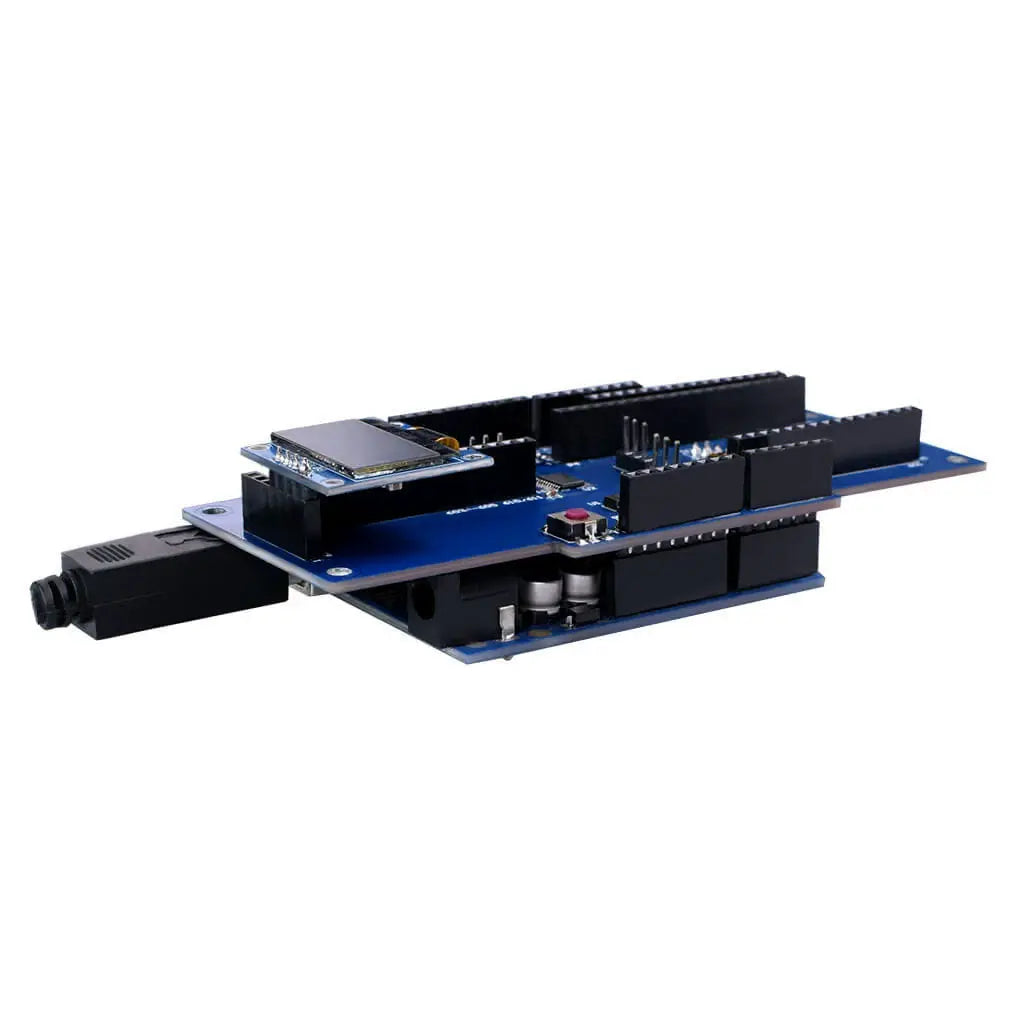

    This module can connect with DM-ADTAU-010 P5 (pin1~pin4) then work on Arduino .

    Display specifications

    Module Overall
    Screen size 0.96"
    Resolution 128 x 64 pixel
    Module Dimension 26.0 x 26.0 mm
    Active Area 21.74 x 10.86 mm
    Weight TBD g



    Dimension

    Datasheet

    Driver IC: SSD1315

    Source Code

    Arduino SSD1315 is compatible SSD1306, You can refer Library: u8g2  .Uncomment device U8G2_SSD1306_128X64_NONAME_1_SW_I2C u8g2(U8G2_R0, /* clock=*/ 13, /* data=*/ 11, /* reset=*/ 8);

    Packing List

    • One OLED Display Module
