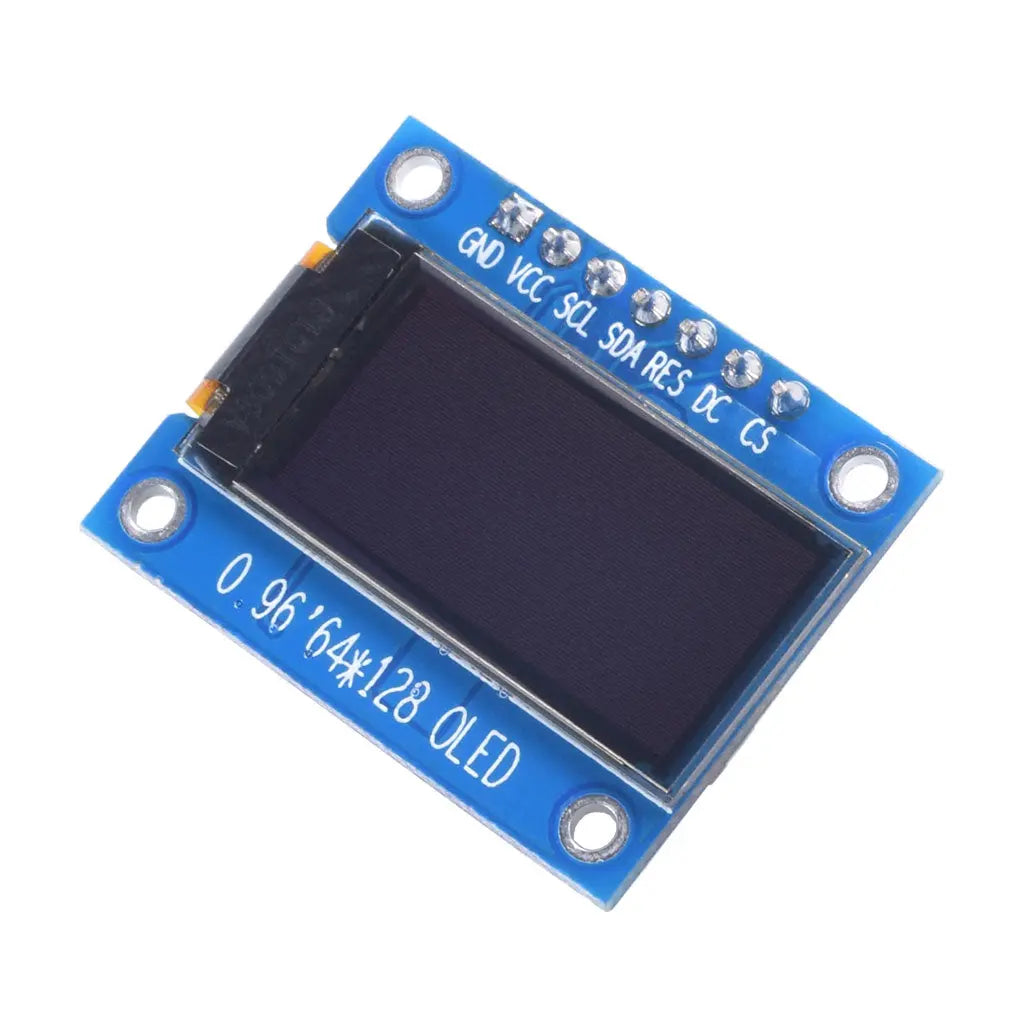

0.96" OLED Graphic Display 128x64 - SPI
High-performance 0.96-inch monochrome OLED display module featuring 64x128 pixel resolution and SPI interface. Powered by SH1107 controller IC, this compact display delivers crisp white graphics with low power consumption.
Engineered for embedded applications, this OLED module combines excellent viewing characteristics with robust performance. The SH1107 driver provides efficient power management and flexible interface options.
- High Contrast Display: Monochrome white OLED with excellent readability in various lighting conditions.
- Compact Design: Ultra-thin 1.22mm profile with 10.86×21.74mm viewing area.
- Wide Temperature Range: Operational from -40℃ to 70℃, suitable for industrial applications.
- SPI Interface: Standard 4-wire serial peripheral interface for easy microcontroller integration.
| Parameter | Specification |
|---|---|
| Display Type | Passive Matrix OLED |
| Resolution | 64 × 128 Pixels |
| Display Color | Monochrome (White) |
| Module Dimensions | 14 × 28 × 1.22 mm |
| Viewing Area | 10.86 × 21.74 mm |
| Power Supply | 2.8V DC |
| Interface | SPI (Serial Peripheral Interface) |
| Controller IC | SH1107 |
| Operating Temperature | -40℃ to +70℃ |
| Storage Temperature | -40℃ to +85℃ |
We provide customized display solutions for OEM and volume applications with flexible options to meet specific project requirements.
- Custom Configuration: Tailored display parameters including contrast settings, interface options, and mechanical adaptations.
- Bulk Order Programs: Competitive pricing for volume purchases with dedicated technical support.
- White-label Options: Custom branding and packaging solutions for product integration.
Ideal for wearable technology, medical monitors, and handheld instruments requiring compact, low-power displays.
Robust performance for industrial equipment, automation systems, and process control displays.
Perfect for audio equipment, smart home devices, and portable gaming systems.
Arduino Library Support: Compatible with U8g2 library. Use device configuration: U8G2_SH1107_64X128_1_4W_HW_SPI u8g2(U8G2_R0, /* cs=*/ 10, /* dc=*/ 9, /* reset=*/ 8)

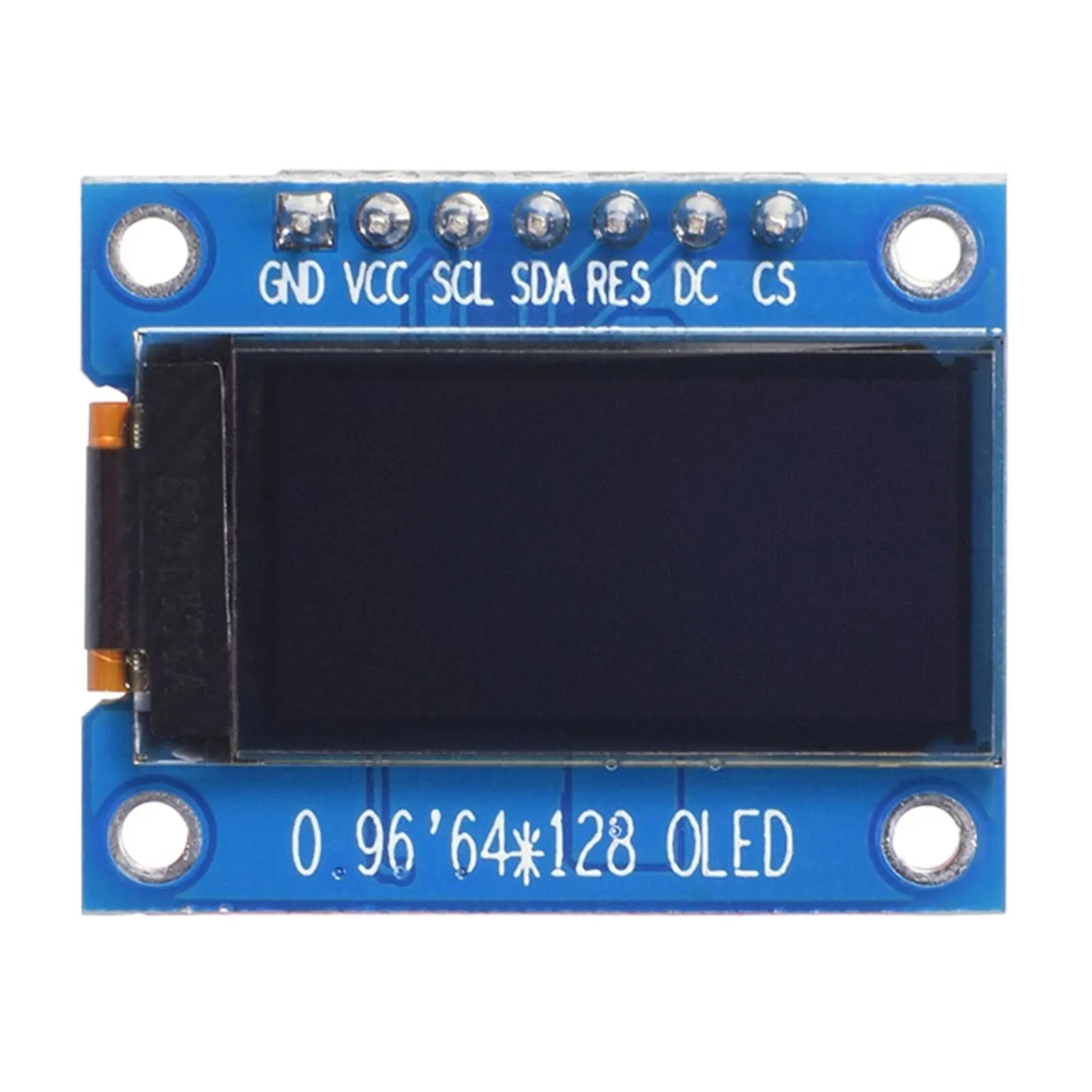

Pin Connection: 13: SCL; 11: SDA; 10: CS; 9: DC; 8: RES
Documentation: Download Complete Datasheet | SH1107 Controller Documentation
