0.96" OLED Graphic Display 128x64 - SPI
0.96" OLED Graphic Display 128x64 - SPI
SKU:DM-OLED096-658
Regular price
$4.90 USD
Regular price
Sale price
$4.90 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
1 pcs | original price |
5 pcs | 8% off |
10 pcs | 10% off |
Shipping
Shipping
Standard and expedited shipping available, free expedited shipping over $600. Lenrn more
Easy Returns
Easy Returns
No need to worry about buying products that don't fit your design, we offer a 30-day no-questions-asked return service.
More Order, More Save
More Order, More Save
The higher the quantity ordered, the greater the discount, so contact us for the discount price! Contact us
Share

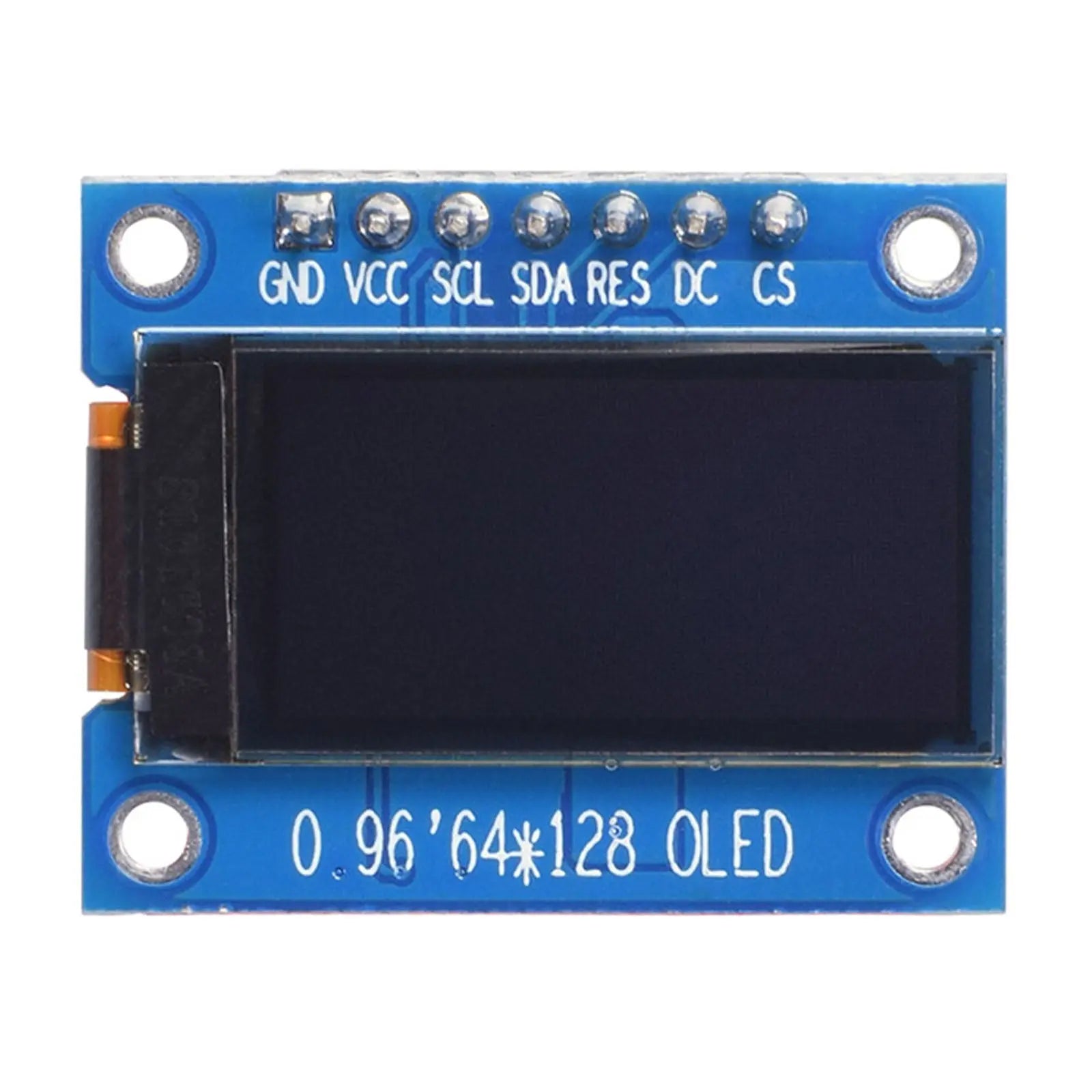

![0.96-inch OLED Graphic Display Module with 128x64 resolution and SPI interface](http://www.displaymodule.com/cdn/shop/products/DM-OLED096-658face.jpg?v=1659068513&width=1445)

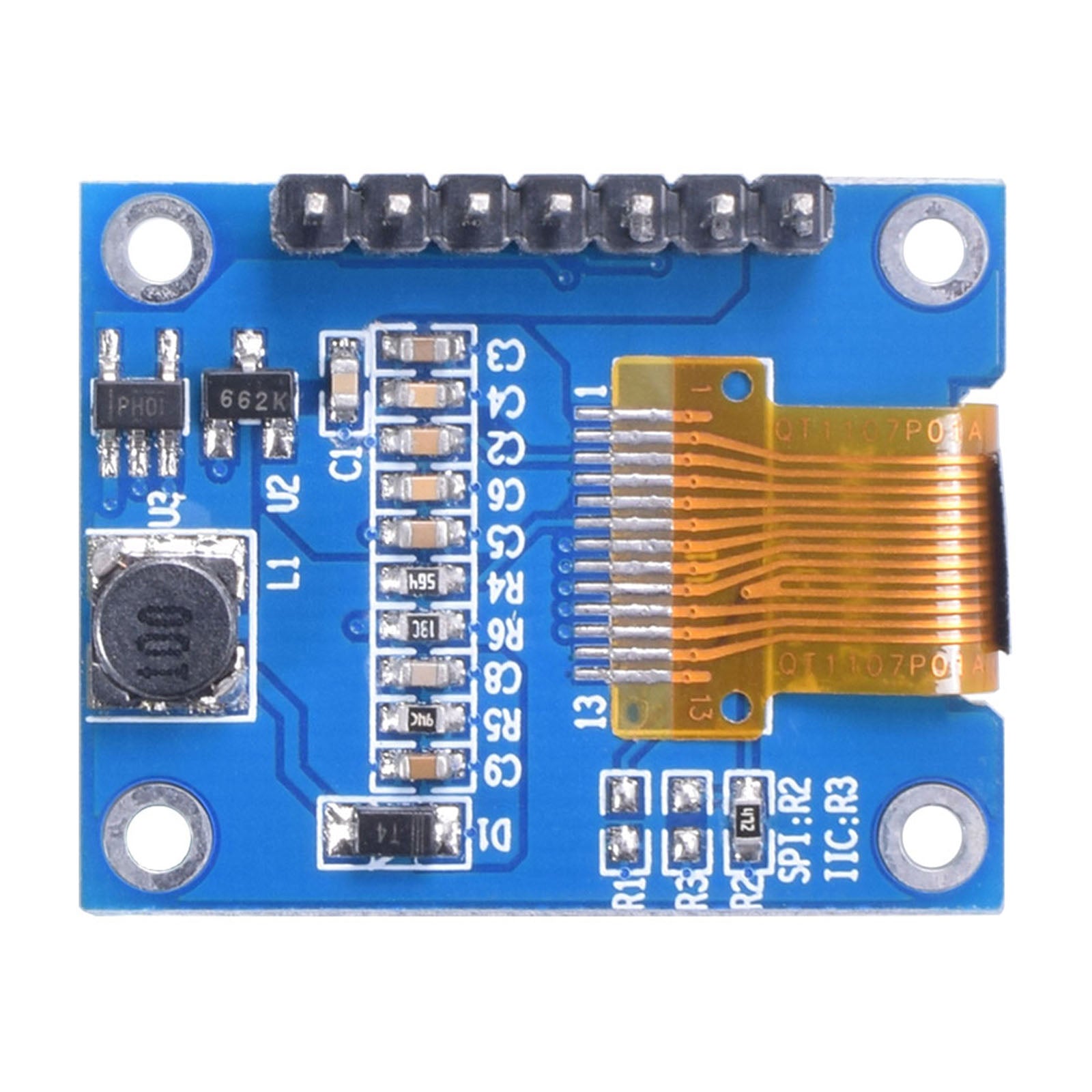

![Back of 0.96-inch OLED Graphic Display Module](http://www.displaymodule.com/cdn/shop/products/DM-OLED096-658back.jpg?v=1659068513&width=1445)

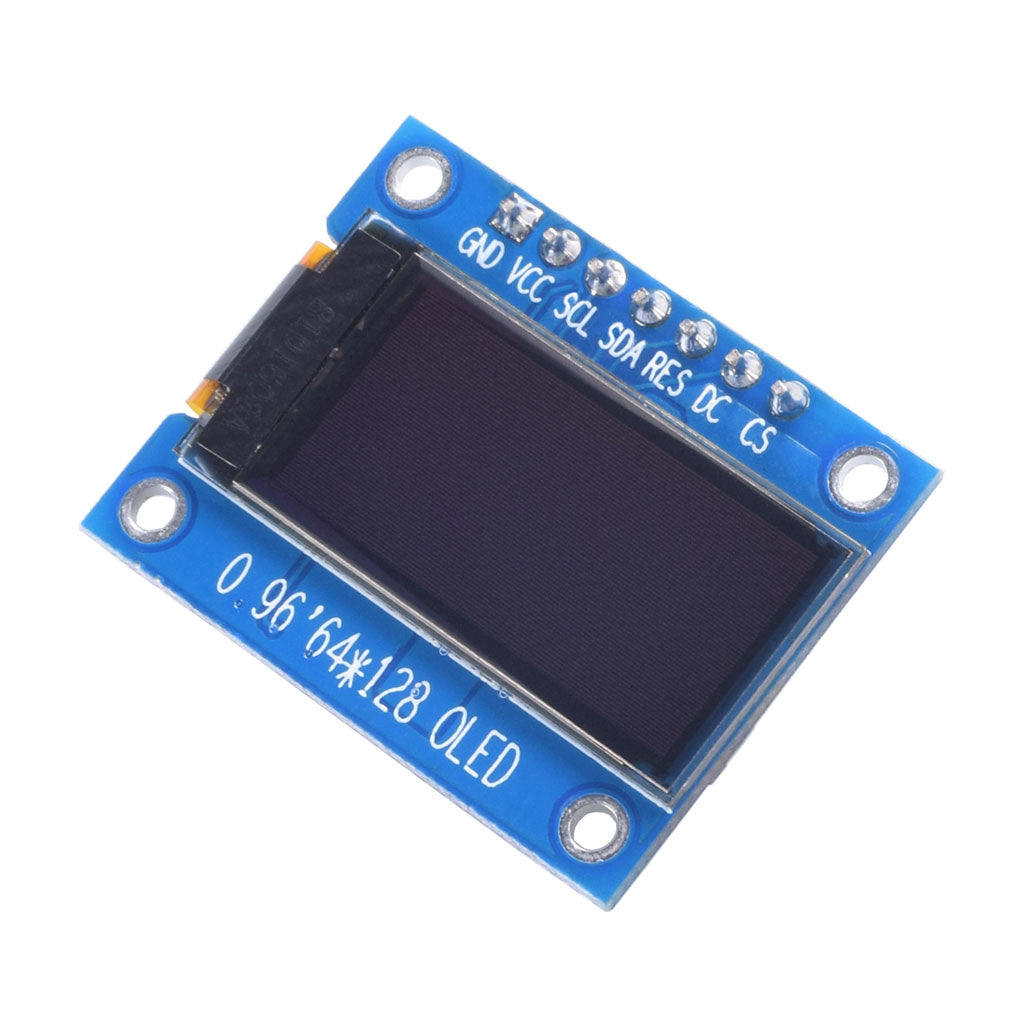

![Top View of 0.96-inch OLED Graphic Display Module](http://www.displaymodule.com/cdn/shop/products/DM-OLED096-658-side_88a087cb-0efb-4a99-986c-9e67ec942c9a.jpg?v=1659068513&width=1445)
Display Specifications
- Resolution : 64x128 pixel
- Display Mode : Passive Matrix OLED
- Display Color : Monochrome(White)
- Module Dimension : 14x28x1.22 mm
- Viewing Area : 10.86x21.74 mm
- Power Supply : 2.8 V
- Interface : SPI
- Controller IC : SH1107
- Operation Temperature : -40℃~70℃
- Storage Temperature : -40℃~85℃
Dimensions
Resources
- DM-OLED096-658
- Display Driver IC: SH1107-V2.1
Arduino SH1107 Library: u8g2. Uncomment device U8G2_SH1107_64X128_1_4W_HW_SPI u8g2(U8G2_R0, /* cs=*/ 10, /* dc=*/ 9, /* reset=*/ 8);
You can refer to samples of the U8g2_Arduino/example/page_buffer;
Connect pins:13: SCL;11: SDA;10: CS;9: DC;8: RES.
