Dimensions

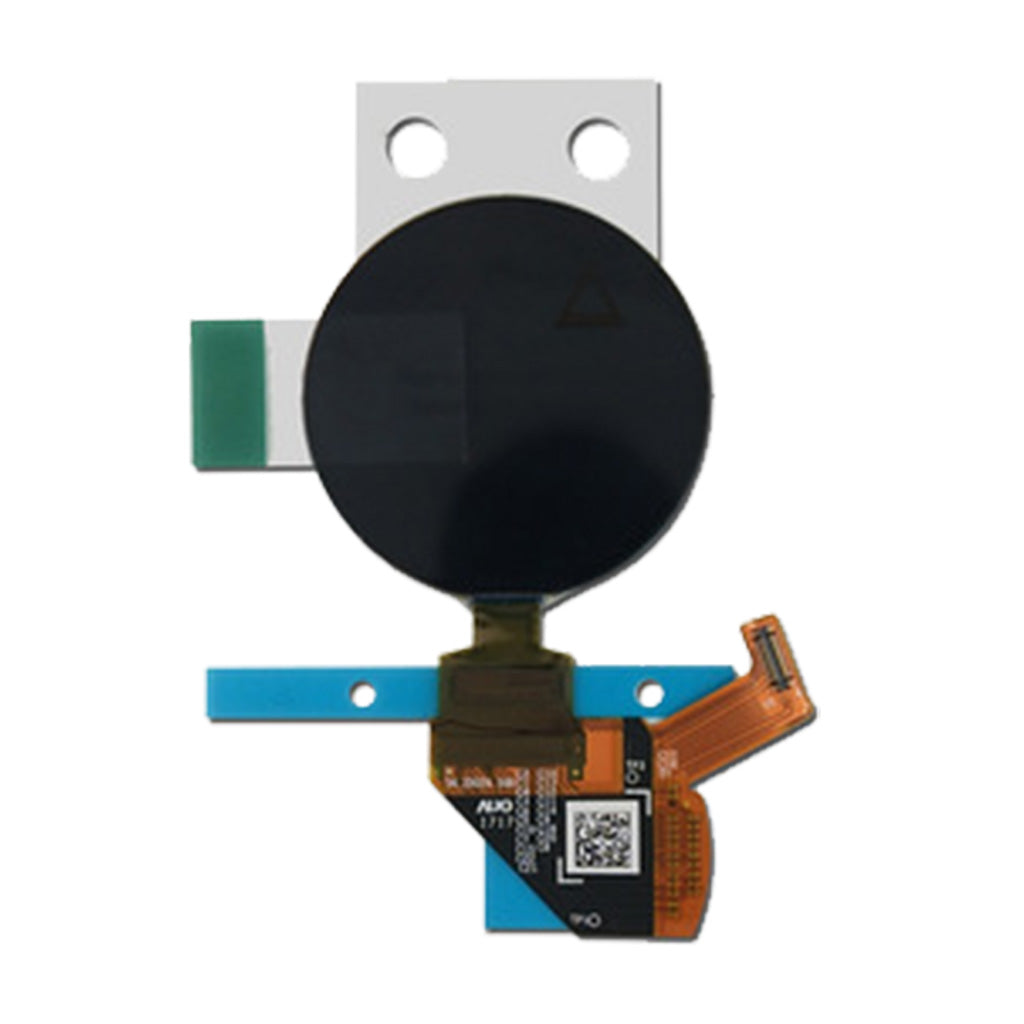

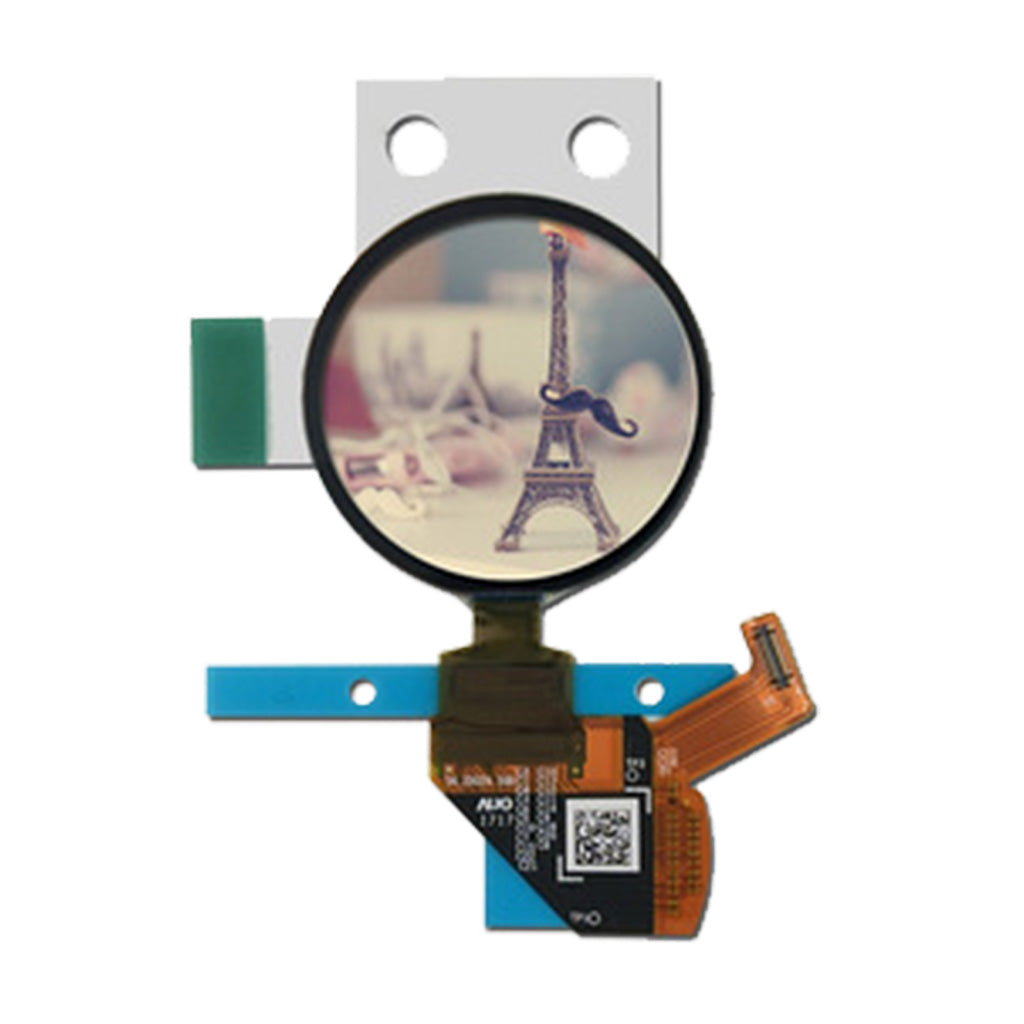

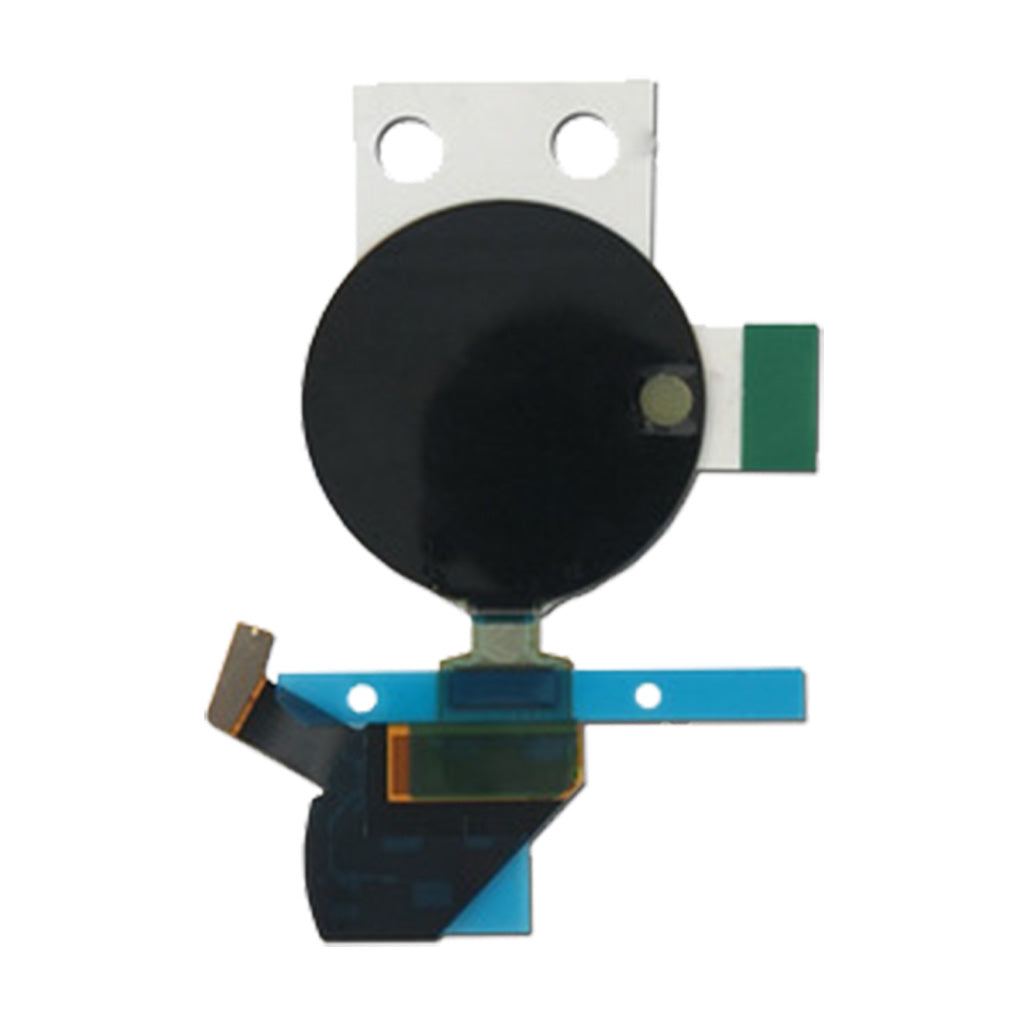

1.2" Round AMOLED Display 390x390 350nits 16.7M-Colors - MIPI
Experience exceptional visual performance with our 1.2-inch round AMOLED display, featuring 390×390 high resolution and 350 nits brightness for crisp, vibrant visuals in various lighting conditions.
This advanced AMOLED display utilizes MIPI interface technology for high-speed data transmission and low power consumption, making it ideal for portable and wearable devices.
- High Contrast Ratio: Delivers deep blacks and vibrant colors with typical 100,000:1 contrast ratio
- Wide Viewing Angle: Maintains color accuracy and brightness at various viewing angles
- Low Power Consumption: Optimized for battery-powered devices with multiple power saving modes
- MIPI Interface: High-speed serial interface supporting command and video modes
| Parameter | Specification |
|---|---|
| Display Type | AMOLED |
| Diagonal Dimension | 1.20 inch |
| Resolution | 390×390 pixel |
| Pixel Density | ~455 PPI |
| Display Color | 16.7M |
| Module Dimension | 33.22 (H) × 33.75 (V) × 0.656(T) mm |
| Viewing Area | 30.42 (H)×30.42(V) mm |
| Brightness | 350 nits (typical) |
| Contrast Ratio | 100,000:1 (typical) |
| Interface | MIPI DSI |
| Supply Voltage | 1.8V |
| Controller IC | W022 |
| Touch Function | None |
The compact round form factor and slim profile (0.656mm thickness) enables seamless integration into space-constrained wearable devices while maintaining excellent display performance.
We offer customized display solutions for OEM and enterprise customers with volume production capabilities and technical support.
- Custom Configurations: Tailored display solutions with modified interfaces, bonding options, and optical enhancements
- Volume Pricing: Competitive pricing for bulk orders with flexible manufacturing schedules
- Technical Support: Engineering assistance for display integration and optimization
- Quality Assurance: Rigorous testing and quality control procedures for reliable performance
Packaging Specifications:
- 20' Container: 12 Pallets = 336 cartons = 201,600 panels
- 40' Container: 28 Pallets = 784 cartons = 470,400 panels
Smartwatches, fitness trackers, and health monitoring devices requiring high-resolution circular displays with low power consumption.
Portable medical devices, diagnostic equipment, and health monitors where clear visualization is critical.
Human-machine interfaces for industrial controls, instrumentation, and portable measurement devices.
Access comprehensive technical documentation and support materials for seamless integration of our AMOLED display into your products.
- Datasheet: DM-TFTR12-453, W022
- Example Code: W022-MIPI-390x390
- 3D Model: DM-TFTR12-453
- Video: DM-TFTR12-453
Technical Notes: Display performance optimized for 45Hz refresh rate in command mode. Supports deep standby mode with ultra-low power consumption. MIPI interface requires proper termination and impedance matching for optimal signal integrity.
Compatibility: Compatible with mainstream processors and MCUs supporting MIPI DSI interface. Requires 1.8V power supply with proper bypass capacitors close to power pins.
