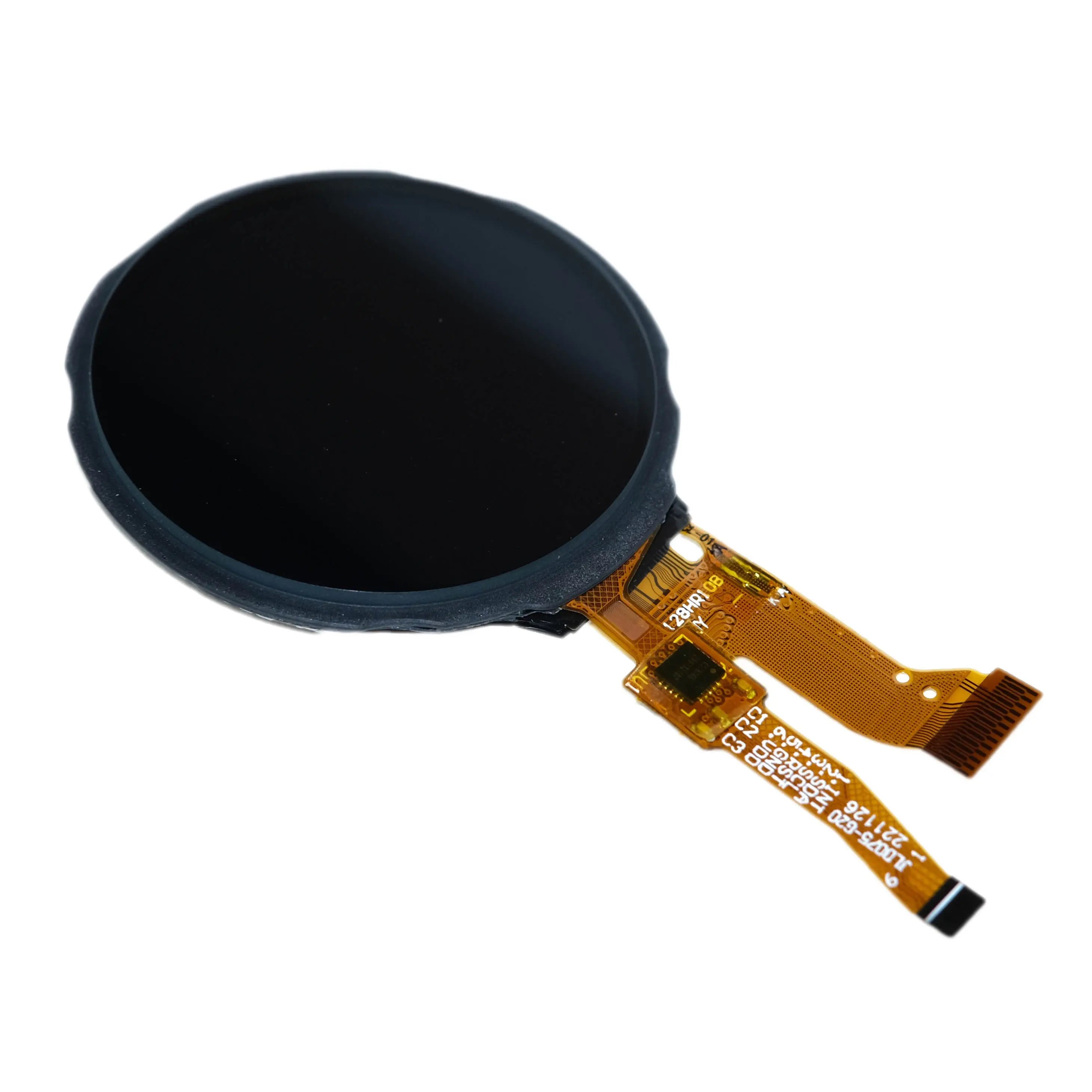

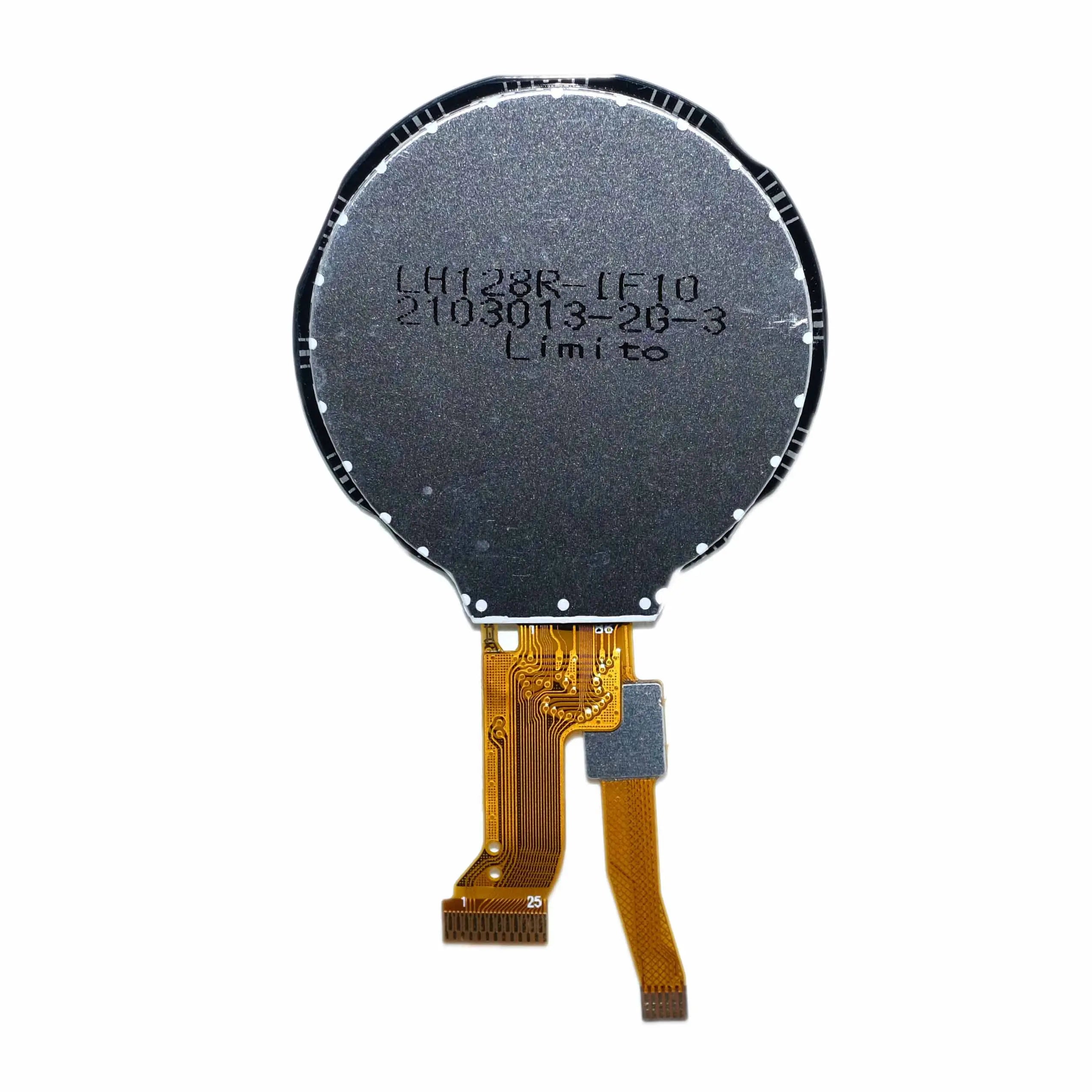

1.28" Round IPS Display 240x240 All View Capacitive - MCU, I2C
Engineered for embedded applications, this 1.28-inch round IPS display delivers crisp 240x240 resolution with all-view visibility and capacitive touch support. Ideal for compact devices requiring high brightness and wide viewing angles.
With a circular design and Ø32.4mm viewing area, this display offers a compact footprint of 38.3mm x 38.65mm x 3.78mm, making it suitable for space-constrained projects. The GC9A01 drive IC ensures efficient performance with 2.8V supply voltage.
- IPS Technology: Provides consistent color and clarity from any viewing direction, similar to premium smartphones.
- Capacitive Touch: Supports I2C interface for responsive input without additional touch layers.
- Low Power Operation: Optimized for battery-powered devices with a wide temperature range (-10℃ to 60℃).
- Easy Integration: 8-bit 8080 MCU interface simplifies connection to microcontrollers and embedded systems.
| Parameter | Specification |
|---|---|
| Diagonal Dimension | 1.28 inch |
| Resolution | 240(H)RGB x 240(V) pixel |
| View Direction | All View |
| Touch Mode | None |
| Module Dimension | 38.3(H) x 38.65(V) x 3.78(D) mm |
| Viewing Area | Ø32.4 mm |
| Supply Voltage | 2.8 V |
| LCM Interface | 8 Bit 8080 MCU |
| CTP Interface | I2C |
| Luminance | 400 cd/m² |
| Drive IC | GC9A01 |
| Operation Temperature | -10℃ ~ 60℃ |
| Storage Temperature | -20℃ ~ 70℃ |
We offer customized display solutions for bulk orders and specialized applications. Our enterprise programs include tailored specifications and white-label options.
- Bulk Procurement: Volume discounts for orders above 100 units, with flexible shipping and logistics.
- Custom Modifications: Adjustments to interface, brightness, or form factor to meet specific project needs.
- Technical Support: Dedicated engineering assistance for integration and compliance testing.
Ideal for smartwatches and fitness trackers, providing round display aesthetics with low power consumption.
Used in control panels and instrumentation, offering reliable performance in harsh environments.
Suited for portable diagnostic devices due to high brightness and wide viewing angles.
This display is compatible with common microcontrollers like Arduino, Raspberry Pi, and ESP32 via MCU or I2C interfaces. It supports various operating systems through standard display drivers.
Documentation: Access detailed datasheets and design files for seamless integration.
- Datasheet: DM-TFTR128-482
- Driver IC: GC9A01
- 3D Model: DM-TFTR128-482p
Note: Ensure proper voltage regulation and ESD protection during installation. Operating outside specified temperatures may affect longevity.
