1.39" Round AMOLED Display 454x454 Full Color Narrow Margin - MIPI, I2C
1.39" Round AMOLED Display 454x454 Full Color Narrow Margin - MIPI, I2C
SKU:DM-OLED139-668
Regular price
$69.90 USD
Regular price
Sale price
$69.90 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
1 pcs | original price |
5 pcs | 8% off |
10 pcs | 10% off |
Shipping
Shipping
Standard and expedited shipping available, free expedited shipping over $600. Lenrn more
Easy Returns
Easy Returns
No need to worry about buying products that don't fit your design, we offer a 30-day no-questions-asked return service.
More Order, More Save
More Order, More Save
The higher the quantity ordered, the greater the discount, so contact us for the discount price! Contact us
Share

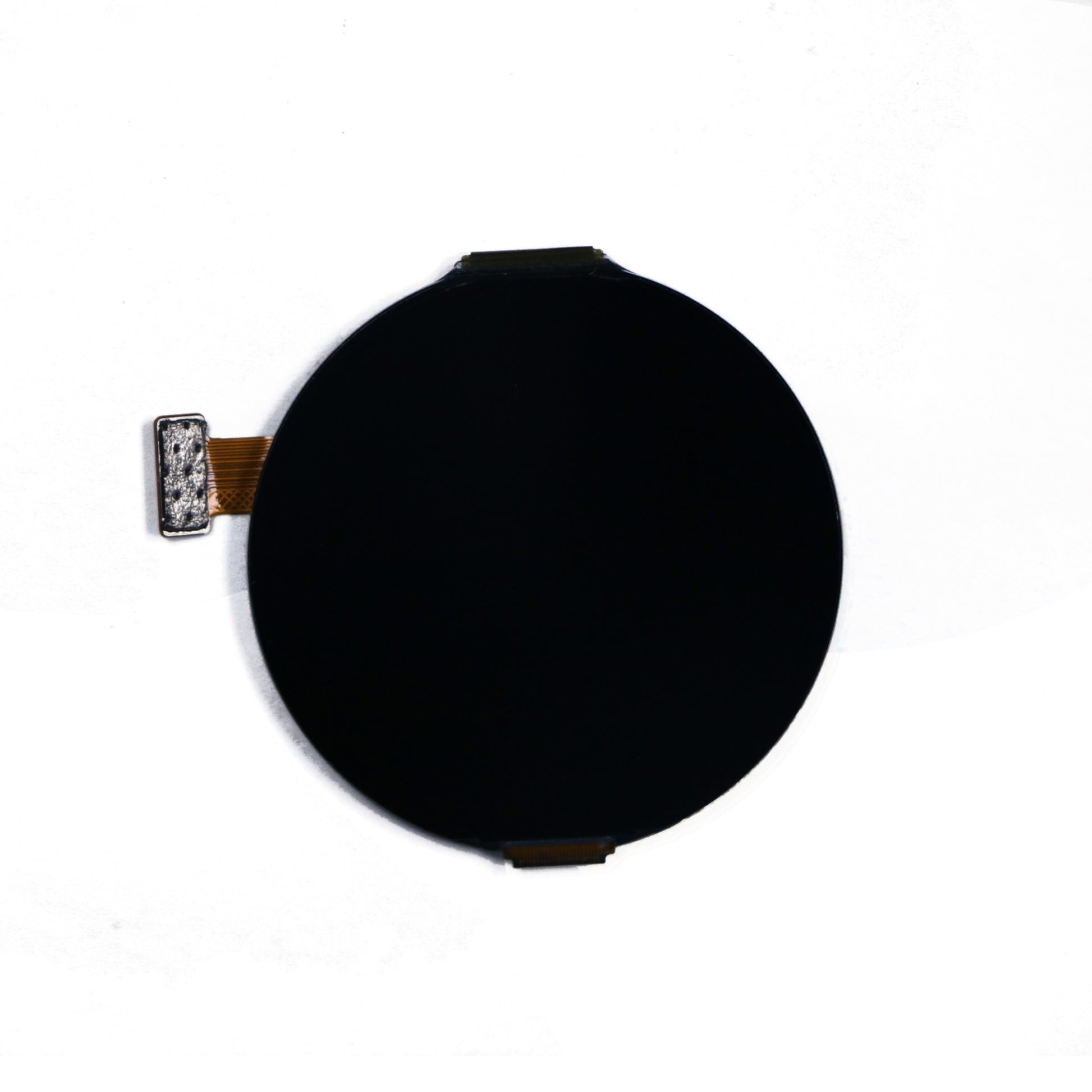

![1.39-inch Round AMOLED Display Panel, 454x454 resolution, full color, narrow margin](http://www.displaymodule.com/cdn/shop/products/1.39_RoundAMOLEDDisplay454x454FullColorNarrowMargin.jpg?v=1680773046&width=1445)

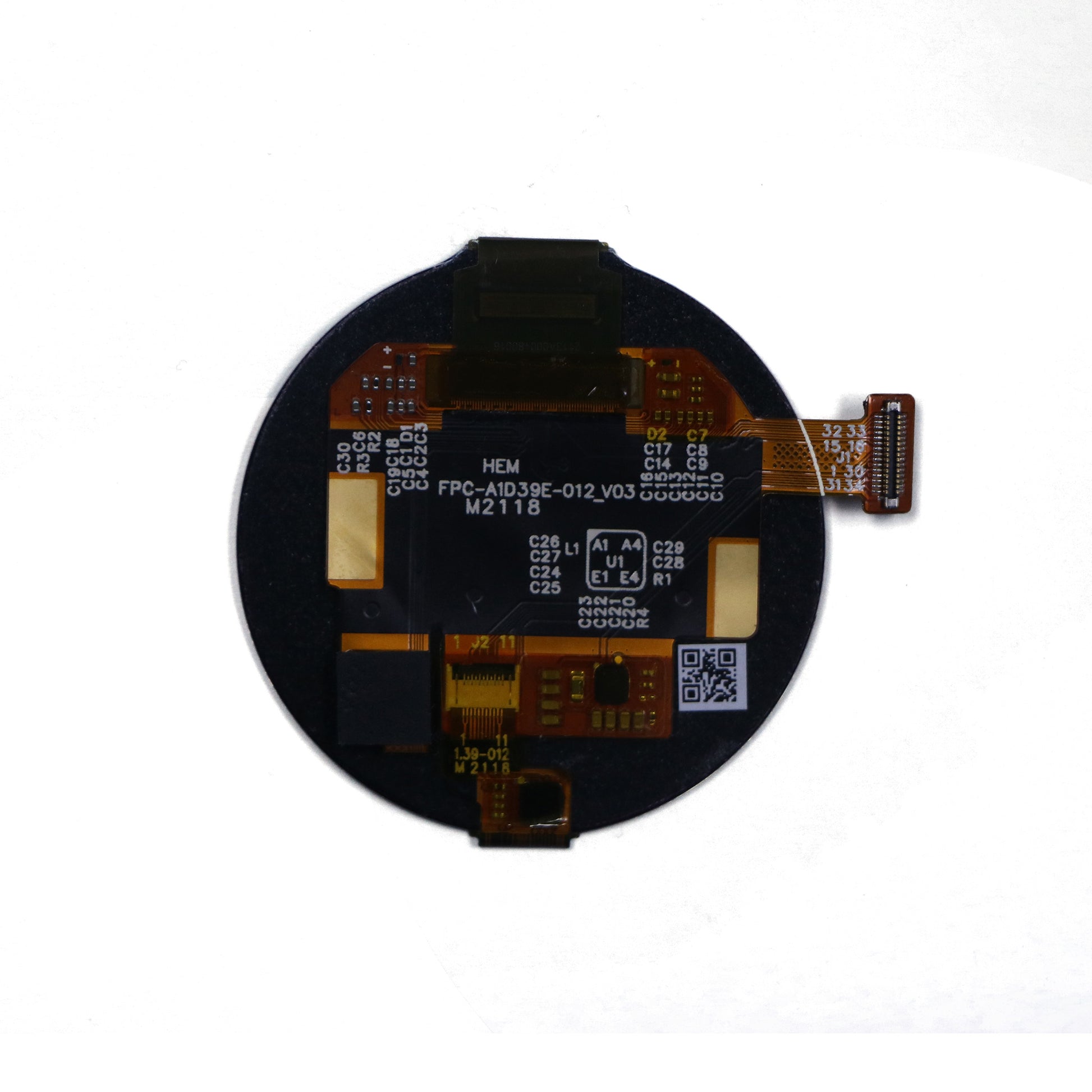

![Back of 1.39-inch Round AMOLED Display, 454x454 resolution](http://www.displaymodule.com/cdn/shop/products/1.39_RoundAMOLEDDisplay454x454FullColorNarrowMargin-2.jpg?v=1680773046&width=1445)
Display Specifications
- Diagonal Dimension : 1.39 inch
- Resolution : 454 × 454 pixel
- Display Color : -
- Touch Mode : None
- Module/Panel Dimension : 40.3 x 41.8 x 2.45 mm
- Viewing Area : 35.41 x 35.41 mm
- Supply Voltage : 3.3 V
- Luminance : 430 cd/m2
- Interface : MIPI-1 lane I2C
- Controller IC : ICNA3310 ZTW523
- Operation Temperature : -20℃~60℃
- Storage Temperature : -30℃~70℃
Dimensions
![](https://cdn.shopify.com/s/files/1/0264/7629/files/a73e8d175480b81bd5ccab904e8fa23_1024x1024.jpg?v=1660097117)
Resources
- Datasheet : DM-OLED139-668、ICNA3310、ZTW523
- Example code : ICNA3310 ZTW523-MIPI-454 X 454
- 3D : DM-OLED139-668
- Viedo : DM-OLED139-668
