1.6" 320×320 TFT LCD Display Specifications

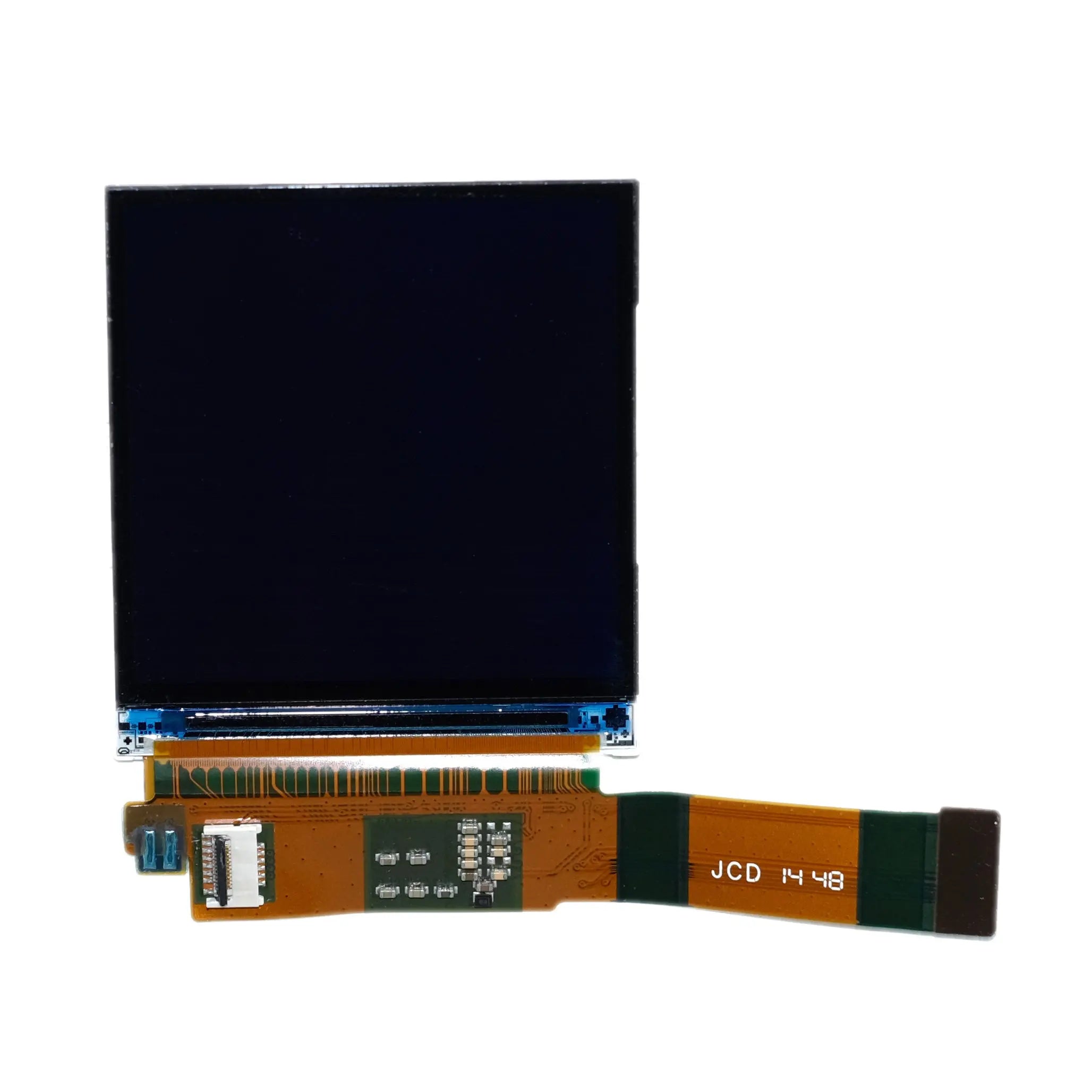

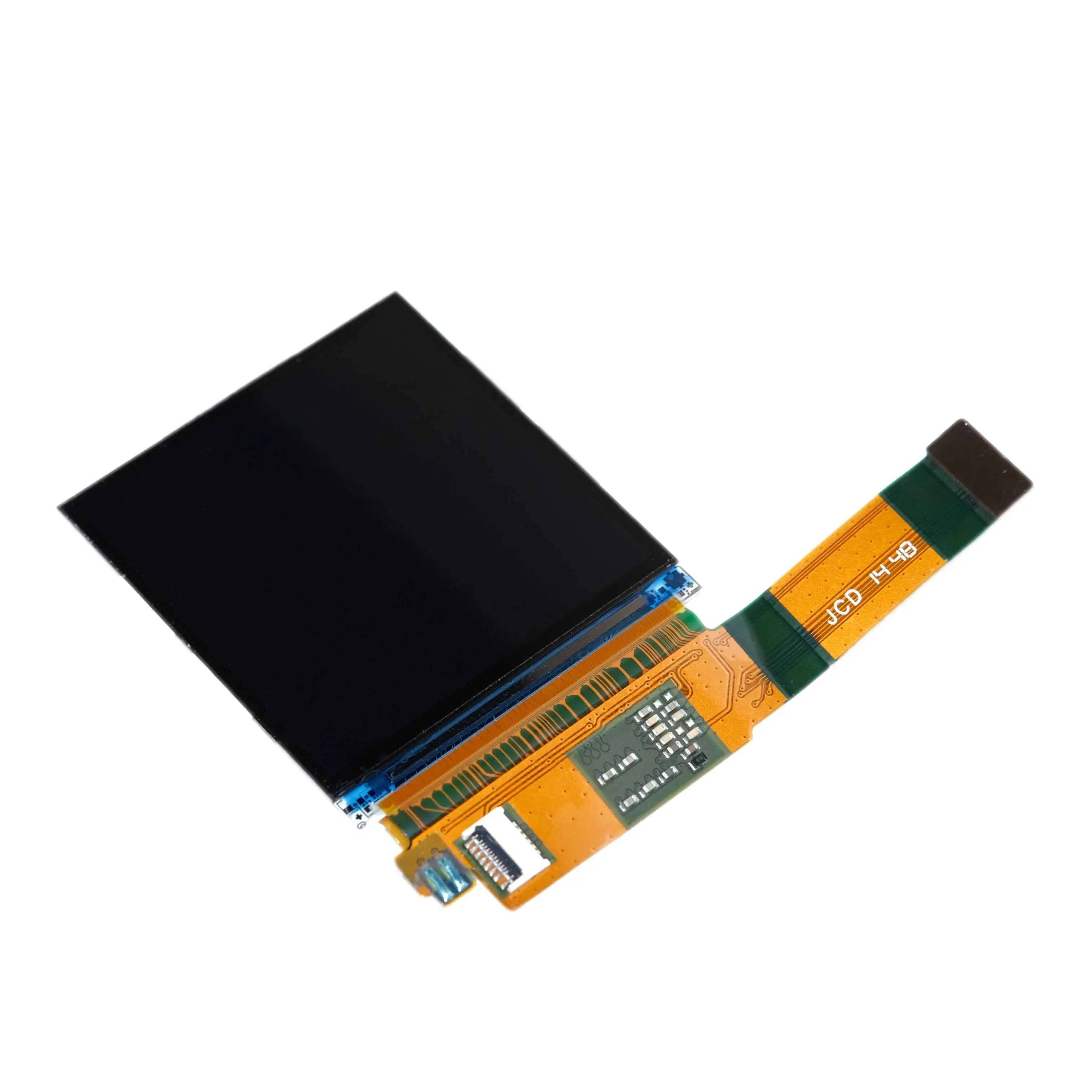

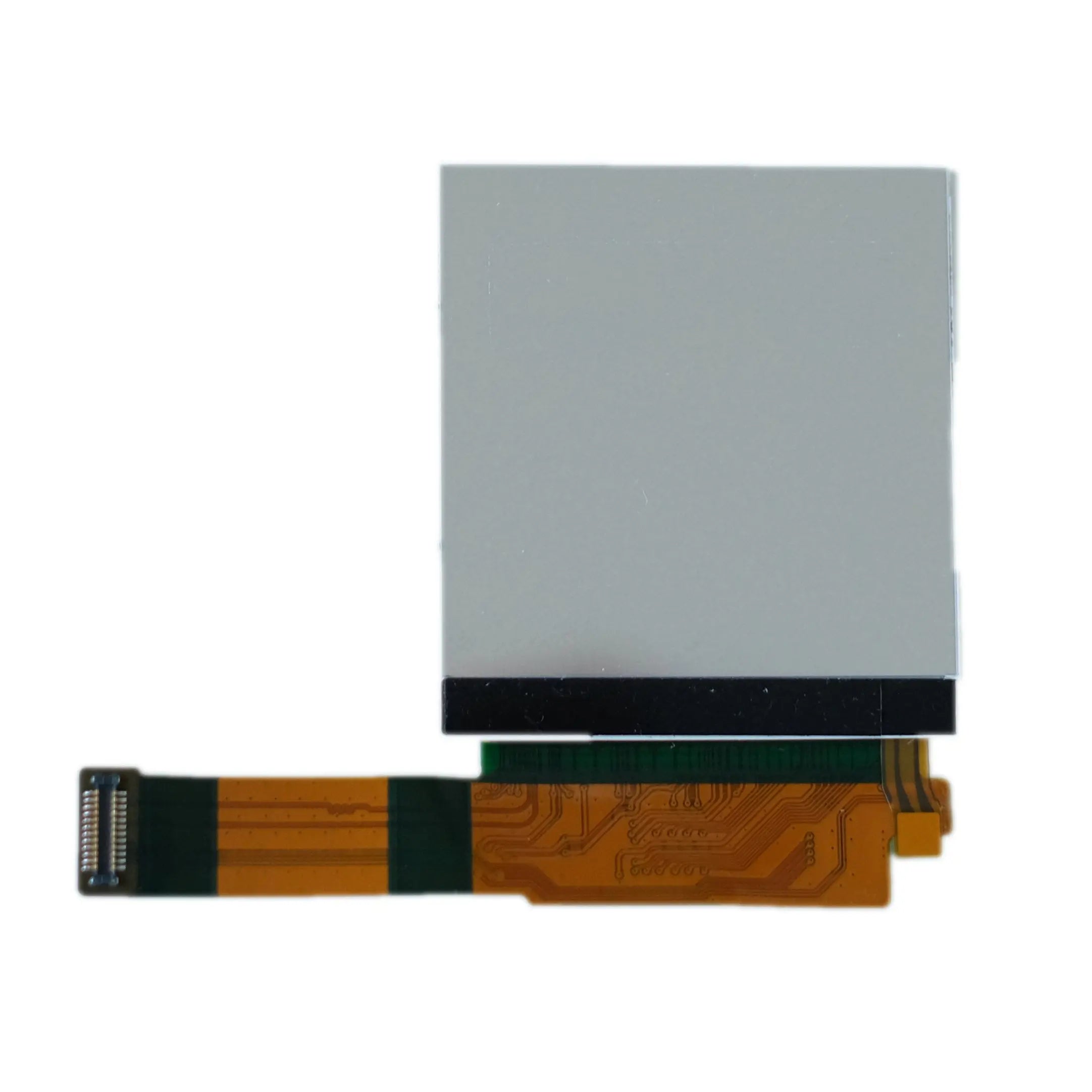

This ultra-compact 1.6-inch TFT LCD module delivers 320 × 320 resolution with 340 cd/m² brightness, all-direction viewing, and MIPI interface. With just 0.4 mm thickness and NT35310 driver IC, it's perfect for space-constrained applications like wearables, fitness devices, and miniaturized embedded displays.
| Parameter | Value | Unit |
|---|---|---|
| Diagonal Dimension | 1.6 | inch |
| Resolution | 320 × 320 | pixels |
| Viewing Direction | All | - |
| Touch Mode | None | - |
| Module Dimensions | 31.0 × 34.3 × 0.4 | mm |
| Viewing Area | 28.8 × 28.8 | mm |
| Supply Voltage | - | - |
| Interface | MIPI | - |
| Luminance | 340 | cd/m² |
| Driver IC | NT35310 | - |
| Operating Temperature | -40 ~ 70 | °C |
| Storage Temperature | -40 ~ 85 | °C |
Mechanical Dimensions
Refer to the following mechanical drawing for accurate design integration.
Technical Resources
Download datasheets and controller documentation for development reference.
