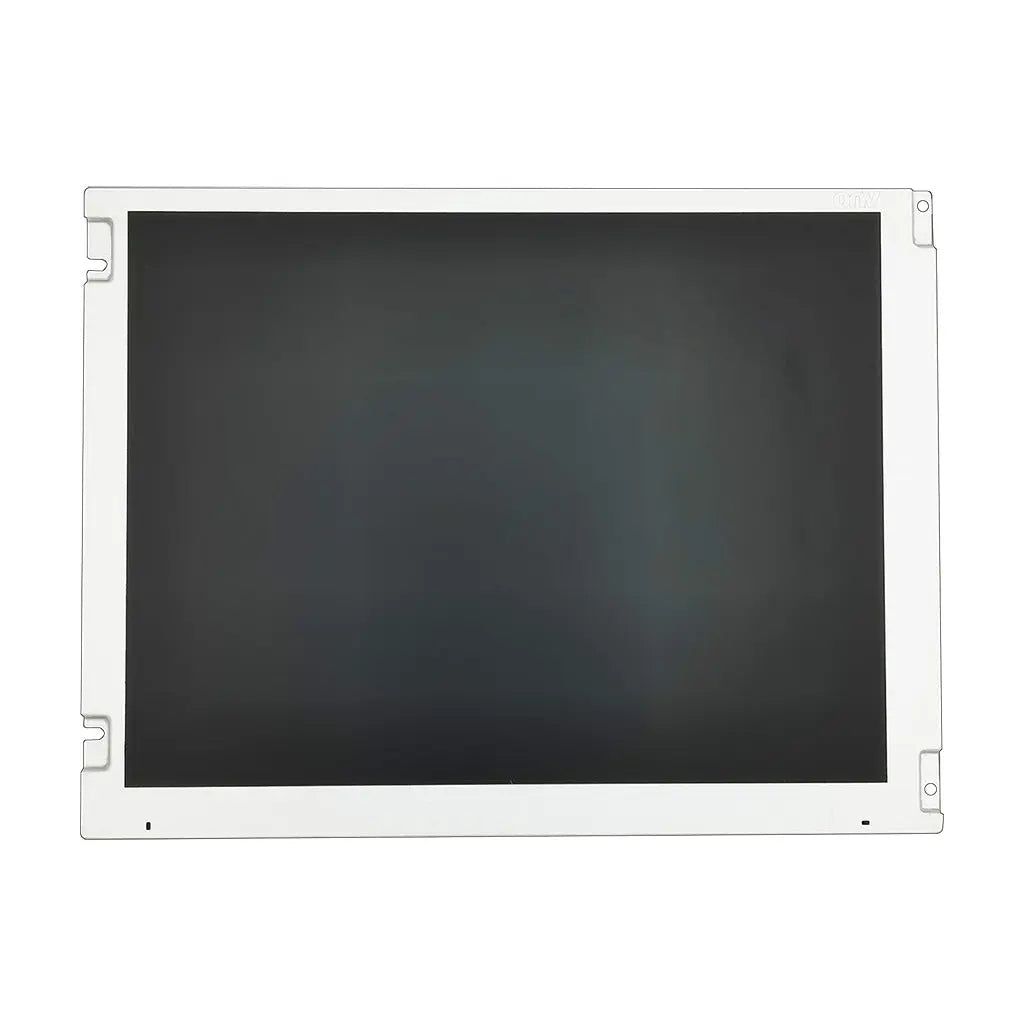

10.4" IPS Display 800x600 R.G.B Vertical Stripe
Professional-grade 10.4-inch IPS industrial display delivering exceptional clarity and reliability for demanding applications. Featuring 800×600 resolution with R.G.B vertical stripe pixel arrangement for precise color reproduction.
Engineered for industrial environments with wide operating temperature range of -30°C to +80°C. The IPS technology ensures consistent color and brightness from any viewing angle, making it ideal for control panels and monitoring systems.
- Wide Temperature Operation: Reliable performance from -30°C to +80°C for harsh industrial environments.
- High Brightness: 400 cd/m² luminance ensures excellent visibility in various lighting conditions.
- LVDS Interface: 1-channel LVDS interface with 3.3V logic voltage for stable signal transmission.
- Anti-Glare Surface: Hardened anti-glare treatment reduces reflections and improves readability.
| Parameter | Specification |
|---|---|
| Display Size | 10.4 inch diagonal |
| Resolution | 800 × 600 pixels |
| Pixel Arrangement | R.G.B Vertical Stripe |
| Active Area | 211.2 × 158.4 mm |
| Module Dimensions | 230 × 180.2 × 10.5 mm |
| Luminance | 400 cd/m² (typical) |
| Contrast Ratio | 700:1 (typical) |
| Viewing Angles | 80° horizontal, 70° vertical |
| Interface | 1-channel LVDS |
| Supply Voltage | 3.3V |
| Operating Temperature | -30°C to +80°C |
| Storage Temperature | -30°C to +80°C |
Custom display solutions for industrial and commercial applications with volume pricing and tailored configurations.
- Bulk Order Discounts: Competitive pricing for volume purchases with flexible delivery schedules.
- Custom Configurations: Tailored solutions including specific mounting options, connector types, and firmware modifications.
- Technical Support: Dedicated engineering support for integration and customization requirements.
Machine control panels, PLC interfaces, and factory automation systems requiring reliable display performance in harsh environments.
Patient monitoring systems, diagnostic equipment, and medical instruments where consistent display quality is critical.
Fleet management systems, vehicle displays, and transportation control panels requiring wide temperature operation.
Technical Documentation: Complete datasheet with detailed electrical characteristics, timing diagrams, and mechanical specifications.
Resources: Download complete technical documentation
Dimensions
