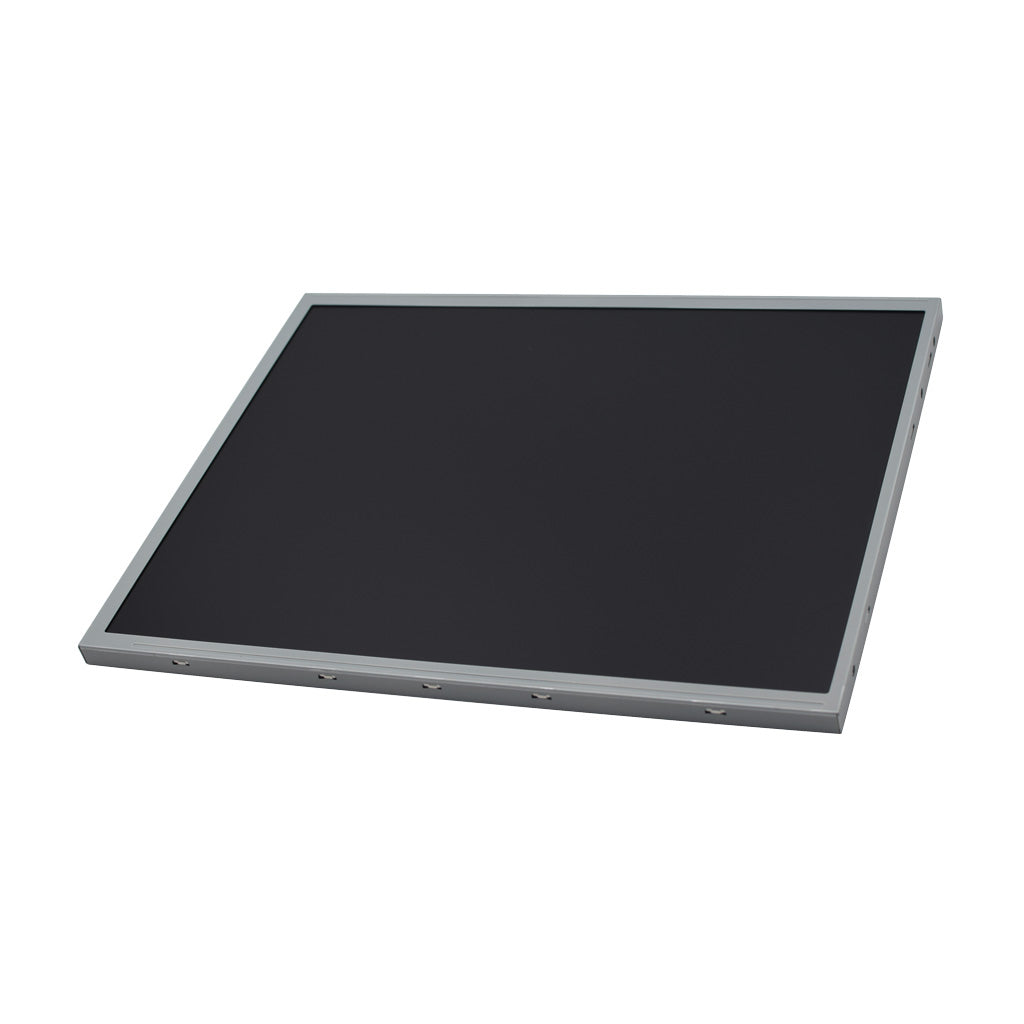

12.1" IPS 1200nits Display 1024x768 4:3 - LVDS
Engineered for demanding environments, this industrial-grade 12.1-inch IPS display delivers exceptional 1200 nits brightness with true 4:3 aspect ratio - equivalent to the clarity of premium medical monitors and industrial control panels.
Built with industrial durability, the display features anti-glare treatment and normally black mode for optimal readability in bright lighting conditions. The 85° viewing angles in all directions ensure consistent color accuracy from any position.
- High Visibility Performance: 750:1 contrast ratio with 18ms rise time and 12ms fall time for crisp motion rendering.
- Industrial Connectivity: Standard LVDS interface compatible with THC63LVDM83R transmitters for reliable signal transmission.
- Robust Construction: 555g module weight with 260.5×203.0×10.4mm dimensions designed for embedded applications.
- Advanced Backlight Control: 12V LED backlight with PWM dimming (200Hz-10kHz) supporting 70,000-hour lifespan.
| Parameter | Specification |
|---|---|
| Active Display Area | 245.76 × 184.32 mm |
| Pixel Pitch | 0.24 × 0.24 mm |
| Viewing Angles | 85°/85°/85°/85° (L/R/U/D) |
| Contrast Ratio | 750:1 (Typical) |
| Response Time | 18ms (Rise) / 12ms (Fall) |
| Interface | LVDS (6-bit/8-bit selectable) |
| Power Supply | 3.3V ±10% (Panel), 12V ±10% (Backlight) |
| Current Consumption | 300mA (Typical @3.3V), 900mA (Typical @12V) |
| Refresh Rate | 50-82Hz (60Hz Typical) |
| Clock Frequency | 52-71MHz (65MHz Typical) |
Designed for seamless integration with industrial control systems and embedded applications requiring reliable display performance in challenging environments.
- LVDS Interface Compatibility: Works with THC63LVDM83R and compatible transmitters, supporting both 6-bit and 8-bit color depth via MODE pin selection.

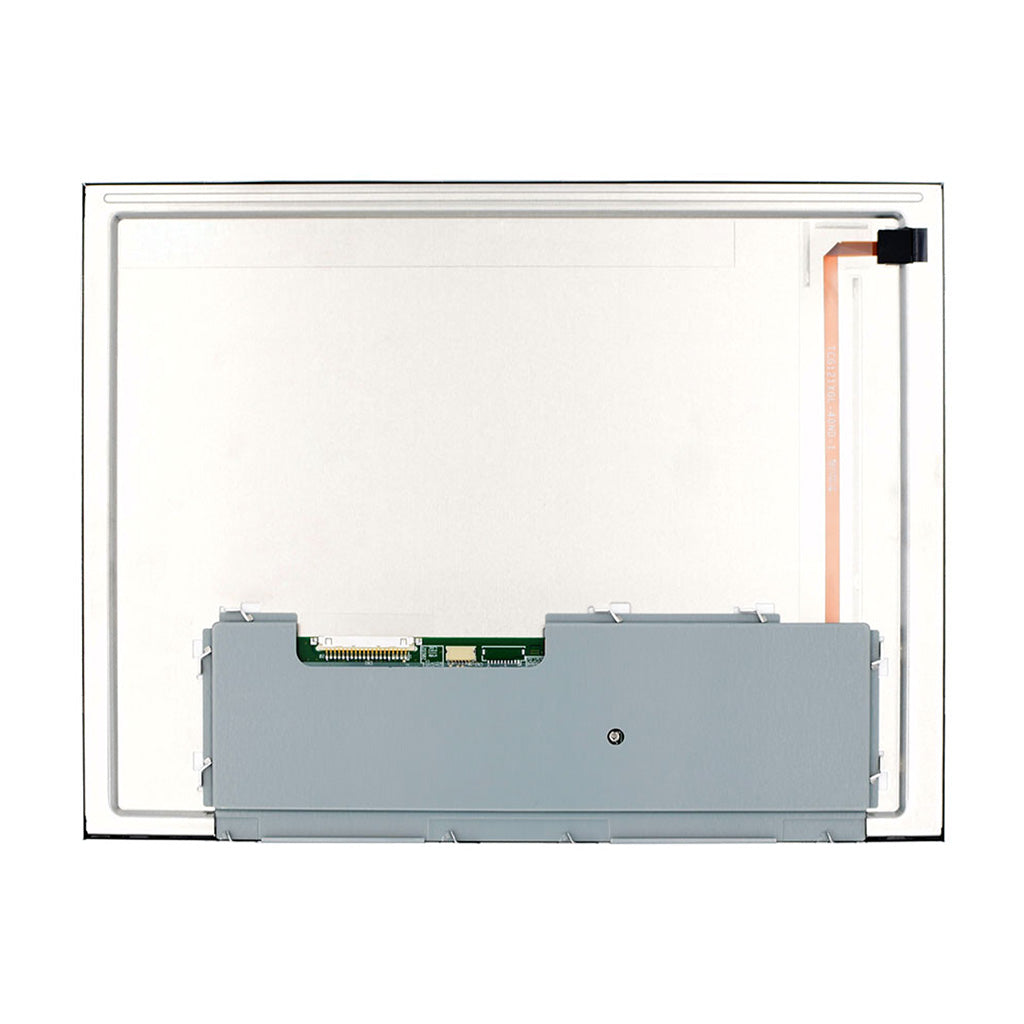

- Industrial Connectors: Features I-PEX 20186-020E-11F LCD connector and JST SM06B-SHLS-G-TF backlight connector for secure connections.
- Scan Direction Control: SC pin allows normal or reverse scanning orientation for flexible mounting configurations.
High-brightness display for factory automation, process control systems, and machinery interfaces where sunlight readability is critical.
Reliable display solution for patient monitoring systems, diagnostic equipment, and medical instruments requiring consistent color accuracy.
Rugged display for vehicle-mounted systems, aviation instrumentation, and marine navigation equipment operating in extreme temperatures.
For volume procurement and custom integration requirements, we offer tailored display solutions to meet specific application needs.
- Custom Configuration Services: Modified timing parameters, custom connectors, and specialized mounting options available for OEM applications.
- Volume Pricing Programs: Competitive pricing for bulk orders with flexible delivery schedules to support production timelines.
- Technical Support: Comprehensive integration support including schematic review, layout guidance, and firmware optimization.
Installation Notes: Ensure proper LVDS termination (100Ω) and follow power sequencing guidelines - VDD rise time 0.1-20ms, backlight enable delay minimum 200ms after panel power stabilization.
Documentation: Download complete technical documentation
