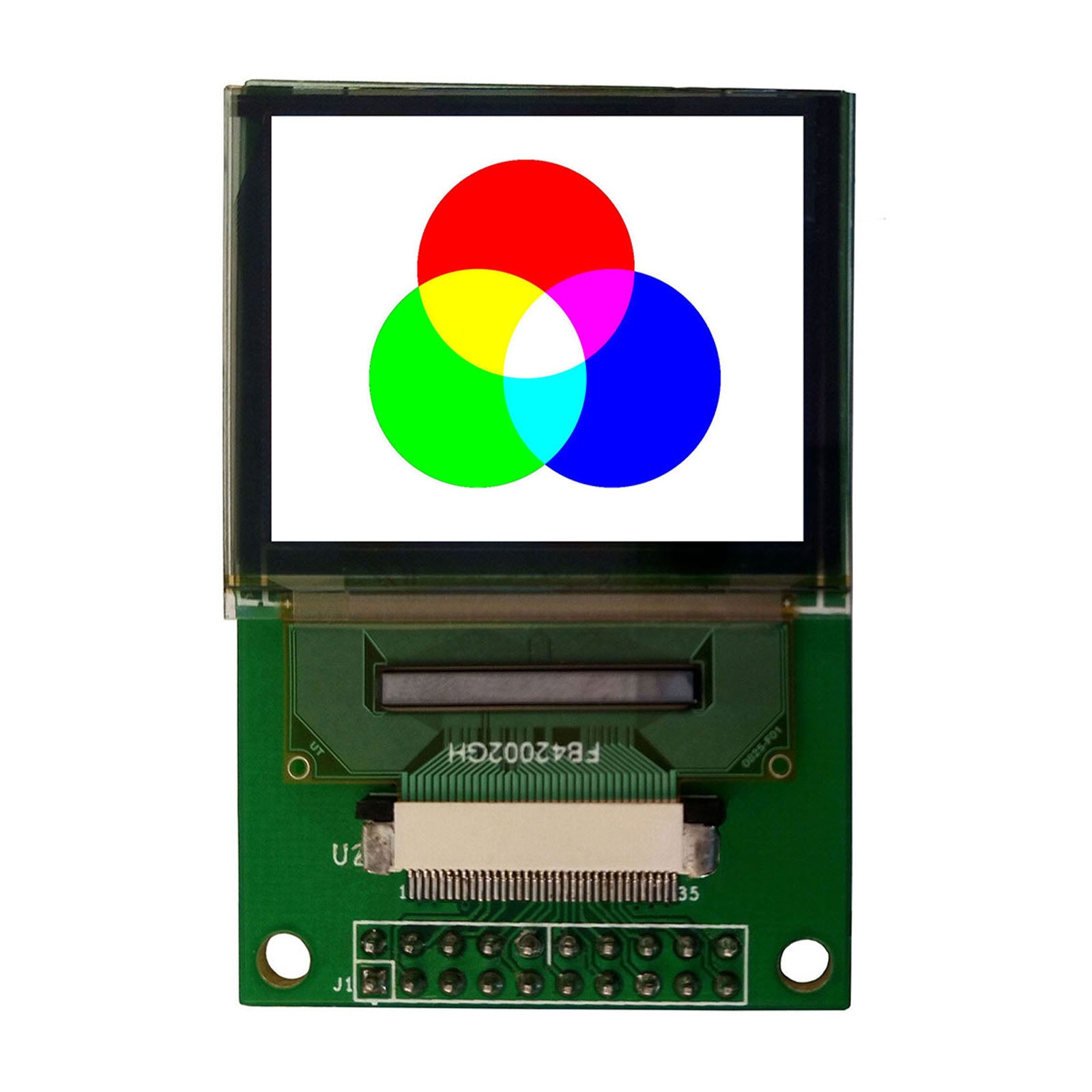

• 1.69-inch OLED image display screen showing the three primary colors: red, yellow, and blue

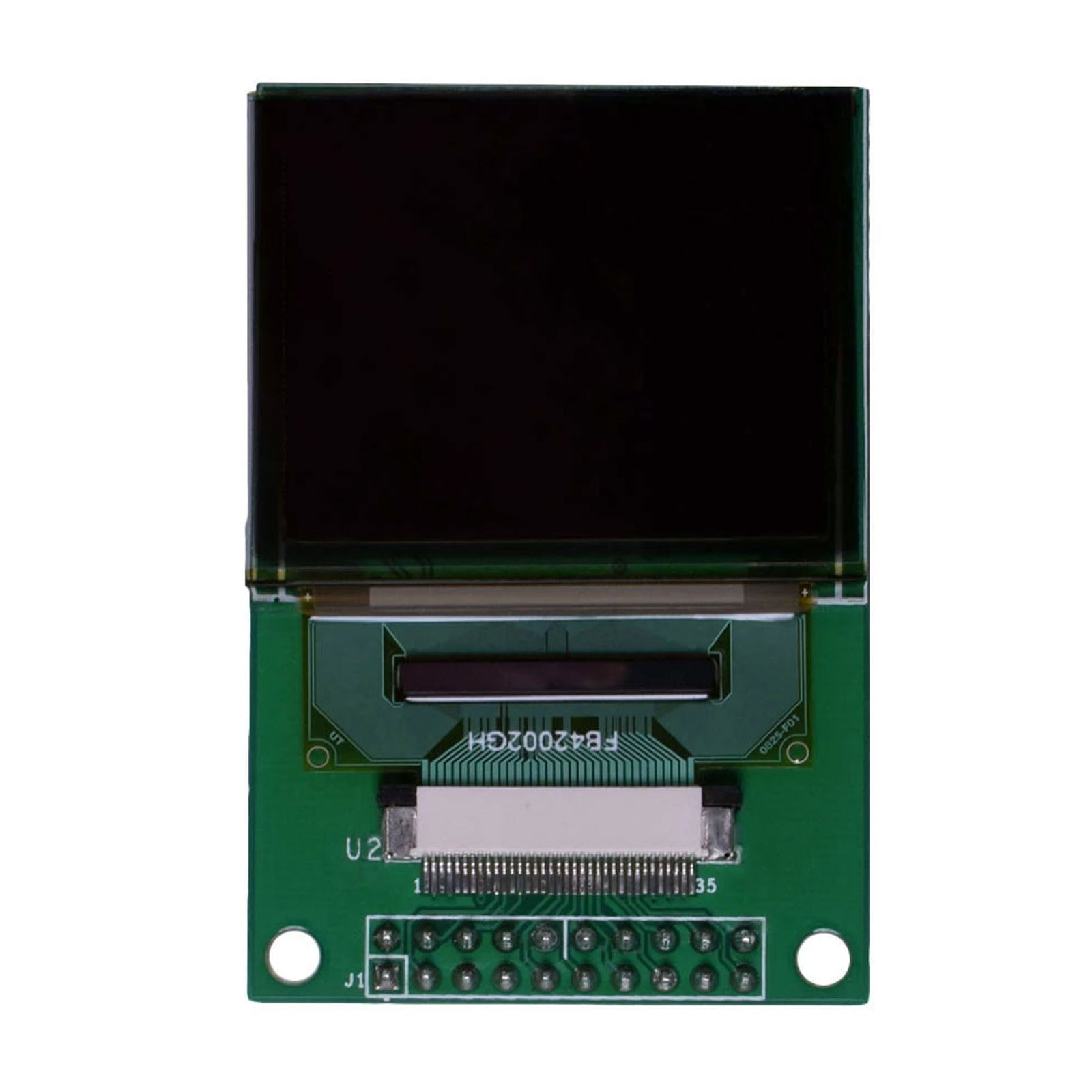

  • 1.69-inch OLED Graphic Display Module with a resolution of 160 by 128 pixels in RGB color, compatible with MCU and SPI interfaces

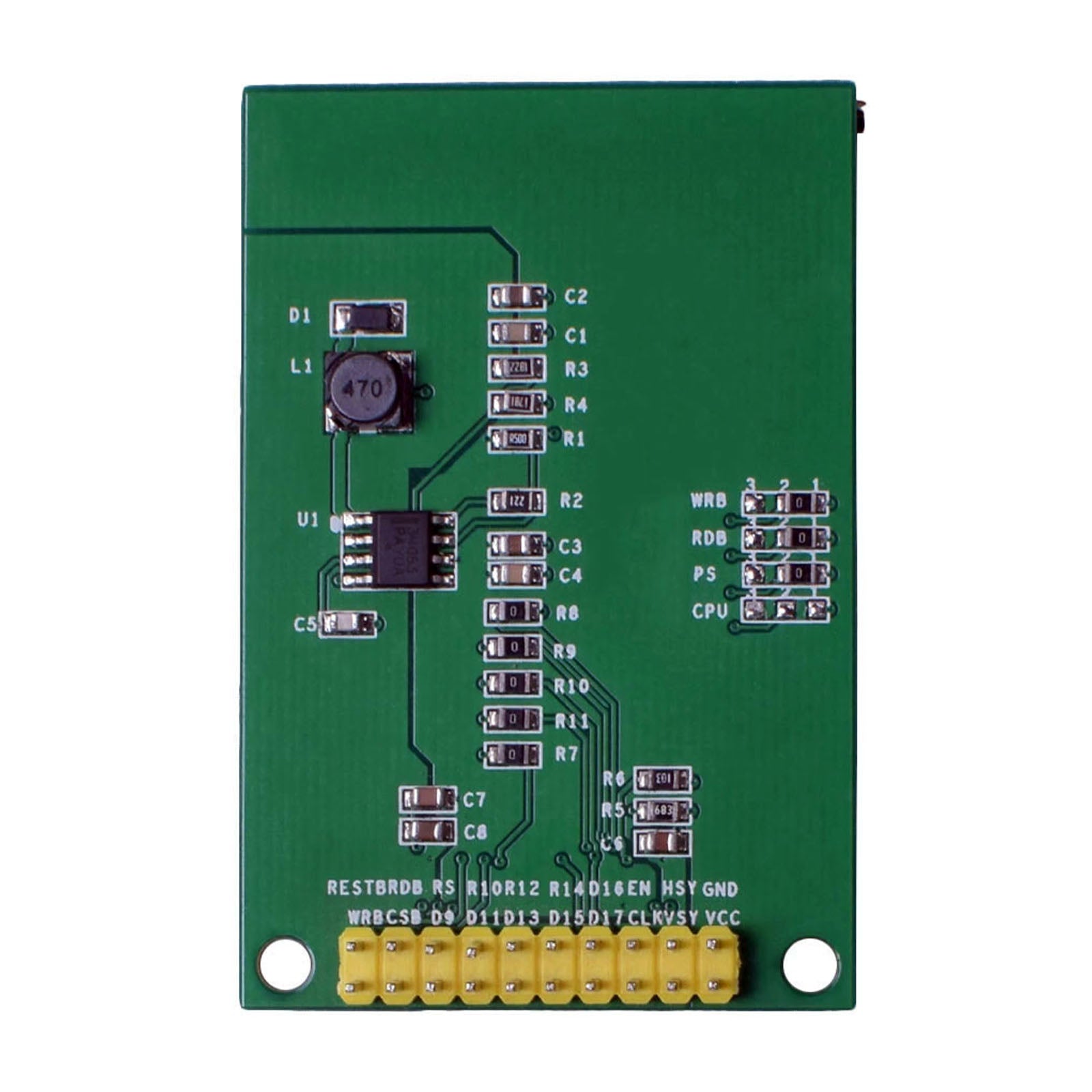

  • Back of 1.69-inch OLED Graphic Display Module

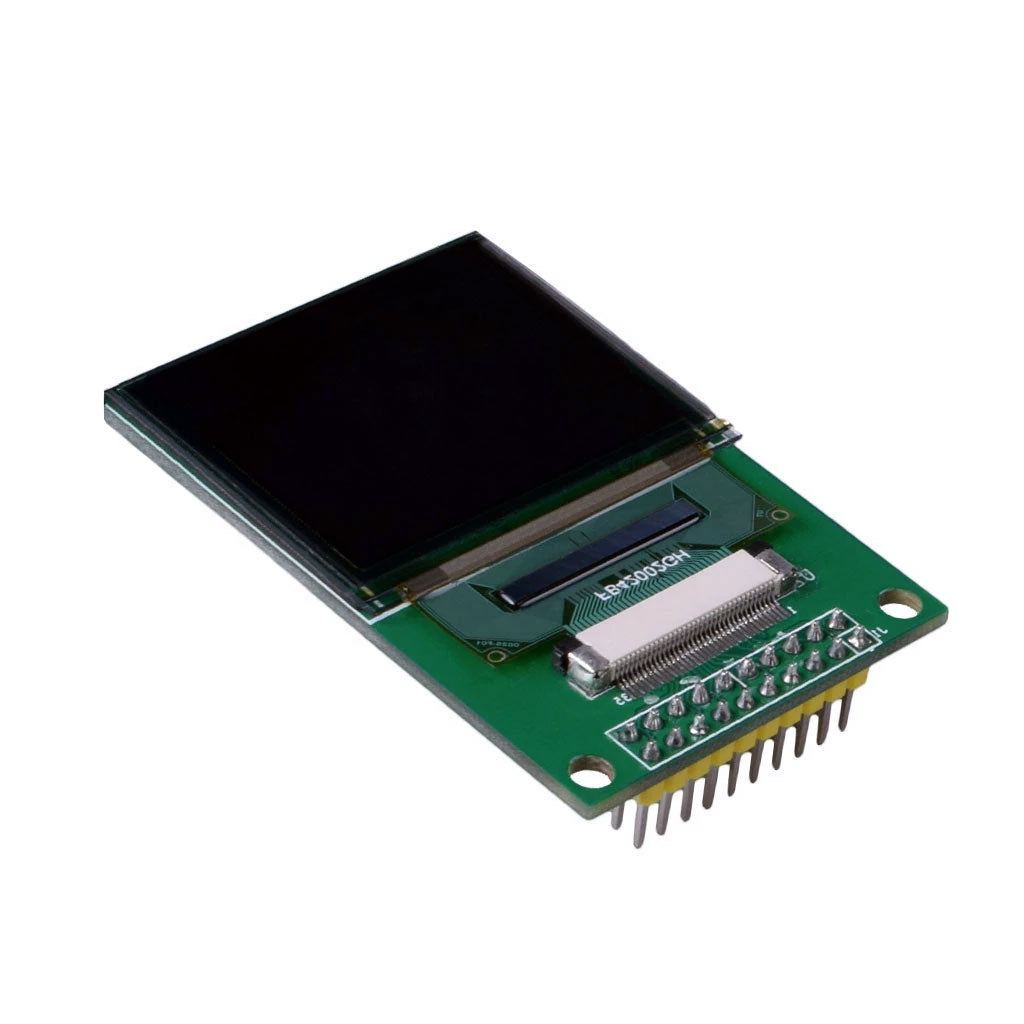

  • Top view of 1.69-inch OLED Graphic Display Module
1 / 1

1.69" OLED Graphic Display 160x128 RGB Color - MCU, SPI

$39.90
Shipping calculated at checkout.
SKU: DM-OLEDC17-623
Type: only panel
1.69-inch OLED image display screen showing the three primary colors: red, yellow, and blue
$39.90
only panel

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
View details

Display Specifications

  • Resolution : 160(RGB) x 128 pixel
  • Display Mode : Passive Matrix OLED
  • Display Color : 262,144 Colors
  • Module Dimension : 39.9 x 60 mm
  • Viewing Area : 33.575 x 26.864 mm
  • Power Supply : 2.8 V
  • Interface : Serial or 6800/8080-series MPU Parallel
  • Controller IC : SEPS525
  • Operation Temperature : -30℃~70℃
  • Storage Temperature : -40℃~80℃

Dimensions

Resources

Arduino initialization code and examples can be found in our DmOledLibrary which can be downloaded from bitbucket.org
