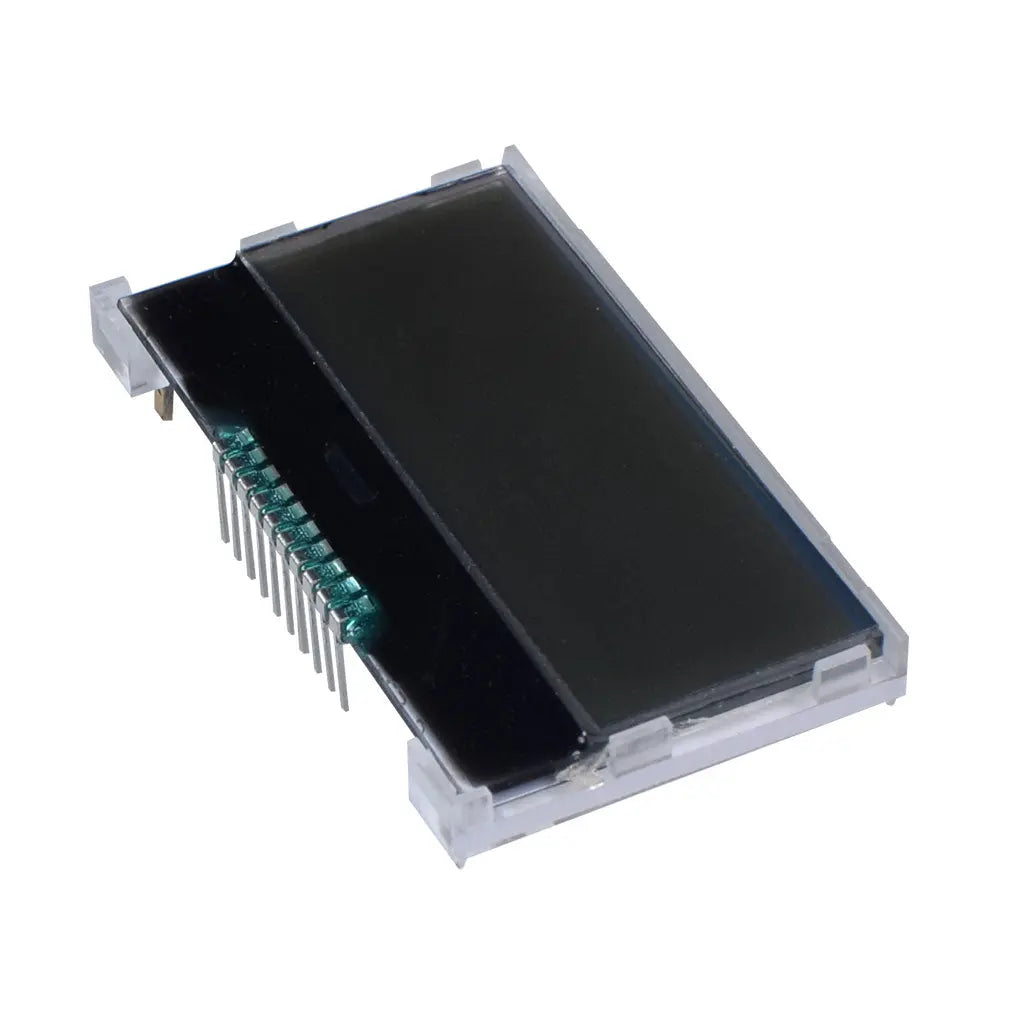

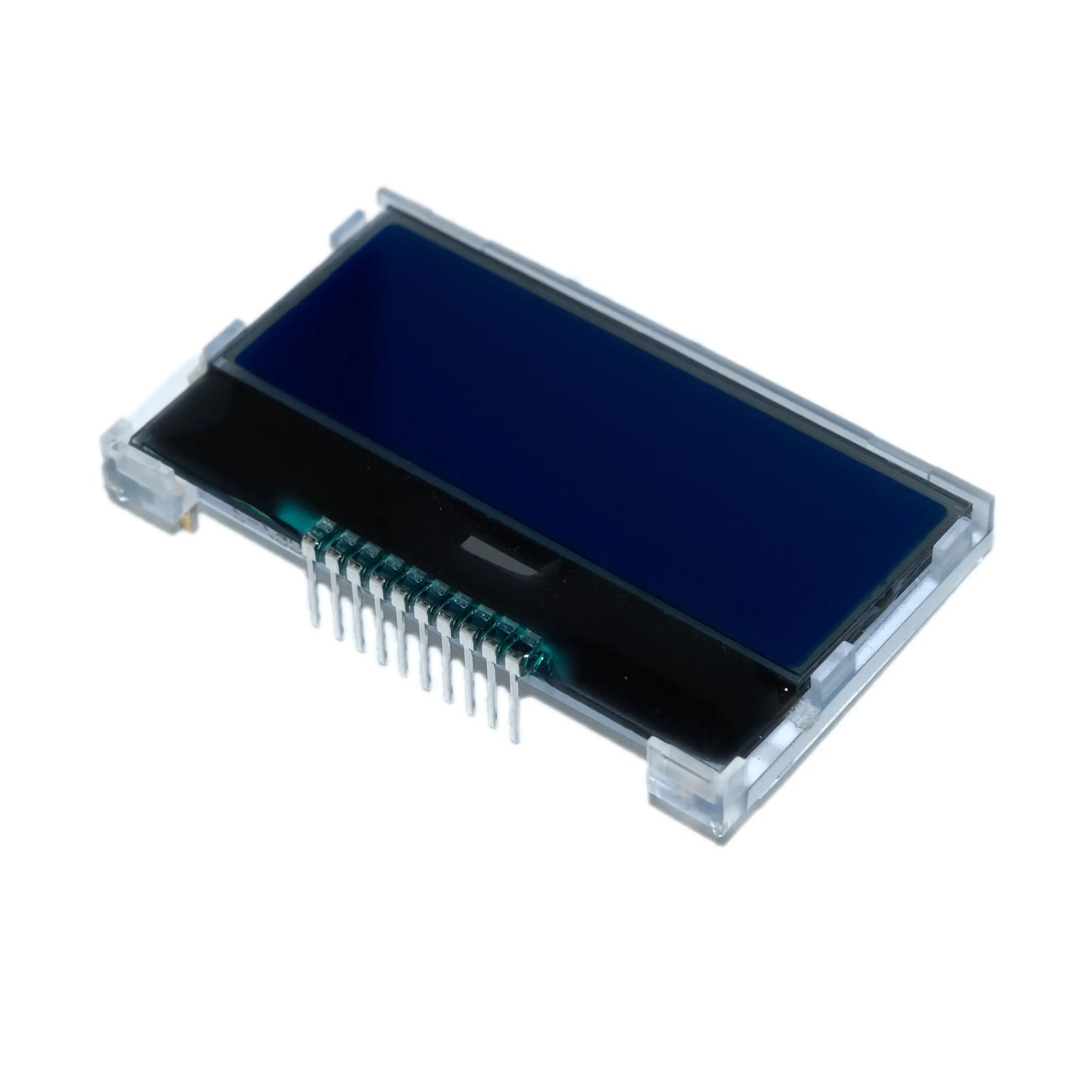

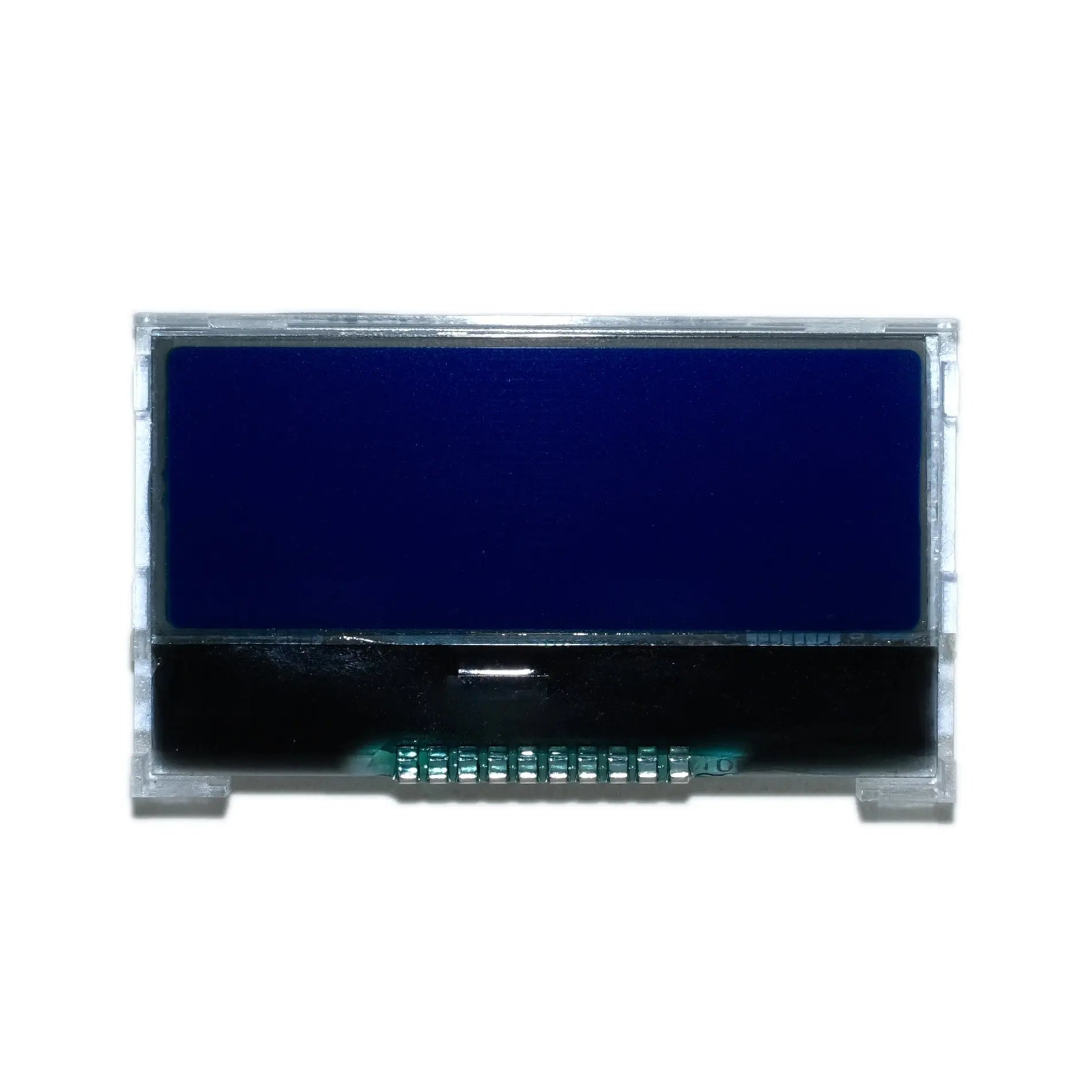

16x2 Character COG LCD STN Transmissive - SPI
Engineered for reliable performance in compact applications, this 16x2 character COG LCD features STN blue negative transmissive display with SPI interface. Ideal for low-power embedded systems requiring clear alphanumeric output.
Utilizing ST7032 controller IC, the module supports serial peripheral interface (SPI) communication, reducing pin count for microcontroller integration. The COG construction ensures thin profile with edge white LED backlight for uniform illumination.
- Low Power Operation: Consumes only 0.3mA typical current at 3.0V, extending battery life in portable devices.
- Wide Temperature Range: Operates from -20°C to 70°C, suitable for industrial environments.
- Compact Dimensions: Module size 41.4 x 24.3 x 4.0mm maximizes space efficiency in tight layouts.
- SPI Interface: 4-wire serial communication simplifies connection with minimal wiring.
Dimensions: 41.4 x 24.3 x 4.0mm (MAX)
| Parameter | Specification |
|---|---|
| Display Format | 16 characters x 2 lines |
| Display Mode | STN Blue Negative, Transmissive |
| View Direction | 6:00 |
| Module Dimension | 41.4 x 24.3 x 4.0mm (MAX) |
| Power Supply | 3.0V |
| Backlight | Edge White LED |
| Interface | SPI Interface |
| Controller IC | ST7032 or equivalent |
| Operation Temperature | -20°C ~ 70°C |
| Storage Temperature | -30°C ~ 80°C |
| Weight | 5.5g |
We offer customized LCD solutions for OEM and large-scale implementations with flexible options to meet specific project requirements.
- Bulk Order Programs: Volume discounts available for quantities over 100 units, with dedicated technical support.
- Custom Configuration: Modify backlight color, connector type, or labeling to match your product branding.
- White-Label Options: Private labeling services for distributors and system integrators.
Machine interface panels for PLC systems, process indicators, and equipment status displays requiring reliable operation in harsh conditions.
Portable diagnostic equipment, patient monitors, and handheld instruments where low power consumption and readability are critical.
Home automation controllers, smart appliance interfaces, and DIY electronics projects benefiting from simple SPI interface.
Compatibility Notes: Compatible with 3.3V microcontrollers including Arduino, Raspberry Pi, and STM32 series. Requires SPI master capability with typical clock frequency 100-400kHz.
Documentation: DM-COG1602-703 Datasheet | DM-COG1602-717 Datasheet | ST7032 Controller Documentation
