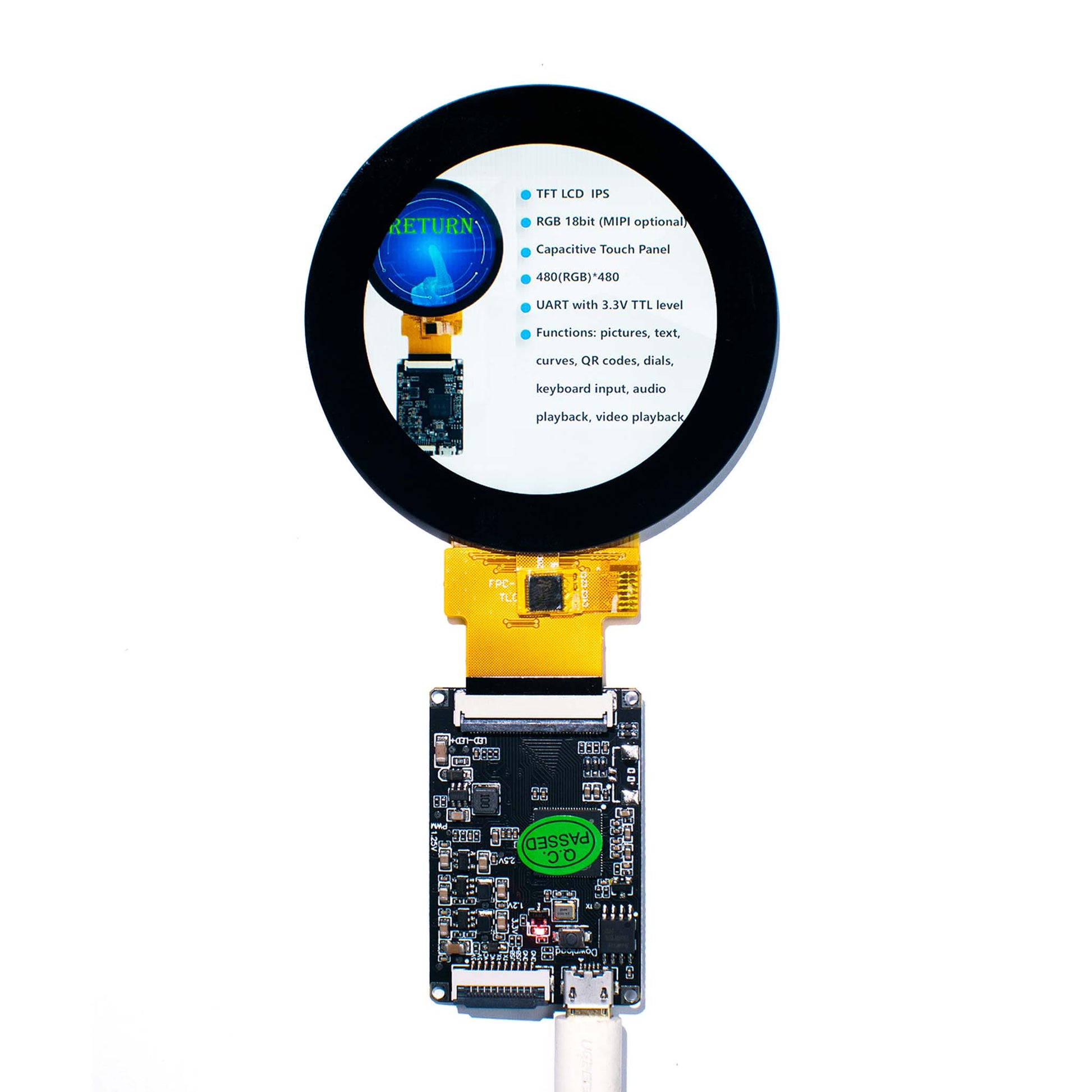

2.1 inch Round TFT Display Panel displaying screen parameter information
2.1 inch Round TFT Display with 480x480 resolution and capacitive touch capability

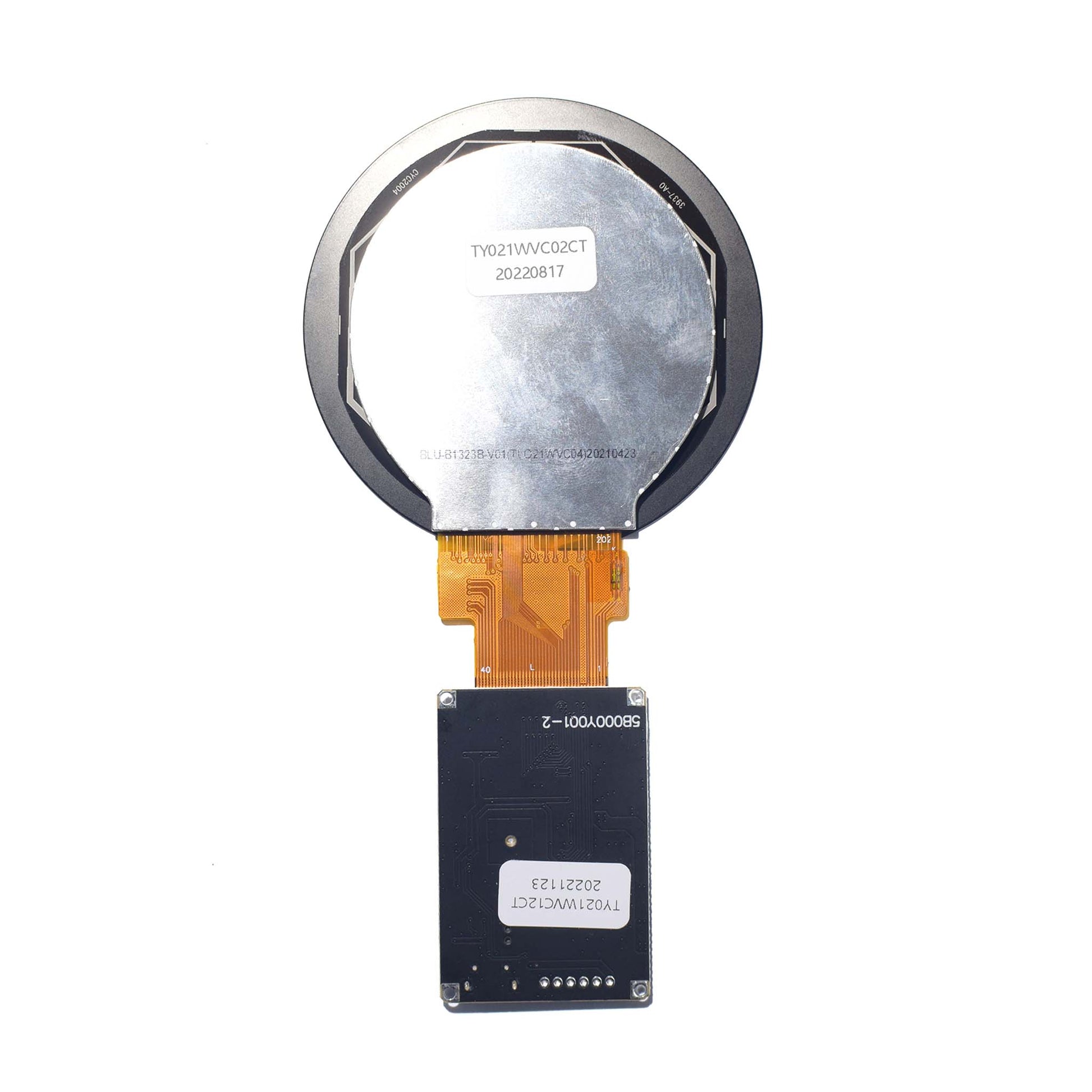

Back of 2.1 inch Round TFT Display Panel with adapter

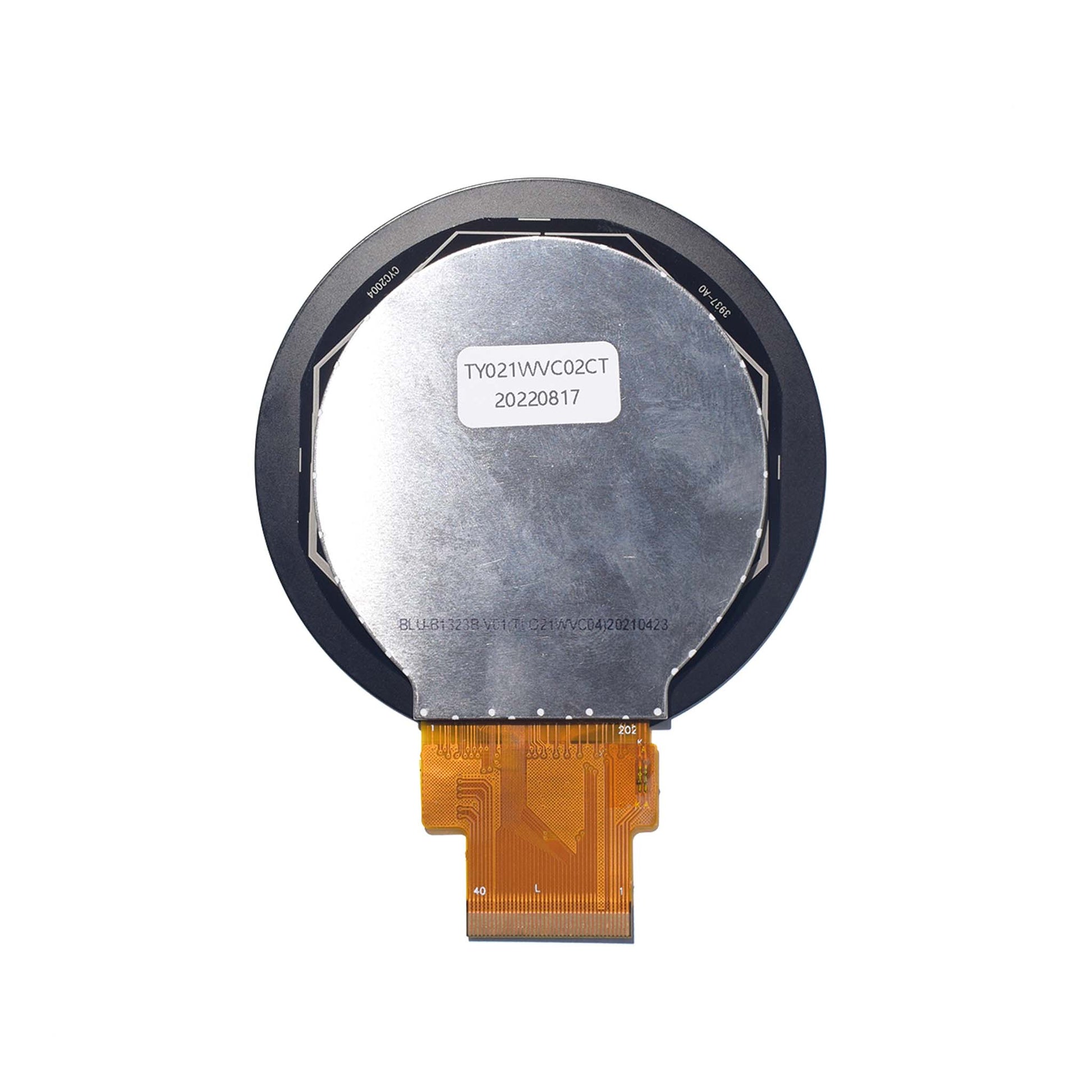

Back of 2.1 inch Round TFT Display Panel

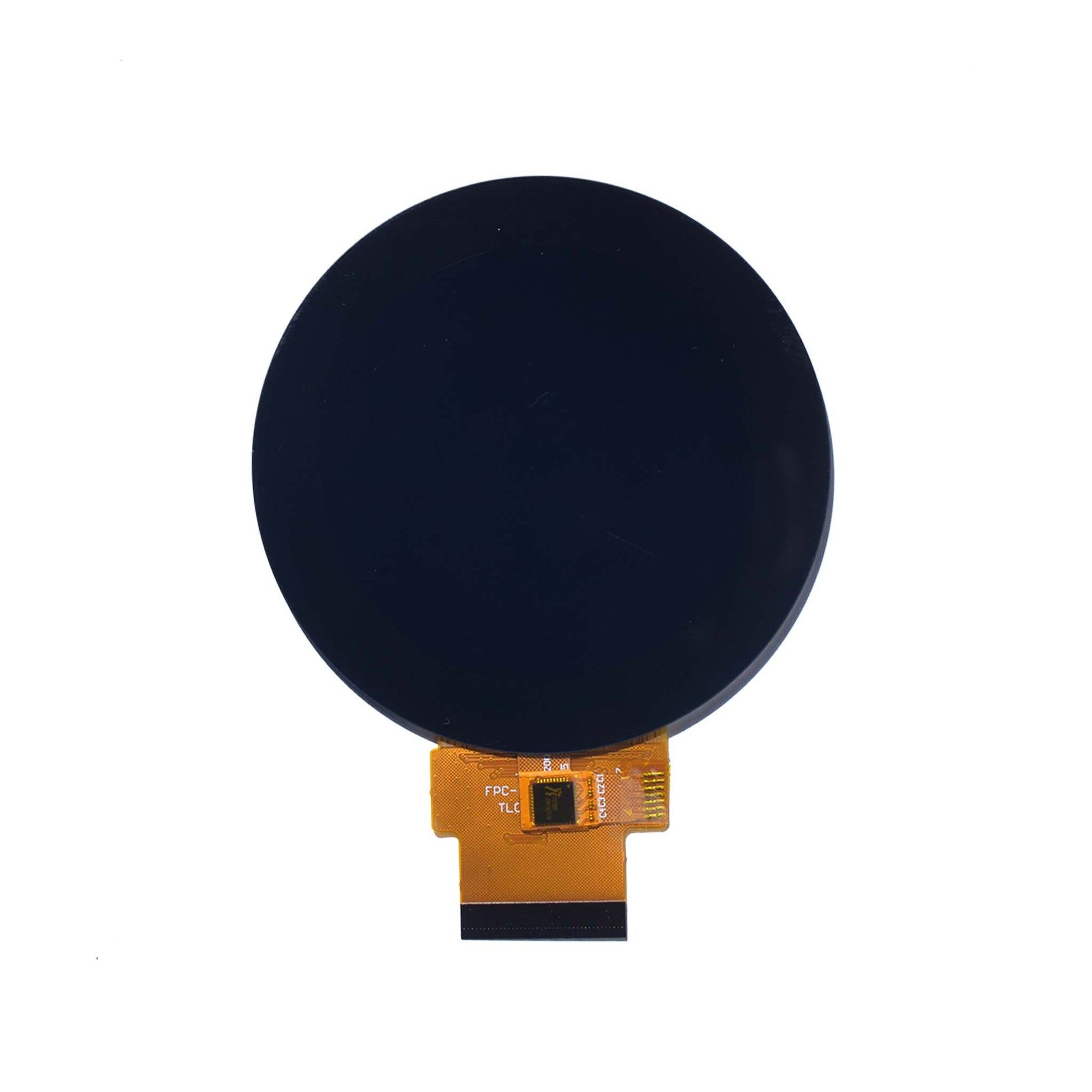

2.1 inch Round TFT Display screen

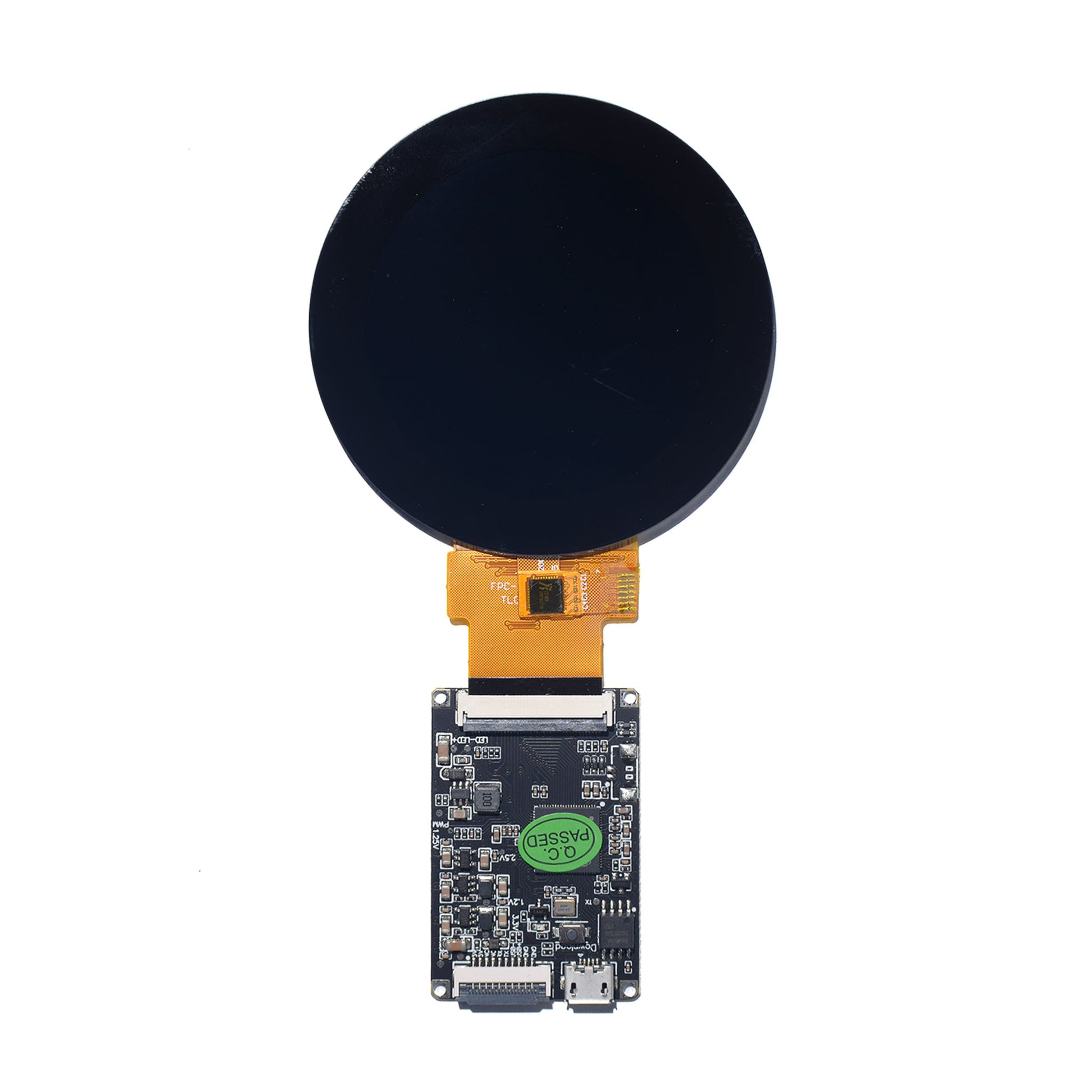

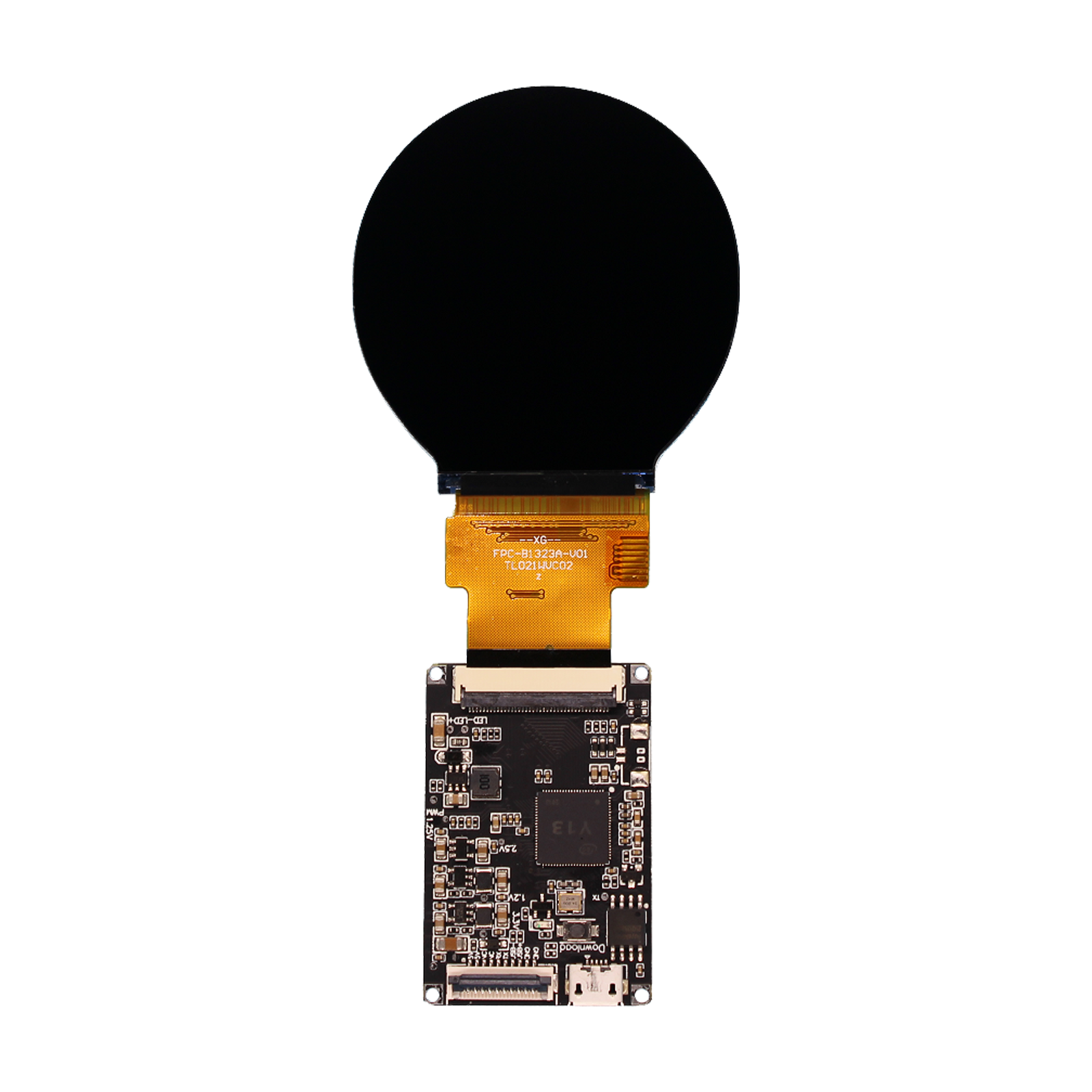

2.1 inch Round TFT Display Panel with 480x480 resolution and adapter

2.1" Round TFT Display 480x480 Capacitive

Regular price $49.90
Sale price $49.90 Regular price
Datesheet:
  • Availability:
    In Stock
  • SKU:
    DM-TFTR21-477
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Display Specifications

  • Diagonal Dimension : 2.1 inch
  • Resolution : 480RGB x 480 pixel
  • View Direction :  All
  • Touch Mode : Capacitive
  • Module Dimension : 48(H) x 32.2(W) x 3.2(T) mm
  • Viewing Area : 26.64 x 26.64 mm
  • Supply Voltage : 5.0 V
  • Interface : -
  • Luminance : 300/350 cd/m2
  • Drive IC: ST7701S
  • Operation Temperature: -20°C~ +60°C
  • Storage Temperature : -30°C~ +70°C
