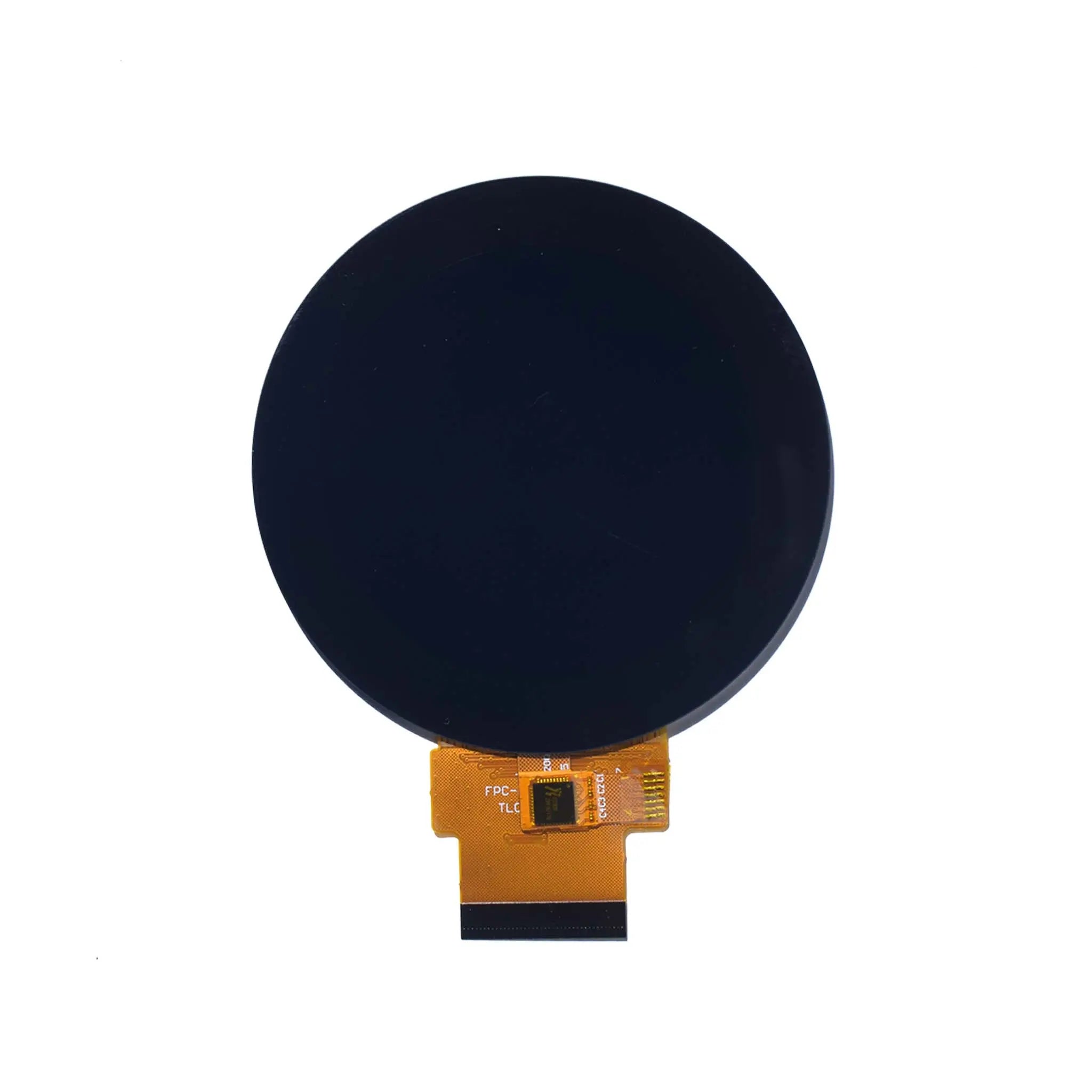

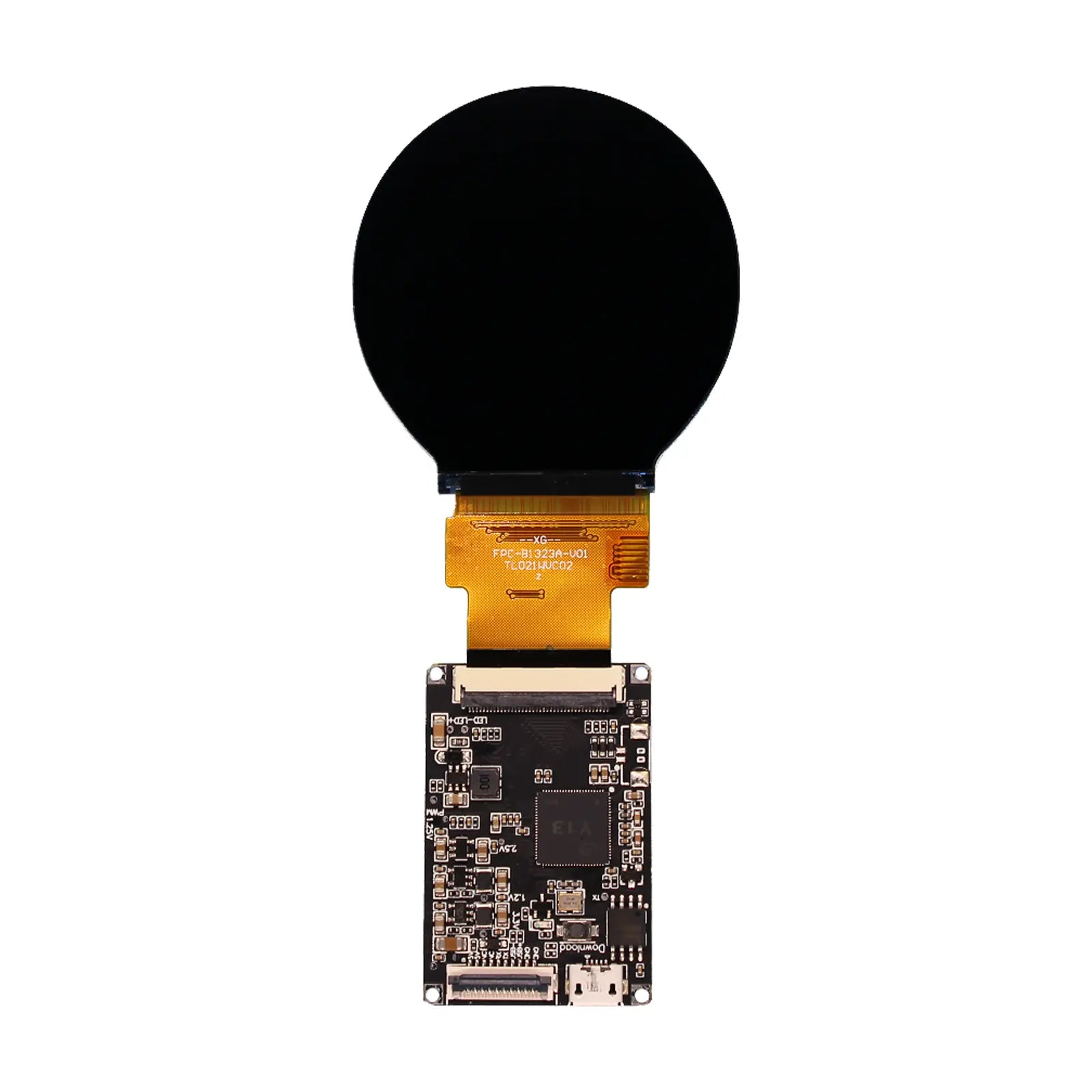

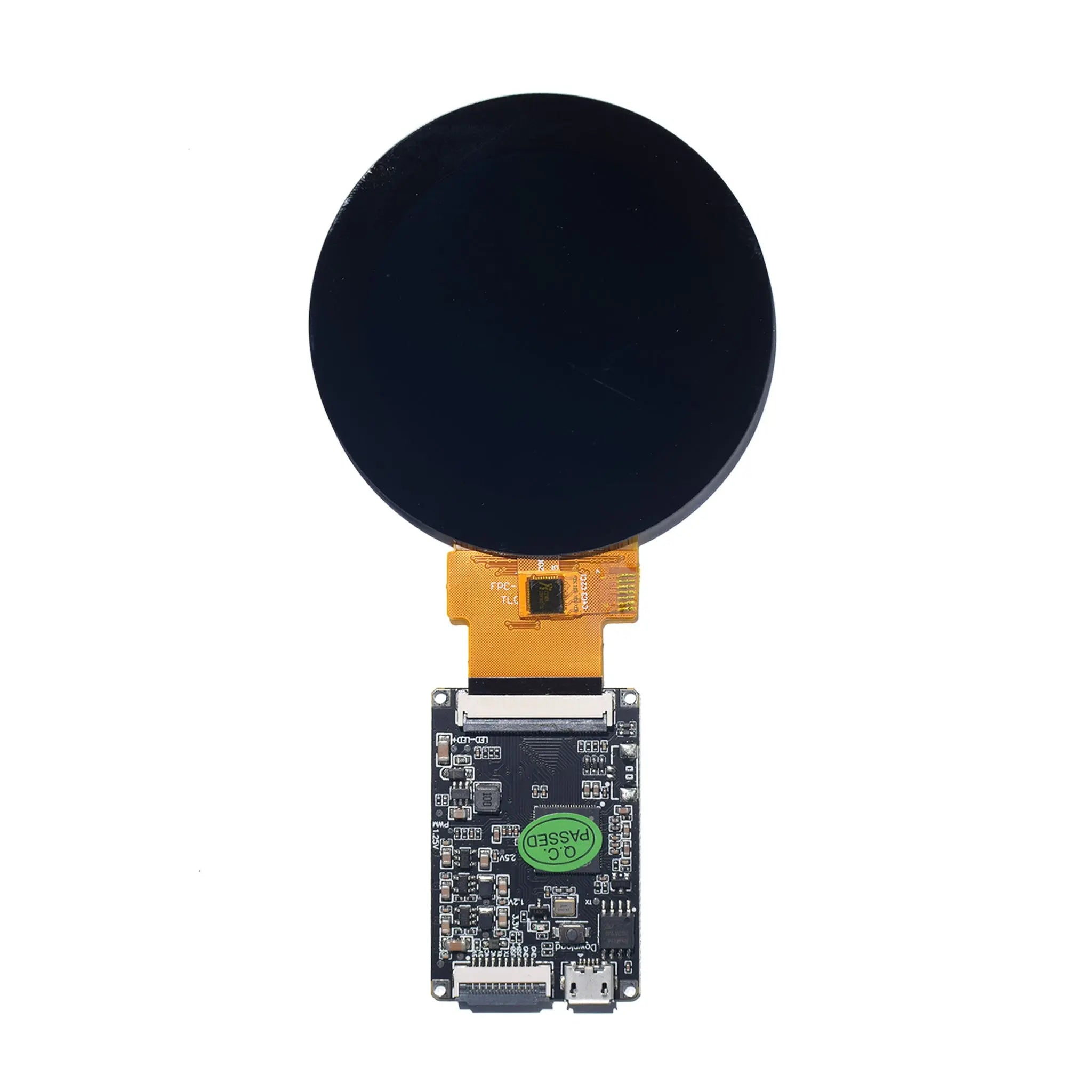

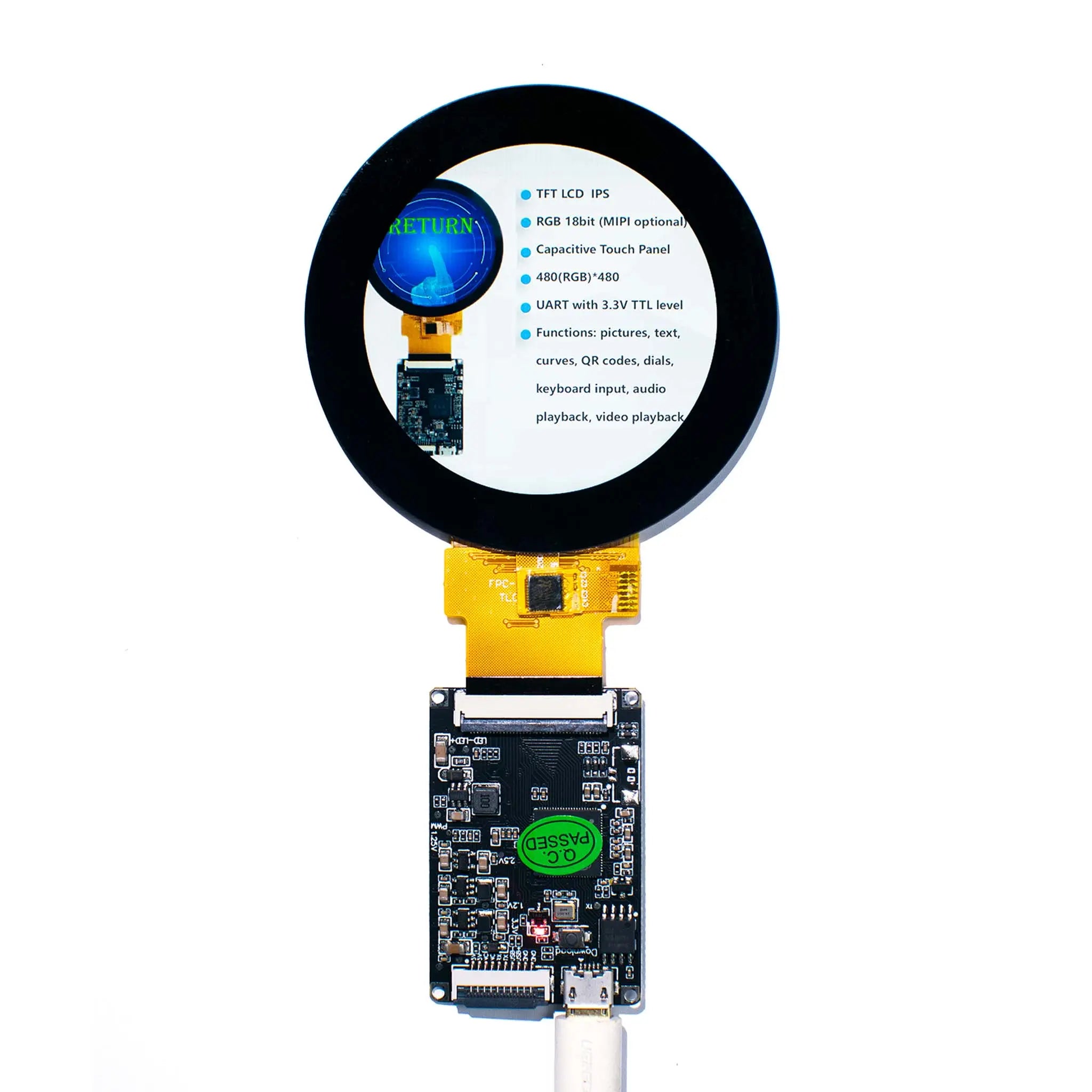

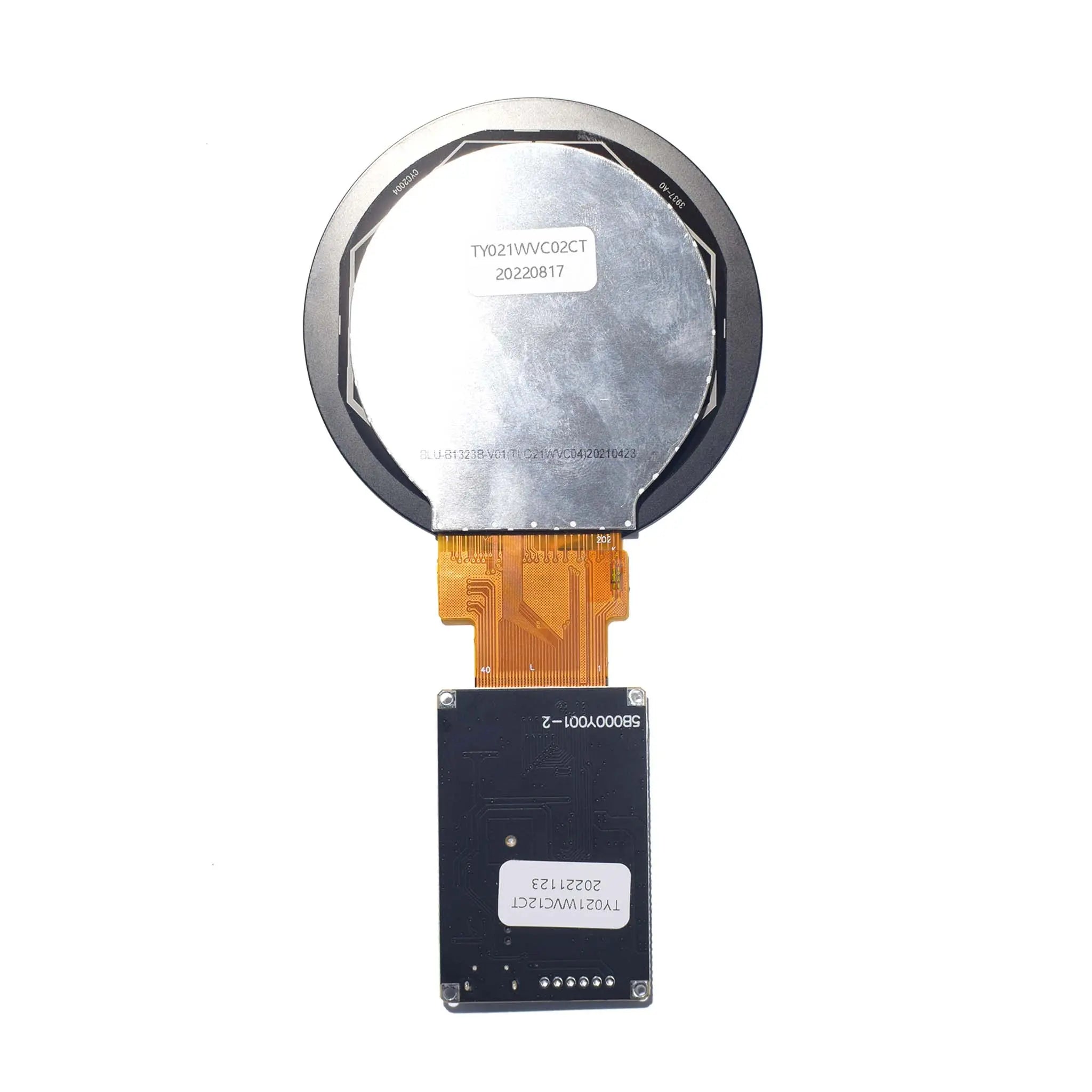

2.1" Round TFT Display 480x480 Capacitive
This premium 2.1-inch round TFT display delivers exceptional visual clarity with its 480×480 resolution and capacitive touch interface. Featuring all-direction viewing angles and high brightness up to 350 cd/m², it's engineered for demanding applications where space is limited but performance can't be compromised.
Powered by the advanced ST7701S driver IC, this display supports multiple interfaces including RGB, MIPI, and SPI. With its compact dimensions of 48×32.2×3.2mm and circular viewing area of 26.64mm diameter, it's designed for seamless integration into space-constrained devices.
- Multi-Interface Support: Flexible connectivity options including RGB, MIPI DSI, and SPI interfaces for diverse system integration.
- High Pixel Density: At 480×480 resolution on a 2.1" screen, it delivers 340 PPI for crisp text and detailed graphics.
- Optimized Power Consumption: Sleep mode draws as low as 5μA, extending battery life in portable applications.
- Robust Temperature Range: Operational from -20°C to 60°C, suitable for industrial and outdoor environments.
| Parameter | Specification |
|---|---|
| Diagonal Dimension | 2.1 inch |
| Resolution | 480 × 480 pixels |
| Viewing Direction | All-direction |
| Touch Mode | Capacitive |
| Module Dimensions | 48 × 32.2 × 3.2 mm |
| Viewing Area | 26.64 × 26.64 mm |
| Supply Voltage | 5.0 V |
| Luminance | 350 cd/m² |
| Driver IC | ST7701S |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
We provide tailored display solutions for businesses requiring specialized configurations or volume deployments.
- Custom Integration: Modify display parameters, interface options, or mechanical design to match your product requirements.
- Volume Discounts: Competitive pricing for bulk orders with MOQ starting at 500 units.
- Technical Support: Dedicated engineering assistance for integration challenges and performance optimization.
Ideal for smartwatches and fitness trackers where circular displays provide premium aesthetics and intuitive interfaces.
Robust solution for control panels in manufacturing equipment, with capacitive touch for glove-compatible operation.
Compact display for portable diagnostic equipment, featuring high brightness for visibility in clinical environments.
Design Documentation: Access detailed mechanical drawings and electrical specifications for seamless integration.
Resources:
Mechanical Dimensions
The following diagrams provide detailed measurements for enclosure and mechanical design integration.
