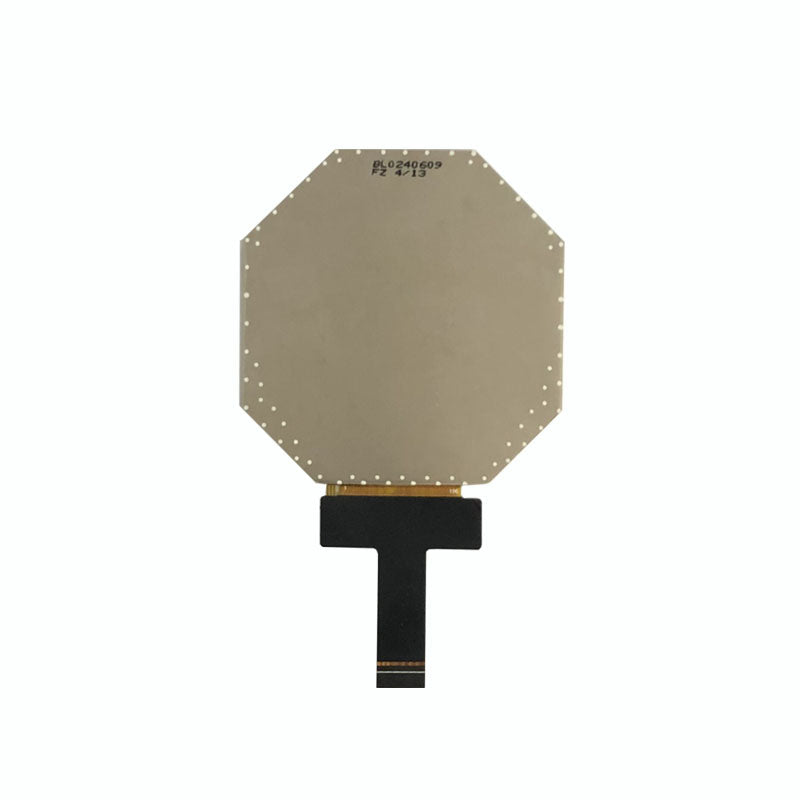

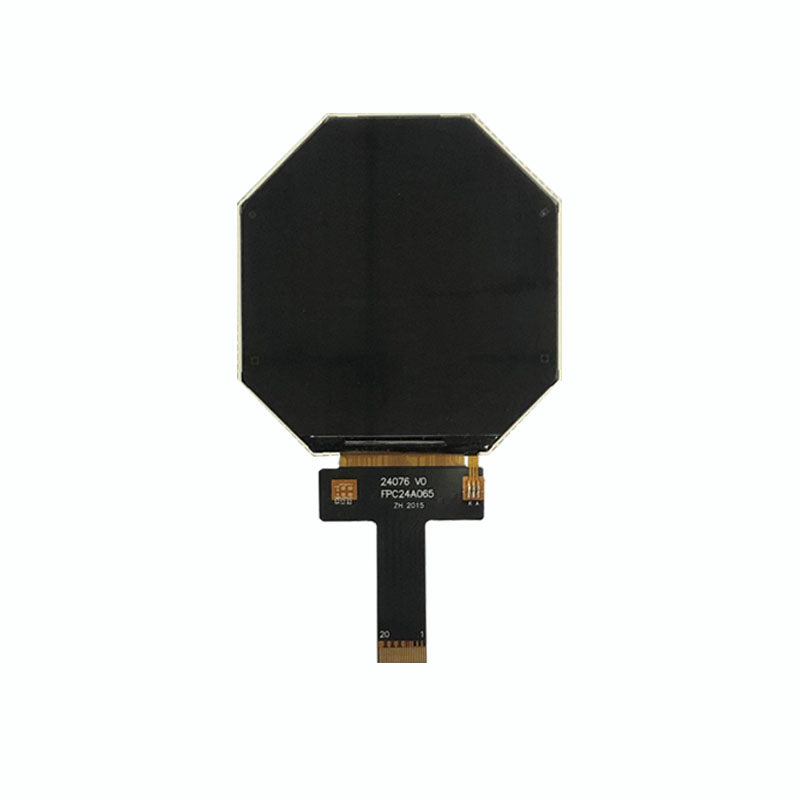

2.4" Round IPS High Brightness Display 480x480 Octagon - MIPI
Engineered for high-visibility applications, this 2.4-inch circular IPS display delivers 480×480 resolution with 430 cd/m² brightness, equivalent to smartphone screen clarity in sunlight. The octagonal pixel arrangement maximizes active area utilization while maintaining perfect circular symmetry.
Featuring ST7701S drive IC with integrated power management, the display operates at 3.3V with wide temperature tolerance (-10°C to 60°C). The borderless design enables seamless integration into circular housings for instrumentation and wearable devices.
- Free Viewing Direction: IPS technology maintains color accuracy at 178° viewing angles without gamma shift.
- MIPI Efficiency: 2-lane interface reduces wiring complexity while supporting 60fps refresh rate for smooth animation.
- High Contrast Ratio: 1000:1 typical contrast delivers deep blacks and vibrant colors in outdoor conditions.
- Circular Optimization: Octagonal subpixel layout eliminates moiré patterns in radial graphics rendering.
| Parameter | Specification |
|---|---|
| Diagonal Size | 2.4 inch |
| Resolution | 480 × 480 pixels |
| View Direction | Free |
| Touch Mode | None |
| Module Dimensions | 69.19 × 71.74 × 2.5 mm |
| Active Area | 62.64 × 62.64 mm |
| Supply Voltage | 3.3 V |
| Interface | 2-lane MIPI DSI |
| Luminance | 430 cd/m² |
| Drive IC | ST7701S |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -30°C to +70°C |
We provide customized display solutions for OEM/ODM partners with volume production capabilities and technical support.
- Custom Overlays: Anti-glare, anti-fingerprint, and privacy filters tailored to application requirements.
- Volume Pricing: Tiered discounts for orders exceeding 1000 units with flexible payment terms.
- Technical Integration Support: Schematic review and driver optimization for ST7701S controller integration.
Smartwatches and fitness trackers requiring circular high-brightness displays with low power consumption (3.3V operation).
Control panels and instrumentation needing sunlight-readable displays with wide temperature tolerance (-10°C to 60°C).
Portable diagnostic equipment benefiting from 430 cd/m² brightness and flicker-free MIPI interface.
Direct compatibility with ARM Cortex-M series processors and popular SoCs through 2-lane MIPI DSI interface. Supported platforms include:
- Processor Compatibility: Qualcomm Snapdragon, MediaTek Helio, NXP i.MX series with MIPI DSI output.
- Operating Systems: Android, Linux, and RTOS environments with standard display drivers.
- Interface Support: Compatible with MIPI DSI v1.2 specification at 1.5Gbps per lane.
Documentation: Complete technical specifications and integration guidelines available for download.
Resources: Display Datasheet | ST7701S Controller Documentation
Note: Display performance optimized for 60Hz refresh rate at 480×480 resolution. MIPI interface requires differential pair routing with 100Ω characteristic impedance.
